Hyundai i30 Transmission Fluid Guide

The transmission fluid in your Hyundai i30 is a critical, yet often overlooked, component that ensures your vehicle's gearbox operates smoothly, efficiently, and quietly. Think of it as the lifeblood of your transmission, a specially formulated lubricant designed to handle extreme pressures and temperatures. Without the correct type and level of transmission fluid, your i30's ability to change gears, transfer power to the wheels, and ultimately move you from A to B would be severely compromised. This article will delve deep into the world of transmission fluid for the Hyundai i30, covering what it is, how it functions, when it needs changing, and how to ensure your transmission remains in tip-top condition.

What Exactly is Transmission Fluid?

Transmission fluid, often referred to as Automatic Transmission Fluid (ATF) for automatic gearboxes and manual transmission oil for manual ones, is a specialised hydraulic fluid. Its primary role is to lubricate the intricate moving parts within the transmission. However, its responsibilities extend far beyond simple lubrication. It also acts as a coolant, a cleaning agent, and a crucial element in the hydraulic systems that control gear changes in automatic transmissions. The specific formulation varies depending on whether your i30 is equipped with an automatic, manual, or a Dual Clutch Transmission (DCT).

How Does Transmission Fluid Work in Your i30?

The transmission is a complex mechanical assembly located adjacent to the engine. Inside, numerous gears, shafts, and clutches rotate at high speeds, generating significant heat and friction. The transmission fluid is circulated throughout this system, performing several vital functions:

• Lubrication: It forms a thin, protective film between metal components, drastically reducing friction and wear. This film prevents direct metal-to-metal contact, which is essential for the longevity of parts like gears and bearings.
• Cooling: As components work together, they generate a considerable amount of heat. The transmission fluid absorbs this heat and carries it away, helping to prevent overheating and potential damage to seals and other sensitive parts.
• Cleaning: The fluid picks up microscopic metal particles that shed from gears and other moving parts due to normal wear. It then carries these particles to the filter (if present), preventing them from circulating and causing further damage.
• Hydraulic Action (Automatics & DCTs): In automatic transmissions and DCTs, the fluid is also pressurised by a pump to actuate clutches and bands, which engage and disengage different gear sets, enabling smooth gear changes.

Essentially, the transmission fluid ensures that the high-speed, high-force environment within your i30's gearbox operates smoothly, quietly, and without premature wear. Investing in the correct transmission fluid and maintaining its condition is significantly more cost-effective than repairing or replacing worn-out transmission components.

When Should You Change the Transmission Fluid in Your i30?

The frequency of transmission fluid changes depends heavily on the type of transmission your Hyundai i30 has and the driving conditions it experiences. Hyundai typically provides recommended service intervals in the owner's manual, which should always be your primary reference. However, here are general guidelines:

Automatic Transmissions

For a standard automatic transmission in an i30, a general recommendation is to change the transmission fluid every 25,000 to 30,000 miles. This interval is designed for typical driving conditions. Regular fluid changes help maintain the fluid's lubricating and hydraulic properties, preventing sludge build-up and ensuring optimal performance.

Manual Transmissions

Manual transmissions are generally more robust and have longer service intervals for their fluid. A common recommendation for manual transmission fluid changes in an i30 is approximately every 60,000 miles. However, it's crucial to check the fluid level and condition periodically.

Dual Clutch Transmissions (DCT)

Hyundai's DCT is a sophisticated system. Under normal driving conditions, the DCT oil is often considered a 'lifetime' fluid, meaning it's not scheduled for regular changes. However, Hyundai specifies that under harsh driving conditions, the DCT oil must be changed every 80,000 miles. It is vital to understand what constitutes 'harsh driving conditions' to protect your DCT:

Harsh Driving Conditions include:

• Frequent driving on rough roads (bumpy, gravel, snow, unpaved surfaces).
• Frequent driving on mountain roads, involving significant ascents and descents.
• Commercial use, such as driving for patrol, taxi services, or extensive commercial deliveries.
• Towing a trailer or carrying heavy loads on a roof rack (e.g., campers).
• Frequent driving at high speeds, especially consistently over 170 km/h (approx. 105 mph).
• More than 50% of driving in heavy city traffic during hot weather, particularly when ambient temperatures exceed 32°C (90°F).
• Driving in areas where roads are treated with salt or other corrosive materials, or driving in extremely cold weather conditions.

Additionally, manual transmission oil should be changed any time the transmission has been submerged in water. Water contamination can quickly degrade the lubricant and lead to severe internal corrosion and damage.

Checking Your Transmission Fluid

Checking the transmission fluid level and condition is a vital part of routine maintenance. The procedure can vary slightly depending on whether you have an automatic or manual gearbox.

Automatic Transmission Fluid Check:

1. Ensure the engine is warm and running.
2. Park the vehicle on a level surface.
3. Shift the gear selector through all positions (P, R, N, D, etc.), pausing for a few seconds in each, and finally return it to 'Park' (P).
4. Locate the transmission fluid dipstick (often marked with a red or yellow handle and labelled 'ATF' or similar).
5. Remove the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, and remove it again.
6. Check the fluid level against the markings on the dipstick ('HOT' and 'COLD' or 'MIN' and 'MAX'). The level should be within the correct range when the engine is warm and running.

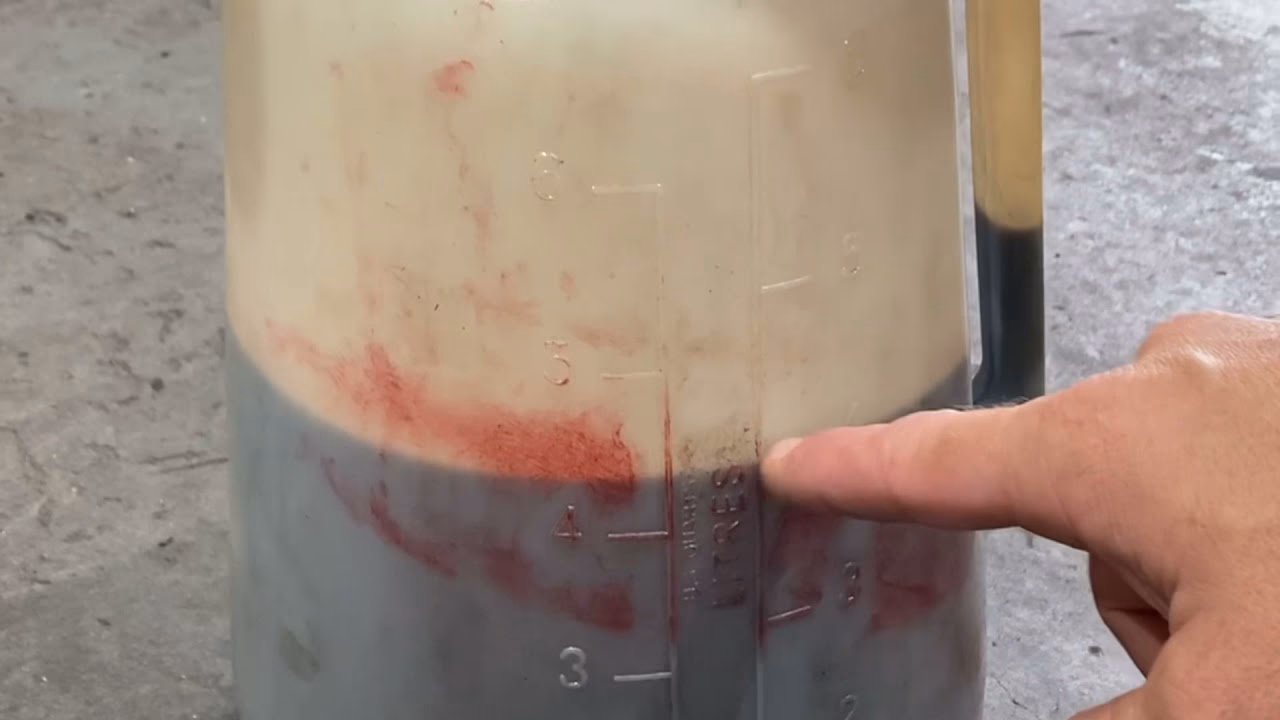

7. Inspect the fluid's condition. Healthy ATF is typically bright red and translucent. If it appears dark brown, burnt, or has a gritty texture, it's likely time for a change. A burnt smell also indicates the fluid is degraded and potentially overheating the transmission.

Manual Transmission Fluid Check:

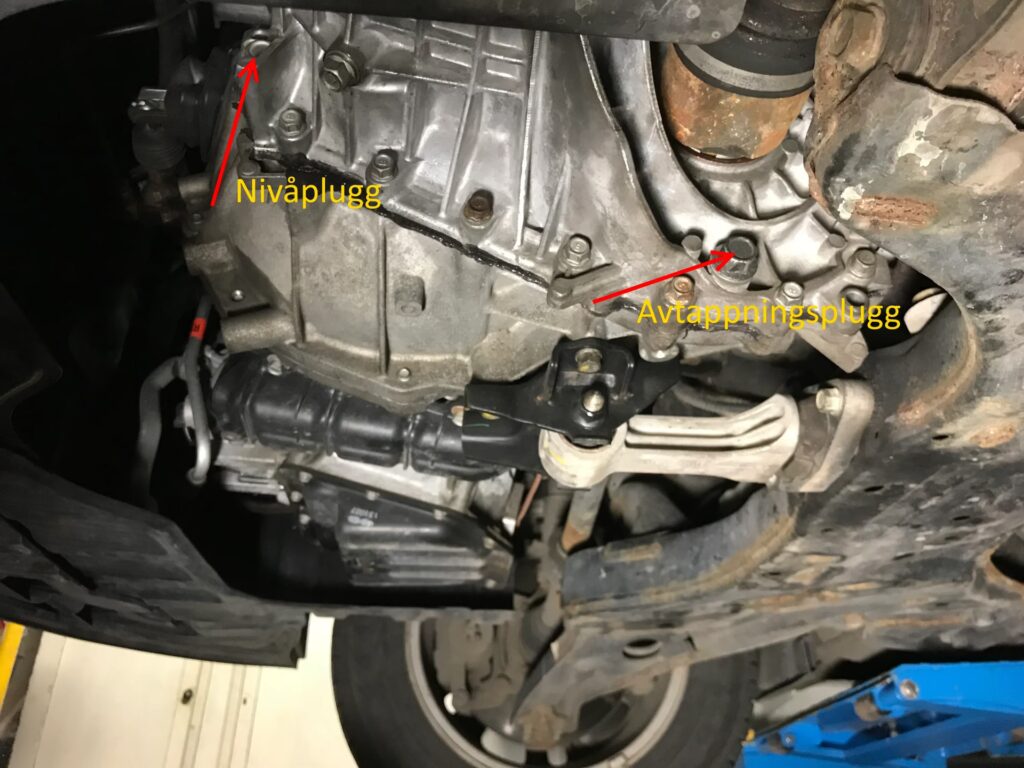

Manual transmissions often don't have a dipstick. Instead, checking the fluid level involves locating a fill plug on the side of the transmission casing. The correct procedure usually involves removing this plug and checking if the fluid level reaches the bottom of the plug hole. If the level is low, fluid is added through the fill plug until it starts to overflow. This is often best left to a qualified mechanic.

Choosing the Right Transmission Fluid

Using the correct type of transmission fluid is paramount. Hyundai specifies particular fluids for different transmissions to ensure proper operation and longevity. Using the wrong fluid can lead to shifting problems, increased wear, and potentially catastrophic transmission failure. Always consult your Hyundai i30's owner's manual or a trusted dealership or mechanic to determine the exact specification of transmission fluid required for your specific model and year.

Key considerations when selecting fluid:

• Automatic Transmission Fluid (ATF): Look for fluids that meet Hyundai's specific ATF specifications (e.g., SP-III, SP-IV, or the latest specification recommended for your i30).
• Manual Transmission Oil: These typically require specific gear oils, often GL-4 or GL-5 rated, with the correct viscosity (e.g., 75W-90).
• DCT Fluid: DCTs require highly specialised fluids that meet very precise performance criteria. Using anything other than the manufacturer-specified DCT fluid can cause severe damage.

The Importance of Regular Fluid Changes

Transmission fluid degrades over time due to heat, contamination, and shear forces. As it breaks down, its ability to lubricate, cool, and protect the transmission diminishes. Regular fluid changes are a preventative maintenance measure that:

• Prevents Wear: Maintains the protective film, reducing friction and wear on gears, bearings, and seals.
• Ensures Smooth Shifting: Keeps hydraulic systems (in automatics/DCTs) clean and functioning correctly, leading to smoother gear changes.
• Prevents Overheating: Replaces fluid that has lost its cooling efficiency.
• Avoids Costly Repairs: It's far cheaper to replace transmission fluid than to rebuild or replace a damaged transmission.

Frequently Asked Questions (FAQs)

Q1: Can I use generic transmission fluid in my Hyundai i30?

A1: It is strongly advised against using generic transmission fluid. Hyundai specifies particular fluid types and specifications to ensure compatibility and optimal performance. Using the wrong fluid can cause significant damage.

Q2: How do I know if my transmission fluid needs changing?

A2: Check your owner's manual for the recommended interval. Additionally, if the fluid appears dark brown, smells burnt, or you experience rough shifting or slipping gears, it's a strong indicator that a fluid change is needed.

Q3: Is changing transmission fluid a DIY job?

A3: For automatic transmissions, checking the level can be done by a DIYer, but a full fluid change (especially a flush) is often best left to professionals who have the correct equipment. Manual transmission fluid changes are more straightforward but still require care. DCT fluid changes should ideally be performed by a qualified technician.

Q4: What is the difference between transmission fluid and engine oil?

A4: Engine oil lubricates the engine's internal components, while transmission fluid lubricates and facilitates the operation of the gearbox. They have different formulations and purposes.

Q5: My i30 is a DCT. Do I really need to change the fluid?

A5: Yes, especially if you drive under the 'harsh driving conditions' listed previously. While often considered 'lifetime' for normal use, adhering to the 80,000-mile interval under severe conditions is crucial for the longevity of the DCT.

By understanding the importance of transmission fluid and adhering to the recommended maintenance schedule, you can ensure your Hyundai i30's transmission remains a reliable and smooth-operating part of your vehicle for many miles to come.
