Hyundai i10 Brake Pad Replacement Guide

Replacing your brake pads is a fundamental aspect of vehicle maintenance, ensuring your Hyundai i10 stops safely and effectively. While it might seem like a daunting task to the uninitiated, with the right guidance and tools, it's a perfectly achievable DIY project. This guide will walk you through the process of removing old brake pads on a Hyundai i10, covering everything from preparation to the actual removal, and offering essential tips along the way. Understanding the mechanics involved and taking the necessary precautions will not only save you money but also give you the confidence that your vehicle is in good working order.

Essential Tools and Preparation

Before you even think about touching your Hyundai i10's brakes, gathering the correct tools and preparing your workspace is paramount. Safety should always be your top priority. Here’s a list of what you’ll likely need:

• Jack and Jack Stands: Never rely solely on a jack. Jack stands provide crucial stability.
• Lug Wrench: To remove the wheel nuts.
• Socket Set and Ratchet: You’ll need specific socket sizes for the caliper bolts.
• C-Clamp or Brake Caliper Press: To retract the caliper piston.
• Pry Bar or Flathead Screwdriver: For gently levering the old pads out.
• Wire Brush: For cleaning the caliper bracket.
• Brake Cleaner: To clean components.
• Gloves and Safety Glasses: Protect yourself from brake dust and grime.
• Wheel Chocks: To prevent the car from rolling.
• Torque Wrench: For re-tightening bolts to the correct specifications.
• New Brake Pads: Ensure they are the correct type for your Hyundai i10.
• Brake Lubricant: For lubricating moving parts of the caliper.

Preparation Steps:

1. Park on a Level Surface: Ensure your Hyundai i10 is on a flat, stable ground.
2. Engage Parking Brake: Apply the parking brake firmly.
3. Chock the Wheels: Place wheel chocks behind the wheels on the opposite axle to prevent any movement.
4. Loosen Lug Nuts: Before jacking up the car, use the lug wrench to slightly loosen the lug nuts on the wheel you'll be working on. Just a quarter to half a turn is sufficient.

Removing the Wheel

With the preparation complete, the next step is to safely raise the vehicle and remove the wheel. This gives you access to the brake assembly.

1. Position the Jack: Consult your Hyundai i10's owner's manual for the correct jacking points.
2. Raise the Vehicle: Use the jack to lift the car until the wheel is off the ground.
3. Place Jack Stands: Position the jack stands securely under the vehicle's frame or designated support points. Slowly lower the vehicle onto the jack stands.
4. Remove Lug Nuts: Fully unscrew the lug nuts and remove them. Keep them in a safe place.
5. Remove the Wheel: Grip the tyre firmly and pull the wheel straight towards you. It might be a little stuck due to rust; a gentle kick to the sidewall of the tyre can help loosen it.

Accessing and Removing the Brake Pads

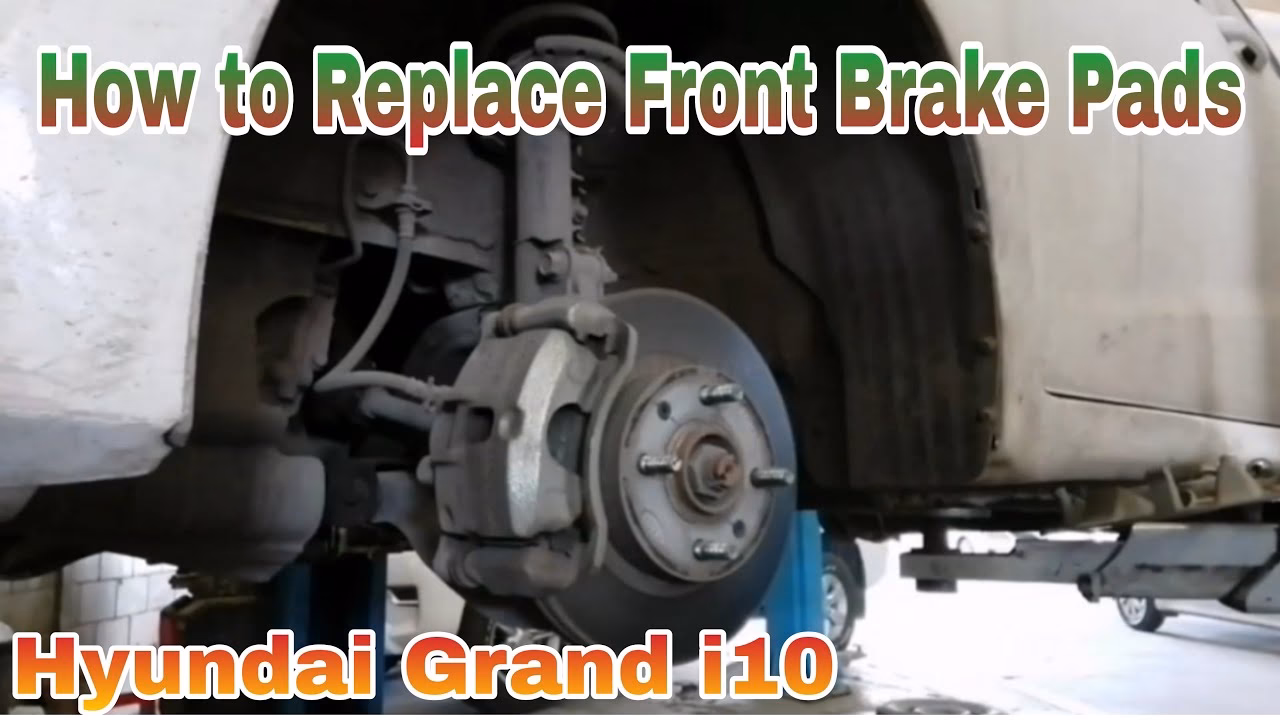

Now that the wheel is off, you can see the brake caliper, rotor, and the brake pads. The process for removing the pads typically involves the caliper.

Understanding the Brake Caliper

The brake caliper is the component that houses the brake pads and the piston. It clamps down onto the brake rotor when you apply the brakes. To replace the pads, you'll need to either remove the caliper entirely or at least pivot it upwards to gain access.

Locating the Caliper Bolts

Most brake calipers are held in place by two bolts, often referred to as caliper slide pins or guide pins. These are usually located on the back of the caliper assembly. You might need to remove a dust cover to access them. For your Hyundai i10, these bolts are typically of a specific size, so having your socket set ready is crucial.

Removing the Caliper Bolts

Using the appropriate socket and ratchet, loosen and remove the caliper bolts. You might find that one bolt is easier to access than the other. It's a good idea to have a small container to keep these bolts safe, as they are vital for reassembly.

Pivoting or Removing the Caliper

Once the caliper bolts are out, you can often pivot the caliper upwards, allowing you to slide the old brake pads out. If the caliper doesn't pivot easily, you might need to remove it completely. If you remove it entirely, you'll need to support its weight to avoid damaging the brake hose. A piece of wire or a bungee cord can be used to hang the caliper from the suspension. Never let the caliper hang by the brake hose, as this can damage the hose and lead to brake failure.

Retracting the Caliper Piston

Before you can fit the new, thicker brake pads, you'll need to push the caliper piston back into its housing. This is where the C-clamp or brake caliper press comes in handy. Place the old brake pad against the piston to provide a flat surface and then use the clamp to slowly and steadily push the piston back. You might notice the brake fluid level in the reservoir rising; this is normal. If it seems too stiff, ensure there are no obstructions and that the piston is moving squarely. Sometimes, on certain vehicles, a special tool is required to screw the piston back in, but for many modern cars like the i10, a simple push is sufficient.

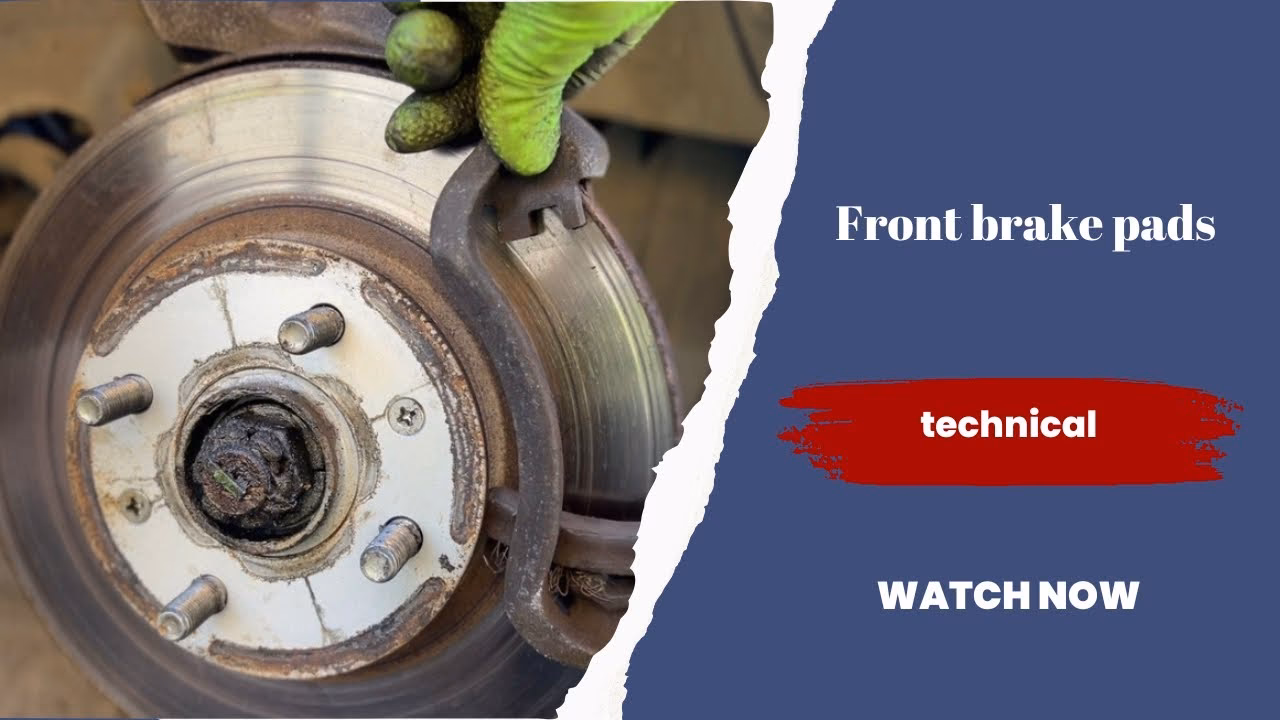

Removing the Old Brake Pads

With the caliper out of the way and the piston retracted, the old brake pads should now be accessible. They are usually held in place by clips or simply rest in the caliper bracket. You might need to use a pry bar or a flathead screwdriver to gently lever them out. Be careful not to force them, as this could damage the caliper or bracket. They might be a bit stubborn due to rust or brake dust buildup.

Cleaning and Inspection

Once the old pads are out, take the opportunity to clean the caliper bracket with a wire brush and brake cleaner. Inspect the bracket for any signs of damage or excessive wear. Also, check the condition of the brake rotor. If it's scored, warped, or has a significant lip on the edge, it may need to be replaced or resurfaced. Inspect the caliper slide pins for wear and ensure they move freely; lubricate them with brake lubricant if necessary.

Table: Common Brake Pad Issues and Their Causes

Frequently Asked Questions (FAQs)

Q1: How often should I replace brake pads on my Hyundai i10?

A1: The lifespan of brake pads varies greatly depending on driving habits, road conditions, and the quality of the pads. A general guideline is to inspect them every 10,000-15,000 miles and replace them when they reach a thickness of about 3mm or less. Many pads have a wear indicator that will start to squeal when they need replacing.

Q2: Can I replace just the brake pads, or do I need to replace the rotors too?

A2: It's often recommended to replace or resurface your brake rotors when you replace your brake pads, especially if the rotors show signs of wear, such as scoring, warping, or a significant lip. This ensures optimal braking performance and longevity of the new pads.

Q3: What is brake fade?

A3: Brake fade is a temporary reduction in the braking system's effectiveness caused by overheating. When brakes overheat, the friction material on the pads can become glazed, and the brake fluid can boil, both of which reduce stopping power. It's often experienced during prolonged downhill braking.

Q4: Do I need to bleed the brakes after replacing the pads?

A4: Generally, you do not need to bleed the brakes when simply replacing the brake pads, as long as you don't open the brake line. Pushing the piston back in will displace fluid back into the reservoir. However, if you suspect air in the lines or if you've had to disconnect a brake line, then bleeding the brakes is necessary.

Q5: What kind of brake pads should I buy for my Hyundai i10?

A5: There are various types of brake pads available, including organic, semi-metallic, and ceramic. Organic pads are quieter and cheaper but wear faster. Semi-metallic pads offer good performance but can be dusty and noisy. Ceramic pads are quieter, cleaner, and offer good longevity and performance. It's best to choose pads that match your driving needs and consult your owner's manual or a reputable auto parts store for recommendations specific to your Hyundai i10 model.

Conclusion

Removing old brake pads on your Hyundai i10 is a manageable task that, when done correctly, can significantly contribute to your vehicle's safety and your peace of mind. By gathering the right tools, following these steps carefully, and paying attention to safety precautions, you can successfully complete this essential maintenance. Remember to always refer to your Hyundai i10's owner's manual for specific details and torque specifications. If at any point you feel unsure or uncomfortable, it's always best to seek assistance from a qualified mechanic. Safe driving starts with properly maintained brakes!
