Hyundai i40 Tourer Rear Brake Pad Replacement: A Comprehensive Guide

The Hyundai i40 Tourer is a popular choice for families and those needing versatile cargo space. Like any vehicle, its braking system requires regular maintenance to ensure optimal safety and performance. One of the most common maintenance tasks is replacing the rear brake pads. While it might seem daunting, with the right knowledge and tools, it's a manageable DIY job for many car enthusiasts. This guide will walk you through the process, from understanding what you need to the final checks, ensuring your i40 Tourer stops as effectively as it should.

Why Replace Your Rear Brake Pads?

Brake pads are wear items, designed to be replaced periodically. They work by pressing against the brake discs (rotors) to create friction, slowing your vehicle down. Over time, this friction wears away the pad material. Several signs indicate it's time for a replacement:

• Squealing or Grinding Noises: Often, worn pads have a built-in wear indicator that produces a high-pitched squeal when the pads are low. A grinding noise can indicate that the pad material has completely worn away, and the metal backing plate is grinding against the disc, which can cause significant damage.
• Reduced Braking Performance: If you notice your car taking longer to stop or requiring more pressure on the brake pedal, your pads may be worn.
• Brake Warning Light: Some vehicles have sensors that illuminate a warning light on the dashboard when brake pads are critically low.
• Vibrations: While often associated with warped rotors, severe pad wear can sometimes contribute to vibrations felt through the brake pedal.

What You'll Need: Essential Tools and Parts

Before you begin, gather all the necessary tools and parts. Having everything ready will make the job smoother and safer. For a Hyundai i40 Tourer rear brake pad replacement, you'll typically need:

Step-by-Step Replacement Process

Follow these steps carefully to replace the rear brake pads on your Hyundai i40 Tourer:

Step 1: Prepare the Vehicle

Park your i40 Tourer on a flat, level surface. Engage the parking brake firmly. If working on the rear wheels, it's advisable to loosen the lug nuts on the wheel you'll be removing before jacking up the car. This prevents the wheel from spinning. You might also want to place wheel chocks behind the front wheels for extra safety.

Step 2: Lift and Secure the Vehicle

Locate the correct jacking point for the rear of your i40 Tourer (consult your owner's manual). Use the jack to lift the vehicle until the rear wheel is clear of the ground. Once lifted, place a jack stand securely under a strong point of the chassis or suspension, and carefully lower the vehicle onto the jack stand. Ensure the vehicle is stable before proceeding.

Step 3: Remove the Wheel

With the vehicle safely supported, fully remove the lug nuts and take off the rear wheel. Set it aside.

Step 4: Locate and Inspect the Brake Caliper

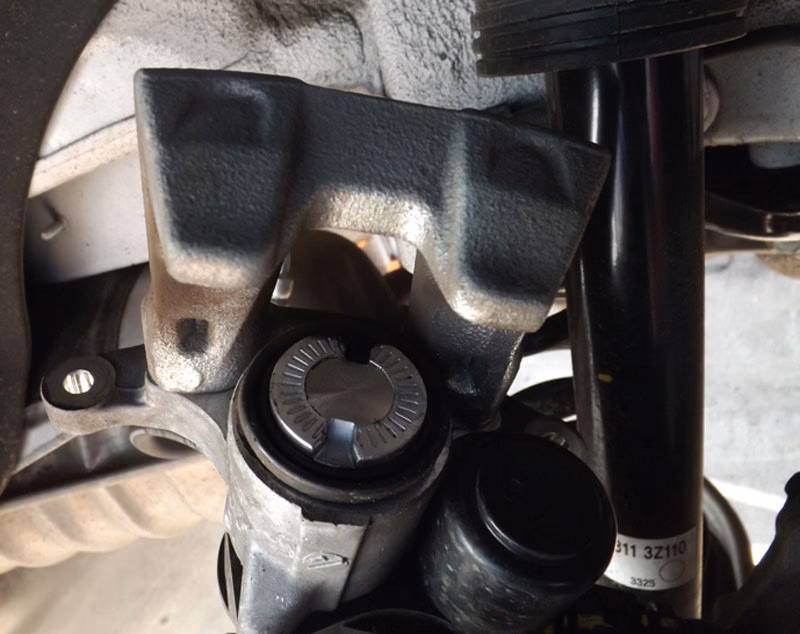

You will now see the brake caliper assembly mounted over the brake disc. The brake pads are housed within the caliper. You'll notice two bolts, often referred to as caliper bracket bolts or slider pin bolts, that hold the caliper in place. These are usually on the back side of the caliper.

Step 5: Remove the Caliper Bolts

Using the appropriate socket (likely 13mm or 14mm), loosen and remove the two caliper bolts. These bolts often have rubber boots covering them. Once the bolts are removed, you should be able to pivot the caliper upwards or remove it entirely. If it's difficult to move, there might be a retaining clip or the caliper might be seized. Gently try to pry it loose. It's often best to remove the caliper completely and let it hang by the brake line, or secure it with a piece of wire to the suspension to avoid putting stress on the brake hose.

Step 6: Remove the Old Brake Pads

With the caliper removed or swung out of the way, the old brake pads should now be accessible. They are typically held in place by small clips or simply slide into their slots. Carefully remove the old pads. Note their orientation, as the new pads will need to be installed in the same way. Pay attention to any shims or anti-squeal hardware that came with the old pads; these will often be reused or replaced with new ones supplied with your new pads.

Step 7: Compress the Caliper Piston

This is a crucial step. The new, thicker brake pads will not fit unless the caliper piston is pushed back into its housing. Use a C-clamp or a dedicated brake pad spreader tool. Place the tool against the piston and the back of the caliper, and slowly tighten it to push the piston back. As you do this, keep an eye on the brake fluid reservoir under the bonnet; it may rise as the fluid is pushed back. If it looks like it will overflow, you may need to remove some fluid with a turkey baster or syringe. Do not let the reservoir overflow, as brake fluid is corrosive.

Step 8: Clean and Lubricate

Use the wire brush to clean the caliper bracket where the brake pads sit. Remove any rust, dirt, or old brake dust. Clean the area thoroughly with brake cleaner spray. Apply a small amount of brake lubricant to the points where the new pads will slide within the caliper bracket, and also to the caliper slider pins if you removed them (ensure the rubber boots are intact and not torn). Do not get lubricant on the braking surface of the pads or the disc.

Step 9: Install the New Brake Pads

Place the new brake pads into the caliper bracket. Ensure they are seated correctly and that any anti-squeal shims or hardware are in place. The pads should fit snugly but not be forced.

Step 10: Reinstall the Caliper

Carefully reposition the brake caliper over the new pads and the brake disc. Reinsert the caliper bolts and tighten them. It's highly recommended to use a torque wrench to tighten these bolts to the manufacturer's specified torque. Consult your i40 Tourer's service manual for the exact torque setting. Reinstalling the caliper correctly is vital for brake system integrity.

Step 11: Reinstall the Wheel and Lower the Vehicle

Put the wheel back on the hub and hand-tighten the lug nuts. Lower the vehicle off the jack stand using the jack. Once the wheel is firmly on the ground, tighten the lug nuts securely using the lug wrench. For best practice, tighten them in a star pattern to ensure the wheel is seated evenly. Use the torque wrench to tighten the lug nuts to the manufacturer's specified torque.

Step 12: Repeat for the Other Side

Repeat the entire process for the other rear wheel. It's essential to replace brake pads in pairs on the same axle to ensure even braking.

Step 13: Final Checks and Bedding-In

Before driving, pump the brake pedal several times until it feels firm. This is to push the caliper piston back out and seat the new pads against the disc. Check the brake fluid level in the reservoir and top it up if necessary. Now, for the bedding-in process. This is crucial for the new pads and rotors to mate correctly, ensuring optimal braking performance and longevity. Drive the vehicle gently for the first few hundred miles. Avoid sudden, hard braking. Instead, perform several moderate stops from around 30-40 mph down to 10-15 mph. Allow a short cooling period between stops. This process helps to transfer a thin, even layer of pad material onto the disc surface, creating an optimal friction couple.

Common Pitfalls and Tips

Even with a guide, mistakes can happen. Here are some common pitfalls to avoid:

• Forcing Components: If a part doesn't seem to fit, don't force it. Recheck your steps or the alignment.
• Over-Lubrication: Too much brake lubricant can contaminate the pads and reduce braking effectiveness. Apply sparingly to the correct contact points.
• Ignoring the Brake Fluid: Always check and potentially adjust brake fluid levels. A low level could indicate a leak.
• Not Replacing in Pairs: Always replace brake pads on both sides of an axle simultaneously.
• Not Bedding-In Properly: Rushing the bedding-in process can lead to reduced performance, premature wear, and noise.
• Using the Wrong Parts: Always verify you have the correct brake pads for your Hyundai i40 Tourer.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my rear brake pads on a Hyundai i40 Tourer?
This depends heavily on your driving style and conditions. Typically, rear brake pads might last anywhere from 25,000 to 60,000 miles, but it's best to check them regularly during routine maintenance or when you notice any of the warning signs mentioned earlier.

Q2: Can I replace just the brake pads, or do I need to replace the discs too?
If your brake discs (rotors) are still within their service limits (not too thin, no significant scoring or warping), you can often just replace the pads. However, if the discs are worn, grooved, or warped, it's highly recommended to replace them along with the pads for optimal braking performance and to prevent premature wear on the new pads.

Q3: What torque setting should I use for the caliper bolts and lug nuts?
Torque specifications vary by vehicle model. For the Hyundai i40 Tourer, caliper bolt torque is typically around 20-30 Nm, and lug nut torque is usually around 110-130 Nm. Always consult your vehicle's owner's manual or a reliable service manual for the exact torque figures.

Q4: Is it safe to drive if my brake warning light is on?
No, it's not recommended. A brake warning light indicates a potential issue with your braking system, which could be low brake fluid, worn pads, or a more serious fault. It's best to have your vehicle inspected by a qualified mechanic immediately.

Q5: What is the difference between front and rear brake pads?
Front brake pads generally do more work than rear brake pads because most of a car's braking force is transferred to the front wheels under deceleration. As a result, front pads tend to wear out faster. The composition and size of front and rear pads can also differ.

Conclusion

Replacing the rear brake pads on your Hyundai i40 Tourer is a fundamental aspect of maintaining your vehicle's braking system. By following these detailed steps, using the correct tools, and paying attention to safety, you can confidently undertake this task. Regular checks and timely replacement of worn brake pads are crucial for ensuring your safety and the longevity of your vehicle's braking components. If at any point you feel unsure or uncomfortable, always seek assistance from a professional mechanic. Safe motoring!
