The braking system is arguably the most crucial safety feature of any vehicle, and your Hyundai i20 is no exception. It’s what allows you to control your speed, stop safely, and react to unexpected situations on the road. Understanding the various components that make up this complex system isn't just for mechanics; it empowers you as a car owner to recognise potential issues early, appreciate the importance of regular maintenance, and ensure your vehicle remains safe for you and others. In this comprehensive guide, we'll strip back the layers of your i20's braking system, detailing each vital part and explaining its role in bringing your car to a smooth, controlled halt.
The Core Components of Your Hyundai i20's Braking System
While the overall principle of braking involves converting kinetic energy into heat through friction, the process is orchestrated by a sophisticated network of parts working in perfect unison. Let's explore the individual elements that contribute to your i20's stopping power.
Wheel Cylinder
Found within drum brake systems (typically on the rear wheels of older or smaller vehicles, though disc brakes are more common now), the wheel cylinder plays a pivotal role in converting hydraulic pressure into mechanical force. When you press the brake pedal, the master cylinder sends pressurised brake fluid to the wheel cylinders. Inside each wheel cylinder, pistons are pushed outwards by this fluid, forcing the brake shoes against the inside of the brake drum. This friction slows down and stops the wheel. Leaks from a wheel cylinder can compromise braking effectiveness and are often indicated by a drop in brake fluid level or spongy pedal feel.
Brake Servo (Brake Booster)
The brake servo, also known as a brake booster, is a vacuum-assisted device designed to multiply the force you apply to the brake pedal. Without it, you'd need to press the pedal with immense effort to achieve adequate braking. It uses vacuum from the engine's intake manifold (or a dedicated vacuum pump) to assist the driver. When you press the pedal, a valve opens, allowing atmospheric pressure to enter one side of a diaphragm, while vacuum is applied to the other side. This pressure difference provides the 'boost'. A failing servo can result in a very stiff brake pedal and significantly increased stopping distances, posing a serious safety risk.
Brake Power Regulator (Proportioning Valve)
The brake power regulator, often referred to as a proportioning valve, is a critical component that balances the braking force between the front and rear wheels. Under heavy braking, weight shifts forward, meaning the front wheels need more braking power to avoid locking up, while the rear wheels are more prone to locking. The proportioning valve ensures that the rear brakes don't receive excessive pressure, preventing premature rear wheel lock-up and maintaining vehicle stability, especially during emergency stops. Some modern systems integrate this function electronically within the ABS module.
Brake Cable (Parking Brake Cable)
The brake cable, specifically the parking brake or handbrake cable, is a mechanical link that operates your vehicle's parking brake system. Unlike the primary hydraulic braking system, the parking brake is typically cable-operated, directly connecting the handbrake lever inside the cabin to the rear brake mechanisms (either calipers for disc brakes or shoes for drum brakes). When you engage the handbrake, the cable pulls a lever that applies the brakes, holding the car stationary. Over time, these cables can stretch, fray, or seize, leading to a loose handbrake lever or an inability to hold the vehicle on an incline.
Master Cylinder
The master cylinder is the heart of your Hyundai i20's hydraulic braking system. It's connected directly to the brake pedal and contains one or more pistons that move when the pedal is pressed. This movement pressurises the brake fluid, sending it through brake lines to the calipers (or wheel cylinders). Modern master cylinders are typically 'tandem' designs, meaning they have two separate circuits for safety. If one circuit fails, the other can still provide some braking ability. A spongy brake pedal, a pedal that sinks slowly to the floor, or a low brake fluid level can indicate a failing master cylinder.
Parking Brake Pads / Handbrake Pads
These are the friction materials specifically used for the parking brake system. In vehicles with rear disc brakes, the parking brake often uses a separate small set of brake shoes inside a 'mini-drum' integrated into the rear disc, or the main caliper itself is designed to accommodate the parking brake cable. In vehicles with rear drum brakes, the handbrake simply engages the existing brake shoes. While they don't experience the same wear as primary brake pads, they can still wear out, especially if the handbrake is frequently used to slow the vehicle or if it's left partially engaged.
ABS Accumulator / Brake Accumulator
In some ABS (Anti-lock Braking System) configurations, particularly those with a high-pressure pump, an ABS accumulator (or brake accumulator) stores pressurised brake fluid. This stored pressure is then used by the ABS pump to rapidly modulate brake line pressure during an ABS event (when a wheel is about to lock up). It ensures there's a ready supply of high-pressure fluid for quick and precise brake pulsing, which is key to the ABS system's ability to prevent wheel lock-up and maintain steering control during emergency braking. A fault in the accumulator can lead to ABS warning lights or compromised ABS function.
Brake Caliper Repair Kit & Caliper Bolt
The brake caliper is the component that houses the brake pads and pistons. When hydraulic pressure from the master cylinder reaches the caliper, the piston(s) push the brake pads against the brake disc, creating friction. A brake caliper repair kit typically includes new seals, boots, and sometimes pistons, allowing a worn or leaking caliper to be rebuilt rather than replaced entirely. Caliper bolts are crucial fasteners that secure the caliper to the wheel hub or mounting bracket. They must be torqued correctly and are often replaced during brake service to ensure proper alignment and safety.
Vacuum Pump
While many petrol engines generate sufficient vacuum for the brake servo from their intake manifold, diesel engines and some modern direct-injection petrol engines do not. In these cases, a dedicated vacuum pump is installed to create the necessary vacuum for the brake servo to function effectively. This pump ensures consistent brake assistance regardless of engine load or speed. A failing vacuum pump can lead to a hard brake pedal and reduced braking effectiveness, similar to a failing brake servo.
Brake Fluid
Brake fluid is the non-compressible hydraulic medium that transmits the force from your brake pedal to the calipers or wheel cylinders. It's specifically designed to operate under extreme temperatures and pressures without boiling or freezing. Over time, brake fluid absorbs moisture from the atmosphere, which lowers its boiling point and can lead to corrosion within the braking system. This is why regular brake fluid flushes are essential – typically every two years – to maintain optimal braking performance and longevity of components. Using the correct type of brake fluid (e.g., DOT3, DOT4, DOT5.1) specified for your Hyundai i20 is also crucial.
Understanding Brake System Interplay and Maintenance
The efficiency of your Hyundai i20's braking system relies on the seamless interaction of all these components. A fault in one part can have a ripple effect, compromising the entire system's performance. Regular inspection and timely maintenance are paramount for your safety and the longevity of your vehicle.
Key Brake System Components & Their Roles
| Component | Primary Function | Common Issue Signs |
|---|---|---|
| Wheel Cylinder | Converts hydraulic pressure to mechanical force in drum brakes. | Fluid leaks, spongy pedal. |
| Brake Servo | Boosts pedal force using engine vacuum. | Hard pedal, increased stopping distance. |
| Brake Power Regulator | Balances braking force between front and rear wheels. | Premature wheel lock-up, instability. |
| Brake Cable | Mechanically operates parking brake. | Loose handbrake, inability to hold vehicle. |
| Master Cylinder | Generates hydraulic pressure from pedal input. | Spongy pedal, pedal sinking to floor, low fluid. |
| Parking Brake Pads | Friction material for parking brake. | Handbrake not holding, grinding noises. |
| ABS Accumulator | Stores pressurised fluid for ABS modulation. | ABS warning light, compromised ABS function. |
| Brake Caliper Repair Kit | Seals and parts to rebuild a caliper. | Leaking fluid, uneven pad wear (if caliper faulty). |
| Vacuum Pump | Generates vacuum for brake servo (diesel/some petrol). | Hard pedal, reduced braking assistance. |
| Brake Fluid | Transmits hydraulic force. | Dark colour, low level, spongy pedal (due to moisture). |
General Brake Maintenance Tips for Your Hyundai i20
- Regular Inspections: Have your brakes inspected by a qualified mechanic at least once a year, or every 10,000 miles. They will check pad wear, rotor condition, fluid levels, and overall system integrity.
- Brake Fluid Flush: Replace your brake fluid according to Hyundai's recommendations, typically every two years. This prevents moisture contamination and maintains the fluid's boiling point.
- Listen for Warning Signs: Pay attention to any unusual noises (squealing, grinding), vibrations, or changes in pedal feel (spongy, hard, pulsating). These are often early indicators of a problem.

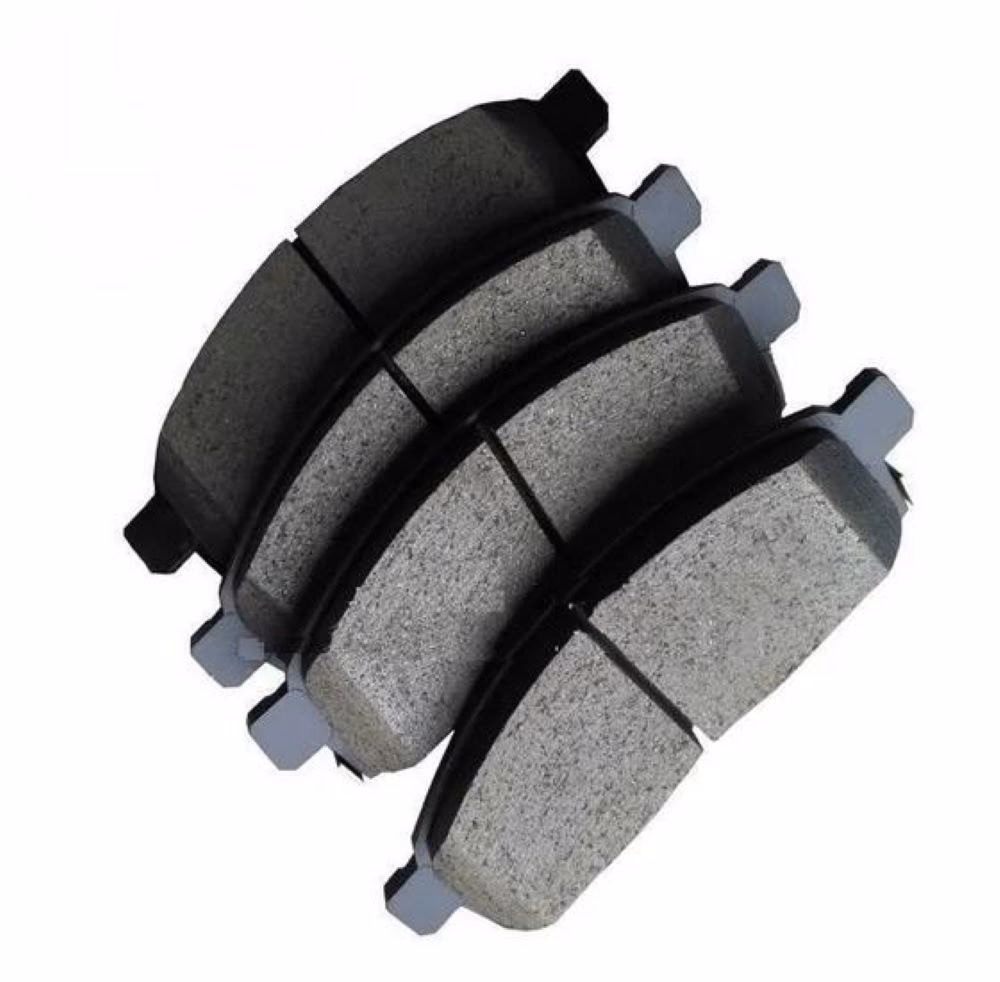

- Check Brake Pad Wear: Visually inspect your brake pads if possible, or have them checked during tyre rotations or servicing. Most pads have wear indicators that will make a squealing noise when they need replacing.
- Tyre Condition Matters: Remember that even the best brakes rely on good tyre grip. Ensure your tyres are in good condition and correctly inflated.
Frequently Asked Questions About Hyundai i20 Brakes
Q: How often should I replace my Hyundai i20's brake pads and discs?
A: The lifespan of brake pads and discs varies significantly depending on your driving style, road conditions, and the quality of the parts. Generally, brake pads might last anywhere from 20,000 to 70,000 miles. Discs typically last longer, often through two sets of pads, but can also wear out sooner. It's best to have them inspected regularly; a mechanic can measure their thickness and advise on replacement based on wear limits and visual condition.
Q: Why is my brake pedal feeling spongy or going to the floor?
A: A spongy brake pedal often indicates air in the brake lines, which can happen after a component replacement or if the fluid level gets too low. If the pedal slowly sinks to the floor, it's a strong indicator of an internal leak in the master cylinder. Both issues severely compromise braking effectiveness and require immediate professional attention.
Q: What does a grinding noise when braking mean?
A: A grinding noise usually means your brake pads are severely worn down, and the metal backing plates are rubbing against the brake discs. This causes significant damage to the discs and reduces braking efficiency. It requires immediate attention to avoid further damage and maintain safety.
Q: Is it normal for my ABS light to come on?
A: No, it is not normal for your ABS warning light to be illuminated during normal driving. If the ABS light comes on and stays on, it indicates a fault within the Anti-lock Braking System. While your regular brakes may still function, the ABS system itself will be deactivated, meaning you won't have the benefit of anti-lock braking during emergency stops. You should have the system diagnosed by a professional as soon as possible.
Q: Can I replace my Hyundai i20's brake fluid myself?
A: While technically possible for experienced DIYers, flushing brake fluid can be complex and requires proper bleeding techniques to ensure no air is left in the system. It's generally recommended to have this service performed by a qualified mechanic. Incorrect bleeding can lead to a dangerous spongy brake pedal and compromised braking performance.
In conclusion, the braking system of your Hyundai i20 is a marvel of engineering, designed to keep you safe on every journey. Each component, from the brake servo to the crucial brake fluid, plays a vital role in its overall effectiveness. By understanding these parts and committing to regular inspections and timely maintenance, you ensure that your i20 remains a reliable and safe vehicle, ready to stop confidently whenever you need it to.
