Hyundai 1.6L Alpha G4ED Engine Rebuild

Revitalising Your Hyundai 1.6L Alpha G4ED Engine: A Comprehensive Rebuild Kit Guide

The Hyundai 1.6L Alpha G4ED engine, found in a variety of popular Hyundai models, is known for its reliability and decent performance. However, like all engines, it can eventually succumb to wear and tear, necessitating a rebuild. Whether you're tackling a worn-out engine due to high mileage or a catastrophic failure, selecting the correct engine rebuild kit is paramount. This guide will delve into the specifics of what you should expect and look for in a quality rebuild kit for your G4ED engine, ensuring a successful and lasting repair.

Understanding the G4ED Engine

Before diving into the specifics of rebuild kits, it's beneficial to have a basic understanding of the 1.6L Alpha G4ED engine. This inline-four cylinder engine has been a staple in Hyundai's lineup for many years, powering vehicles such as the Hyundai Accent and Elantra. It's a relatively straightforward SOHC (Single Overhead Camshaft) or DOHC (Double Overhead Camshaft) engine, depending on the specific application and model year. Its simplicity makes it a popular choice for DIY enthusiasts looking to perform their own maintenance and repairs.

What is an Engine Rebuild Kit?

An engine rebuild kit, often referred to as an overhaul kit or a gasket set, is a collection of replacement parts designed to bring an engine back to its optimal working condition. These kits typically contain all the necessary gaskets, seals, and often common wear items that are replaced during a major engine overhaul. The goal is to replace components that have degraded due to age, heat, and friction, restoring the engine's compression, oil sealing, and overall performance.

Essential Components of a G4ED Rebuild Kit

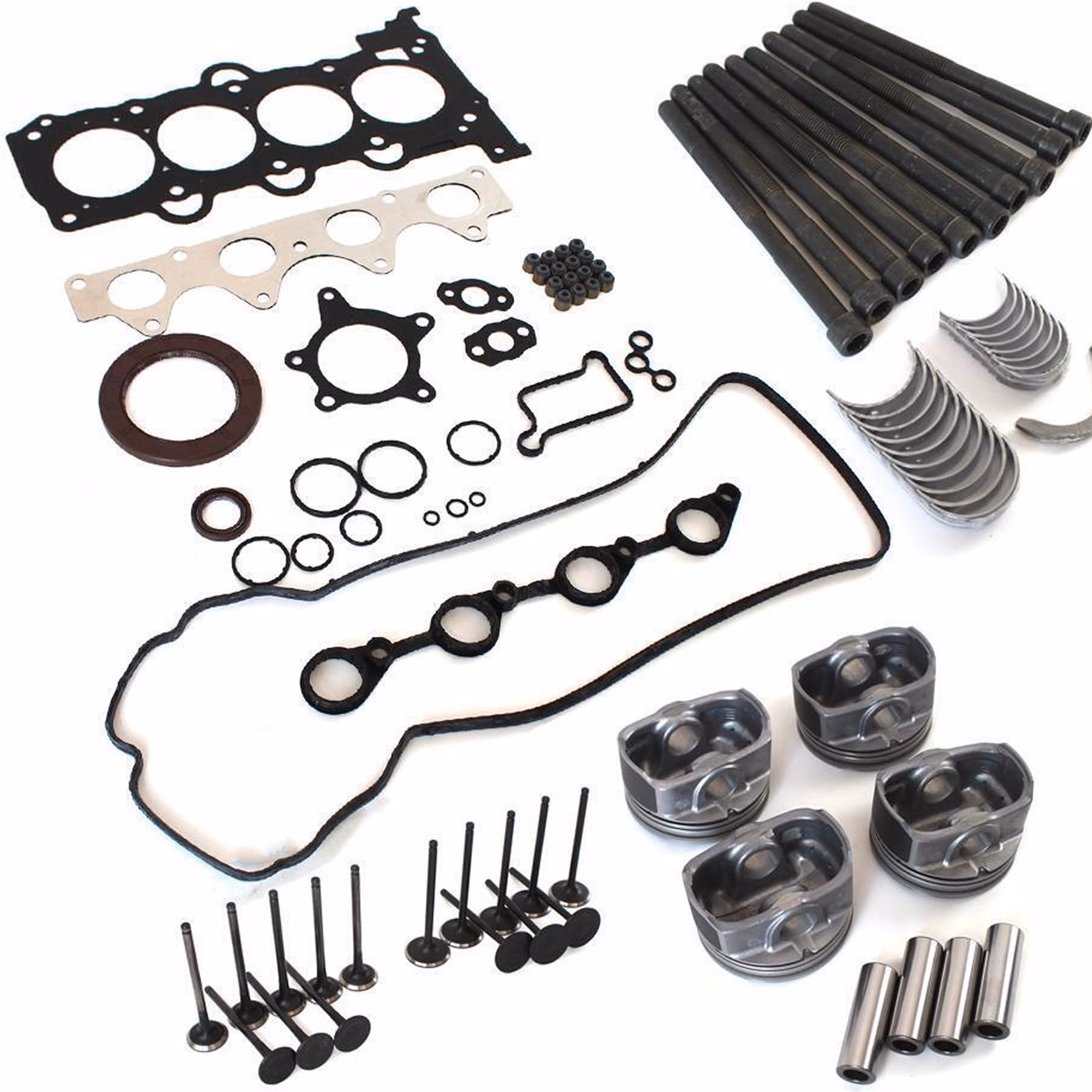

When sourcing a rebuild kit for your Hyundai 1.6L Alpha G4ED, you'll want to ensure it includes a comprehensive range of high-quality parts. While the exact contents can vary between manufacturers, a good kit should generally feature the following:

1. Gaskets and Seals: The Heart of the Kit

Gaskets and seals are critical for preventing leaks and maintaining proper fluid and compression within the engine. A complete G4ED rebuild kit should include:

• Head Gasket: This is arguably the most important gasket, sealing the cylinder head to the engine block, preventing coolant and oil leaks, and maintaining combustion chamber pressure. Ensure it's made from high-quality multi-layer steel (MLS) for superior durability and sealing.
• Intake Manifold Gaskets: These seal the intake manifold to the cylinder head, preventing vacuum leaks and ensuring proper air-fuel mixture.
• Exhaust Manifold Gaskets: These seal the exhaust manifold to the cylinder head, preventing exhaust gas leaks and maintaining efficient exhaust flow.
• Oil Pan Gasket: Seals the oil pan to the engine block, preventing oil leaks.
• Valve Cover Gasket: Seals the valve cover to the cylinder head, preventing oil from escaping the valvetrain area.
• Front and Rear Main Seals: These seals, located at the crankshaft's front and rear, prevent oil from leaking out of the engine.
• Timing Cover Gasket: Seals the timing cover to the engine block.
• Water Pump Gasket: Essential if you're replacing the water pump as part of the rebuild.
• Oil Pump Gasket: Seals the oil pump assembly.
• Various O-rings and Small Seals: For fuel injectors, oil cooler, and other smaller components.

2. Piston Rings: Restoring Compression

Worn piston rings are a common cause of low compression, increased oil consumption, and blow-by. A quality rebuild kit will typically include a full set of new piston rings for all cylinders. These rings are crucial for sealing the combustion chamber and scraping oil from the cylinder walls.

3. Bearings: Ensuring Smooth Rotation

Engine bearings, particularly crankshaft and connecting rod bearings, are subject to immense pressure and friction. Over time, they can wear down, leading to increased clearance and potential engine damage. A comprehensive kit may include:

• Main Bearings: These support the crankshaft within the engine block.
• Connecting Rod Bearings (Big End Bearings): These connect the connecting rods to the crankshaft.

When purchasing bearings, it's crucial to ensure they are the correct size. Often, engines may require oversize bearings if the crankshaft journals have been machined during the rebuild process. It's always best to measure your crankshaft journals and consult with your machine shop before ordering bearings.

4. Other Potential Inclusions

Depending on the kit's comprehensiveness, you might also find:

• Timing Belt Kit: For many G4ED engines, the timing belt is a critical component that should always be replaced during a major rebuild. A kit often includes the timing belt, tensioner, and idler pulleys. This is a highly recommended addition.
• Oil Filter: A new oil filter is standard practice during any engine service.
• Freeze Plugs (Core Plugs): These are small metal plugs in the engine block that can corrode and leak.

What's Typically NOT Included in a Rebuild Kit?

It's important to note that most standard engine rebuild kits do not include major internal components that may require specific sizing or are often replaced as separate, higher-cost items. These typically include:

• Pistons
• Connecting Rods
• Crankshaft
• Valves
• Valve Springs
• Camshaft(s)
• Oil Pump (though some premium kits might include it)
• Water Pump (similar to the oil pump)

These parts are usually purchased separately based on the specific needs of the rebuild. For instance, if your pistons are worn or damaged, you'll need to buy new ones, potentially with matching rings and a specific bore size.

Choosing a Reputable Manufacturer

The market is flooded with engine rebuild kits from various manufacturers. For a crucial repair like an engine rebuild, opting for a well-known and trusted brand is highly advisable. Brands like Victor Reinz, Fel-Pro, Mahle, and ACL are generally recognised for producing high-quality gaskets, seals, and internal engine components. While they might be more expensive, the peace of mind and reliability they offer are well worth the investment.

G4ED Rebuild Kit Comparison: Key Features to Consider

When comparing different G4ED rebuild kits, consider these crucial features:

Pre-Rebuild Considerations and Machining

Before you even order your rebuild kit, it's essential to have the engine block, cylinder head, crankshaft, and connecting rods inspected and machined by a reputable engine machine shop. They will:

• Clean the engine components thoroughly.
• Check for cracks and damage.
• Bore and hone the cylinders to the correct size for new pistons and rings.
• Resurface the cylinder head and block deck to ensure flatness for proper gasket sealing.
• Polish or regrind the crankshaft journals if necessary, which will determine the required bearing size.
• Inspect and potentially replace valve seats and guides.

The results of this machining process (e.g., cylinder bore size, crankshaft journal size) will dictate which specific size of pistons, rings, and bearings you need to order. Always communicate closely with your machine shop.

Common Questions About G4ED Rebuild Kits

Q1: How do I know which specific G4ED kit to buy?
Ensure you know your Hyundai model and year, as the G4ED engine might have minor variations. Check the kit's description against your vehicle's specifications and consult parts diagrams if possible.

Q2: Can I reuse my old head gasket?
Absolutely not. A head gasket is a single-use item and must be replaced with a new one during any engine rebuild.

Q3: Do I need to buy pistons and bearings separately?
Yes, typically. While some very high-end kits might include pistons, most standard kits only include rings and bearings. You will likely need to purchase pistons and bearings based on your machine shop's measurements.

Q4: Is it worth rebuilding a G4ED engine?
For many older Hyundai models, rebuilding the G4ED can be a cost-effective way to extend the vehicle's life, especially if the rest of the car is in good condition. The G4ED is a robust engine, and a proper rebuild can yield many more miles of reliable service.

Q5: What torque specifications should I use?
Always refer to the official Hyundai service manual for your specific vehicle and engine. Torque specifications for head bolts, main bearing caps, connecting rod caps, and other critical fasteners are vital for a successful rebuild.

Conclusion

Choosing the right engine rebuild kit for your Hyundai 1.6L Alpha G4ED is a critical step towards a successful engine overhaul. By understanding the essential components, opting for reputable manufacturers, and ensuring you have the necessary supporting parts and machining done, you can confidently tackle this project. A well-chosen and properly installed rebuild kit will breathe new life into your G4ED engine, restoring its performance and reliability for years to come. Remember, quality parts and meticulous work are the keys to a lasting engine repair.
