Hydraulic Lifts Explained

In the world of automotive maintenance and beyond, few pieces of equipment are as indispensable as the hydraulic lift. Whether you're a seasoned mechanic working in a professional garage or a dedicated DIY enthusiast tinkering in your home workshop, understanding the principles behind these powerful machines is crucial. Hydraulic lifts offer an unparalleled ability to elevate vehicles, providing clear access to components for repairs, servicing, and inspections. But what exactly makes them tick? This article will delve into the fascinating mechanics of hydraulic lifts, explore their various applications, and highlight the advantages they bring to the table.

The Science Behind the Lift: Hydraulics Explained

At its core, a hydraulic lift operates on a fundamental principle of physics known as Pascal's Principle. This principle, famously articulated by Blaise Pascal in the 17th century, states that a pressure change at any point in a confined incompressible fluid is transmitted throughout the fluid such that the same pressure change occurs everywhere. In simpler terms, if you apply force to a small area of fluid within a closed system, that force is amplified and transmitted to a larger area.

A typical hydraulic lift system consists of several key components:

• Reservoir: This tank holds the hydraulic fluid, typically oil, which is the lifeblood of the system.
• Pump: Driven by an electric motor or an engine, the pump draws fluid from the reservoir and forces it into the system under pressure.
• Cylinder: This is where the magic happens. It contains a piston that moves up and down. When hydraulic fluid under pressure is pumped into the cylinder, it pushes against the piston, causing it to rise.
• Hoses and Valves: These components direct the flow of hydraulic fluid, controlling the speed and direction of the piston's movement. Release valves allow the fluid to return to the reservoir, lowering the lift.

The power of hydraulics lies in the ability to multiply force. Imagine a simple hydraulic system with two cylinders, one small and one large, connected by a pipe filled with fluid. If you apply a force (F1) to a piston in the small cylinder with an area (A1), it creates a pressure (P) in the fluid: P = F1 / A1. According to Pascal's Principle, this pressure is transmitted equally to the larger cylinder. If the larger cylinder has an area (A2), the force (F2) exerted by the fluid on the piston in the larger cylinder will be F2 = P * A2. Since A2 is larger than A1, F2 will be greater than F1. This force multiplication is what allows a hydraulic lift to effortlessly raise heavy vehicles.

Types of Hydraulic Lifts

Hydraulic lifts come in various designs, each suited for different applications and environments. The most common types encountered in automotive settings include:

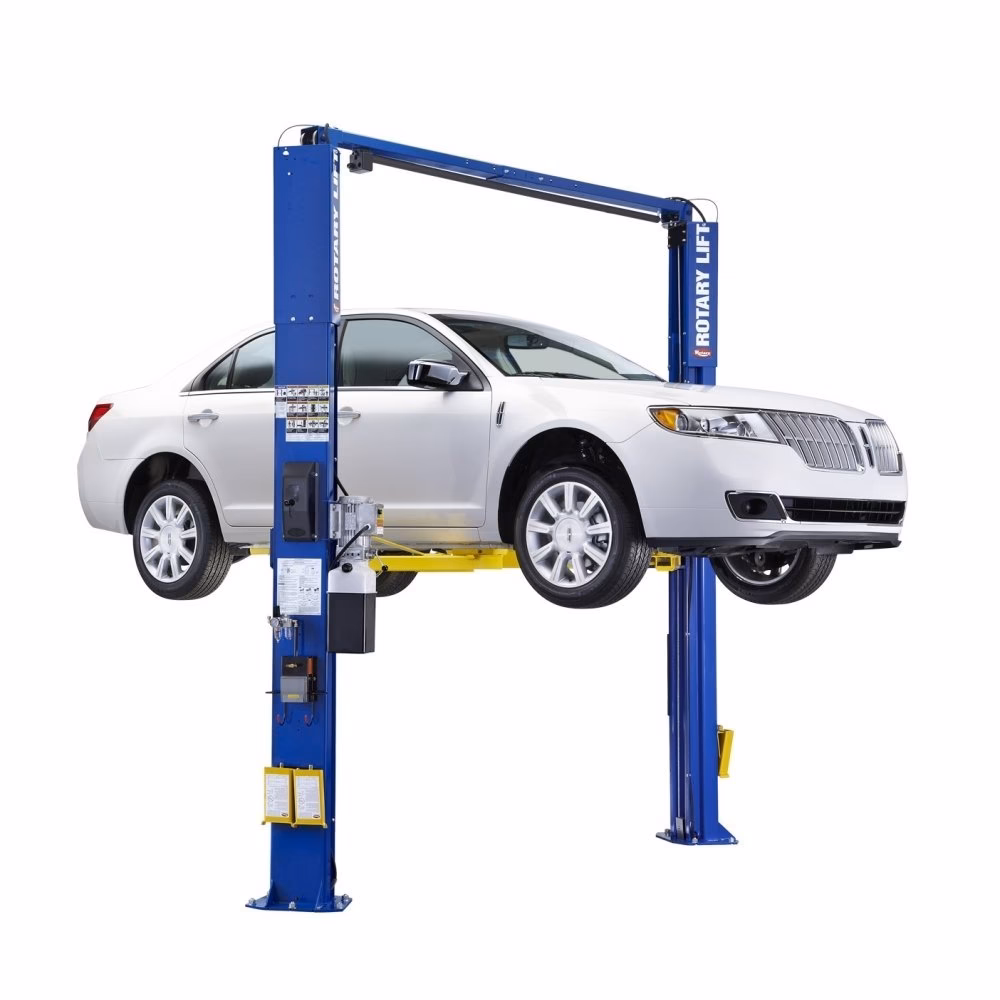

• Two-Post Lifts: These are perhaps the most recognisable, featuring two vertical posts that extend upwards. The vehicle is lifted by arms that extend from the posts and cradle the vehicle's chassis. They offer excellent access to the sides and undercarriage of a vehicle.
• Four-Post Lifts: These lifts use four vertical posts, with the vehicle driving onto two parallel runways that are raised by hydraulic cylinders. They are often used for longer-term storage, alignment checks, and for lifting heavier vehicles like trucks and SUVs. Some four-post lifts also incorporate a rolling jack system for additional under-vehicle access.
• Scissor Lifts: Characterised by their criss-crossing metal arms that extend like a scissor, these lifts can be compact and are often used for mobile lifting solutions or in situations where space is limited. They can be stationary or portable.
• In-Ground Lifts: These are typically installed flush with the workshop floor, offering a clean and unobtrusive working environment. They can be single or double post designs and are favoured for their space-saving capabilities and aesthetic appeal.

Advantages of Using Hydraulic Lifts

The widespread adoption of hydraulic lifts is a testament to their numerous benefits:

• Lifting Capacity: Hydraulics can generate immense force, allowing lifts to handle a wide range of vehicle weights, from small cars to heavy-duty trucks.
• Smooth Operation: The fluid-based system provides a smooth and controlled ascent and descent, reducing the risk of sudden jolts or damage to the vehicle.
• Reliability: Hydraulic systems are known for their durability and longevity when properly maintained. The robust nature of the components ensures consistent performance.
• Versatility: With different types available, hydraulic lifts can be adapted to various workshop layouts and specific lifting needs.
• Cost-Effectiveness: While the initial investment can be significant, the long-term reliability and efficiency of hydraulic lifts often make them a cost-effective solution for professional and serious amateur mechanics.

Maintenance and Safety Considerations

To ensure the safe and efficient operation of any hydraulic lift, regular maintenance is paramount. This includes:

• Checking Hydraulic Fluid Levels: Low fluid levels can lead to poor performance and potential damage to the pump.
• Inspecting Hoses and Seals: Leaks in hoses or seals can compromise the system's integrity and pose a safety risk.
• Lubrication: Moving parts should be regularly lubricated to ensure smooth operation and prevent wear.
• Load Testing: Periodically testing the lift with its rated capacity is essential to confirm its safety and functionality.
• Understanding Safety Locks: Most hydraulic lifts are equipped with safety locks or mechanical latches that engage at various heights. It is crucial to understand how these work and ensure they are properly engaged before working under a vehicle.

Safety is non-negotiable when operating a hydraulic lift. Always ensure the lift is on a level surface, the vehicle is correctly positioned and balanced on the lifting arms or runways, and that all safety features are engaged. Never exceed the lift's weight capacity, and always follow the manufacturer's operating instructions.

Where to Buy Hydraulic Lifts

When looking to purchase a hydraulic lift, several avenues are available. Specialist automotive equipment suppliers, both online and brick-and-mortar stores, are primary sources. Reputable brands often offer a good balance of quality and price. For instance, a 'GZYF Gato de Transmisión Hidráulica de 1100 Lb' might be found on various e-commerce platforms, with prices varying. For example, a listing might show a current price of $234.96 for a specific model. It's important to compare prices, read customer reviews, and consider the warranty offered. Platforms like TradeIndia can also be useful for sourcing equipment, often offering competitive pricing, particularly for bulk purchases, though it's advisable to thoroughly understand their policies before committing.

Frequently Asked Questions (FAQs)

What is the primary principle behind a hydraulic lift?

A hydraulic lift operates on Pascal's Principle, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel.

Are hydraulic lifts safe?

Yes, when operated correctly and maintained regularly, hydraulic lifts are very safe. They incorporate safety locks and are designed to handle significant weight capacities. However, improper use or lack of maintenance can lead to accidents.

How often should I check the hydraulic fluid?

It's recommended to check the hydraulic fluid level regularly, ideally before each use, or at least weekly, depending on the frequency of use. Inspect for any signs of leaks as well.

Can I use a hydraulic lift for anything other than cars?

Yes, depending on the lift's capacity and design, hydraulic lifts can be used to raise motorcycles, trucks, buses, and even for industrial applications like lifting heavy machinery.

What is the difference between a two-post and a four-post lift?

A two-post lift uses two vertical posts and lifting arms that attach to the vehicle's chassis, offering excellent under-vehicle access. A four-post lift uses four posts and runways, providing a more stable platform, often used for heavier vehicles or tasks like wheel alignment.

In conclusion, hydraulic lifts are sophisticated yet remarkably effective pieces of equipment that have revolutionised how we access and service vehicles. Understanding their mechanical principles, the variety of types available, and the importance of diligent maintenance and safety practices ensures that these powerful tools can be used to their full potential, making automotive work more efficient, accessible, and safe for everyone involved.
