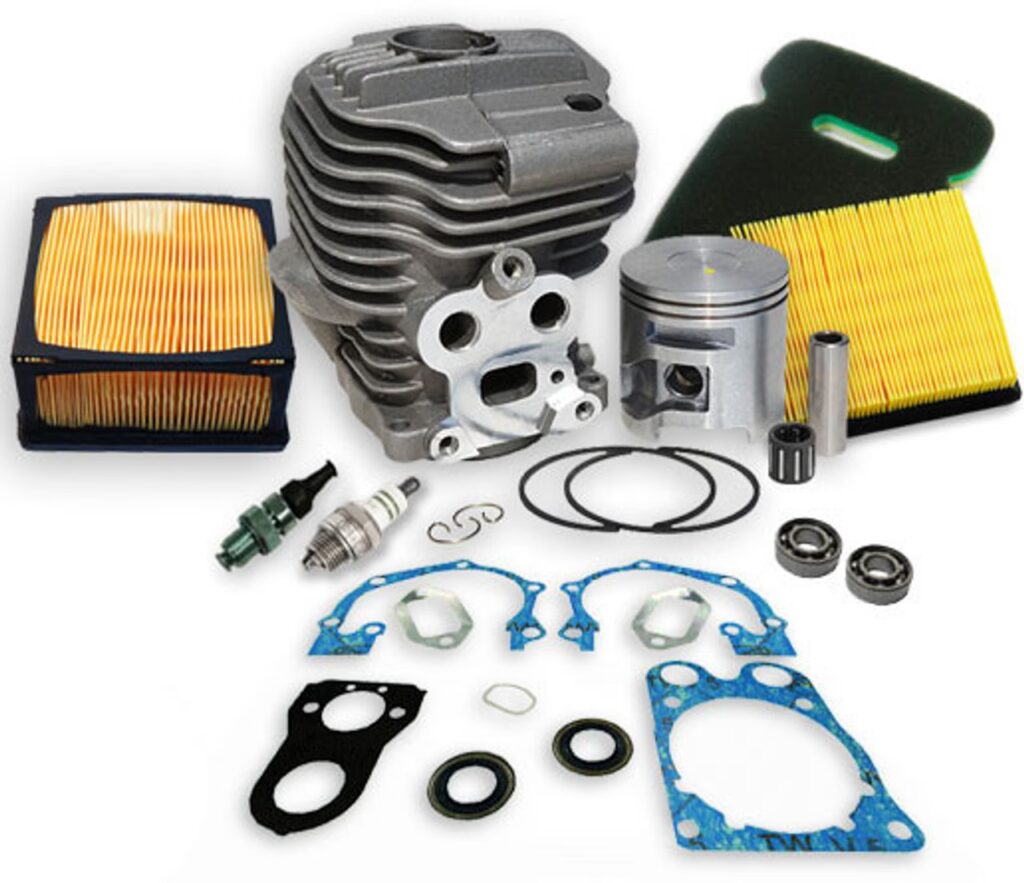

When it comes to keeping your Husqvarna dirt bike performing at its peak, a top-end rebuild is a crucial maintenance task. Whether you're tackling a worn-out piston, a damaged cylinder, or simply looking to refresh your engine, a complete top-end rebuild kit from Husqvarna is designed to provide you with all the necessary components for a successful overhaul. But what exactly is included in one of these comprehensive kits? Let's dive in and explore the essential parts that will get your engine breathing fire again.

The Heart of the Matter: The Piston

At the core of any top-end rebuild is the piston. This reciprocating component is responsible for converting the combustion pressure into rotational force. In a Husqvarna top-end kit, you'll typically find a high-quality, often forged or cast aluminum alloy piston. These pistons are engineered to meet or exceed original equipment manufacturer (OEM) specifications for durability and performance. They are usually supplied with precise clearances for the cylinder bore to ensure optimal sealing and minimal friction. The piston will likely be matched to your specific Husqvarna model and year, guaranteeing a perfect fit.

Keeping the Seal: Piston Rings

No piston is complete without its set of piston rings. These vital components are responsible for creating a seal between the piston and the cylinder wall. This seal is critical for several reasons: it prevents combustion gases from escaping into the crankcase (blow-by), it stops oil from entering the combustion chamber, and it helps to transfer heat from the piston to the cylinder wall. A Husqvarna top-end kit will include a complete set of rings, typically comprising a top compression ring (often coated for wear resistance), a second compression ring, and an oil control ring. These are usually made from cast iron or steel and are designed for precise tension and sealing.

The Cylinder Wall: A Crucial Surface

While the cylinder itself might not always be included in a "top-end rebuild kit" (sometimes it's a separate purchase or requires machining), the kit will be designed with the cylinder's condition in mind. The cylinder wall is where the piston and rings do their work. For a top-end rebuild to be successful, the cylinder bore needs to be in good condition – free from scoring, excessive wear, or out-of-roundness. If your cylinder requires re-boring or honing, that would be a separate service. However, the piston and rings in the kit are specifically sized to accommodate the correct tolerances for a functioning cylinder, whether it's a new one or a reconditioned OEM cylinder.

Sealing the Deal: Gaskets and Seals

A crucial, yet often overlooked, aspect of a top-end rebuild is proper sealing. This is where the comprehensive nature of a Husqvarna kit truly shines. You'll find a complete set of gaskets and seals specifically designed for your engine. This typically includes:

• Head Gasket: This is arguably the most important gasket, sealing the combustion chamber between the cylinder head and the cylinder. It must withstand immense heat and pressure.
• Base Gasket: This seals the cylinder to the crankcase.
• Exhaust Gasket: If your model uses one, this seals the exhaust port on the cylinder to the exhaust pipe or manifold.
• O-rings: Various O-rings are used throughout the top end for sealing coolant passages, oil passages, and other small components.

Using the correct, high-quality gaskets and seals is paramount to preventing leaks and ensuring proper engine operation. OEM-spec gaskets are designed for precise fitment and material integrity.

The Small, But Mighty: Wrist Pin and Clips

Connecting the piston to the connecting rod is the wrist pin (also known as a gudgeon pin). This hardened steel pin allows the piston to pivot on the connecting rod as it moves up and down. A complete top-end kit will usually include a new, high-quality wrist pin. Alongside the wrist pin, you'll find the necessary retaining clips (often circlips or wire clips). These small but critical components prevent the wrist pin from sliding out of its bore in the piston and connecting rod. Ensuring these are correctly installed is vital for engine longevity.

What Else Might Be Included?

Depending on the specific kit and your Husqvarna model, you might find a few additional items:

• Small End Bearing: This small bearing sits between the connecting rod and the wrist pin, allowing for smooth rotation. It's often included in comprehensive kits.
• Intake and Exhaust Valves (in some kits): For certain rebuilds, particularly those addressing valve issues or wear, some more extensive kits might even include new intake and exhaust valves. This is less common for a standard top-end kit but is worth checking the kit's contents.
• Valve Stem Seals: If valves are included or if your rebuild involves removing them, new valve stem seals are often part of the package to prevent oil from entering the combustion chamber past the valve guides.

Why Choose a Complete Kit?

Opting for a complete top-end rebuild kit from Husqvarna offers several significant advantages:

• Guaranteed Compatibility: Every component is designed to work seamlessly with your specific Husqvarna engine. No guesswork involved in matching parts.
• OEM Quality: You're getting parts manufactured to the same high standards as your original engine components, ensuring durability and optimal performance.
• Convenience: Having all the necessary parts in one package saves you time and the hassle of sourcing individual components.
• Cost-Effectiveness: Often, purchasing a complete kit is more economical than buying each part separately.

When Should You Consider a Top-End Rebuild?

Several indicators suggest it's time for a top-end rebuild:

• Loss of Power: A noticeable decrease in engine performance and acceleration.
• Increased Oil Consumption: If your bike is burning more oil than usual, it often points to worn piston rings or valve seals.
• Blue Smoke from Exhaust: This is a classic sign of oil entering the combustion chamber.
• Poor Compression: A compression test revealing low readings indicates sealing issues within the cylinder.
• Engine Noise: New or increased rattling or knocking sounds from the engine.
• Regular Maintenance Schedule: Even without specific symptoms, following your Husqvarna's recommended maintenance intervals for top-end rebuilds is good practice, especially for high-performance or frequently used machines.

Table: Common Top-End Rebuild Kit Components

Here's a quick reference of what you can typically expect:

Frequently Asked Questions (FAQ)

Q1: Do I need to replace the cylinder when doing a top-end rebuild?
Not always. If your cylinder bore is within specifications and free from damage (scoring, ovality), it can often be reused. However, if it's worn or damaged, it will need to be re-sleeved or replaced. The piston and rings in the kit are sized for a standard bore, so if you have your cylinder bored out, you'll need to order the corresponding oversized piston and rings.

Q2: Can I use parts from different manufacturers in a Husqvarna top-end rebuild kit?
While it might seem tempting for cost savings, it's generally not recommended. Using a mix of brands can lead to compatibility issues, incorrect tolerances, and ultimately, premature engine wear or failure. Sticking to a complete Husqvarna kit ensures all components are designed to work together perfectly.

Q3: How often should I perform a top-end rebuild?
This depends heavily on your riding style, the type of riding (motocross, trail riding, enduro), engine maintenance, and the specific Husqvarna model. For aggressive riding, some riders rebuild every 50-100 hours. For casual trail riding, it might be much longer. Always consult your Husqvarna owner's manual for recommended service intervals.

Q4: What tools will I need for a top-end rebuild?
Essential tools include a socket set, torque wrench, feeler gauges, piston ring compressor, snap ring pliers (for wrist pin clips), a clean workspace, and appropriate lubricants (assembly lube, two-stroke oil). A service manual for your specific model is also highly recommended.

Conclusion

A Husqvarna complete top-end rebuild kit is a comprehensive solution for restoring the heart of your dirt bike. By providing all the essential, high-quality components – from the piston and rings to all the necessary gaskets and seals – these kits simplify the rebuild process and ensure a reliable outcome. Understanding what's inside these kits empowers you to make informed decisions about your bike's maintenance, keeping your Husqvarna running strong for many rides to come.
