Hummer H3: A Comprehensive Guide

The Enduring Appeal of the Hummer H3

The Hummer H3, a vehicle that carved its own niche in the automotive landscape, represents a fascinating chapter in the story of rugged, go-anywhere capability. While its predecessors, the H1 and H2, were direct descendants of the formidable military Humvee, the H3 took a slightly different path, adapting the Hummer ethos into a more accessible and arguably more versatile package. This article aims to provide a deep dive into what makes the Hummer H3 a distinctive and memorable vehicle, covering its conception, engineering, performance, and what became of this iconic brand.

From Military Might to Civilian Icon: The Hummer Genesis

The Hummer lineage began with the High Mobility Multipurpose Wheeled Vehicle (HMMWV), colloquially known as the Humvee. Developed by AM General, this robust, four-wheel-drive machine became synonymous with military operations, renowned for its exceptional off-road prowess. Its success and public fascination led to its civilian counterpart, the Hummer, launched in 1992. Sharing many components with the Humvee, the original Hummer offered a taste of military-grade ruggedness to the public, amplified by a successful marketing campaign featuring Arnold Schwarzenegger. Its impressive ground clearance, approach/departure angles, and ability to traverse water and obstacles cemented its off-road credentials.

The brand's trajectory shifted when General Motors acquired the marketing rights in 1999, leading to the introduction of the Hummer H2 in 2002. While still built by AM General, the H2 moved away from the direct Humvee platform, utilising a modified GMT820 chassis shared with vehicles like the Cadillac Escalade and Chevrolet Tahoe. This transition marked a subtle shift, with the H2 leaning more towards a lifestyle off-roader and status symbol, though it retained significant off-road capability.

The Birth of the Hummer H3: A New Era

The Hummer H3, introduced four years before the H2's discontinuation, represented a further evolution. Unlike its predecessors, the H3 was not based on any military Humvee platform. Instead, it was built on the modified GMT355 platform, which also underpinned the Chevrolet Colorado and GMC Canyon pickup trucks. Crucially, AM General had no direct involvement in the H3's development. Despite its more common underpinnings, the H3 was specifically modified to enhance its off-road capabilities beyond its pickup truck siblings, retaining a respectable ability to ford water and good ground clearance.

GM's strategy for the H3 was to create a smaller, more fuel-efficient, and more affordable Hummer. Susan Docherty, general manager of Hummer at the time, stated, "Of course, we knew the H3 had to be smaller and more economical. With the H1 and H2 out there getting all sorts of attention for their size and pricing, we knew we had to do something special for the H3." This meant leveraging existing platforms to manage costs and dimensions.

Design and Styling: A Familiar Face

At first glance, the H3 successfully captured the familial design cues of the larger H2. Its wide fender flares and slab-sided body panels, coupled with the signature Hummer front grille and H3-stamped skidplate, made it instantly recognisable. This design consistency was particularly appreciated by existing H2 owners, often eliciting a double-take due to the H3's noticeably smaller stature. The H3 was approximately six inches lower and 16.8 inches shorter than the H2, making it more manageable in urban environments.

Powertrain and Performance: Gearing for the Trail

Hummer emphasized that the H3's off-road performance was primarily a result of its gearing rather than outright horsepower. The standard engine for the H3 was the Vortec 3500, a 3.5-litre inline-five cylinder engine producing 220 horsepower. While adequate for on-road driving, particularly with the five-speed manual transmission, it was considered somewhat anemic with the four-speed automatic, especially in city driving.

However, on the trail, the H3's gearing truly shone. Various gear combinations resulted in impressive crawl ratios, reaching up to a remarkable 69:1. This was achieved through a combination of factors, including a 4.56:1 axle gear option, a heavy-duty transfer case with a 4.03:1 low-range ratio, and an optional locking rear differential. These elements, along with the standard 33-inch all-terrain tyres (the largest in its segment at the time) and a sophisticated traction-control system, made the H3 a formidable climbing machine.

Key Performance Features:

• Engine: Standard 3.5L Vortec 3500 I-5 (220 hp)
• Transmission: 5-speed manual or 4-speed automatic
• 4WD System: Full-time, with 60/40 front-to-rear torque split (normal conditions)
• Transfer Case: Heavy-duty with 4.03:1 low-range ratio
• Differential: Optional rear locking differential
• Tyres: Standard 33-inch all-terrain tyres
• Water Fording: Up to 27 inches

The four-wheel-drive system was highly capable, featuring selectable modes: 4 Hi, 4 Hi Lock, 4 Low Lock, and a Rear Locker. This system allowed drivers to adapt to various terrains, with the rear locker often proving invaluable in challenging situations.

Interior Comfort and Quality

The interior of the H3 was praised for its design and material quality, setting a new standard for Hummer vehicles. The simple centre stack, the feel of the knobs and flush surfaces, and the substantial steering wheel contributed to a premium experience. The transmission levers felt solid, and the grab handles were robust. Seating materials were durable, and the optional luxury package offered higher-quality leather than typically found in midsize SUVs of that price bracket.

Pricing for the H3 started just over $30,000, but options such as the trailer package, sunroof, chrome wheels, upgraded audio systems, navigation, and OnStar could significantly increase the final cost. GM aimed to pack the H3 with value, but this also meant that buyers could easily option up a vehicle that was no longer the most affordable entry into the Hummer brand.

Challenges and Criticisms

Despite its off-road capabilities and distinctive styling, the H3 faced challenges. The Vortec 3500 engine, while adequate, was considered underpowered by some, especially when compared to the V6 and V8 options offered by competitors in the segment. The manual transmission was often used as a four-speed due to the lack of power to effectively use fifth gear against wind resistance or inclines. The 0-to-60 mph time for the manual test unit was around 11.1 seconds, and braking distances were average for the class.

Environmental criticism and high fuel prices also impacted the H3 and the Hummer brand as a whole. While the H3 was more fuel-efficient than its predecessors, it still lagged behind many competitors. This, combined with a struggling economy, ultimately contributed to the demise of the Hummer brand in 2010.

The Hummer H3 Alpha and Future Prospects

In response to criticisms regarding power, GM introduced the H3 Alpha for the 2006 model year. The H3 Alpha featured a more potent 5.3-litre V8 engine, producing 300 horsepower. This powerplant transformed the H3's on-road performance, providing the much-needed grunt that many felt was lacking in the standard model. The H3 Alpha was part of a broader push by GM to introduce more powerful "Alpha" variants across the Hummer lineup, including the H1 Alpha and planned H2 Alpha models based on new platforms.

The H3T pickup truck concept, shown earlier, hinted at future possibilities, including a turbocharged Vortec 3500. However, the focus was shifting towards V8 power for a true performance variant.

What Happened to the Hummer H3?

The Hummer brand, including the H3, was discontinued by General Motors in 2010. The primary reasons cited were the challenging economic climate and a declining demand for vehicles with lower fuel efficiency, exacerbated by rising fuel prices. The brand struggled to adapt to changing consumer preferences and increasing environmental regulations.

The Hummer Revival: GMC Hummer EV

In 2020, GM announced the revival of the Hummer brand, not as a gas-guzzling SUV, but as a high-performance electric vehicle. The GMC Hummer EV pickup truck and SUV aim to blend the rugged image of the original Hummers with cutting-edge electric vehicle technology. While GM has highlighted features like "crab walk," adaptive air suspension, and underbody armour, the Hummer EV represents a significant departure from its internal combustion engine ancestors, embracing sustainability and advanced technology.

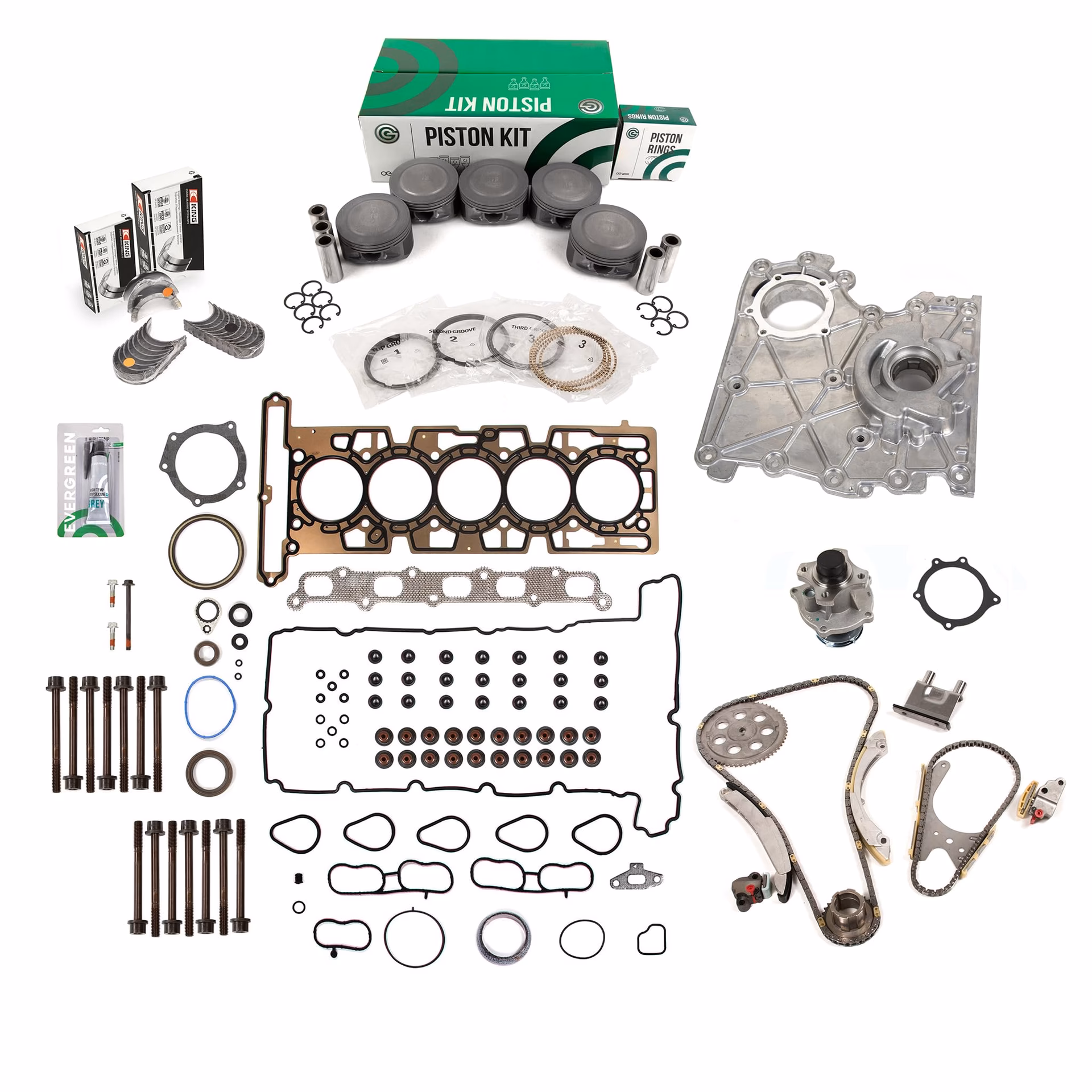

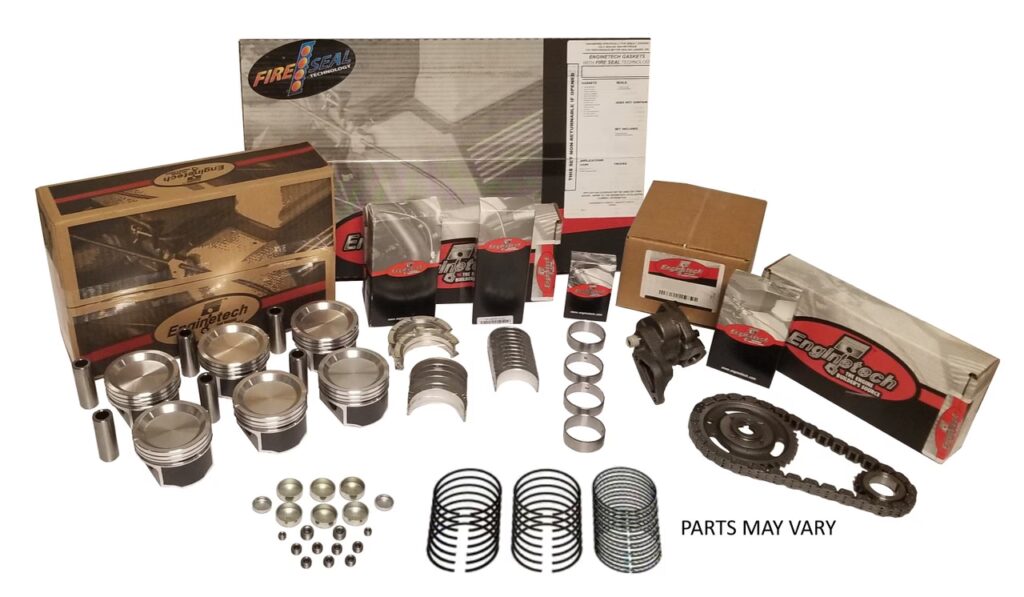

Remanufactured Hummer H3 Engines

For owners of the original Hummer H3, maintaining these vehicles often involves dealing with engine wear and tear. A remanufactured Hummer H3 engine is a viable solution for replacing a worn-out or damaged original engine. These engines are not simply rebuilt; they are completely dismantled, cleaned, inspected, and then reassembled with new or reconditioned internal components that meet or exceed original specifications. Often, remanufactured engines incorporate upgraded parts approved by the manufacturer to address known deficiencies in the original design, enhancing durability and performance. This process ensures that the engine is essentially like new, offering a reliable and cost-effective alternative to purchasing a brand-new engine or a used unit with unknown history.

Frequently Asked Questions

Q: Is the Hummer H3 a capable off-roader?
Yes, the Hummer H3 is a very capable off-roader, particularly when equipped with the Adventure package, which includes features like a locking rear differential and a lower-range transfer case. Its robust suspension, ample ground clearance, and sophisticated traction control system allow it to tackle challenging terrain.

Q: What engine came standard in the Hummer H3?
The standard engine in most Hummer H3 models was the 3.5-litre Vortec 3500 inline-five-cylinder engine. The H3 Alpha model featured a more powerful 5.3-litre V8 engine.

Q: How do you turn off the engine in a Hummer H3?
To turn off the engine in a Hummer H3, simply turn the ignition key to the 'OFF' position, just like in most conventional vehicles with a key ignition system. If your H3 is equipped with a push-button start, you would typically press and hold the start/stop button until the engine shuts down.

Q: What happened to the Hummer brand?
The Hummer brand was discontinued by General Motors in 2010 due to declining sales, high fuel prices, and changing consumer preferences towards more fuel-efficient vehicles.

Q: Will the new GMC Hummer EV be like the old Hummer H3?
The GMC Hummer EV is a completely different vehicle. While it carries the Hummer name and brand image, it is a fully electric vehicle with advanced technology, designed for both on-road and off-road performance. It is significantly different from the internal combustion engine-powered H3.

Conclusion

The Hummer H3 remains a distinctive vehicle in the automotive history, representing a unique blend of rugged aesthetics and surprisingly capable off-road performance, all packaged in a more manageable size than its predecessors. While the brand itself has ceased to exist in its original form, the legacy of the H3 continues to be appreciated by enthusiasts who value its distinctive character and its ability to conquer challenging terrain. Whether considering a remanufactured engine or simply reminiscing about this iconic SUV, the Hummer H3 holds a special place for many in the world of 4x4 vehicles.
