Understanding Your Car's Wheel Hub

Often overlooked, the wheel hub assembly is a critical component in your vehicle's intricate mechanical system, silently working to ensure a smooth, safe, and controlled driving experience. While larger components like the engine or gearbox often steal the spotlight, these unassuming parts are fundamental to your car's ability to move, steer, and stop effectively. Understanding their function, recognising signs of wear, and knowing when to replace them can save you from significant headaches and potential hazards on the road.

What Exactly is a Wheel Hub?

At its core, a wheel hub is the central mounting point that connects your vehicle's wheel to its axle and brake system. Located precisely at the centre of each wheel, typically between the brake drums or discs and the drive axle, the hub provides the rigid journal upon which the wheel rotates. It's not just a single piece; rather, a wheel hub assembly is a sophisticated unit comprising essential elements such as bearings, sensors, and seals, all working in concert.

The wheel hub assembly, sometimes referred to as a wheel hub bearing or hub unit, is mounted on the drive shaft. It encapsulates the bearings that allow the wheel to spin freely with minimal friction while simultaneously supporting the entire weight of the vehicle. This crucial connection facilitates the transfer of forces between the wheel and the chassis, ensuring stability and responsiveness.

How Does a Wheel Hub Work? The Mechanics Explained

The primary function of the wheel hub is to provide a robust, rotating joint for the wheel. Imagine your car's wheel needing to spin thousands of times per minute at high speeds while carrying immense loads and enduring constant impacts from road irregularities. This is where the hub comes in.

It acts as the intermediary between the stationary axle and the rotating wheel. The hub effectively transfers rotational motion from the axle to the wheel, enabling the car to move forward or backward. Simultaneously, it must allow the wheel to turn freely for steering and absorb the forces generated during cornering, braking, and acceleration.

Beyond its mechanical role, the wheel hub assembly plays a pivotal part in modern vehicle safety systems, notably the Anti-lock Braking System (ABS) and Traction Control System (TCS). Within the hub unit, you'll find highly sensitive wheel speed sensors. These sensors constantly monitor how fast each individual wheel is turning and transmit this vital data to the vehicle's onboard computer. This information is crucial for the ABS to prevent wheel lock-up during harsh braking and for the TCS to maintain grip by preventing wheel spin during acceleration. If these sensors fail due to a damaged hub, your ABS warning light may illuminate, and the performance and safety of these critical systems could be compromised.

Recognising a Failing Wheel Hub: Symptoms to Watch For

Wheel hubs are designed for extreme durability, often lasting for many tens of thousands of miles. However, like all mechanical components, they can wear out or become damaged, typically due to severe impacts, accidents, or manufacturing defects. Being able to identify the symptoms of a failing hub early is crucial for both your safety and your wallet.

Noise and Vibration

• Grinding or Humming Sounds: As the internal bearings begin to wear, you may notice a low-frequency hum or a grinding sound. This noise often intensifies with vehicle speed and can be particularly noticeable at motorway speeds.
• Humming When Cornering: A distinct change in the pitch of the humming sound when turning left or right is a classic indicator of a worn bearing. The sound might become louder or quieter depending on which side the weight shifts.
• Clunking: Intermittent clunking noises, especially during acceleration or braking, can point to loose wheel bearings or a failing hub nut, indicating excessive play within the assembly.

Visible Signs

• Uneven Tyre Wear: A wobbling or unstable hub can lead to irregular tread wear patterns on one side of the tyre, as the wheel isn't consistently contacting the road surface.
• Grease Leaks: Dark grease deposits visible around the wheel edge, particularly near the hub, suggest a compromised seal. This allows lubricating grease to escape and contaminants to enter, accelerating wear.
• Rust and Corrosion: While surface rust on the hub can often be cleaned, deep pitting near the bearing race is a serious sign of seal failure and moisture ingress, necessitating a replacement.

Performance Indicators

• Steering Pull: A failing hub can cause the steering wheel to drift or pull to one side under normal driving conditions, requiring constant correction to keep the vehicle straight.
• ABS Warning Light: On modern vehicles, a damaged hub or its integrated speed sensor can trigger the ABS warning light on your dashboard, indicating a fault within the anti-lock braking system.

The Lifespan of a Wheel Hub: When is Replacement Necessary?

Wheel hubs are engineered for longevity, typically boasting a service life of between 84,000 and 100,000 miles under normal driving conditions. Some high-quality units, particularly those with advanced bearing designs, can even exceed 120,000 miles when properly maintained. However, it's worth noting that front hubs often experience more stress due to steering and braking forces, meaning they may wear out faster than rear ones.

Replacement is necessary as soon as you detect any of the aforementioned symptoms. Ignoring a failing hub is extremely dangerous. Even slight noises can indicate a severely worn bearing that could fail suddenly, potentially leading to the wheel detaching from the vehicle at speed and a catastrophic loss of control. Always prioritise safety and address any unusual sounds or handling issues immediately.

Causes of Wheel Hub Failure

Several factors can contribute to the premature wear or failure of a wheel hub assembly:

• Rough Driving Conditions: Regularly driving on rough roads, hitting potholes, or striking kerbs can subject the hub to extreme impacts and stresses, accelerating wear.
• Contamination: Compromised seals allow moisture, dirt, and road grime to enter the bearing unit, leading to corrosion and rapid degradation of the internal components.
• Improper Installation: Incorrect torque settings during previous installations or damage during fitting can significantly reduce the lifespan of a new hub.
• Accidents: Even minor collisions can impart enough force to damage a wheel hub, leading to hidden issues that manifest later.

Replacing Your Wheel Hub: A Comprehensive Guide

Replacing a wheel hub assembly is a job that requires mechanical aptitude, the right tools, and strict adherence to safety protocols. While performing the repair yourself can save on labour costs, it's crucial to consult your vehicle's specific service manual for exact procedures and torque specifications. If you're unsure, professional assistance is always recommended.

Safety First!

Always wear appropriate personal protective equipment, including overalls, gloves, steel toe-capped boots, and safety goggles. Work on level ground, ensure the vehicle is securely supported on sturdy axle stands, and use wheel chocks on the opposite axle.

Essential Tools You'll Need:

• Jack and sturdy axle stands (rated for your vehicle's weight)
• Torque wrench (capable of 20–200 Nm)
• Suitable breaker bar or impact wrench
• Hub puller or slide hammer (if the hub is seized)
• Hammer and drift (for corrosion removal)
• Socket set (including appropriate axle nut socket)
• Wire brush and emery cloth
• Bungee cord or strong wire (to support the brake caliper)
• Clean rags and brake cleaner

Crucial Torque Specifications

Different vehicle makes and models have varying torque requirements for hub nuts and wheel fasteners. Always refer to your vehicle’s service manual for the exact figures. Below are some common examples for illustration:

Step-by-Step Hub Removal & Installation:

1. Lift and Secure the Vehicle:
   • Park on level ground and apply the handbrake.
   • Place wheel chocks behind the tyres on the opposite axle.
   • Loosen the wheel nuts slightly before jacking the vehicle.
   • Use a jack to lift the vehicle and support it firmly on axle stands.
2. Remove the Wheel:
   • Finish removing the wheel nuts and carefully take off the wheel.
3. Inspect and Secure the Brake Caliper:
   • Inspect the brake disc and caliper.
   • Unbolt the brake caliper and its mounting bracket. Do not let it hang by the brake hose, as this can damage the hose. Secure the caliper out of the way using a bungee cord or strong wire.
4. Access the Hub Assembly:
   • Remove any retaining cap covering the axle nut (if applicable).
   • Using a suitable socket and a breaker bar or impact wrench, loosen the axle nut. These are often torqued very highly.
   • If your vehicle has ABS, carefully detach the speed sensor cable from the hub.
5. Detach the Hub from the Knuckle:
   • Unbolt the hub assembly from the steering knuckle. There are usually 3–4 bolts located behind the hub.
   • If the hub is seized due to corrosion, use a hub puller or a slide hammer to separate it. Gently tapping around the hub centre with a hammer can also help break corrosion.
6. Clean and Prep:
   • Thoroughly inspect the knuckle mounting surface. Use a wire brush or emery cloth to remove any rust, debris, or burrs until the surface is smooth and clean.
   • Check the axle shaft for any scoring or damage and clean it before reassembly.
7. Install the New Hub:
   • Keep your new hub assembly in its packaging until you're ready to install it to protect the new bearings from dirt.
   • Position the new hub assembly onto the axle and align it carefully with the knuckle.
   • Hand-thread the knuckle bolts, then torque them evenly to the manufacturer’s specification (e.g., 90–110 Nm).
   • Slide the hub fully onto the axle splines, ensuring it sits flush without forcing it. Never strike the new hub with a hammer directly on the bearing assembly.
8. Reassemble Brake Components:
   • Refit the brake caliper bracket and torque the bolts according to the service manual (typically 30–50 Nm).
   • Reconnect the speed sensor if present.
   • Torque the axle nut to the specified value (e.g., 100 Nm) in one or two stages, using your torque wrench.
   • Replace the axle nut cap if applicable.
9. Refit the Wheel:
   • Mount the wheel and hand-thread the wheel nuts.
   • Lower the vehicle carefully and remove the axle stands.
   • Use a torque wrench to tighten wheel nuts to the correct torque (e.g., 120 Nm), following a star pattern to ensure even pressure.
10. Final Checks:
    • Spin the wheel by hand to ensure smooth rotation without any binding or unusual sounds.
    • Take the car for a slow test drive, listening for any unusual sounds and checking for vibration or steering issues.
    • Re-check the torque on the wheel nuts after 50–100 miles of driving to ensure they haven't loosened.

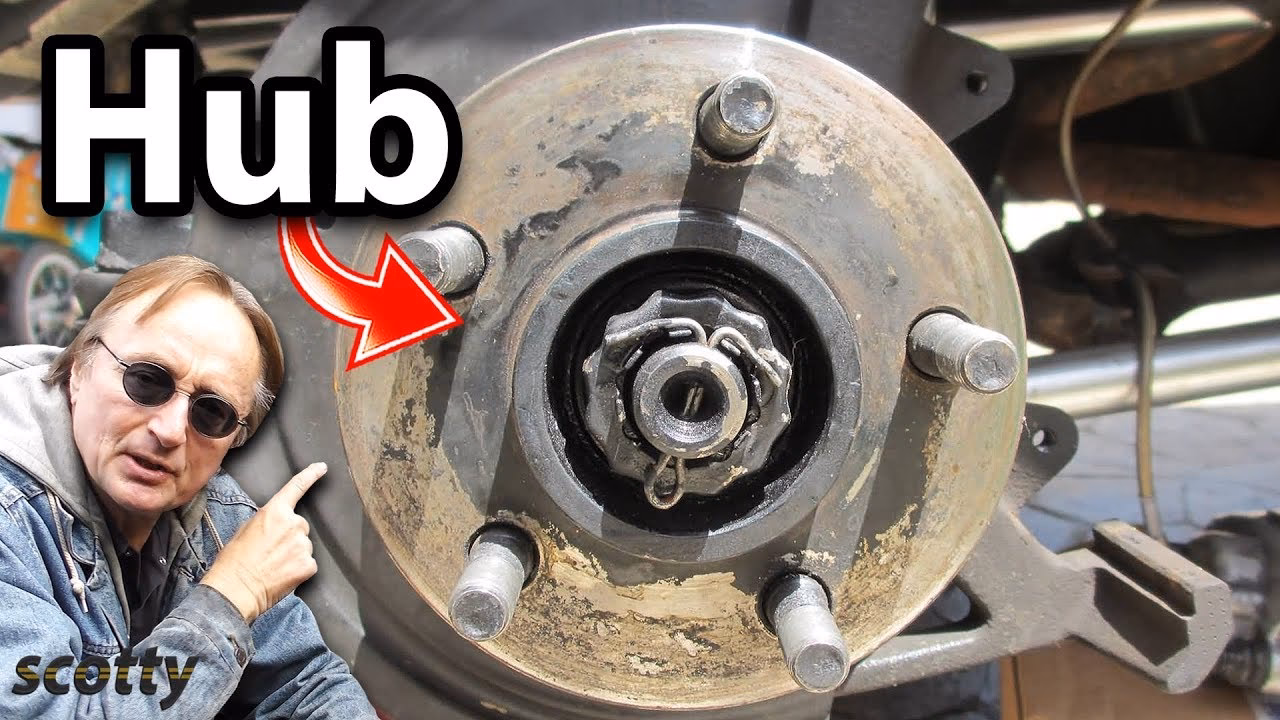

Cost Considerations for Wheel Hub Replacement

The cost of replacing a wheel hub assembly can vary significantly depending on several factors, including the make and model of your vehicle, whether you opt for genuine OEM (Original Equipment Manufacturer) parts or aftermarket alternatives, and whether you perform the repair yourself or enlist a professional mechanic.

• Part Prices: Entry-level wheel hub assemblies, often sold as part of a wheel bearing kit, can start from around £13. However, for premium vehicles or those requiring specific OEM parts, costs can range from £50 to £150 or even more per hub. Always ensure that any aftermarket part is ECE R90 certified or meets/exceeds OEM specifications for quality and safety. Counterfeit parts pose a serious risk and should be avoided at all costs.
• Professional Replacement Cost: If you choose to have a professional garage replace your wheel hub, you can expect to spend approximately £170–£300 per hub assembly for a mid-range vehicle. This figure typically includes both the cost of the part and the labour charge. Performing the job yourself can lead to substantial savings on labour, but it demands the right tools, knowledge, and confidence.

Preventive Maintenance Tips

While wheel hubs are robust, a few simple preventive measures can help extend their lifespan and ensure your continued safety:

• Regular Inspection: During every tyre rotation (roughly every 10,000 miles), ask your mechanic to check for wheel play or any unusual bearing noise. Early detection can prevent more severe damage.
• Monitor Driving Conditions: Be mindful of rough roads, potholes, and kerb impacts. Driving cautiously and avoiding severe road hazards can significantly reduce stress on your wheel hubs.
• Keep Seals Clean: Regularly cleaning brake components can prevent grime buildup that might compromise hub seals, leading to moisture and dirt ingress.
• Prompt Attention to Minor Issues: A faint hum or slight vibrations, even if seemingly minor, should be investigated immediately. Addressing small issues early can prevent them from escalating into costly and dangerous failures.

Frequently Asked Questions (FAQ)

How long should a wheel hub last?

On average, a wheel hub assembly is designed to last between 84,000 and 100,000 miles. However, this can vary based on driving conditions, vehicle type, and maintenance. Some modern, high-quality bearings can exceed 120,000 miles with proper care.

Can I drive with a worn wheel hub?

It is strongly not advisable to drive with a worn wheel hub. Even slight noises can indicate a severely compromised bearing that may fail suddenly. Driving on a failing hub risks the wheel detaching from the vehicle, leading to a complete loss of control and potentially serious accidents. Always address a worn hub immediately.

Is it better to choose an OEM or aftermarket hub?

OEM (Original Equipment Manufacturer) hubs typically guarantee a perfect fit and often come with longer warranties, ensuring they meet the precise specifications of your vehicle. However, many quality aftermarket hubs can be equally, if not more, reliable and often come at a lower cost. When opting for aftermarket, ensure the hub meets or exceeds OEM specifications and always verify compatibility using your vehicle's original equipment (OE) part number before purchase. Reputable brands are key here.
