Unleash Your Honda's Performance with the PGM-FI Setting Tool
For riders who crave ultimate control over their machine's performance, the Honda PGM-FI Setting Tool is an indispensable piece of equipment. This innovative device grants you the power to meticulously adjust critical engine parameters, specifically fuel delivery and ignition timing, based on throttle opening and engine speed. Whether you're looking to optimise for specific riding conditions, enhance power delivery, or simply tailor your motorcycle's response to your unique riding style, the PGM-FI Setting Tool puts that control directly into your hands. It transforms your Honda from a factory-set machine into a finely-tuned instrument, perfectly calibrated to your needs.
What Exactly is the Honda PGM-FI Setting Tool?

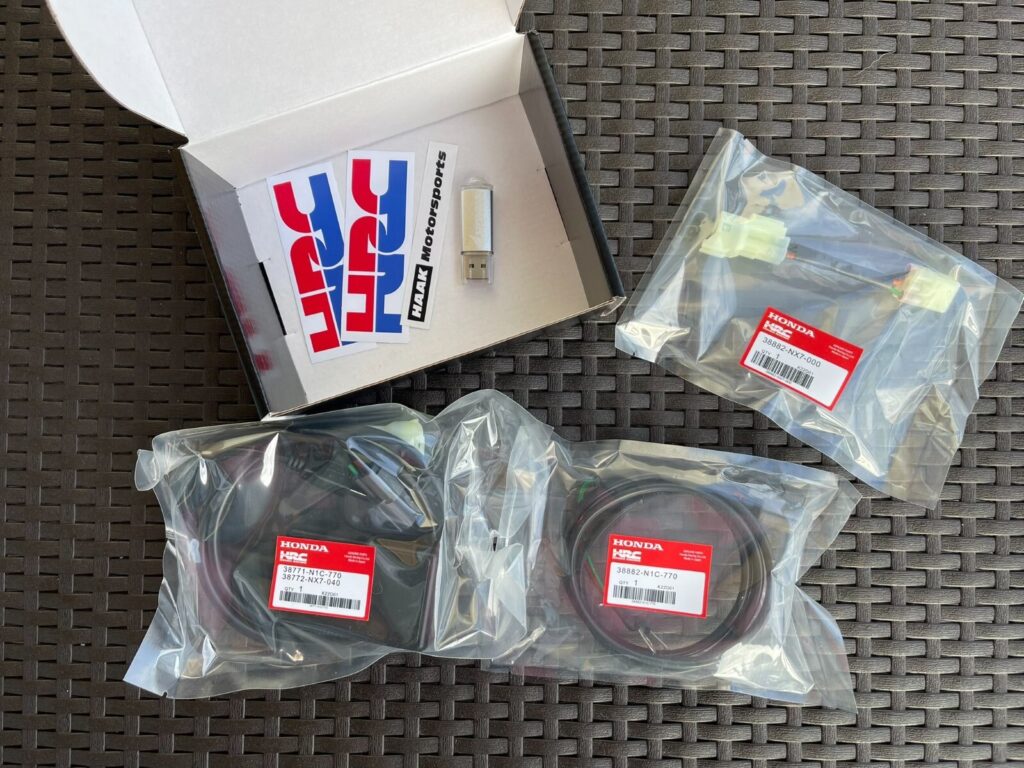

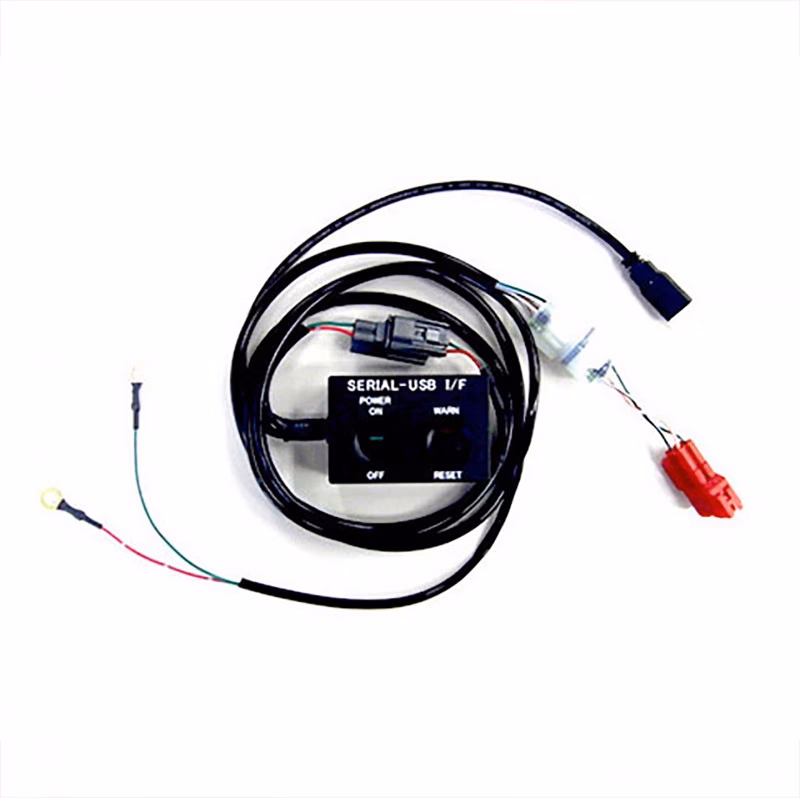

At its core, the Honda PGM-FI Setting Tool is a sophisticated yet user-friendly interface designed to communicate with your Honda's Programmable Fuel Injection (PGM-FI) system. It allows for advanced customisation of the engine's mapping. Traditionally, these settings were the domain of professional tuners and race teams. However, with the advent of this tool, Honda has democratised high-level engine tuning, making it accessible to the dedicated enthusiast. By connecting a standard laptop computer to the PGM-FI unit via a serial USB interface, riders can input desired changes to fuel and ignition timing maps. These adjustments are then downloaded directly to the bike's computer, altering how the engine performs under various load and speed conditions. It’s a powerful way to extract the maximum potential from your Honda motorcycle.
The Benefits of Custom Mapping
The advantages of using the PGM-FI Setting Tool to create custom maps are manifold. Primarily, it offers a pathway to significantly improved performance. By optimising the air-fuel ratio and ignition timing for specific RPMs and throttle positions, you can achieve:
- Increased Horsepower and Torque: Tailoring the fuel and ignition maps can unlock hidden power reserves, leading to a noticeable boost in acceleration and top-end speed.
- Enhanced Throttle Response: A well-tuned map can make the throttle feel more immediate and precise, improving the connection between rider input and engine output.
- Improved Fuel Efficiency: While often associated with power, careful tuning can also lead to more efficient combustion, potentially improving fuel economy, especially under steady cruising conditions.
- Better Drivability: Custom maps can smooth out any jerky power delivery or flat spots in the engine's powerband, resulting in a more seamless and enjoyable riding experience.
- Adaptation to Modifications: If you've upgraded your exhaust system, air filter, or other engine components, custom mapping is crucial to ensure these modifications perform optimally and don't negatively impact the engine's health.
How to Use the PGM-FI Setting Tool: A Practical Guide
The process of using the Honda PGM-FI Setting Tool is designed to be straightforward, even for those new to engine tuning. The general workflow involves:
- Connecting to the PGM-FI Unit: You'll need the PGM-FI Setting Tool software installed on your laptop and the appropriate USB cable to connect your laptop to the PGM-FI unit on your motorcycle. Ensure your bike's ignition is on.
- Reading Existing Maps: Before making any changes, it's good practice to read the current fuel and ignition maps from the PGM-FI unit. This serves as a baseline and a backup in case you need to revert to the factory settings.
- Modifying Parameters: The software presents you with various maps, typically displaying ignition timing and fuel injection values against engine speed and throttle position. You can then adjust these values. For example, you might choose to advance ignition timing at a certain RPM and load to increase power, or richen the fuel mixture in another area to prevent detonation.
- Saving Your Custom Map: Once you've made your desired adjustments, you'll save your new map on your laptop. It's highly recommended to give your maps descriptive names (e.g., "My_Custom_Track_Map_V1").
- Downloading the Map: Connect your laptop to the PGM-FI unit and download your newly created map. The software will guide you through this process.
- Testing and Refinement: After downloading the map, it’s crucial to test it on your motorcycle. Ride in various conditions and assess the engine’s performance. You may find that further small adjustments are needed to achieve the perfect setup. This iterative process of tuning and testing is key to unlocking your bike's full potential.
For a visual demonstration, resources like the video showcasing the use of the Honda HRC PGM-FI Setting Tool on a 2021 Honda CRF450R provide invaluable insights into the practical application of this tool.
Understanding the PGM-FI Unit
The PGM-FI unit, or Electronic Control Unit (ECU), is the brain of your motorcycle's fuel injection system. It receives data from various sensors, including throttle position, engine speed, air temperature, and manifold pressure. Based on this data and the pre-programmed or user-defined maps, it calculates the precise amount of fuel to inject and the optimal moment for the spark plug to ignite the air-fuel mixture. The PGM-FI Setting Tool essentially allows you to rewrite these maps, dictating how the ECU interprets sensor data and controls the engine.
Safety First: Understanding Warning Labels
While the PGM-FI Setting Tool offers immense benefits for performance tuning, it's vital to acknowledge the importance of safety. Honda, like all responsible manufacturers, includes safety messages on their vehicles, including models like the HRC CBR1000RR. These messages are preceded by specific alert symbols and keywords: DANGER, WARNING, or CAUTION. These labels are not mere suggestions; they are critical indicators of potential hazards that could lead to personal injury or damage to your property if ignored. Always pay close attention to these warnings, especially when modifying your vehicle's performance parameters. Incorrect tuning can lead to engine damage or unpredictable handling characteristics.
Comparison: Stock vs. Custom Maps
To illustrate the impact of the PGM-FI Setting Tool, consider a comparison between a stock map and a well-designed custom map:
| Feature | Stock PGM-FI Map | Custom PGM-FI Map (Example) |
|---|---|---|
| Primary Goal | Broad usability, emissions compliance, reliability | Optimised performance for specific conditions/rider preference |
| Throttle Response | Generally smooth but can be conservative | Can be made sharper and more direct |
| Power Delivery | Balanced across the rev range | Can be tuned for increased peak horsepower or improved mid-range torque |
| Fueling | Aims for a balance of performance and economy, often leaning for emissions | Can be adjusted richer for cooling and detonation resistance, or leaner for economy where appropriate |
| Ignition Timing | Conservative to prevent knock under various conditions | Can be advanced to increase power, but requires careful consideration of fuel quality and engine load |
| Adaptability | General purpose | Tailored for specific modifications or riding environments (e.g., track, street, altitude) |
Frequently Asked Questions
Q1: Will using the PGM-FI Setting Tool void my Honda's warranty?
Modifying engine maps can potentially affect your warranty. It's always best to consult your Honda dealer or the warranty documentation for specific details regarding performance modifications.
Q2: Do I need to be a professional mechanic to use this tool?
While a basic understanding of engine operation is helpful, the PGM-FI Setting Tool is designed for user-friendliness. With careful study of the software and reliable resources, most enthusiasts can learn to use it effectively. However, incorrect tuning can lead to engine damage.
Q3: Can I download maps created by others?
Yes, many online communities and performance specialists offer pre-made maps for various Honda models and modifications. However, it's crucial to ensure these maps are from reputable sources and are suitable for your specific bike and intended use.
Q4: What kind of laptop is required?
Typically, a standard Windows-based laptop with a USB port is sufficient. The specific software requirements will be detailed by Honda or the tool's supplier.
Q5: Is the PGM-FI Setting Tool compatible with all Honda motorcycles?
No, compatibility is generally model-specific. The tool is designed for models equipped with Honda's PGM-FI system, often found on performance-oriented bikes like motocross and sportbikes. Always check the product description for compatibility with your specific Honda model.
Conclusion: The Power is in Your Hands
The Honda PGM-FI Setting Tool is a game-changer for riders looking to elevate their motorcycle's performance. It provides the means to fine-tune critical engine parameters, unlocking a new level of responsiveness, power, and personalisation. By understanding the tool's capabilities, following best practices for tuning, and always prioritising safety, you can transform your Honda into a machine that truly reflects your riding aspirations. Embrace the power of customisation and experience your Honda like never before.
