The Essential Guide to Brake Caliper Press Tools

Changing your car's brake pads is a fundamental aspect of vehicle maintenance, ensuring your safety and the longevity of your braking system. While many DIY enthusiasts are familiar with the basic process, the advent of more sophisticated braking systems, particularly those with integral parking brakes, has introduced a need for specialised tools. Enter the brake caliper press tool, a seemingly simple device that becomes indispensable for specific brake jobs. This guide will delve into the world of brake caliper press tools, focusing on why some require a standard compression method while others, particularly rear calipers with integral parking brakes, demand a 'wind-back' or 'rewind' tool for successful and safe operation.

What is a Brake Caliper Press Tool?

At its core, a brake caliper press tool is designed to compress the caliper piston back into its housing, creating enough space to fit new, thicker brake pads. When you press the brake pedal, hydraulic fluid forces the piston outwards, pushing the brake pads against the brake disc to slow down the vehicle. As the pads wear down, the piston extends further out. When it's time to replace the pads, the piston needs to be retracted to accommodate the fresh, full-thickness pads.

There are two primary types of caliper press tools:

• Standard Caliper Compressor: This is often a simple screw-type tool, sometimes resembling a large C-clamp or a dual-plate compressor. It applies direct, linear pressure to push the piston straight back into the caliper bore. These are typically used for front brake calipers and many rear calipers that do not feature an integral parking brake mechanism. They are straightforward, inexpensive, and highly effective for their intended purpose.
• Brake Caliper Wind-Back/Rewind Tool: This is the star of our show for more complex rear brake setups. Unlike the standard compressor, a wind-back tool doesn't just push; it rotates and pushes the piston simultaneously. This crucial difference is due to the design of integral parking brakes, which we will explore in detail. Without this specific rotational action, attempting to force the piston back can damage the caliper's internal mechanism, leading to costly repairs.

Understanding Integral Parking Brakes

Many modern vehicles, particularly those with disc brakes on the rear axle, incorporate an 'integral' or 'combined' parking brake system. In this design, the rear brake caliper piston serves a dual purpose: it performs the normal hydraulic braking function and also acts as part of the mechanical parking/handbrake mechanism. This is typically achieved via a cable-operated system. When you engage the handbrake lever inside the car, a cable pulls on a lever mechanism attached to the rear caliper. This mechanism, in turn, applies pressure to the piston, effectively clamping the brake pads against the disc to hold the vehicle stationary.

The internal design of these calipers includes a threaded shaft or screw mechanism that extends and retracts the piston when the parking brake is applied or released. To retract the piston for new brake pads, this threaded mechanism must be rotated, not just pushed. Attempting to simply push a piston with an integral parking brake will meet with significant resistance and, more often than not, result in damage to the delicate internal threads or the parking brake mechanism itself. This is why the wind-back tool is not just a convenience but an absolute necessity for these systems.

Why You Need a Brake Caliper Wind-Back Tool

The necessity of a wind-back tool cannot be overstated when dealing with integral parking brakes. Many a DIY mechanic has learned this the hard way, struggling with a stubborn piston only to realise the fundamental difference in design. While a standard C-clamp might be a trusty companion for front brake jobs, it will prove utterly useless, and potentially destructive, on a rear caliper with an integral parking brake. The internal threading requires a specific rotational motion to retract the piston safely and correctly.

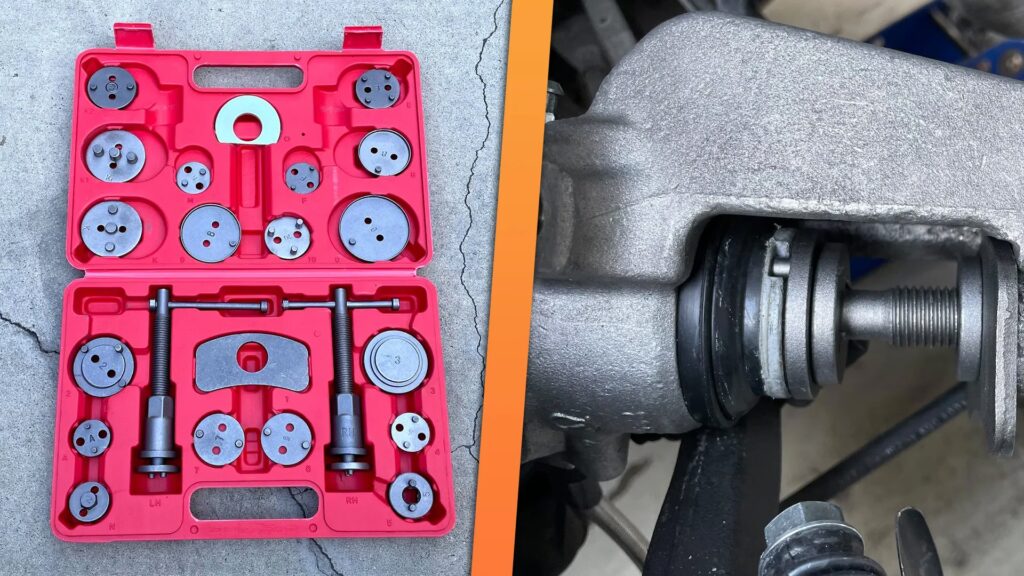

Investing in a wind-back tool kit is a smart move for any home mechanic. These kits typically come with a variety of adapters (circular plates with two pins or notches) to fit different piston designs and a main body with both left-hand and right-hand threaded shafts, accommodating various manufacturers' specifications. They are generally robust, designed to last for years, and surprisingly affordable given the frustration and potential damage they help you avoid.

The Process of Using a Brake Caliper Wind-Back Tool

Performing a brake job requires careful attention to detail and, above all, a commitment to safety. Here’s a step-by-step guide to using a wind-back tool, ensuring a smooth and successful brake pad replacement.

1. Prioritise Safety and Prepare the Vehicle

Before you even think about touching a spanner, ensure your vehicle is safely prepared. This is paramount.

• Loosen Wheel Nuts: With the vehicle still on the ground, slightly loosen the wheel nuts on the wheel(s) you'll be working on. This prevents the wheel from spinning once it's jacked up.
• Lift and Support: Use a reliable hydraulic jack to raise the vehicle to a working height. Crucially, always support the vehicle securely on robust jack stands. Never rely solely on a jack. Place jack stands on appropriate jacking points, typically indicated in your car's owner's manual.
• Redundant Safety Measures: For added peace of mind, you can place the removed wheel(s) under the vehicle's chassis rails as an extra safety net. Chock the wheels that remain on the ground (e.g., the front wheels if you're working on the rear) to prevent any movement. Engage the handbrake on the wheels not being worked on, if applicable.
• Open Brake Fluid Reservoir: Locate the brake fluid reservoir under the bonnet and carefully open its cap. As you push the piston back, brake fluid will be displaced and rise in the reservoir. Opening the cap prevents pressure build-up and potential fluid leaks. It's a good practice to place old towels or rags around the reservoir to catch any overflow, as brake fluid is highly corrosive to paintwork.

2. Remove the Wheel and Unbolt the Rear Caliper

Once the vehicle is safely supported:

• Remove the Wheel: Fully unbolt and remove the road wheel. Set it aside safely.
• Unbolt the Caliper: Locate the two guide pins or bolts that hold the caliper to the caliper carrier. These are usually at the back of the caliper. Depending on your vehicle, you might need a spanner or an Allen key. Once unbolted, the caliper should be able to slide off the brake disc and pads. It might require a gentle wiggle or levering with a flat-blade screwdriver if it's snug.
• Support the Caliper:Never let the caliper hang freely by its brake hose! The weight of the caliper can damage the brake hose, leading to a dangerous brake fluid leak and potential brake failure. Use a bungee cord, a piece of wire, or a dedicated caliper hanger to suspend the caliper from a nearby suspension component. Ensure there is no strain on the brake hose.
• Remove Old Pads: With the caliper out of the way, remove the old brake pads from the caliper carrier. Note their orientation, as new pads often need to be installed in the same way.

3. Prepare the Wind-Back Tool

Now it's time to get familiar with your wind-back tool kit:

• Select the Correct Adapter: Open your tool kit and identify the circular adapter plate that matches the pattern on your caliper piston face. Most pistons will have two small indentations or grooves. The adapter plate will have corresponding pins or notches that fit precisely into these grooves. This ensures the tool grips the piston securely for rotation.
• Assemble the Tool: Attach the selected adapter plate to the main body of the wind-back tool. Insert the back plate of the tool into its position. This back plate will rest against the caliper body, providing the necessary resistance for the piston to be pushed back.
• Position the Tool: Carefully place the assembled wind-back tool into the caliper. The adapter plate should be flush against the piston face, with its pins securely seated in the piston's grooves. The back plate should be resting against the opposite side of the caliper housing. Adjust the tool by turning its main shaft or lever until it sits snugly within the caliper, making light contact with both the piston and the caliper body.

4. Wind the Piston Back

This is the critical step:

• Determine Rotation Direction: Integral parking brake pistons can be either left-hand or right-hand threaded. If your tool kit has both, you might need to try one direction first. A common rule of thumb is that the passenger side (left-hand drive) or driver side (right-hand drive) might be one direction, and the opposite side the other, but this is not universal. If the piston resists and doesn't move after a couple of turns, try the other rotation direction.
• Rotate and Compress: Begin turning the main lever or handle of the wind-back tool. You should see the piston slowly rotate and simultaneously retract into the caliper bore. It might require a little initial effort, but once it starts moving, it typically becomes smoother. Continue turning until the piston is fully retracted, or at least far enough back to comfortably accommodate the new, thicker brake pads and any shims.
• Monitor Brake Fluid: Keep an eye on the brake fluid reservoir. If it starts to overflow, use a clean syringe or turkey baster to remove some fluid. Never let it overflow onto your vehicle's paint.

5. Reassembly and Final Checks

Once the piston is fully retracted, the hardest part is over:

• Remove the Tool: Loosen the wind-back tool and carefully remove it from the caliper.
• Install New Pads: Install the new brake pads into the caliper carrier. Ensure any anti-squeal shims or clips are correctly fitted.
• Reinstall Caliper: Carefully slide the caliper back over the new pads and brake disc. Ensure the guide pins align correctly. Reinstall and torque the caliper guide pin bolts to the manufacturer's specifications.
• Reattach Wheel: Reinstall the road wheel and hand-tighten the wheel nuts.
• Lower Vehicle: Carefully lower the vehicle off the jack stands. Once the vehicle is on the ground, fully tighten the wheel nuts to the correct torque specification using a torque wrench.
• Pump Brake Pedal: Before driving, get into the car and gently pump the brake pedal several times. You will feel the pedal gradually firm up as the caliper pistons extend and seat against the new pads. Do not drive until the pedal feels firm.
• Check Brake Fluid: Double-check the brake fluid level in the reservoir and top it up to the 'Max' line if necessary, using the correct type of brake fluid specified for your vehicle. Close the reservoir cap securely.
• Test Drive: Perform a cautious test drive in a safe area, applying the brakes gently at first to bed in the new pads. Avoid harsh braking for the first few hundred miles to allow the pads and discs to mate properly.

Comparative Table: Standard vs. Wind-Back Caliper Tools

Troubleshooting Common Issues

Even with the correct tool, you might encounter a snag or two. Here's how to address some common problems:

What if the Piston Won't Move?

• Wrong Rotation Direction: This is the most common reason. If the piston resists significantly after a few turns, stop and try rotating the tool in the opposite direction. Wind-back tool kits almost always provide options for both left-hand and right-hand threads.
• Seized Piston: If the piston absolutely refuses to move in either direction, even with considerable force, there's a strong possibility that the piston or the caliper itself is seized due to corrosion or internal damage. In this scenario, the caliper will likely need to be rebuilt (if a rebuild kit is available and you're confident in doing so) or, more commonly, replaced entirely. A seized caliper is a serious safety concern and must be addressed immediately.
• Parking Brake Cable Tension: Ensure the handbrake is fully disengaged. Sometimes, tension in the parking brake cable mechanism can prevent the piston from retracting. Double-check that the cable is slack where it connects to the caliper.

Can I Use a C-Clamp for Rear Calipers?

For rear calipers with integral parking brakes, absolutely not. A C-clamp only applies linear force. Forcing a piston that requires rotation will damage the internal threaded mechanism, leading to a seized caliper, a non-functional parking brake, and potentially expensive repairs or a full caliper replacement. Always identify your caliper type first.

Frequently Asked Questions (FAQs)

How do I know if my rear calipers have an integral parking brake?

The easiest way to tell is by looking at the caliper itself. If there's a cable attached to a lever mechanism on the back or side of the caliper, it almost certainly has an integral parking brake. Another strong indicator is if the piston face has two small indentations or grooves, designed for the pins of a wind-back tool. If you're unsure, consult your vehicle's service manual or look up your car's specific brake system online.

Are all brake caliper wind-back tools universal?

While the basic principle is the same, wind-back tool kits come with a variety of adapter plates to fit different piston designs and sizes across various vehicle manufacturers. A good quality kit will include adapters for most common vehicles. However, it's always a good idea to check the compatibility list if you're buying a specific kit, or ensure the kit you purchase has a wide range of adapters.

What's the difference between a left-hand and right-hand threaded wind-back tool?

This refers to the direction in which the piston needs to be rotated to retract. Some manufacturers use a left-hand thread on one side of the vehicle and a right-hand thread on the other. Most comprehensive wind-back tool kits will include both left-hand and right-hand threaded shafts or a reversible mechanism to accommodate both.

Can I damage my brake system by using the wrong tool?

Yes, absolutely. Using a standard caliper compressor on a rear caliper with an integral parking brake will almost certainly damage the internal threaded mechanism, leading to a seized piston and potentially requiring a full caliper replacement. This can be a costly mistake and compromise your vehicle's braking safety. Always use the correct tool for the job.

How often should I change my brake fluid?

Brake fluid is hygroscopic, meaning it absorbs moisture over time, which can reduce its boiling point and lead to corrosion within the braking system. Most manufacturers recommend changing brake fluid every two to three years, regardless of mileage. Always refer to your vehicle's owner's manual for specific recommendations.

Is it worth buying a wind-back tool for a single brake job?

If your vehicle has integral parking brakes, then yes, it is absolutely worth it. The cost of a wind-back tool kit is typically far less than the cost of a new caliper (which you might need if you damage the old one by using the wrong tool) or paying a garage to do the job. Plus, once you own it, you'll have it for future brake jobs on your car or other vehicles. It's an essential piece of kit for the modern DIY mechanic.

Mastering the use of a brake caliper wind-back tool is a crucial skill for any home mechanic tackling brake jobs on modern vehicles. It transforms a potentially frustrating and damaging task into a straightforward procedure, saving you time, money, and the headache of unexpected repairs. Always remember to prioritise safety, use the correct tools, and understand the specific requirements of your vehicle's braking system for a successful and safe maintenance experience.
