Wacker Plates Explained: Your Guide

When tackling DIY projects that involve ground preparation, understanding the tools at your disposal is crucial. Among these, the humble yet powerful wacker plate, also known as a vibrating plate compactor, plays a vital role in achieving a solid and stable foundation. Whether you're laying a new patio, building a shed base, or even constructing a garden pond, proper ground compaction is paramount. This guide will delve into what a wacker plate is, why you need one, the different types available, how to use them safely and effectively, and essential maintenance and safety advice.

What Exactly is a Wacker Plate?

A wacker plate is a piece of construction equipment designed for compacting loose materials like soil, sand, gravel, and even tarmac. It operates by using a vibrating steel plate that is driven into the ground. This vibration effectively removes trapped air and consolidates the material beneath, creating a much denser and more stable surface. Think of it as a heavy-duty tamper, but one that does the hard work for you through its powerful vibrations. The term "wacker plate" is often used generically, but it originates from the brand Wacker Neuson, a prominent manufacturer of construction equipment, including these compactors. So, while you might hear it called a compactor or vibrating plate, "wacker plate" has become a common, albeit brand-specific, term.

Why is Compaction So Important?

You might wonder why you can't just lay your materials directly onto unprepared ground. The answer lies in the longevity and stability of your project. Uncompacted soil or aggregate is prone to shifting and settling over time, especially when subjected to environmental factors. One of the biggest culprits is the freeze-thaw cycle. When water penetrates uncompacted ground, it can freeze and expand, pushing the material apart. When it thaws, the ground settles, leading to cracks and an uneven surface. By using a wacker plate, you create a firm, dense base that significantly reduces the risk of this type of damage. This ensures your shed stays level, your patio doesn't sink, and your driveway remains smooth for years to come. Proper compaction is the bedrock of any successful construction project, no matter how small.

Types of Wacker Plates Available

Wacker plates come in various forms to suit different needs and environments. The primary distinctions lie in their power source:

1. Petrol/Diesel Powered Wacker Plates

These are the most common and powerful types. As their names suggest, they are powered by internal combustion engines running on petrol or diesel. Their main advantage is their raw power and portability, as they don't require a power source other than their fuel tank. However, this power comes with a significant drawback: they produce exhaust fumes, which are toxic. Therefore, petrol and diesel wacker plates are strictly for outdoor use and in well-ventilated areas. Never use them in enclosed spaces like garages or basements due to the risk of carbon monoxide poisoning.

2. Electric Wacker Plates

Electric wacker plates offer a more environmentally friendly and quieter alternative. They are powered by electricity, either from a mains power supply via a long extension cord, or increasingly, from battery packs. Electric models are generally lighter and easier to handle, making them a good choice for smaller DIY jobs. They are also suitable for indoor use, provided there is adequate ventilation and a suitable power source. For mains-powered electric plates, you will typically need a generator or a heavy-duty transformer to ensure a stable power supply. Battery-powered versions offer the ultimate in portability, but their run time will be limited by battery capacity.

Comparison of Wacker Plate Types

How to Use a Wacker Plate Safely and Effectively

Operating a wacker plate requires attention to detail and a commitment to safety. Before you even think about starting the engine, ensure you have the correct Personal Protective Equipment (PPE). This is non-negotiable:

• Safety Glasses: To protect your eyes from flying debris.
• Heavy-duty Gloves: To protect your hands from vibrations and potential cuts.
• Ear Defenders or Ear Plugs: Wacker plates can be very noisy.
• Safety Footwear: Steel-toed boots are recommended to protect your feet.
• Dust Mask: Especially when working with dry soil or aggregate, to prevent inhalation of dust.

Starting a Petrol/Diesel Wacker Plate:

1. Check Fuel and Oil: Ensure there is sufficient fuel and the oil level is correct. Never refuel a hot engine.
2. Open Fuel Tap: Locate and open the fuel tap.
3. Choke (if cold start): If the engine is cold, set the choke to the 'on' position. If it's a warm restart, you may not need the choke.
4. Ignition Switch: Turn the ignition switch to the 'I' or 'on' position.
5. Throttle: Set the throttle to the idle position.
6. Start the Engine: Grip the starter cord firmly and pull it towards you with a swift, steady motion. You may need to repeat this a few times. If it doesn't start after 6-7 attempts, re-check the steps.
7. Adjust Choke: Once the engine is running smoothly, gradually move the choke to the 'off' position.

Starting an Electric Wacker Plate:

1. Power Connection: If mains-powered, connect the transformer to a suitable power supply, then connect the wacker plate to the transformer. Ensure all connections are secure and protected from moisture.
2. Switch On: Turn the wacker plate's power switch to the 'on' position.

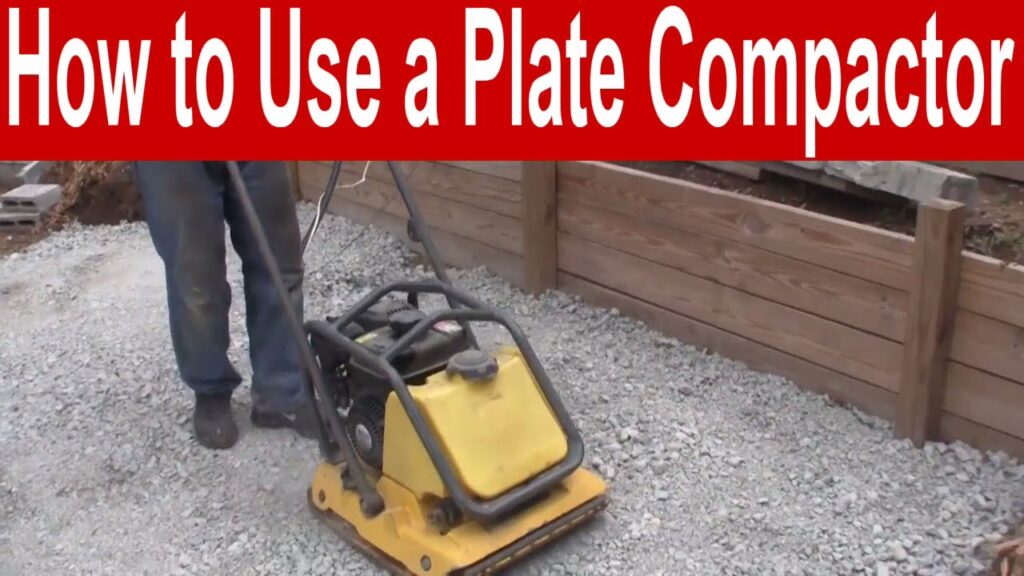

Operating the Plate:

1. Set Throttle: For maximum efficiency, set the throttle lever to the fully open position.
2. Manoeuvring: Once powered up, the plate will begin to vibrate and move forward on its own. Keep a firm grip on the handle to guide it. The vibration will cause the plate to "crawl" along the surface.
3. Compacting Technique: Work in straight, overlapping passes. Move the plate forward slowly, ensuring you cover the entire area. Overlap each pass by at least half the width of the plate to ensure consistent compaction. Work in one direction (e.g., top to bottom) and then perpendicular to that (e.g., left to right).
4. Addressing Unevenness: If you encounter a dip or hole, fill it with the appropriate material and then compact it with the wacker plate.
5. Finishing: Continue until the entire designated area is compacted to your satisfaction.
6. Shutting Down: Turn off the engine (for petrol/diesel) or switch off the power (for electric). Allow the machine to cool down completely before storing it.

Maintenance and Storage

Proper maintenance will extend the life of your wacker plate and ensure its reliable performance. After each use:

• Cleaning: Remove any caked-on dirt or debris from the base plate. A stiff brush or scraper can be useful here.
• Check for Damage: Inspect the plate, handles, and any cables for signs of wear or damage.
• Fuel and Oil (Petrol/Diesel): Check fuel and oil levels regularly and top up as needed.
• Storage: Store the wacker plate in a clean, dry, and secure location. If storing for an extended period, it's advisable to run the engine dry of fuel to prevent the fuel system from gumming up.
• Lifting: Most wacker plates have designated lifting points. Use these, and if the machine is heavy, enlist help from another person.

Health and Safety: Crucial Considerations

Operating heavy machinery like a wacker plate comes with inherent risks. Always adhere to these safety guidelines:

• Never use petrol/diesel plates indoors. This cannot be stressed enough due to the risk of carbon monoxide poisoning.
• Be cautious with fuel. Store and handle petrol or diesel in appropriate containers, away from ignition sources.
• Hot surfaces: The engine and exhaust system get extremely hot. Allow the machine to cool down completely before touching it, especially for refuelling or maintenance.
• Adjustments: Always switch the machine off before making any adjustments or attempting any minor maintenance.
• Do not force the machine: If the wacker plate is struggling to move or compact effectively, do not force it. You might be using the wrong type of compactor for the material, or the material may not be suitable. Consult with your hire provider if you encounter issues.
• Supervision: If children or untrained individuals are present, ensure they are kept at a safe distance.

Frequently Asked Questions (FAQs)

Q1: Where can I use a wacker plate?

You can use wacker plates on a variety of surfaces for both indoor and outdoor projects. They are ideal for compacting soil, gravel, sand, hardcore, tarmac, and even freshly laid concrete (though care must be taken not to over-compact concrete). Common applications include preparing bases for sheds, greenhouses, patios, driveways, pathways, and garden features. They can also be used on construction sites for road repairs and groundwork.

Q2: Can I buy fuel from HSS?

Yes, if you are hiring equipment from a company like HSS, they often supply the necessary fuel (like diesel) for their machinery. It's always best to check with your hire provider about fuel availability and the correct type of fuel for the specific machine you are renting. They will also likely have fuel cans and funnels available for purchase.

Q3: How much does a wacker plate weigh?

The weight of a wacker plate can vary significantly depending on its size and power. Smaller electric or light-duty petrol plates might weigh around 50-70 kg, while larger, heavier-duty petrol or diesel models can weigh 100 kg or more. You can usually find the exact weight of a specific model in its product description or by asking a representative at the hire centre.

Q4: What is the difference between a wacker plate and a roller?

While both are compaction tools, a wacker plate uses vibration to compact the material, causing it to move forward. A roller, on the other hand, uses static weight to press down on the surface. Rollers are typically used for larger areas like roads and large groundwork projects, while wacker plates are more versatile for smaller to medium-sized DIY and construction tasks.

Q5: How many passes do I need to make?

The number of passes required depends on the type of material being compacted and the desired level of compaction. Generally, 3-4 overlapping passes are sufficient for most DIY projects. You will notice the material becoming firmer and more resistant to the plate's movement as it compacts. If the surface still feels soft or unstable after several passes, you may need a few more.

In conclusion, a wacker plate is an indispensable tool for any serious DIYer or builder undertaking projects that require a stable, compacted foundation. By understanding the different types available, using them safely with the correct PPE, and following proper operating and maintenance procedures, you can ensure your projects stand the test of time.
