Fuel Injection: Understanding & Fixing Flooded Engines

Modern vehicles rely heavily on sophisticated fuel injection systems to deliver precise amounts of fuel to the engine, optimising performance and efficiency. Unlike older carburettor systems, fuel injection electronically controls the fuel delivery, ensuring the correct air-fuel mixture for various operating conditions. However, even these advanced systems can encounter issues, with a 'flooded engine' being a common problem that can leave you stranded. Understanding how fuel injection works and how to address a flooded engine is crucial for any car owner.

The Basics of Fuel Injection

A fuel-injected engine uses an electronic control unit (ECU) to manage the fuel delivery. The ECU receives data from various sensors, including the throttle position sensor, mass airflow sensor, and oxygen sensors. Based on this data, it precisely controls the opening and closing of fuel injectors, which spray atomised fuel directly into the intake manifold or combustion chamber. This precise control allows for better fuel economy, lower emissions, and improved engine responsiveness compared to older carburettor systems.

What is a Flooded Engine?

A flooded engine occurs when there is an imbalance in the air-fuel mixture, specifically when there is too much fuel and not enough air entering the cylinders. This can lead to a loss of compression, as the excess fuel can wash away the lubricating oil from the cylinder walls, preventing the piston rings from creating a proper seal. When an engine is flooded, it will often refuse to start, or if it does, it will run very poorly before stalling.

Symptoms of a Flooded Engine

Recognising the signs of a flooded engine is the first step towards resolving the issue. Common symptoms include:

• Hard to Start the Engine: The engine may crank but fail to ignite, or it might crank with unusual speed and sound.
• Strong Smell of Gasoline: A noticeable and persistent smell of petrol or gasoline around the vehicle, especially near the exhaust, is a strong indicator.
• Black Smoke from Exhaust: This signifies that the engine is burning an excessively rich fuel mixture.
• Engine Dies Shortly After Starting: If the engine starts but then immediately stalls or dies after moving a short distance, it's a classic sign of flooding.
• Engine Cranks Differently: Instead of the normal cranking sound, a flooded engine might spin faster and produce a 'whirring' or unusual noise due to the lack of compression.

Common Causes of Engine Flooding

Several factors can contribute to an engine becoming flooded:

• Short Tripping: Repeatedly driving short distances and shutting off the engine before it reaches its optimal operating temperature can fool the fuel injection system. When you try to restart, it may inject too much fuel. This is a particularly common cause on many Honda models.

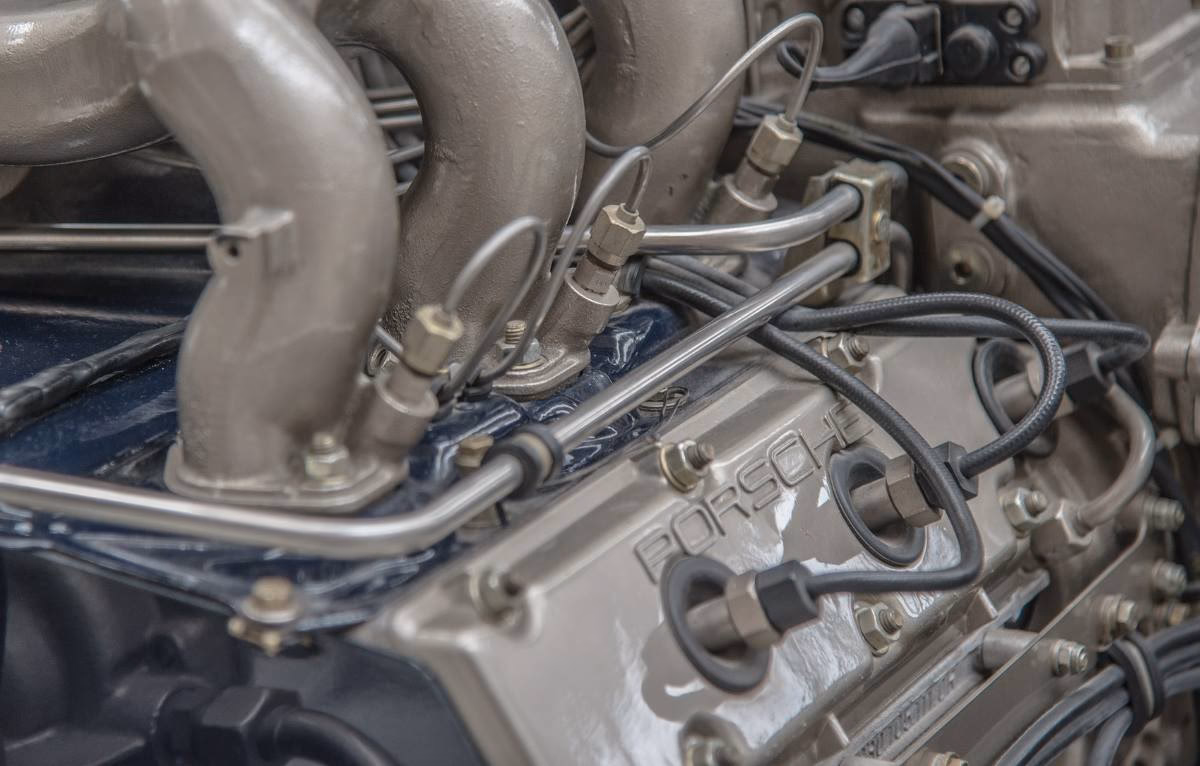

• Faulty Fuel Injectors: Leaking or malfunctioning fuel injectors can continuously drip fuel into the cylinders, even when the engine is off.
• Issues with Sensors: A faulty coolant temperature sensor or mass airflow sensor can provide incorrect readings to the ECU, leading to an overly rich fuel mixture.
• Manual Over-fuelling: In older vehicles with carburetors, repeatedly pumping the accelerator before starting can flood the engine. While less common with fuel injection, attempting to start a fuel-injected engine with the accelerator fully depressed (without engaging 'clear flood mode') can sometimes exacerbate the issue.
• Cold Weather: In very cold conditions, fuel may not vaporise efficiently, leading the system to inject more fuel to compensate, which can sometimes result in flooding.

How to Fix a Flooded Engine

Fortunately, in many cases, a flooded engine can be fixed without professional help. Here are the most effective methods:

1. Clear Flood Mode (Fuel Injected Engines)

Modern fuel-injected vehicles have a 'clear flood mode' designed to help resolve this issue. To engage this mode:

1. Depress the accelerator pedal fully to the floor (usually past 80% throttle).
2. While holding the pedal down, crank the engine.

The ECU detects the wide-open throttle position and typically shuts off the fuel injectors, allowing the engine to crank without adding more fuel. This helps to clear the excess fuel from the cylinders. Important: Do not crank the engine for excessively long periods at once, as this can overheat and damage the starter motor. Allow the starter to cool between attempts.

2. Check and Dry Spark Plugs

If you suspect your engine is flooded, removing the spark plugs is a good diagnostic step. If they are wet with fuel, it confirms the flooding. You can try to:

• Remove the spark plugs.
• Allow them to air dry completely.
• Once dry, reinstall them and attempt to start the engine, perhaps using the clear flood mode method.
• If the plugs are fouled or damaged, replacing them with new ones is recommended.

3. Allow Fuel to Vaporise

With the engine off, you can try opening the bonnet (hood) to allow for better ventilation. This can help the excess fuel in the cylinders to evaporate. After a few minutes, attempt to start the engine without touching the accelerator pedal.

4. Provide More Airflow

This method is similar to engaging clear flood mode. By holding the accelerator pedal to the floor, you open the throttle body wide open, allowing maximum air into the cylinders. This helps to create a leaner air-fuel mixture, aiding in combustion. Hold the pedal down while cranking the engine. Again, be mindful of starter motor strain.

5. Clean Fuel Injectors

If the problem persists, it's possible that a dirty or malfunctioning fuel injector is contributing to the flooding. Using a quality fuel injector cleaner added to your fuel tank can help clean deposits. In more severe cases, the injectors may need to be removed and professionally cleaned or replaced.

Preventing Engine Flooding

Proactive maintenance and mindful driving habits can significantly reduce the likelihood of experiencing a flooded engine:

• Avoid Short Trips: Whenever possible, allow your engine to reach its normal operating temperature. If you must make short trips, try to occasionally take a longer drive to ensure components warm up properly.
• Proper Starting Procedure: For fuel-injected cars, avoid pumping the accelerator before starting unless explicitly instructed by your vehicle's manual or if you are using the clear flood mode technique.
• Regular Maintenance: Keep up with your vehicle's scheduled maintenance. This includes checking and replacing spark plugs, air filters, and ensuring all sensors are functioning correctly.
• Address Issues Promptly: If you notice any unusual engine behaviour, such as difficulty starting or a fuel smell, have it inspected by a qualified mechanic.

Troubleshooting Table

Here's a quick reference for diagnosing and fixing a flooded engine:

Frequently Asked Questions (FAQs)

Q1: Can a flooded engine damage my car?

A: While a single instance of flooding is unlikely to cause permanent damage, persistent flooding can lead to issues like oil dilution (reducing lubrication effectiveness), fouled spark plugs, and increased wear on engine components. It's best to address the cause of the flooding promptly.

Q2: How long should I crank the engine in clear flood mode?

A: Crank the engine in short bursts, typically no longer than 10-15 seconds at a time. Allow the starter motor at least a minute to cool down between attempts to prevent overheating.

Q3: My car has a carburetor, not fuel injection. How do I fix a flooded engine?

A: For carburetted engines, the process is similar: remove the spark plugs, let them dry, and then try to start the engine without touching the accelerator. Some older vehicles may also have a manual choke that needs to be adjusted.

Q4: What's the difference between a flooded engine and a lack of fuel?

A: A flooded engine has too much fuel relative to air. A lack of fuel means the opposite – the engine isn't receiving enough fuel to combust, often due to an empty fuel tank, a clogged fuel filter, or a faulty fuel pump.

Q5: Is it okay to drive with a slightly flooded engine?

A: It's not recommended. A flooded engine runs inefficiently, produces excessive emissions, and can lead to further complications. It's best to resolve the flooding issue before driving.

Understanding the intricacies of your fuel-injected engine and knowing how to respond to common issues like flooding can save you time, money, and a great deal of frustration. Regular maintenance and attentive driving habits are your best defence against these problems, ensuring your vehicle performs reliably for years to come.
