Revive Your Rim Brakes: Pad Holder & Care Guide

While disc brakes have undoubtedly taken over the cycling world, gracing everything from professional race bikes to everyday commuters, the humble rim brake is far from obsolete. Many dedicated cyclists, myself included, still champion their simplicity, lighter weight, and excellent performance when properly maintained. If your rim brakes feel spongy, lack stopping power, or emit an ear-splitting squeal, it's often not a fundamental flaw with the system, but rather an issue with setup and maintenance. One of the most critical adjustments, and often overlooked 'fix' for common rim brake woes, lies in the correct positioning and adjustment of your brake pad holders.

Understanding Your Rim Brake Pad Holders

Your rim brake pad holders are the crucial interface between your brake calliper and the brake pad itself. They are typically secured to the calliper arms with a bolt and feature a set of spherical, often conical, washers – commonly referred to as ball and socket washers. These ingenious washers are what allow the brake pad to be angled relative to the rim, a critical feature for achieving optimal braking performance. Without the ability to adjust this angle, your brakes would either lack power, feel grabby, or suffer from persistent noise.

The Essential 'Fix': Perfecting Brake Pad Toe-In

When someone asks 'how do you fix a rim brake pad holder?', the most common and impactful answer relates to adjusting its 'toe-in'. Toe-in refers to the slight angle at which the brake pad meets the rim. Instead of the pad sitting perfectly parallel to the rim surface, you want the leading edge (the front part of the pad in the direction of wheel rotation) to make contact with the rim slightly before the trailing edge (the rear part). This subtle angle is paramount for several reasons:

• Improved Modulation: Proper toe-in allows for a progressive braking feel. As you pull the lever, more of the pad surface gradually makes contact, giving you greater control over your stopping power. Without it, braking can feel like an 'on/off' switch.
• Eliminating Squeal: One of the most frustrating aspects of rim brakes is persistent squealing. A primary cause of this noise is the entire pad making contact with the rim simultaneously, causing vibrations. Toe-in helps to break up these vibrations, significantly reducing or eliminating squeal.
• Enhanced Stopping Power: While counter-intuitive, the gradual engagement provided by toe-in allows the pad to 'bite' more effectively into the rim, leading to more powerful and reliable stops.

Step-by-Step Guide to Adjusting Brake Pad Toe-In:

This adjustment is simple but requires precision. You'll need an appropriate Allen key (usually 5mm or 6mm) to loosen the pad holder bolt.

1. Preparation: Ensure your wheels are properly seated in the dropouts and quick releases are tightened. The bike should be stable, ideally in a work stand.
2. Loosen the Pad Holder: Using your Allen key, slightly loosen the bolt that secures the brake pad holder to the calliper arm. You want it loose enough to move the pad by hand, but not so loose that it flops around freely. The ball and socket washers should allow for easy angular adjustment.

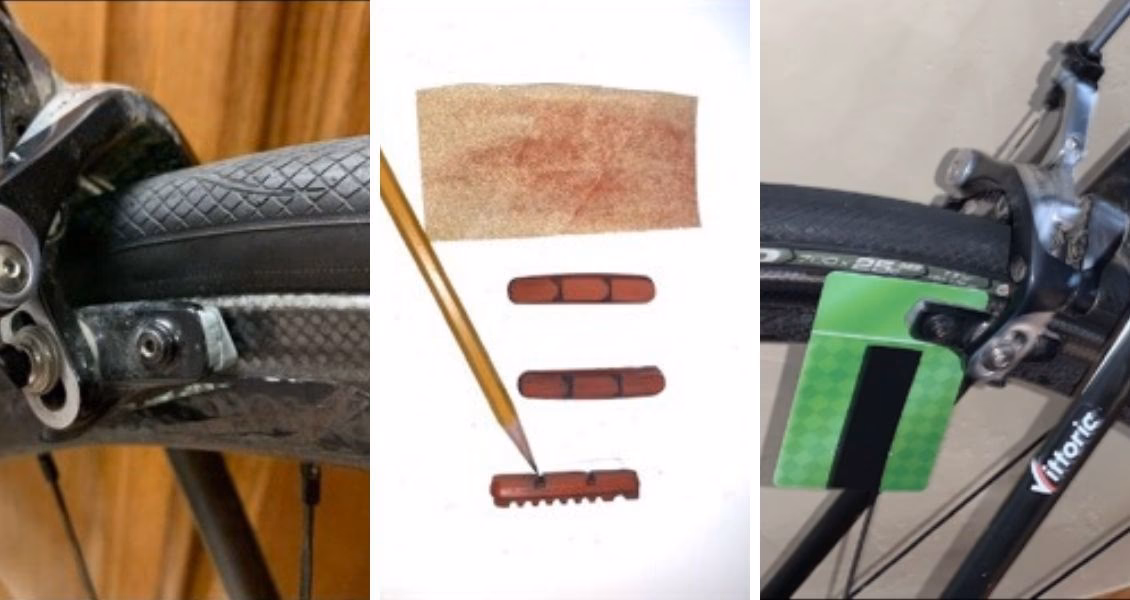

3. Introduce the Spacer: The trick to achieving perfect toe-in is to use a small spacer. A piece of stiff paper or thin card, folded two or three times, works perfectly. Slip this folded paper under the *rear* half of the brake pad (the trailing edge). The paper should be positioned between the brake pad and the rim.
4. Engage the Brake: With the paper in place, pull the brake lever firmly. This will clamp the brake pad against the rim, with the paper creating the desired gap at the rear. Ensure the pad is also vertically aligned with the braking track of the rim – it shouldn't rub on the tyre or go over the top edge of the rim.
5. Tighten the Pad Holder: While still holding the brake lever firmly to keep the pad clamped, carefully tighten the pad holder bolt. Make sure the pad doesn't shift position as you tighten it. Torque settings are usually printed on the calliper or pad holder, but generally, it should be firm – around 6-8 Nm.
6. Release and Test: Release the brake lever and remove the paper spacer. Spin the wheel and apply the brake. You should notice that the leading edge of the pad touches the rim first, with the trailing edge making contact a fraction of a second later. Repeat the process for the other brake.
7. Fine-Tuning: If you still experience squealing or poor modulation, you may need to repeat the process, experimenting with slightly more or less toe-in. Some pads or rim materials may require a slightly different approach. Remember, as pads wear, their toe-in will naturally decrease, so periodic re-adjustment is recommended.

Beyond the Holder: Holistic Rim Brake Optimisation

While perfecting your pad holder's toe-in is crucial, it's part of a larger system. To truly 'fix' and elevate your rim brake performance, you need to consider the entire setup. Here are other vital steps that contribute significantly to a powerful, quiet, and reliable braking experience:

1. The Power of Clean Rims and Pads

This cannot be stressed enough: clean rims stop better. As your brake pads wear down, they deposit microscopic rubber particles and road grime onto your rims. This black residue acts like millions of tiny ball bearings, drastically reducing the friction between the pad and the rim. It's the equivalent of trying to stop on an icy surface.

To rectify this, grab a clean rag and some brake cleaner. Disc brake cleaner, or automotive brake cleaner, works exceptionally well as it leaves no residue. Apply it liberally to your rim's braking surface and scrub away the black grime until the surface is visibly clean. Don't forget to wipe down your brake pads too; while less critical than the rim, they also accumulate debris. Isopropyl alcohol is another excellent choice for cleaning as it evaporates quickly and leaves no residue behind.

2. A Clean Bike is a Happy Bike

While not directly impacting immediate stopping power, a clean bicycle significantly contributes to the longevity and consistent performance of your rim brakes. Rim brakes have several moving parts, including pivots on the callipers and the brake cables themselves. If your bike is constantly caked in dirt and grime, this can lead to corrosion of cables, ingress of dirt into brake housing, and gumming up of calliper pivots. All of these issues create drag and friction, leading to a spongy lever feel and reduced braking efficiency. Furthermore, accumulated grit on your rims acts as an abrasive, prematurely wearing down both your rims and pads. A thorough bike wash, especially around the brake components, is an investment in long-term performance.

3. The Unsung Heroes: Decent Brake Pads

Many stock or cheap replacement rim brake pads are, frankly, terrible. They often feel like they're made of cheese – providing minimal friction, a vague lever feel devoid of feedback, and wearing down at an alarming rate. Investing in quality brake pads is one of the most cost-effective upgrades you can make to your rim brakes.

For carbon rims, always adhere to the manufacturer's recommendations or opt for high-quality, carbon-specific brake pads. Using the wrong pads on carbon rims can not only reduce braking performance but also damage the rim itself. For alloy rims, a popular and highly recommended choice is Kool-Stop Salmon pads. These pads are renowned for their exceptional wet-weather performance and impressive stopping power across all conditions. The difference between these and generic pads, especially on a freshly cleaned rim, can be truly staggering.

4. The System's Backbone: Better Cables and Housing

The best brake pads and perfectly adjusted pad holders are only as good as the cables and housing that actuate them. For years, many cyclists (myself included) would cheap out on cables and housing, only to be amazed by the transformation when upgrading. High-quality cables and housing are a revelation.

Decent brake cables come pre-stretched (reducing initial slack), are often polished, and the best ones are coated in a low-friction polymer. This significantly reduces drag within the housing, leading to a smoother, lighter, and more responsive lever feel. Housing is equally important. Cheaper housing can compress slightly under braking force, leading to a spongy feel, especially on bikes with longer housing runs. High-quality housing, often made with a tighter wound steel coil or even solid aluminium links (like Jagwire Elite), is compressionless. This means all your lever force is transmitted directly to the calliper, providing a crisp, firm, and powerful brake feel.

5. The Devil in the Detail: Filing Your Housing Ends

This is a small detail that makes a noticeable difference to brake feel. When you cut brake housing, the end often becomes jagged and uneven. If you don't properly finish these ends before installing the metal end caps (ferrules), the rough housing end won't sit flush against the ferrule or the cable stop on your frame/calliper. This tiny gap allows for a minute amount of compression when you apply the brakes, once again contributing to a spongy lever feel or unwanted drag on the cable. A quick pass with a file or a grinding wheel on a multi-tool will flatten and smooth the cut end, ensuring a perfectly flush fit and eliminating any potential for compression.

6. Smooth Operator: Optimising Cable Routing

Cables, especially brake cables, detest tight corners. Excessive bends in cable routing create significant friction and drag, making your brakes feel sluggish and unresponsive. This was a common issue with early aero bikes that featured complex internal routing to chainstay-mounted brakes, making them a nightmare to work on and detrimental to brake feel. Always aim for the gentlest possible curves when routing your brake cables. This often means cutting your housing to the correct length – not too short, which forces tight bends, and not too long, which can look messy and increase the chance of snagging. Practice makes perfect when it comes to housing length and routing, but prioritising smooth, sweeping curves will always pay dividends in brake performance.

Frequently Asked Questions About Rim Brakes

Q: Why are my rim brakes squealing so loudly?

A: Brake squeal is one of the most common complaints with rim brakes, and it's usually a sign of vibration. The most frequent culprits are incorrect brake pad toe-in (as discussed above), contaminated rims or pads (grease, oil, or embedded debris), or loose calliper bolts. Start by checking and adjusting your toe-in. If that doesn't work, thoroughly clean your rims and pads with a dedicated brake cleaner. If the problem persists, inspect your brake calliper for any loose bolts or excessive play.

Q: How often should I clean my rims and pads?

A: The frequency depends heavily on your riding conditions. If you ride frequently in wet, dirty, or dusty environments, you should aim to clean your rims and pads after every few rides, or certainly once a week. For fair-weather riders, a thorough clean once a month or every few hundred miles might suffice. The key is to do it whenever you notice a build-up of black grime on your braking surface or a decrease in braking performance.

Q: When should I replace my brake pads?

A: Most brake pads have wear indicator lines or grooves. When these lines are no longer visible, or the pad material is very thin (typically less than 1-2mm), it's time for a replacement. You should also replace pads if they become hardened, glazed, or have embedded metal shards that could damage your rim. Don't wait until they're completely worn down, as this can lead to poor braking and potential rim damage.

Q: Can I use disc brake cleaner on rim brakes?

A: Yes, absolutely! Disc brake cleaner is excellent for rim brakes. It's designed to remove grease, oil, and grime without leaving a residue, which is exactly what you want for optimal rim brake performance. Automotive brake cleaner also works well. Avoid using household cleaners that might leave a slippery film or contain harsh chemicals that could degrade your pads or rim finish.

Q: My brake lever feels spongy even after cleaning and adjustment. What else could it be?

A: A spongy lever feel, even after adjusting toe-in and cleaning, often points to issues with your cables and housing. Cheap housing can compress, absorbing some of your braking force. Worn, corroded, or frayed cables can also create excessive friction. Consider upgrading to high-quality, compressionless brake housing and new, low-friction cables. Additionally, ensure your housing ends are properly filed and seated, and that your cable routing doesn't have any excessively tight bends.

Q: What is 'modulation' in braking, and why is it important?

A: Modulation refers to the ability to control your braking power precisely. With good modulation, you can apply just the right amount of braking force to slow down smoothly, maintain control in corners, or quickly scrub off speed without locking up your wheels. Poor modulation means your brakes feel more like an 'on/off' switch – either not stopping enough or locking up immediately. Proper brake pad toe-in, high-quality pads, and low-friction cables and housing all contribute significantly to excellent brake modulation, giving you greater confidence and control on the road.

While the cycling world often focuses on the latest disc brake technology, a well-maintained and correctly set up rim brake system can still offer superb stopping power, excellent modulation, and a gratifyingly direct feel. By understanding the critical role of the pad holder's adjustment, especially toe-in, and combining it with diligent cleaning and strategic component upgrades, you can transform your rim brakes from a source of frustration into a reliable and powerful braking solution. Don't dismiss them; optimise them!
