Mastering Bosch VE Fuel Pump Timing

Understanding and correctly adjusting your vehicle's fuel pump timing is paramount for achieving optimal engine performance, fuel efficiency, and smooth operation. For those running a Bosch VE fuel pump, this process involves a blend of initial setup and precise fine-tuning. While the concept might seem daunting at first, with a clear understanding of the components and their functions, you can confidently tackle these adjustments. This guide aims to consolidate essential information, making the complex world of fuel pump timing accessible for the dedicated DIY mechanic.

The Bosch VE (Verteiler-Einspritzpumpe, or distributor injection pump) is a common and robust fuel injection pump found in many diesel vehicles. Its timing dictates precisely when fuel is injected into the combustion chambers, a critical factor for diesel engine operation. Incorrect timing can lead to a host of issues, including reduced power, increased smoke, poor fuel economy, and rough idling. Conversely, a well-timed pump can transform your engine's responsiveness and overall driveability.

Understanding Fuel Pump Timing

At its core, fuel pump timing refers to the synchronisation between the fuel injection pump and the engine's crankshaft position. In a diesel engine, fuel must be injected at a very specific point in the compression stroke to ensure efficient combustion. Too early (advanced) or too late (retarded) can have detrimental effects. The pump's timing is primarily controlled by the engine's cambelt, which drives the pump in sync with the crankshaft. However, fine adjustments can be made by rotating the pump body itself relative to its mounting bracket.

Before making any adjustments, it's crucial to familiarise yourself with the pump's main components. While this guide focuses specifically on timing, other elements like idle screws, throttle arm, and fuel screw all play a role in the pump's overall operation and can influence how timing adjustments manifest. Always ensure your engine is cool before attempting any work, and have the necessary tools to hand, typically including spanners (10mm, 13mm, 17mm) and potentially a means to measure engine RPM.

Adjusting Injection Timing: The Core Procedure

The most direct way to fine-tune the injection timing on a Bosch VE pump, without interfering with the cambelt, is by rotating the pump body. This subtle rotation alters the pump's position relative to the engine's internal timing, effectively advancing or retarding the fuel injection point. This adjustment is crucial for optimising performance based on your engine's specific characteristics, fuel type, and desired outcome.

Locating the Adjustment Bolts

To begin, you'll need to locate and loosen the bolts that secure the fuel pump to its mounting bracket. There are typically three or four such bolts:

• Three bolts on the left side of the pump: one at the front, one at the back, and one underneath.
• One bolt on the right side, usually located at the bottom, beneath or behind the four metal injector lines.

The top two bolts on the left are generally easy to access. However, reaching the bottom left bolt can be quite fiddly and may require specific tools, such as a cut-down 13mm spanner, or even the temporary removal of components like the alternator for better access. The bolt on the right side, though obscured by injector lines, is also crucial for freeing the pump for rotation.

It is also advisable to slightly slacken the four 17mm union nuts on the metal injector lines at the pump end (not the injector ends). This can help reduce resistance and make rotating the pump easier, preventing undue stress on the lines.

Rotating the Pump for Adjustment

Once all the securing bolts are sufficiently loosened, you should be able to physically push or pull the top of the pump to rotate it slightly. The direction of rotation dictates whether the timing is advanced or retarded:

• Advancing the timing: Push the top of the pump towards the engine's cylinder head, or towards the vehicle's cabin. Advancing the timing means fuel is injected earlier in the combustion cycle. This generally leads to more power and better throttle response, but too much advance can cause harsh engine noise, increased engine temperature, and potential damage.
• Retarding the timing: Pull the top of the pump towards the slam panel (the front of the engine bay). Retarding the timing means fuel is injected later. This can reduce engine noise and exhaust emissions but may lead to reduced power and increased fuel consumption if set too far back.

As a general guideline, many engines equipped with Bosch VE pumps tend to run optimally when the timing is set between two-thirds and three-quarters advanced from a standard, factory setting. However, this is a starting point, and your specific engine's characteristics, modifications, and desired performance will influence the ideal setting. It's often a process of trial and error, making small adjustments and observing the engine's response.

Adjusting While Running (with Caution)

For experienced mechanics, it is possible to adjust the timing while the engine is running. This allows for immediate feedback on the engine's sound and performance as you make minute changes. If attempting this, exercise extreme caution. Ensure you have a firm grip on the pump while someone else starts the engine. Do not let go of the pump until all mounting bolts are securely tightened. Any sudden movement or loss of control could lead to serious injury or damage to the fuel lines and pump.

A common practice among some mechanics, particularly for ease of future adjustments, is to leave the bottom left bolt slightly loose or even removed, provided the other three bolts are tightened securely. While this can simplify subsequent fine-tuning, it is done at your own risk, as it reduces the overall securing points of the pump.

Effects of Timing Adjustment

Understanding the impact of advancing or retarding your fuel pump timing is key to making informed adjustments. The ideal timing balances power, efficiency, and engine longevity.

Initial Fuel Pump Installation and Timing Setup

While the above covers fine-tuning, installing a new fuel injection pump requires a more fundamental timing setup to ensure the engine starts and runs correctly. This initial setup establishes the base timing before any fine-tuning adjustments are made.

Here’s a general procedure for setting the initial timing after installing a new Bosch VE pump, often applicable to various diesel engines, including those found in tractors:

1. Locate Top Dead Centre (TDC): Rotate the engine manually until the No. 1 piston reaches its highest point in the compression stroke (Top Dead Centre). Many engines have specific timing marks on the crankshaft pulley or flywheel to assist with this.
2. Prepare Fuel Lines: Connect all fuel lines to the new pump, with the exception of the hard lines that run from the pump to each injector. Leave these disconnected at the pump end for now.
3. Prime the System: Use the primer pump (if equipped) to build pressure in the fuel system. Open the bleeder valve on the pump to release any trapped air. Close the valve once fuel starts to flow out, indicating the system is free of air. Repeat this process until you are confident all air is purged.
4. Set Pump Timing Mark: Slowly rotate the fuel injection pump shaft by hand. As you rotate, observe the No. 1 hardline port on the top of the pump. Stop rotating the shaft as soon as fuel begins to rise to the very top of this port. This indicates the pump is at its injection point for cylinder No. 1.
5. Mount the Pump: With the pump shaft held in this precise position, carefully install the pump onto its timing gear and bolt it securely to the timing gearcase. Ensure the pump does not rotate or shift during this crucial step.
6. Connect Injector Lines: Once the pump is securely mounted, connect the hard lines to the injectors.
7. Final Checks and Start-up: This procedure should get your engine running. However, some fine-tuning by rotating the pump body as described earlier will almost certainly be required to achieve optimal performance and smooth running.

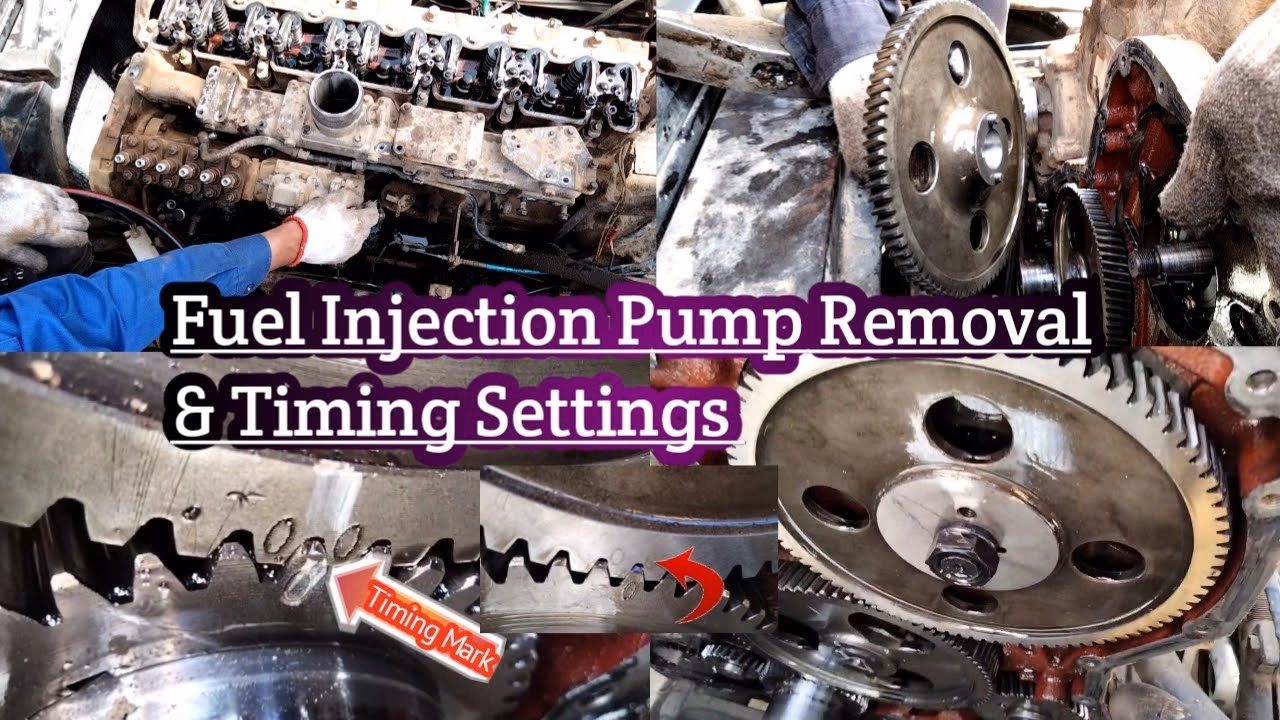

Important Note on Timing Marks: Some timing gears within the engine may have specific timing marks, often a set of two dots on one gear and a single dot on another (e.g., the idle gear). When assembling, the single dot should align precisely between the two dots on the corresponding timing gear. Always consult your engine's specific service manual for precise timing mark alignment procedures.

Pump Oil Check: After installing and running the pump, it's vital to check the pump's internal oil level. Many Bosch VE pumps have separate lubrication. There are typically two small bolts on the backside of the pump used for checking fill levels. Remove the bottom bolt, and then add suitable oil (e.g., 15W40 Rotella, often the same as your engine oil) until it begins to seep out of that hole. Re-insert and tighten the bolt.

Other Related Bosch VE Pump Adjustments

While injection timing is critical, a Bosch VE pump has several other adjustable parameters that, while not directly timing-related, significantly impact engine behaviour and overall performance. These are often adjusted in conjunction with timing for a fully tuned setup.

• Idle Adjustment: The hot and cold idle speeds are set via specific screws that control the resting position of a pivoting arm connected to a wax stat. Correct idle ensures smooth running when the engine is not under load.
• Throttle Arm Adjustment: This arm, connected to your accelerator pedal, dictates the amount of fuel delivered. Adjustments here can affect idle speed and maximum throttle travel, but caution is advised to avoid losing full throttle range.
• Fuel Screw Adjustment: Located on the right side of the pump, this screw controls the injection length, directly influencing the amount of fuel injected per stroke. Turning it in increases fuel, leading to more power but potentially more smoke and higher exhaust gas temperatures. Extreme adjustment can cause idle to rise significantly.
• LDA (Load Sensing Device) Modifications: The LDA is a boost compensator that increases fuel delivery as boost pressure rises. Modifications often involve adjusting or grinding the cone within the LDA to allow for more fuel under boost, improving performance in turbocharged applications.
• Gov-Mod and 11mm Pump Conversions: These are more advanced modifications involving internal pump components to increase fuel delivery and modify governor behaviour for higher RPMs and significantly more power. These are typically undertaken by experienced tuners.

It is important to reiterate that while these adjustments are part of overall pump tuning, they are distinct from the injection timing. Always address timing first, as it forms the fundamental basis for correct combustion.

Frequently Asked Questions (FAQs)

Q1: How do I know if my fuel pump timing is off?

A: Common symptoms of incorrect timing include excessive black or white smoke from the exhaust, rough idling, reduced engine power, poor fuel economy, hard starting (especially when cold or hot), and increased engine noise (a 'clattery' sound if too advanced, or a 'soft' and sluggish sound if too retarded).

Q2: Can I adjust the timing without special tools?

A: For fine-tuning by rotating the pump body, you generally only need standard spanners (10mm, 13mm, 17mm) and a good feel for the engine's response. However, for precise initial setup or professional diagnosis, a dial gauge and specific adapters are often used to measure plunger lift at TDC.

Q3: What is the 'ideal' timing setting?

A: There isn't a single 'ideal' setting for all engines. While a general rule of 2/3rds to 3/4s advanced is often cited for Bosch VE pumps, the best setting depends on your specific engine, its condition, any modifications, and your desired balance between power, efficiency, and emissions. It often requires careful experimentation and listening to the engine.

Q4: Will adjusting the timing affect my fuel economy?

A: Yes, absolutely. Correct timing ensures that fuel burns efficiently. If the timing is too far off, fuel may not burn completely, leading to wasted fuel and reduced efficiency. Optimising timing can lead to significant improvements in fuel economy.

Q5: Is it safe to leave one of the pump mounting bolts loose for easier future adjustments?

A: While some mechanics do this, particularly with the hard-to-reach bottom left bolt, it is generally not recommended by manufacturers. It reduces the security of the pump mounting and could potentially lead to issues under severe engine vibration or over time. Any decision to do so should be considered a personal risk.

Conclusion

Adjusting the fuel pump timing on a Bosch VE pump is a powerful way to optimise your diesel engine's performance. By understanding the principles of advance and retard, confidently locating the adjustment points, and making careful, incremental changes, you can unlock significant improvements in power, efficiency, and the overall driving experience. Always prioritise safety, double-check your work, and remember that patience and attention to detail are your best tools when working on complex engine components.
