Fuel Injector Testing: A DIY Guide

Your car's fuel injectors are vital components of the engine's fuel delivery system. They are responsible for atomising fuel and delivering it into the combustion chambers at the precise moment and in the correct quantity. When these crucial parts begin to falter, you might notice a range of performance issues, from rough idling and poor fuel economy to outright engine misfires. Understanding how to test your fuel injectors can save you time and money, empowering you to perform basic diagnostics yourself. This guide will walk you through the process of testing fuel injectors using a common and invaluable tool: the multimeter.

### Why Regular Fuel Injector Testing Is Necessary

Regularly checking your fuel injectors isn't just for when something goes wrong; it's a proactive maintenance step that can prevent more significant problems down the line. Over time, fuel injectors can become clogged with carbon deposits, varnish, or other debris from your fuel. This clogging can disrupt the spray pattern and reduce the amount of fuel delivered, leading to an inefficient burn. Conversely, a faulty injector might leak fuel, causing a rich condition and potentially damaging your catalytic converter. By performing regular tests, you can identify these issues early, ensuring optimal engine performance, better fuel efficiency, and a longer lifespan for your injectors and other engine components. It's a simple way to keep your vehicle running smoothly and efficiently.

### Overview Of Fuel Injector Testing Methods

While a multimeter is an excellent tool for checking the electrical resistance of an injector, it's important to be aware that other testing methods exist. Each method offers a different perspective on injector health:

For the DIY mechanic, resistance testing with a multimeter is the most accessible and often the first step in diagnosing injector issues. If this test reveals a problem, or if you want a more comprehensive diagnosis, then flow and spray pattern testing might be necessary, usually performed by a professional.

### Gathering The Required Tools And Materials

Before you start, ensure you have the necessary equipment to hand. This will make the process smoother and safer:
* Multimeter: A digital multimeter is essential. Ensure it has a resistance (ohms) setting.
* Safety Goggles and Gloves: Always protect your eyes and hands when working with automotive systems, especially fuel.
* Vehicle Service Manual: This is crucial for finding the correct resistance values for your specific make and model.
* Basic Hand Tools: You might need screwdrivers, socket sets, or pliers to access the injectors and their connectors.
* Clean Rags: For wiping down components.

An injector testing kit can be helpful, but for basic resistance testing, a multimeter is sufficient.

### Preparing The Vehicle And Multimeter

Safety and preparation are paramount. Before you begin any work under the bonnet, follow these essential steps:

1. Ensure the Engine is Cool: Work on a cold engine to avoid burns from hot components.
2. Park on a Level Surface: This ensures stability and makes accessing components easier.
3. Disconnect the Battery: For safety, disconnect the negative battery terminal. This prevents accidental electrical shorts.
4. Understand Your Multimeter: Familiarise yourself with its functions. For injector testing, you'll primarily use the resistance (ohms, Ω) setting. Consult your multimeter's manual if you're unsure.
5. Set Up the Multimeter: Select the ohms (Ω) setting. Most fuel injectors have a resistance between 10-20 ohms, so choose a range on your multimeter that can accurately measure this, often the 200-ohm range. If your multimeter is auto-ranging, it will select the appropriate range automatically.

### Step-by-Step Guide: Testing Fuel Injectors With a Multimeter

Let's get down to the practical steps of testing your fuel injectors:

Step 1: Locating The Fuel Injector

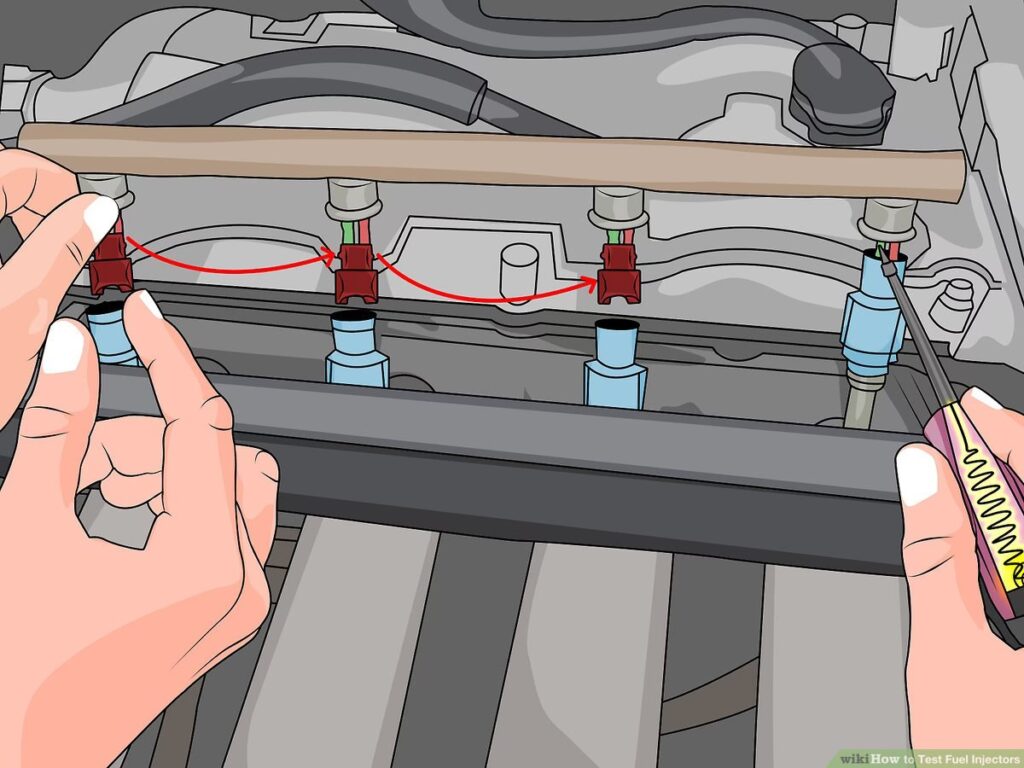

First, you need to find the fuel injectors. They are typically located on the engine's intake manifold, connected to the fuel rail. The exact location and type (port injection or direct injection) will vary depending on your vehicle. Consult your vehicle's service manual or perform a targeted online search for your car's make, model, and year to identify them precisely. Once located, identify the wiring harness and connector for each injector. Ensure these connectors appear clean and are securely attached.

Step 2: Disconnecting The Fuel Injector
Safety first! Ensure the ignition is off and the battery is disconnected. Locate the electrical connector for the fuel injector you intend to test. Most connectors have a small release tab or clip. Gently press this tab and pull the connector away from the injector. Avoid forcing it, as these plastic connectors can be brittle. If you're unsure how to release the connector, refer to your service manual.

Step 3: Testing The Injector Resistance
This is where your multimeter comes into play. Set it to the resistance (ohms, Ω) setting. Now, place the red probe of your multimeter onto one of the electrical terminals on the disconnected fuel injector connector (or directly onto the injector's terminals if you've removed it from the rail, though this is often unnecessary for resistance testing). Place the black probe onto the other terminal. The multimeter display will show a resistance reading. Compare this reading to the specification in your vehicle's service manual. The resistance should be within a few ohms of the specified value.

Step 4: Checking For Injector Continuity
Continuity, in this context, means ensuring there's a complete electrical path through the injector's coil. The resistance test in Step 3 effectively checks for continuity. If the multimeter displays a reading within the manufacturer's specified range, the injector has continuity. If it reads 'OL' (Over Limit) or a very high resistance, it indicates an open circuit (a break in the coil), meaning the injector is faulty.

A table summarising continuity:

Step 5: Inspecting For Injector Leakage (Beyond Multimeter Scope)
While a multimeter can't directly test for fuel leakage, it's a critical part of injector diagnosis. Leaking injectors can cause rich running conditions, poor fuel economy, and even engine damage. Leakage is typically tested by observing if fuel drips from the injector nozzle when it should be sealed. This often requires removing the fuel rail and injectors or using specialised testing equipment. If your resistance test is good, but you suspect a leak, professional diagnosis may be needed.

Step 6: Repeating The Process For Other Fuel Injectors
It's vital to test every fuel injector in your vehicle. Repeat Steps 1 through 4 for each injector. Keep a record of the resistance reading for each one. This allows you to spot any injectors that deviate significantly from the others, even if they are within the general specification range. A noticeable difference in resistance between injectors can indicate an impending failure or a subtle issue affecting performance.

### Diagnosing And Fixing Common Fuel Injector Problems

Using your multimeter readings, you can diagnose several common issues:

* Clogged or Dirty Injectors: While a multimeter won't show clogging directly, a clogged injector might still have the correct resistance. However, if the resistance reading is significantly higher than the specification, it could indicate internal contamination or damage to the coil. More commonly, clogging manifests as poor spray patterns or reduced fuel flow, which require flow testing.
* Faulty Injector Wiring: If an injector shows no continuity or a very high resistance, the problem might be the wiring, not the injector itself. Check the wiring harness and connector for damage, corrosion, or loose connections. You can test the continuity of the wiring from the injector connector back to the engine control unit (ECU), but this is a more advanced diagnostic step.
* Short Circuit: A resistance reading much lower than specified (near zero ohms) indicates a short circuit within the injector's coil. This will prevent the injector from operating and requires replacement.
* Failed Injector Coil: An 'OL' reading on the multimeter clearly indicates a failed coil, meaning the injector needs to be replaced.

If you find an injector with incorrect resistance, the usual fix is to replace the faulty injector. It's often recommended to replace injectors in sets, especially if your vehicle has high mileage, to ensure consistent fuel delivery across all cylinders.

### Professional Fuel Injector Testing Services

If you're uncomfortable performing these tests yourself, or if your multimeter tests are inconclusive, professional services are available. Garages have advanced equipment that can test fuel injectors for flow rate, spray pattern, and leak-down under pressure. These services can provide a more definitive diagnosis and are particularly useful if you're experiencing complex drivability issues like rough idling, hesitation, or misfires that aren't clearly linked to a single component.

Professionals can also offer injector cleaning services, which can sometimes restore performance to partially clogged injectors without the need for replacement. This can be a cost-effective solution.

### Conclusion

Testing your fuel injectors with a multimeter is a straightforward and effective diagnostic procedure that can help identify electrical faults. By carefully following these steps, you can gain valuable insight into the health of your fuel system. Remember to always consult your vehicle's service manual for specific resistance values and procedures. Regular checks and prompt attention to any issues will ensure your engine runs at its best, providing optimal performance and fuel efficiency.

Don't underestimate the importance of a healthy fuel injection system. A little preventative maintenance with a multimeter can save you from bigger headaches and costly repairs down the road. Happy testing!
