Understanding Your Atkinson Tankmaster Sight Gauge

It can be frustrating when your fuel level indicator isn't providing a clear or accurate reading. Many users of the Atkinson Tankmaster, a popular and reliable gauge for oil and fuel storage tanks, have encountered situations where they question its functionality. A common point of confusion is whether the sight gauge can drop without the valve being operated. This article aims to demystify the Atkinson Tankmaster, explaining its core mechanics, addressing potential issues, and offering practical advice for its upkeep. We understand the importance of having functional equipment, especially when it comes to monitoring vital fuel supplies, and we're here to offer comprehensive guidance.

How Does an Atkinson Tankmaster Work?

The Atkinson Tankmaster operates on a straightforward, yet effective, principle. It's a mechanical gauge designed to provide a visual indication of the fuel level within a storage tank. The core component is the 'sight tube' or 'sight gauge' itself, which contains a float. This float rises and falls with the fuel level in the tank. The float is connected to a mechanism that drives a pointer or displays the level directly within the sight tube.

Key Components and Their Functions:

• Float: This buoyant component sits on the surface of the fuel and moves vertically as the fuel level changes.
• Support Shield: To protect the sight tube and the internal mechanism, Atkinson provides support shields. Traditionally, models up to 5ft utilise a white UPVC support shield, while larger 6ft+ models feature a more robust Aluminium support shield. This structural element is crucial for the gauge's longevity and stability.
• Indicator Mechanism: This is the part that translates the float's movement into a visible reading. In many Tankmaster models, this involves a cable or rod system connected to the float, which in turn moves a pointer across a calibrated scale.
• Valve: While not directly part of the reading mechanism, the valve is essential for installation and maintenance. It allows the gauge to be isolated from the tank for servicing or replacement.

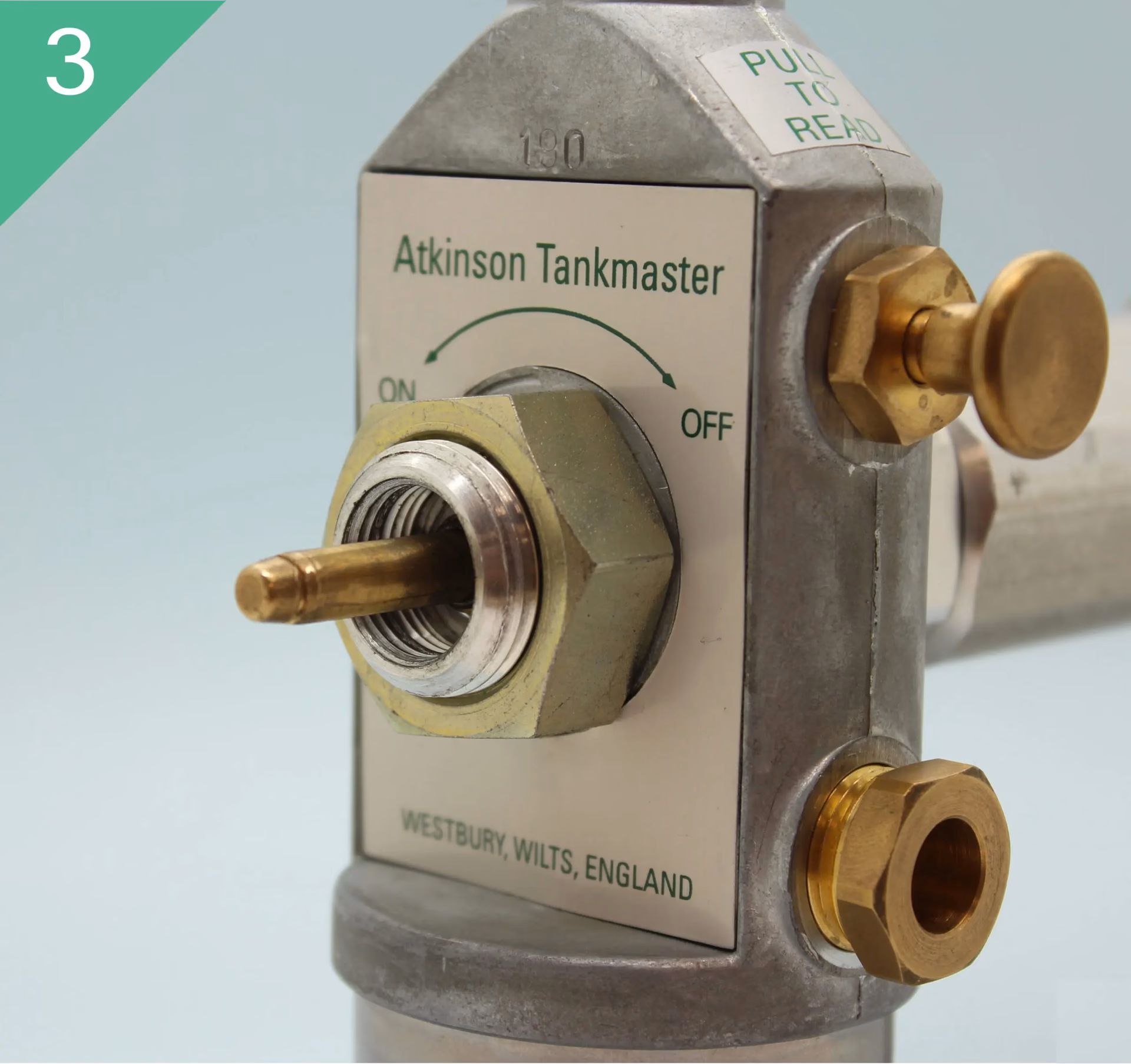

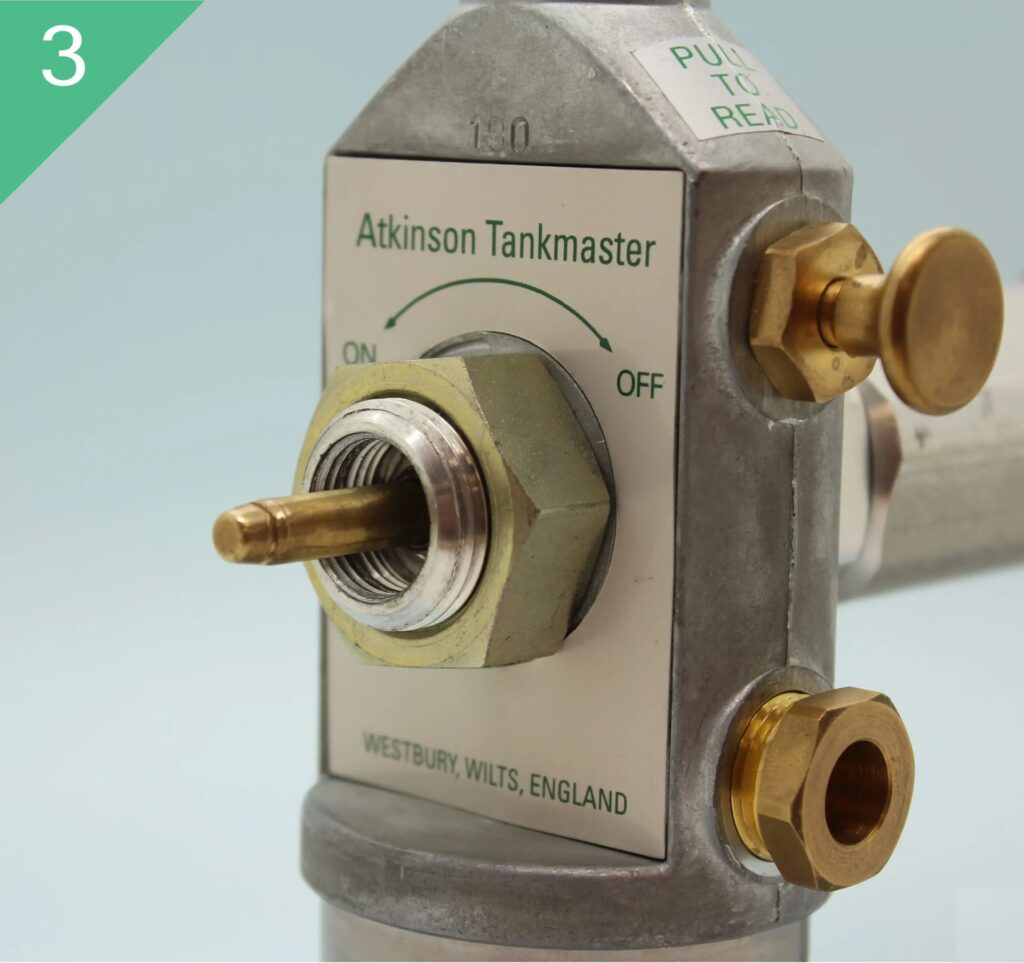

Can the Tankmaster Sight Gauge Go Down Without Pulling Out the Valve?

This is a frequently asked question, and the answer is generally yes, it can, under specific circumstances, though it's not its normal mode of operation. Here's why:

• Fuel Consumption: The most common reason for the sight gauge to appear to 'go down' without manual intervention is simply the natural consumption of fuel from the tank. As fuel is used, the level drops, causing the float to descend, and consequently, the visible indicator on the sight gauge will also move downwards. This is the intended function of the gauge.
• Temperature Fluctuations: Fuels, like most substances, expand when heated and contract when cooled. Significant temperature changes in the stored fuel can lead to a slight but noticeable change in the fuel level, which will be reflected in the sight gauge. This is a normal physical phenomenon.
• Internal Leaks or Issues: In rarer cases, if there's a slight internal leak within the gauge mechanism itself, or if the float mechanism is sticking or malfunctioning, it might appear to drop erratically. However, this would indicate a fault rather than normal operation.
• Pressure Changes: While less common for standard oil tanks, significant pressure changes within the tank could theoretically influence the float's position, though the design usually accounts for typical atmospheric pressure variations.

It's crucial to distinguish between a steady, predictable drop due to fuel usage and erratic or unexplained drops. If you observe the latter, it warrants closer inspection.

Common Issues and Troubleshooting

While the Atkinson Tankmaster is built for durability, like any mechanical device, it can encounter issues over time. Understanding these common problems can help you diagnose and resolve them efficiently.

1. Inaccurate Readings

If your Tankmaster is consistently showing the wrong fuel level, consider these possibilities:

• Sticking Float: Debris or sludge at the bottom of the tank can accumulate around the float, preventing it from moving freely. This is a common issue, especially in older tanks or those that haven't been cleaned regularly.
• Cable or Rod Issues: The linkage between the float and the indicator can become stiff, kinked, or even break. This can lead to the indicator not responding correctly to the float's movement.
• Incorrect Installation: Ensure the gauge is installed correctly and is vertical. A tilted gauge can affect the float's movement and the accuracy of the reading.
• Gauge Calibration: While less common for mechanical gauges, a manufacturing defect or wear could lead to calibration issues.

2. Leaking Gauge

A leaking Tankmaster is a serious concern and needs immediate attention. Potential causes include:

• Damaged Sight Tube: The UPVC or Aluminium sight tube could be cracked or damaged, leading to fuel seepage.
• Faulty Seals or Gaskets: The seals at the connection points or where the mechanism enters the tube can degrade over time, causing leaks.
• Over-tightened Connections: Forcing connections during installation can damage threads or components, leading to leaks.

3. Gauge Not Moving at All

If the indicator remains static regardless of the fuel level, it usually points to a mechanical obstruction:

• Completely Stuck Float: Severe sludge build-up or a lodged float will prevent any movement.
• Broken Linkage: A snapped cable or rod means the float's movement is no longer transmitted to the indicator.
• Indicator Mechanism Jammed: The pointer or display mechanism itself might be jammed internally.

Maintenance and Best Practices

Regular maintenance is key to ensuring your Atkinson Tankmaster provides reliable service for years to come.

1. Regular Visual Inspections:

Periodically check the gauge for any obvious signs of damage, leaks, or corrosion. Ensure the support shield is intact and securely fastened.

2. Cleaning the Tank:

The most effective way to prevent float sticking is by regularly cleaning your fuel storage tank. The frequency depends on the fuel type and storage conditions, but generally, a tank clean every few years is advisable. This removes sludge and sediment that can interfere with the gauge's operation.

3. Checking the Valve:

Ensure the isolation valve is functioning correctly. If you ever need to remove the gauge for maintenance, you'll rely on this valve to safely isolate it from the tank. Operate the valve occasionally to prevent it from seizing.

4. Gentle Operation:

Avoid any forceful handling of the gauge or its components. The mechanism is designed for sensitive movement, not brute force.

Atkinson Tankmaster Model Options

Atkinson offers different models to suit various tank sizes, primarily distinguished by their support shield material:

Choosing the correct model for your tank height ensures optimal support and longevity for the sight gauge.

Frequently Asked Questions (FAQs)

Q1: My Tankmaster reading is fluctuating slightly. Is this normal?
A1: Minor fluctuations can be normal due to temperature changes in the fuel or slight movements within the tank. However, significant or constant fluctuation might indicate an issue, such as a sticking float or a loose connection.

Q2: How often should I clean my fuel tank to maintain the Tankmaster?
A2: The frequency of tank cleaning varies. For domestic heating oil, every 3-5 years is a common recommendation. For commercial or industrial applications, or if you suspect fuel contamination, more frequent cleaning might be necessary. Consult with a fuel storage specialist for tailored advice.

Q3: Can I repair a damaged sight tube myself?
A3: It is generally not recommended to repair a damaged sight tube yourself, especially if it's leaking fuel. Damaged sight tubes should be replaced by a qualified technician to ensure safety and prevent leaks.

Q4: What is the purpose of the support shield?
A4: The support shield protects the delicate sight tube and the internal float mechanism from accidental damage and provides structural stability, especially for longer gauges.

Q5: My gauge seems to be stuck at a certain level. What should I do?
A5: If the gauge is stuck, it's likely due to a build-up of sludge or sediment affecting the float. Before attempting any fix, ensure the isolation valve is closed. You may need to contact a professional to safely inspect and clean the mechanism or the tank.

Conclusion

The Atkinson Tankmaster sight gauge is a vital tool for monitoring your fuel levels. Understanding how it works, recognising common issues, and performing regular maintenance will ensure its accuracy and reliability. Remember, the sight gauge is designed to reflect the actual fuel level, which naturally changes with consumption and temperature. If you suspect a fault or are uncomfortable performing maintenance, always seek the assistance of a qualified professional. Proper care ensures you always have a clear view of your essential fuel reserves.
