The thickness of a brake pad backing plate, while seemingly a minor detail, plays a surprisingly significant role in the overall performance and longevity of your braking system. Often overlooked by the average motorist, this component is the unsung hero that ensures your brake pads function optimally and safely. Understanding its characteristics and the implications of its wear can empower you to make informed decisions about vehicle maintenance.
The Function of the Brake Pad Backing Plate
At its core, the brake pad backing plate, also known as the shim or anchor plate, serves several vital purposes. Primarily, it acts as a structural foundation for the friction material that actually contacts the brake disc. This backing plate is typically made from steel, chosen for its strength and heat resistance. It provides a rigid surface onto which the friction compound is bonded or riveted. Without this robust support, the friction material would be prone to deformation under the immense pressures and temperatures generated during braking.
Furthermore, the backing plate is instrumental in dissipating heat. Braking generates a considerable amount of heat, and this heat needs to be managed effectively to prevent brake fade and damage to other braking system components, such as the caliper and brake fluid. The steel backing plate helps to transfer some of this heat away from the friction material and into the surrounding air or the caliper assembly. Some backing plates are designed with specific features, like perforations or thicker profiles, to enhance this heat dissipation capability.
Another crucial function is noise reduction. The constant, high-frequency vibrations generated when the brake pad interacts with the brake disc can lead to audible squeals and rattles. The backing plate, often coupled with a shim (which can be integrated or a separate component), acts as a dampener. This dampening effect helps to absorb these vibrations, contributing to a quieter and more comfortable driving experience. The precise engineering of the backing plate and its interaction with the shim is critical for effective noise suppression.
Typical Thickness and Material
The exact thickness of a brake pad backing plate can vary depending on the vehicle manufacturer, the type of brake system, and the specific application. However, as a general guideline, you can expect most backing plates to range from approximately 1.5 mm to 3.5 mm. This might seem surprisingly thin, but it's a carefully calculated dimension. Too thin, and it wouldn't offer sufficient structural integrity or heat dissipation. Too thick, and it could add unnecessary weight and potentially interfere with the caliper's ability to apply even pressure.
The material most commonly used is high-quality steel. The specific grade of steel is chosen for its balance of strength, ductility (the ability to deform without fracturing), and resistance to corrosion. While steel is the norm, some high-performance or specialized braking systems might employ different materials, such as aluminium alloys, for weight reduction, though this is less common for standard road vehicles.
When Wear Becomes a Problem
The backing plate itself is designed to be durable and typically outlasts the friction material. However, in extreme cases of neglect or severe brake pad wear, the backing plate can come into contact with the brake disc. This is a critical point where significant damage can occur. As highlighted in the provided information, if the metal backing plates grind on the discs, it would be significantly less effective to stop and may damage the discs as well.
One of the most common indicators of severely worn brake pads, where the backing plate is nearing contact or has already made contact, is the presence of audible grinding noises. This metallic-on-metallic sound is a clear warning that the friction material has been depleted, and the metal backing is now doing the work of stopping your vehicle – a highly inefficient and damaging scenario.
Another sign, as mentioned, is a spongy or low brake pedal feel. While this can also be caused by other issues like air in the brake lines or a failing master cylinder, severely worn pads can contribute to this symptom. The increased travel in the pedal can be a result of the caliper pistons extending further to compensate for the reduced pad material, and in extreme cases, the backing plate’s thickness might even contribute to this increased travel before effective friction is achieved.

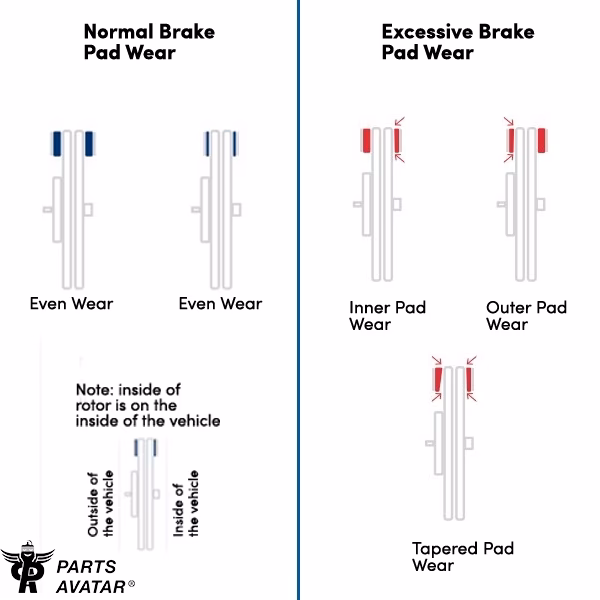

Uneven wear, leading to a pulling sensation when braking, can also indirectly relate to the backing plate. If a pad is worn unevenly, it might not be making solid, parallel contact with the disc. While this is primarily an issue with the friction material or caliper alignment, a compromised backing plate could exacerbate such problems by not providing a perfectly flat surface for engagement.
The Role of Wear Indicators
Modern brake pads are equipped with built-in wear indicators to alert you before the backing plate makes contact with the disc. These are typically small metal tabs, either riveted to the backing plate or integrated into the friction material. As the pad wears down, these tabs eventually reach a point where they come into contact with the brake disc. This contact produces a high-pitched squeal when the brakes are applied. This squeal is a deliberate warning sound, indicating that the brake pads are approaching their minimum safe thickness and need to be replaced soon.
It's crucial to understand that this squeal is an early warning. The wear indicator tab is designed to make contact while there is still a small amount of friction material remaining, typically around 3mm. This allows you some time to schedule a replacement without immediate danger. However, if you ignore this squeal and continue to drive, the friction material will eventually be completely worn away, leading to the dangerous metal-on-metal grinding previously discussed.
Comparing Brake Pad Types and Backing Plates
Different types of brake pads utilize varying backing plate designs and materials, often tailored to specific performance requirements:
| Brake Pad Type | Typical Backing Plate Characteristics | Advantages | Disadvantages |
|---|---|---|---|
| Organic (NAO) | Standard steel, often with integrated shim. Thickness can be average (2-3mm). | Quiet operation, good initial bite, lower cost. | Shorter lifespan, produce more dust, less effective at high temperatures. |
| Semi-Metallic | Steel, sometimes thicker (2.5-3.5mm) to handle higher heat. May have advanced shims. | Good all-around performance, better heat dissipation than organic, durable. | Can be noisier, produce more dust than ceramics, can wear rotors faster. |
| Ceramic | Steel, often with advanced multi-layer shims and coatings for noise and heat management. Thickness can vary. | Very quiet, low dust, excellent heat tolerance, long pad and rotor life. | Higher initial cost, may have a slightly less aggressive initial bite compared to semi-metallic in some applications. |
| High-Performance/Racing | Often thicker steel or specialized alloys, may have additional dampening layers. | Extreme heat resistance, consistent performance under heavy load. | Can be very noisy, high dust, aggressive rotor wear, expensive, may require a warm-up period. |
As you can see, while the core function of the backing plate remains the same, its design and integration can differ significantly between pad types, impacting overall braking performance.
Frequently Asked Questions
Q1: Can I tell the thickness of the backing plate just by looking at it?
It's difficult to accurately gauge the thickness of the backing plate visually without removing the wheel and brake pads. However, you can often see if the backing plate itself is scored or damaged, which is an indicator of severe wear.
Q2: Does the backing plate thickness affect braking distance?
Directly, the backing plate's thickness has a minimal impact on braking distance, assuming it's within the manufacturer's specifications. Its primary role is structural and thermal. However, if the backing plate is worn down to the point of grinding on the disc, it will drastically increase stopping distances due to reduced friction and potential disc damage.
Q3: If my brake pads are worn, do I need to replace the backing plate too?
In most cases, the backing plate is part of the brake pad assembly and is replaced along with the friction material. You do not typically replace just the backing plate. If the backing plate itself is found to be warped or severely damaged (beyond normal wear), it would indicate a serious issue with the caliper or braking force, and the entire caliper assembly might need inspection.
Q4: What does it mean if the backing plate feels loose?
A loose backing plate is not normal. It could indicate that the bond between the friction material and the plate has failed, or that the hardware holding the pad in the caliper is compromised. This situation requires immediate attention as it compromises the integrity of the braking system.
Q5: How important is the shim on the backing plate?
The shim is a critical component, often integrated with or attached to the backing plate, specifically designed to dampen vibrations and reduce noise. A missing, damaged, or incorrectly installed shim can lead to increased brake noise (squealing or rattling), even with new pads. Ensuring the shim is correctly in place is vital for a quiet braking experience.
Conclusion
While the precise thickness of a brake pad backing plate may not be a common topic of conversation among drivers, its role in ensuring safe and effective braking is undeniable. It provides the necessary support and contributes to heat management and noise reduction. Paying attention to the audible and tactile cues your brakes provide – the grinding, the squealing wear indicators, the pedal feel, and any pulling – will alert you to when the time comes to replace your brake pads. Replacing them promptly, before the backing plate makes contact with the disc, is essential to prevent costly damage to your brake rotors and to maintain the highest level of safety on the road. Always ensure that brake pads are replaced in pairs to maintain balanced braking performance.
