VW Jetta Brake Replacement: A UK Guide

Ensuring your Volkswagen Jetta's braking system is in top condition is paramount for your safety and the longevity of your vehicle. Neglecting worn brake components can lead to compromised stopping power, increased stopping distances, and even damage to other crucial parts of your braking system. This comprehensive guide will walk you through the tell-tale signs that your Jetta's brakes need attention, explain why timely replacement is vital, and provide a detailed, step-by-step procedure for replacing the front brake pads and rotors on 2011-2019 Volkswagen Jetta models (A6, Type 5C6 generation). By following these instructions, you can confidently maintain your Jetta's braking performance and ensure a safe ride for years to come.

Why Timely Brake Maintenance is Crucial for Your Volkswagen Jetta

Brakes are arguably the most critical safety system in your vehicle. They are designed to wear down over time, and this wear is a natural part of their function. However, allowing them to wear beyond their safe limits can have severe consequences. Worn brake pads can lead to metal-on-metal contact, which not only significantly reduces braking efficiency but also rapidly damages the brake rotors. A damaged rotor can cause vibrations, uneven braking, and eventually, complete brake failure. Furthermore, continued use of severely worn brakes can put undue stress on other components like the brake calipers and suspension parts, leading to more expensive repairs down the line. Regular inspections and timely replacement are key to avoiding these issues, ensuring your Jetta remains a reliable and safe vehicle on the road.

Recognising the Signs: When to Replace Your Jetta's Brakes

Your Volkswagen Jetta will often give you clear indications when its brakes require attention. Being attuned to these signals can save you from more significant issues. Here are the primary indicators:

• Audible Warnings: The most common sign is a high-pitched squealing sound when you apply the brakes. This is usually caused by a small metal tab, called a wear indicator, designed to rub against the rotor when the brake pads reach a certain level of wear. It's a clear signal that pads are low and need immediate replacement. If you hear a grinding noise, it typically means the pads are completely worn, and there's metal-on-metal contact between the backing plate of the pad and the rotor, indicating severe wear and potential rotor damage.
• Visual Inspection: You can often visually inspect your brake pads through the wheel spokes. Look for the thickness of the friction material on the brake pad. If it appears very thin (typically less than 3mm-4mm), it's time for a replacement. Also, check the brake rotors for deep grooves, scoring, or uneven wear. Significant grooves can be felt by running your finger across the rotor surface and are a strong indicator that the rotors also need replacing.
• Changes in Brake Feel: If your brake pedal feels "spongy" or goes closer to the floor than usual, it could indicate air in the brake lines or a fluid leak, but it can also be a symptom of severely worn pads. Conversely, if the pedal feels unusually hard or requires excessive force to stop, there might be an issue with the brake booster or a seized caliper, which can also accelerate pad wear.
• Vibrations or Pulsations: A pulsating brake pedal or steering wheel vibration when braking often points to warped brake rotors. This occurs when rotors heat up unevenly and become distorted, leading to an inconsistent surface for the pads to grip.
• Pulling to One Side: If your Jetta pulls to one side when you brake, it could indicate uneven wear on the brake pads or a seized caliper on one side, causing uneven braking force.

It's always recommended to address these signs promptly to prevent further damage and ensure your Jetta's optimal braking performance.

Can I Reuse My Volkswagen Jetta's Brake Rotors?

In many cases, modern brake rotors are designed to wear concurrently with the brake pads, meaning they often need replacing at the same interval. While older vehicles sometimes allowed for rotors to be "resurfaced" or "machined" to remove imperfections and restore a flat surface, this practice is becoming increasingly rare. Today's rotors are often thinner and made with materials that make resurfacing less feasible or even unsafe, as it can reduce their heat dissipation capabilities and structural integrity. Unless your rotors are relatively new, perfectly flat, and well within their minimum thickness specification (often stamped on the rotor itself), it's highly recommended to replace them when you replace your brake pads. This ensures optimal braking performance, prevents premature wear on new pads, and eliminates issues like vibrations caused by warped rotors. For a Volkswagen Jetta, especially models from 2011 onwards, it's generally best practice to replace both pads and rotors simultaneously for a complete and effective brake job.

What You'll Need: Tools & Parts for Your Jetta Brake Job

Before you begin, gather all the necessary tools and replacement parts. Having everything on hand will make the process smoother and more efficient.

Essential Tools:

• Breaker bar
• Impact gun (optional, but helpful for lug nuts)
• Flathead screwdriver
• Channel-lock pliers
• Ratchet with 17mm and 21mm sockets
• Torx 30 bit
• Hex 7mm bit
• C-clamp or Brake piston compressor
• Brake caliper hanger or strong wire
• Jack
• Jack stands
• Wheel chocks

Replacement Parts & Consumables:

• New Front Brake Pads (specific to your 2011-2019 Jetta model)
• New Front Brake Rotors (specific to your 2011-2019 Jetta model)
• Brake caliper grease (high-temperature silicone-based)
• Brake parts cleaner
• Shop towels or clean rags
• Gloves (nitrile or similar for protection)

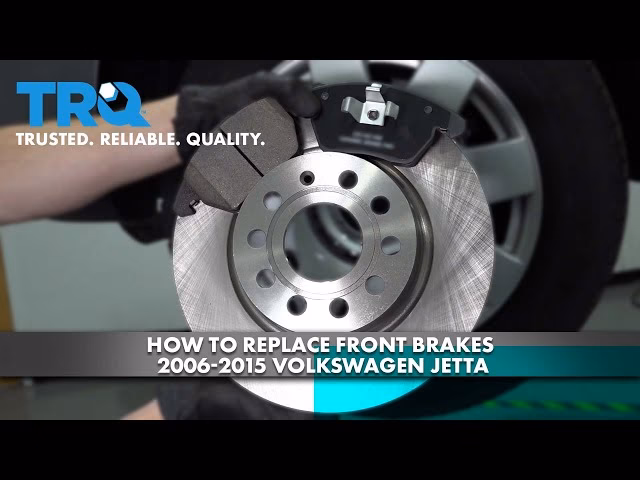

Step-by-Step Guide: Replacing Front Brake Pads and Rotors on Your Jetta

Follow these instructions carefully to ensure a safe and effective brake replacement.

1. Prepare Your Vehicle for Safety

Safety is paramount. Begin by parking your Jetta on a flat, level surface. Engage the emergency brake fully and place wheel chocks behind the rear wheels to prevent any movement. Using a 17mm socket and your breaker bar or impact gun, slightly loosen the lug nuts on the front wheels while the vehicle is still on the ground. If your Jetta has a wheel lock key, locate and use it first. Once the lug nuts are just loose, use your jack to lift the front of the vehicle. Position the jack at the designated pinch welds at the very front of the car. Once sufficiently high, carefully place jack stands under the vehicle's frame, ensuring they are securely seated at the recommended support points. Slowly lower the vehicle onto the jack stands, then remove the jack. Finally, remove the lug nuts completely and take off the wheel.

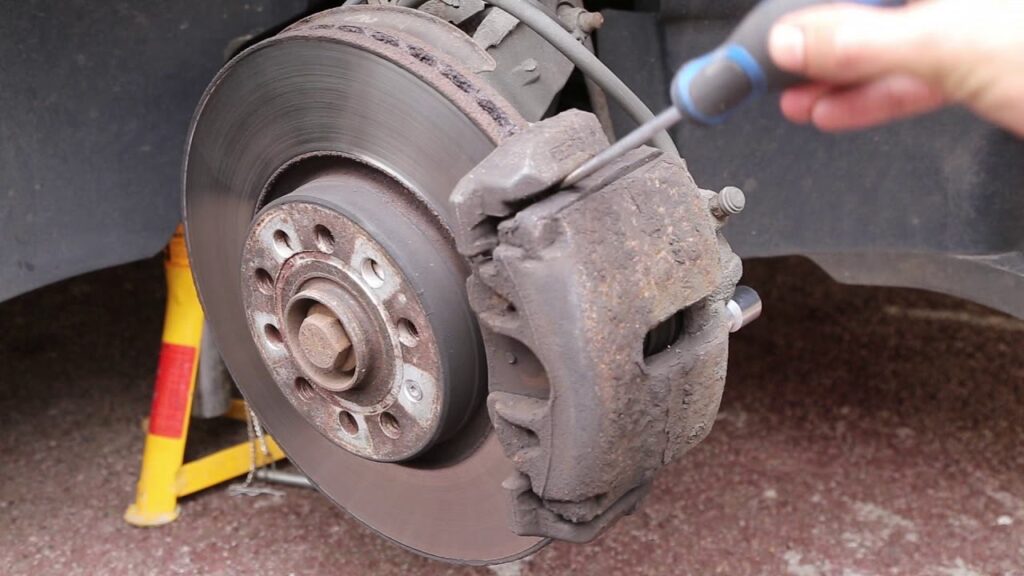

2. Remove the Brake Caliper Spring Clip

Locate the spring clip on the front of the brake caliper. This clip holds the pads securely. Using a flathead screwdriver, carefully pry the clip out. Be cautious as it can spring out, so keep your face away. Alternatively, for a safer removal, use channel-lock pliers to compress the clip and then pull it out.

3. Remove the Rotor Retaining Screw

In the middle face of the brake rotor, you'll find a Torx screw (usually a Torx 30). This screw helps to hold the rotor in place while the wheel is off. Using a Torx 30 bit and a ratchet, carefully loosen this screw. It can be quite tight, so hold the rotor to prevent it from spinning. If it's stubborn, an impact driver might be necessary. Be extremely careful not to strip the head; if stripped, it will need to be drilled out to remove the rotor.

4. Partially Compress the Brake Caliper Piston

To make it easier to remove the caliper, you'll need to slightly compress the piston. You can use a C-clamp, placing one end on the back of the caliper and the other on the outer brake pad face, then slowly tightening it. Another method is to use a large flathead screwdriver or pry bar inserted through the top of the caliper, prying against the old pad to push the piston back a little. This creates enough space for the caliper to clear the rotor.

5. Loosen and Remove Caliper Guide Pins

On the back of the caliper, you'll see two plastic dust caps covering the guide pins. Carefully pry these off with a screwdriver. Inside, you'll find the guide pins. Using a 7mm hex bit and your ratchet, loosen both guide pins completely until the brake caliper can slide freely off the rotor. Do not remove the caliper entirely yet.

6. Secure the Brake Caliper

Once the guide pins are loose, carefully slide the brake caliper off the rotor. Do not let it hang by the brake hose, as this can damage the hose and lead to brake fluid leaks. Use a dedicated brake caliper hanger or a strong piece of wire to suspend the caliper securely from a part of the suspension, such as the strut. This keeps the caliper out of the way and prevents stress on the brake line.

7. Remove Old Brake Pads and Caliper Bracket

With the caliper out of the way, you can now remove the old brake pads from the caliper bracket. They typically just slide out. Pay attention to how they are seated for reassembly. Next, locate the two large 21mm bolts holding the caliper bracket to the steering knuckle. Use your 21mm socket and breaker bar (or impact gun) to loosen and remove these bolts. Once removed, take the caliper bracket off the steering knuckle.

8. Remove and Replace the Brake Rotor

The old brake rotor should now be free. If it's stuck to the wheel hub, gently tap around its face where it meets the hub with a hammer to loosen it. Do not hit the rotor face forcefully. Once loose, remove the old rotor. Take your new brake rotor. Before installing, it is crucial to clean its entire surface where the pads will touch. New rotors come with an oil film to prevent rust during storage. Use brake parts cleaner and a clean shop towel to thoroughly clean both sides of the rotor until all oil residue is gone. Failing to do this can cause poor braking performance and squealing. Install the clean new rotor onto the wheel hub, aligning it with the wheel studs. Reinsert the Torx 30 screw into the middle face of the rotor and tighten it firmly. This screw helps to keep the rotor aligned during the reassembly process.

9. Reinstall Caliper Bracket and Hardware

Position the caliper bracket back onto the steering knuckle over the new rotor. Insert the two 21mm bracket bolts and hand-tighten them. Then, use your 21mm socket and ratchet to torque these bolts to specification. For the Volkswagen Jetta, the brake caliper bracket bolts are typically torqued to around 80 ft-lbs (108 Nm).

Next, install the new brake hardware (clips and shims) onto the caliper brackets. These often come with new brake pads. Apply a thin, light layer of brake caliper grease to the contact points where the pads will slide within the hardware. Be extremely careful not to get any grease on the friction surfaces of the rotor or the new brake pads.

10. Clean and Grease Guide Pins, Install New Pads

Remove the guide pins from the caliper. Clean them thoroughly with brake parts cleaner and a clean rag to remove any old grease or dirt. Apply a fresh, even coat of brake caliper grease to the pins and reinsert them into the caliper. Make sure they slide smoothly. Now, install your new brake pads. One pad will sit on the front of the bracket, and the other will insert into the brake caliper's piston, often with a clip on its back face. Ensure they are correctly seated.

11. Compress Piston and Reinstall Caliper

Before reinstalling the caliper, you must fully compress the brake caliper piston. Use your C-clamp or a dedicated brake piston compressor tool. It's crucial to push the piston back completely and evenly, especially if it's a dual-piston caliper. Ensure the piston face is parallel with the caliper body. This step is vital to create enough space for the new, thicker brake pads. Once fully compressed, carefully reinstall the brake caliper over the new pads and rotor, aligning it with the guide pins. Insert the 7mm hex guide pins and torque them to specification. For the Volkswagen Jetta, brake caliper guide pins are typically torqued to around 40 ft-lbs (54 Nm). Replace the plastic dust caps over the guide pins.

12. Reinstall Spring Clip and Wheel

Reinstall the brake caliper spring clip, ensuring it is securely seated. Then, remount the wheel onto the hub, hand-tighten the lug nuts, and lower the vehicle until the wheels just touch the ground. Torque the wheel lug nuts to your Jetta's specification (check your owner's manual, usually around 88 ft-lbs or 120 Nm) in a star pattern. Once torqued, fully lower the vehicle and remove the jack and jack stands.

13. Repeat for the Other Side & Final Steps

Repeat the entire process for the other front wheel. Once both sides are complete, the most critical final step is to pump the brake pedal multiple times before starting the engine. The pedal will feel soft at first; continue pumping until it becomes firm. This action pushes the brake caliper pistons out and seats the new pads against the rotors. Failing to do this can result in a complete lack of brakes when you first drive the vehicle. Finally, start your Jetta and take it for a careful test drive in a safe area. Listen for any unusual noises and feel for proper braking performance. Avoid hard braking for the first 100-200 miles to allow the pads and rotors to "bed in" properly.

Essential Torque Specifications for Your Jetta Brakes

Applying the correct torque is vital for safety and proper function. Always double-check your vehicle's specific service manual for the most accurate figures, but here are common specifications for your Jetta:

Note: These are general guidelines. Always consult your Jetta's specific repair manual for precise torque values for your model year.

Frequently Asked Questions About Jetta Brakes

How often should I have my Volkswagen Jetta's brakes inspected?

It's generally recommended to have your Jetta's brakes inspected at least once a year or every 10,000 to 12,000 miles, whichever comes first. However, if you notice any unusual noises, vibrations, or changes in braking performance, have them checked immediately. Regular inspections can identify wear early, preventing more costly repairs and ensuring ongoing safety.

What happens if I delay replacing my Jetta's worn brake pads?

Delaying replacement of worn brake pads can lead to several serious issues. Firstly, it will result in metal-on-metal contact between the brake pad's backing plate and the rotor, causing significant damage to the rotor, which will then also need replacement. This metal-on-metal friction also drastically reduces your Jetta's stopping power, increasing stopping distances and posing a severe safety risk. Furthermore, the excessive heat and stress can damage the brake caliper, leading to a seized piston or fluid leaks, requiring a much more expensive repair than just pads and rotors.

Can I just replace the brake pads, or do I always need new rotors too?

While it might seem cost-effective to only replace the pads, it's almost always recommended to replace both the pads and rotors simultaneously for optimal performance, especially on modern vehicles like the Jetta. Rotors often wear at a similar rate to pads and can develop grooves or warping. Installing new pads on an old, worn, or warped rotor can lead to premature wear of the new pads, poor braking performance (like vibrations), and potentially squealing noises. If the rotors are significantly grooved, warped, or below their minimum thickness specification, they absolutely must be replaced to ensure safe and effective braking.

How long do Volkswagen Jetta brake pads typically last?

The lifespan of your Volkswagen Jetta's brake pads can vary significantly based on your driving habits, road conditions, and the type of brake pads installed. On average, front brake pads on a Jetta might last anywhere from 30,000 to 70,000 miles. Aggressive driving with frequent hard braking in city traffic will wear them down much faster than gentle, long-distance motorway driving. Regular inspections are the best way to determine their actual remaining life.

What is "bedding in" new brakes, and why is it important?

Bedding in, also known as break-in or burnishing, is a crucial process for new brake pads and rotors. It involves a series of controlled stops designed to transfer a thin, even layer of friction material from the pads onto the rotor surface. This process optimises braking performance, reduces noise, and prevents judder (vibration). Failing to properly bed in new brakes can lead to reduced stopping power, uneven pad wear, and increased noise. The specific procedure varies by pad manufacturer, but generally involves several moderate stops from medium speeds (e.g., 60 mph to 10 mph) followed by a cooling period, avoiding full stops or holding the brake pedal down while stationary.

We trust this comprehensive guide has provided you with the knowledge and confidence to tackle your Volkswagen Jetta's front brake pads and rotor replacement. Regular brake maintenance is an investment in your safety and your vehicle's longevity. Drive safely!
