Mastering Brake Piston Reset & EPB Management

Maintaining your vehicle's braking system is paramount for safety on the road. Whether you're a seasoned DIY mechanic or just starting, understanding how to properly reset brake pistons and manage the increasingly common electronic parking brake (EPB) is crucial when replacing worn-out brake pads and discs. A correctly reset piston ensures your new pads sit perfectly, providing optimal braking performance, while proper EPB handling prevents costly damage and ensures the system functions as intended after your work is done. This guide will walk you through the process, offering practical advice to help you tackle this essential maintenance task with confidence.

Understanding Brake Piston Resetting

When you install new, thicker brake pads, the caliper piston needs to be pushed back into its bore to create space. Failing to do so means you simply won't be able to fit the caliper back over the new pads and disc. There are primarily two types of brake pistons you'll encounter, each requiring a slightly different resetting method:

Push-Back Pistons (Commonly Front, Some Rear)

Many brake calipers, especially on the front axle, feature pistons that simply need to be pushed straight back into the caliper bore. This is typically achieved using a dedicated brake piston compressor tool or, for the more budget-conscious, a large C-clamp combined with one of the old brake pads to protect the piston face. The key here is to apply steady, even pressure to push the piston straight back until it's flush with the caliper body. It's a straightforward process, but care must be taken not to damage the piston's rubber boot.

Screw-In Pistons (Commonly Rear with Integrated Parking Brake)

The information provided specifically mentions rotating the piston clockwise, which is characteristic of a screw-in type piston. These are almost exclusively found on the rear calipers of vehicles that have an integrated mechanical parking brake mechanism within the caliper itself. The piston doesn't just push straight back; it must be rotated as it's pushed. This rotation retracts the parking brake mechanism internally, allowing the piston to fully retract. The direction of rotation is crucial; as per your information, it's typically clockwise to reset it. If you try to simply push these pistons back, you'll find significant resistance and risk damaging the internal mechanism.

You'll need a specialised brake piston rewind tool for these. These kits come with various adapters that slot into the piston's face (which often has two or three notches) and allow you to rotate and push simultaneously. The number of turns required will vary depending on how far out the piston is, but as a general guide, 4 to 6 turns is a good starting point, always aiming to retract the piston all the way to the bottom of the bore. It should be flush with the caliper body when fully retracted, ready to accommodate your new, thicker brake pads.

Brake Fluid Management During Piston Reset

As you push or screw the pistons back into their bores, the brake fluid that was occupying that space has nowhere to go but back up the brake lines. This fluid will return to the brake fluid reservoir under the bonnet. If the reservoir is already full, or close to full, it will overflow. This is not only messy but brake fluid is corrosive and can damage paintwork. Therefore, it is highly recommended that you remove some fluid from the brake fluid reservoir before you begin pushing back any pistons. A simple turkey baster or syringe can be used to extract a small amount, perhaps half an inch or so, to create enough space. You can always top it up later if needed. Crucially, opening the bleeder valve on the caliper is not necessary for a standard piston reset and pad change. Doing so would introduce air into the brake system, necessitating a full brake bleed afterwards, which is an additional and often more complex task.

Navigating the Electronic Parking Brake (EPB)

Modern vehicles increasingly feature Electronic Parking Brakes (EPBs) instead of traditional handbrakes. While convenient, the EPB adds a layer of complexity when performing rear brake maintenance. Your query about putting the car in neutral to avoid locking the rear hubs and dealing with frantic beeping highlights a common concern. Unlike mechanical parking brakes, which are simply released, EPBs engage and disengage electronically, often using small motors directly on the calipers.

EPB Service Mode: The Essential Step

The most critical step when working on rear brakes with an EPB is to put the system into a "service mode" or "maintenance mode." This retracts the EPB motors, disengaging the parking brake mechanism and allowing the brake pistons to be reset without resistance or damage to the EPB motor. Attempting to force the piston back without disengaging the EPB electronically can severely damage the EPB motor and the caliper itself, leading to very expensive repairs. The method for activating service mode varies significantly between car manufacturers and models. Common methods include:

• Using a Diagnostic Tool (OBD-II Scanner): This is the most common and reliable method for many modern vehicles. A suitable diagnostic tool (often referred to as an OBD-II scanner with EPB functionality) plugs into your car's diagnostic port and allows you to command the EPB into service mode. Once activated, the EPB motors retract, and you can then proceed to reset the brake pistons using the appropriate method (usually screw-in for these calipers).
• Dashboard Menu or Button Sequence: Some vehicles allow you to enter service mode via a specific sequence of button presses on the dashboard or through the infotainment system's menus. This is less common but worth checking your vehicle's owner's manual for.
• Battery Disconnection (Less Common/Risky): In some older or simpler EPB systems, disconnecting the battery *might* release the EPB, but this is generally not recommended as a service procedure and can lead to other electronic issues. Always refer to your car's manual.

The "frantic bleeping" you mentioned is likely the car's system alerting you to an unusual state (e.g., car in neutral with doors open, or EPB not engaged when it expects it to be). Entering service mode correctly should prevent these warnings from occurring during the brake job.

Re-Engaging and Calibrating the EPB

Once you've completed the brake pad and disc replacement and all components are reassembled, the EPB needs to be taken out of service mode and often recalibrated. This is typically done through the same diagnostic tool used to activate service mode. The tool will command the EPB motors to extend and engage the parking brake, then retract, effectively learning the new brake pad thickness. If your vehicle uses a dashboard sequence, you'll usually perform the reverse sequence to exit service mode. Always ensure the EPB light on your dashboard goes out and the system operates normally before driving the vehicle.

Step-by-Step Brake Maintenance Guide (Integrating Piston Reset & EPB)

Here's a general procedure for changing rear brake discs and pads, incorporating the piston reset and EPB management:

1. Preparation and Safety First:
   • Gather all necessary tools: wheel brace, jack, axle stands, brake piston rewind tool (or C-clamp), new brake pads and discs, brake cleaner, wire brush, torque wrench, diagnostic tool (if EPB).
   • Ensure the vehicle is on a flat, level surface.
   • Chock the front wheels securely to prevent any movement.
   • If your car has an automatic gearbox, put it in 'Park'. If manual, put it in gear.
   • Release the EPB (if possible without service mode first, otherwise, proceed to step 3).
   • Loosen the wheel nuts on the rear wheels slightly before jacking up the car.
2. Lift and Secure the Vehicle:
   • Jack up the rear of the vehicle safely.
   • Place axle stands under appropriate jacking points and lower the vehicle onto them. Never rely solely on the jack.
   • Remove the rear wheels completely.
3. Activate EPB Service Mode:
   • Connect your diagnostic tool to the OBD-II port.
   • Follow the tool's instructions to put the EPB into "service mode" or "maintenance mode." Listen for the EPB motors retracting. If your car has a manual sequence, perform it now.
   • Verify the EPB is disengaged and the calipers are free.
4. Caliper Removal and Old Pad/Disc Removal:
   • Locate the caliper retaining bolts (usually two, on the back of the caliper). Remove them.
   • Carefully slide the caliper off the brake disc and old pads. Do not let it hang by the brake hose; support it with a wire or bungee cord.
   • Remove the old brake pads. Note their orientation.
   • Remove the caliper carrier (the bracket that holds the pads) by unbolting it from the hub.
   • Remove the old brake disc. You may need to remove a retaining screw or tap it gently with a mallet if it's seized.
5. Brake Piston Resetting:
   • Before resetting, remove a small amount of fluid from the brake fluid reservoir to prevent overflow.
   • If you have push-back pistons, use a C-clamp or piston compressor to slowly and evenly push the piston back until it's flush.

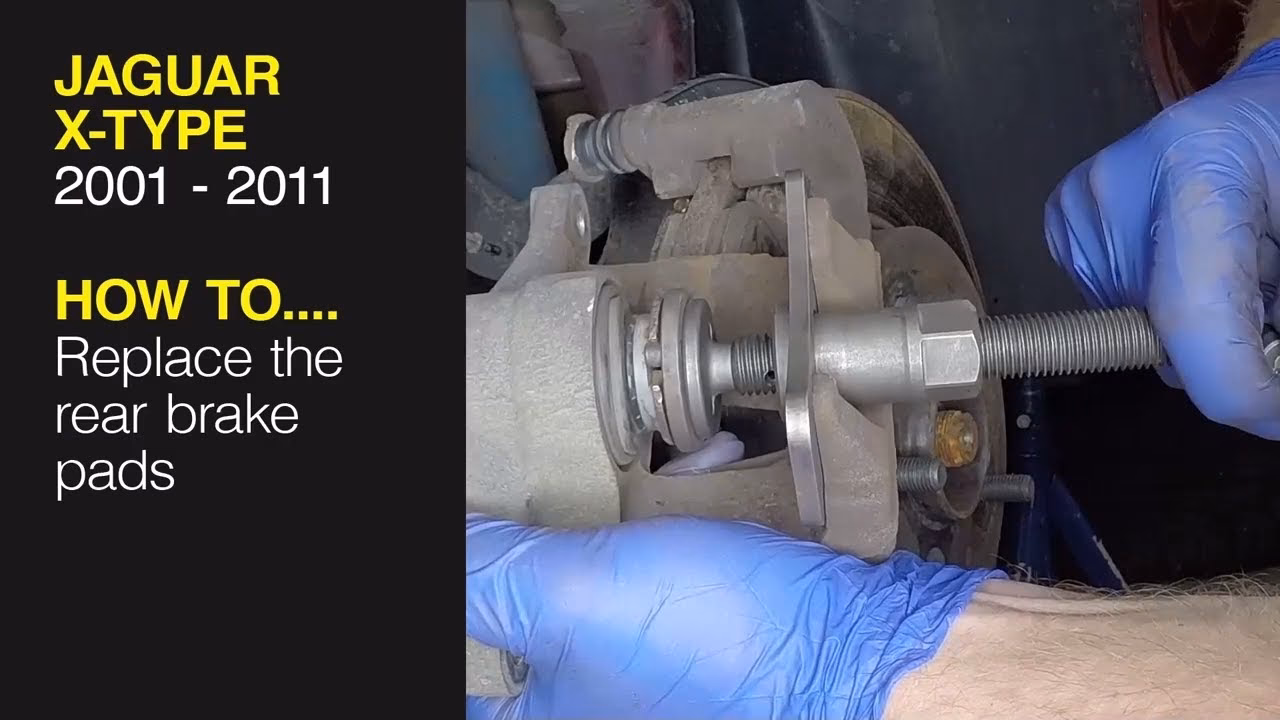

   • If you have screw-in pistons (likely with EPB), use your brake piston rewind tool. Insert the correct adapter into the piston face, apply slight inward pressure, and rotate the piston clockwise. Continue rotating until the piston is fully retracted and flush with the caliper body.
   • Inspect the piston boot for any damage. If torn, it must be replaced.
6. Installation of New Components:
   • Clean the hub surface thoroughly with a wire brush to ensure the new disc sits flat.
   • Install the new brake disc.
   • Clean the caliper carrier and install new pad shims/hardware if provided with the new pads.
   • Install the caliper carrier and torque its bolts to the manufacturer's specification.
   • Install the new brake pads into the caliper carrier, ensuring they are correctly seated.
   • Slide the caliper back over the new pads and disc. Reinstall and torque the caliper retaining bolts.
7. Final Assembly and EPB Re-engagement:
   • Reinstall the wheel and tighten the wheel nuts by hand.
   • Lower the vehicle fully to the ground.
   • Torque the wheel nuts to the manufacturer's specification in a star pattern.
   • Now, pump the brake pedal several times firmly until it feels solid. This pushes the pistons out to meet the new pads.
   • Reconnect your diagnostic tool to the OBD-II port.
   • Exit EPB service mode and perform any required calibration procedures as per the tool's instructions. Listen for the EPB motors engaging and disengaging.
   • Check the brake fluid reservoir level and top up if necessary.
   • Carefully test the parking brake to ensure it engages and releases properly.
8. Road Test:
   • Take the car for a short, slow test drive in a safe area.
   • Gently apply the brakes several times to bed in the new pads and discs. Avoid harsh braking initially.
   • Listen for any unusual noises and check for proper braking feel.

Common Pitfalls and Pro Tips

• Damaging the Piston Boot: Be extremely careful not to nick or tear the rubber boot surrounding the piston. This boot protects the piston from dirt and moisture, and a damaged boot can lead to a seized caliper.
• Overfilling Brake Fluid: Remember that brake fluid expands when hot. If you overfill the reservoir, it could overflow when the fluid heats up, causing damage to paintwork.
• Seized Calipers: If a piston is extremely difficult to push or screw back, or if it doesn't move evenly, the caliper might be seized. In such cases, the caliper will need to be rebuilt or replaced. Never force a piston excessively.
• Cleaning is Key: Always clean the caliper carrier, hub, and any contact points for the pads. Rust and debris can prevent pads from moving freely, leading to uneven wear and noise.
• Torque Settings: Always use a torque wrench to tighten caliper bolts and wheel nuts to the manufacturer's specifications. Overtightening can strip threads, and undertightening can lead to components coming loose.
• Brake Cleaner: Use dedicated brake cleaner to remove grease and debris from new discs and calipers. Do not use oil-based cleaners.

Frequently Asked Questions (FAQs)

Q: Do I need to bleed the brakes after resetting the piston?

A: No, not if you only reset the piston and did not open any brake lines or the bleeder valve. The system remains sealed. However, if you accidentally introduced air (e.g., by opening the bleeder), or if the brake pedal feels spongy after pumping, then a full brake bleed will be necessary.

Q: What if my brake piston won't screw back in?

A: If it's a screw-in type and it's resisting rotation, ensure you're using the correct adapter on your rewind tool and applying steady, even pressure while turning clockwise. If it's still extremely stiff, the internal parking brake mechanism or the piston itself might be seized due to rust or wear. This usually indicates the caliper needs to be replaced or professionally rebuilt.

Q: How do I know if the piston is fully reset?

A: The piston should be flush with the caliper body, or very slightly recessed, allowing ample space for the new, thicker brake pads to fit comfortably. You should be able to slide the new pads into the caliper carrier and then easily fit the caliper over them and the new disc.

Q: Can I use a C-clamp for screw-in pistons?

A: Absolutely not. A C-clamp only applies linear force. Screw-in pistons require both inward pressure and rotation. Using a C-clamp on a screw-in piston will damage the internal parking brake mechanism, leading to a seized caliper and expensive repairs.

Q: What is the purpose of EPB service mode?

A: EPB service mode retracts the electronic parking brake motors from the caliper, disengaging the parking brake mechanism. This is essential to prevent damage to the motors when pushing the brake piston back and to allow for proper installation of new pads and discs.

Q: My EPB light is on after changing pads. What should I do?

A: This often means the EPB was not properly put into or taken out of service mode, or it needs recalibration. Reconnect your diagnostic tool and ensure you've completed the full EPB service and calibration procedure. If the light persists, there may be a fault code that needs to be diagnosed.

By following these guidelines and understanding the nuances of both piston resetting and EPB management, you can confidently undertake rear brake maintenance on your vehicle. Remember, proper brake function is critical for your safety and the safety of others on the road, so always take your time and ensure the job is done correctly.
