Mitsubishi Outlander: Front Brake Pad Replacement Guide

If your Mitsubishi Outlander is exhibiting a soft or weakening brake pedal, it's likely time to consider replacing the front brake pads. This crucial maintenance task not only restores optimal stopping power but also ensures your safety on the road. While many owners may feel intimidated by brake jobs, with the right tools and a clear understanding of the procedure, it's a surprisingly manageable DIY task. This guide will walk you through the process of replacing the front brake pads and rotors on your Mitsubishi Outlander, offering detailed steps and important considerations to help you achieve a professional-quality result.

Understanding Your Braking System

Before diving into the replacement, it's beneficial to have a basic understanding of how your braking system works. When you press the brake pedal, hydraulic fluid is forced into the brake lines, pushing a piston within the brake caliper. This piston then presses the brake pads against the brake rotor (disc), creating friction that slows and stops the vehicle. Over time, the friction material on the brake pads wears down, necessitating their replacement. The rotors, being the surface that the pads grip, also experience wear and may need to be replaced concurrently.

Essential Tools and Parts

Having the correct tools and parts readily available will make the job significantly smoother and safer. Here's what you'll need:

Tools:

• Metric Socket Set: Specifically, 14mm, 17mm, and 21mm sockets are crucial.
• Ratchet and Breaker Bar: For loosening stubborn bolts.
• Torque Wrench: Essential for tightening components to the manufacturer's specifications, ensuring safety and proper function.
• Brake Caliper Piston Compressor: A specialised tool for retracting the caliper pistons.
• Wire Brush: For cleaning rust and debris from the caliper bracket and hub.
• Penetrating Oil (e.g., WD-40): Helpful for loosening rusted bolts.
• Jack and Jack Stands: For safely lifting and supporting the vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.

Parts:

• Mitsubishi Outlander Front Brake Pads: Ensure you have the correct pads for your specific model year.
• Mitsubishi Outlander Front Rotors: It's generally recommended to replace rotors when replacing pads, especially if they show signs of wear or damage.
• Brake Caliper Grease: A high-temperature lubricant for caliper slide pins and pad contact points.
• Brake Parts Cleaner: To clean new rotors and other components.
• New Brake Hardware Clips: These small metal pieces hold the pads in place and should be replaced with new ones to prevent noise and ensure proper pad movement. Many aftermarket brake pads come with new hardware.

The Replacement Procedure: Step-by-Step

Let's get started with the actual replacement process. Remember to always prioritise safety.

1. Preparation and Wheel Removal:
* With the vehicle on the ground, use a 21mm socket and a breaker bar to loosen the lug nuts on the front wheels. Do not remove them completely at this stage; just break them free.
* Safely jack up the front of the Mitsubishi Outlander and support it securely on jack stands. Place wheel chocks behind the rear wheels to prevent any movement.
* Remove the lug nuts completely and take off the front wheels. It's often helpful to turn the steering wheel towards the side you're working on to gain better access to the brake assembly.

2. Removing the Brake Caliper:
* Locate the two brake caliper pin bolts on the back of the caliper bracket. These typically require a 14mm socket. Use your ratchet to loosen and remove these bolts.
* Carefully pull the brake caliper away from the brake pads and rotor. To prevent the caliper from hanging by the brake hose, which can cause damage, use a piece of wire or a dedicated caliper hanger to suspend it from the strut assembly.

3. Removing the Brake Caliper Bracket:
* You'll now need to remove the brake caliper bracket, which holds the brake pads. This bracket is usually secured by two larger bolts, often requiring a 17mm socket. Remove these bolts.

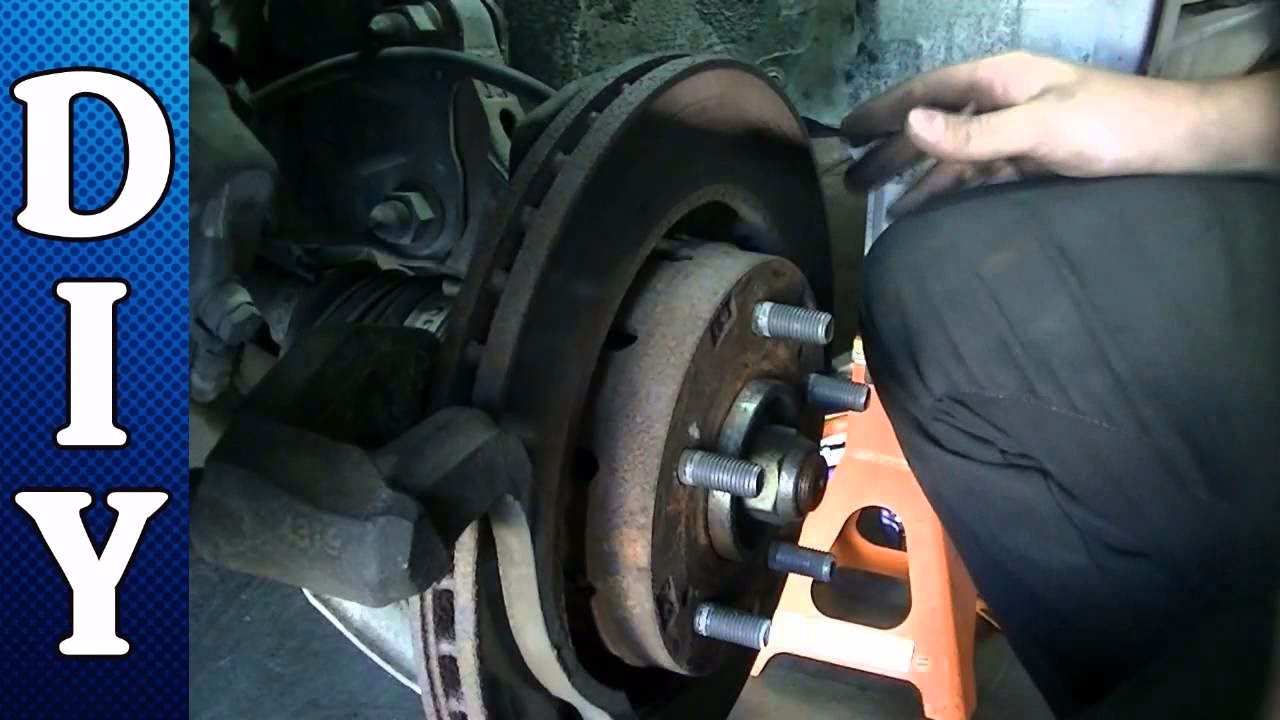

* With the bracket removed, you should be able to slide the old brake rotor off the wheel hub. If it's stuck due to rust, a few gentle taps with a rubber mallet might be necessary.

4. Installing the New Rotor:
* Before installing the new rotor, it's crucial to clean it thoroughly with brake parts cleaner. New rotors are often coated with an oil film to protect them from corrosion during shipping and storage. This oil must be removed, as it will significantly reduce braking effectiveness.
* Place the new, clean rotor onto the wheel hub, ensuring it sits flush.

5. Replacing Brake Pads and Hardware:
* Remove the old brake pads from the caliper bracket. Note how they are oriented.
* Carefully pry out the old brake hardware clips (the small metal pieces that the pads slide against). These are often a source of brake squeal if not replaced. Fit the new hardware clips that came with your new brake pads into the corresponding slots on the caliper bracket.
* Slide the new brake pads into the slots on the caliper bracket. Pay close attention to the brake wear indicator tab on one of the pads. This indicator should be positioned so that as the rotor rotates forward, the tab is pushed against the rotor's leading edge. This ensures the indicator makes contact and can alert you to worn pads.

6. Retracting the Caliper Piston:
* The new brake pads are thicker than the old, worn ones, so you'll need to retract the caliper piston to make space for them. Use a brake caliper piston compressor tool to carefully and slowly push the piston back into the caliper body. As you do this, keep an eye on the brake fluid reservoir under the bonnet; it may rise, so be prepared to remove a small amount of fluid if it threatens to overflow. Do not allow the reservoir to overflow.

7. Reassembling the Caliper:
* Once the piston is retracted, position the brake caliper back over the new brake pads and rotor.
* Apply a small amount of brake caliper grease to the slide pin bolts. These bolts allow the caliper to move freely. Reinsert the slide pin bolts and tighten them using the 14mm socket. Torque these bolts to the manufacturer's specification (typically around 30 ft-lbs).
* Reinstall the caliper bracket bolts using the 17mm socket and torque them to the specified value (typically around 80 ft-lbs).

8. Repeat and Final Checks:
* Repeat the entire procedure for the other side of the vehicle.
* Once both sides are complete, reattach the wheels and snug up the lug nuts. Lower the vehicle so the tires are just touching the ground.
* With the vehicle's weight on the wheels, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque (typically around 100 ft-lbs). Ensure they are tightened in a star pattern for even pressure.
* Remove the jack stands and lower the vehicle completely.
* Get inside the vehicle and pump the brake pedal several times until it feels firm and high. This process seats the caliper pistons against the new pads. It's crucial that the pedal feels firm before driving.
* Check the brake fluid level in the reservoir and top it up to the 'MAX' line if necessary, using the correct type of brake fluid.

9. Bedding in the New Brakes:
* After the replacement, it's important to 'bed in' the new brake pads and rotors. This process helps to create an even transfer of friction material onto the rotor surface, ensuring optimal performance and longevity. Perform a series of moderate stops from around 30-40 mph, gradually increasing speed and intensity over several miles. Avoid hard, sudden stops during the bedding-in period. Allow the brakes to cool down afterwards.

Troubleshooting and Common Issues

Squealing Brakes: This is often caused by worn or missing hardware clips, or improper pad installation. Ensure new clips are used and the pads are seated correctly.

Soft Brake Pedal: This can indicate air in the brake lines, a leak, or improperly retracted caliper pistons. Ensure the pistons are fully retracted and the brake fluid level is correct.

Vibrating Steering Wheel or Pedal: This is usually a sign of warped brake rotors.

Torque Specifications Summary

| Component | Torque Specification |
|---------------------------|----------------------|
| Brake Caliper Bracket | 80 ft-lbs |
| Brake Caliper Slide Pins | 30 ft-lbs |
| Wheel Lug Nuts | 100 ft-lbs |

Note: These torque specifications are general guidelines. Always refer to your Mitsubishi Outlander's service manual for the exact torque values for your specific model year.

Replacing your Mitsubishi Outlander's front brake pads and rotors is a rewarding task that can save you money and provide peace of mind. By following these detailed steps and paying close attention to detail, you can confidently perform this essential maintenance and keep your Outlander stopping safely and effectively. Remember, if you're ever unsure about any part of the process, it's always best to consult a professional mechanic.
