DIY Car Rust Repair Without Welding

Rust on a car is more than just an unsightly blemish; it's a sign of metal degradation that, if left unchecked, can compromise your vehicle's structural integrity and value. Fortunately, you don't always need a welder to combat this common automotive affliction. With the right approach and materials, you can effectively repair rust damage yourself, even for those pesky holes that appear in areas like wheel wells. This guide will walk you through the process of rust removal and repair, focusing on methods that bypass the need for welding, and empowering you to achieve a professional-looking finish.

Understanding Car Paint Layers and Rust Formation

Before we dive into the repair process, it's beneficial to understand what protects your car's metal body and how rust forms. Modern vehicles are typically constructed from steel, often reinforced with aluminium and other alloys to enhance strength and reduce weight. Aluminium itself is inherently resistant to rust. However, the primary defence against corrosion is the multi-layered paint system:

Rust, a reddish-brown oxide of iron (Fe2O3), forms when iron comes into contact with moisture and oxygen. The process is significantly accelerated when the protective paint layers are compromised, exposing the bare metal. Common causes include:

• Moisture: Prolonged exposure to rain, humidity, or even condensation can initiate rusting.
• Neglect: Failing to address minor rust spots or chips in the paint allows the problem to spread unchecked.
• Chemical Reactions: Road salt used in winter can accelerate corrosion, especially in hard-to-reach areas like the underbody and wheel wells.

The key takeaway is that prompt action is crucial. A small rust spot can quickly escalate into a significant problem.

Method 1: Repairing Rust Holes (Structural Areas)

This method is ideal for more substantial rust damage, including holes, and focuses on reinforcing the area without welding. Always wear protective gear: gloves, a mask, and goggles.

Step 1: Preparation and Rust Removal

1. Expose the Damage: Use a screwdriver to carefully open up any existing rust holes. This allows for better access and removal of loose material.
2. Remove Existing Paint: Sand the area around the rust to remove all paint down to the bare metal. An orbital sander with an 80-grit disc is highly effective for this, though sandpaper can be used for smaller areas.

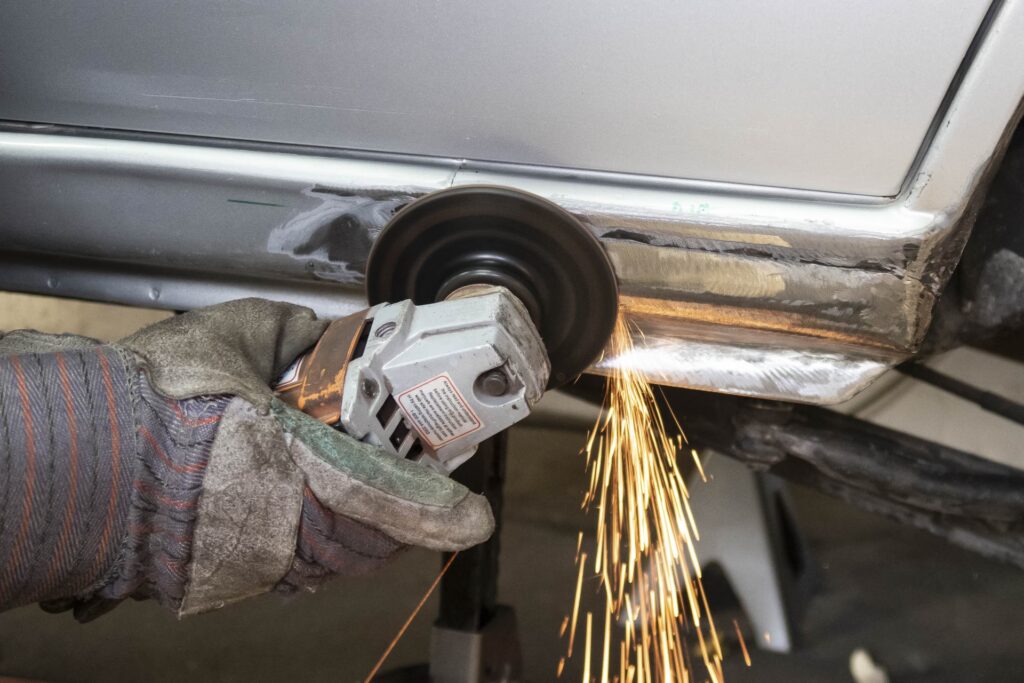

3. Grind and Clean: Use an 80-grit grinding disc on an angle grinder or orbital sander to remove all traces of rust and loose material. An air die grinder can be useful for tight spots.
4. Hammering and Levelling: Gently tap the affected area with a hammer to remove any raised edges or debris. Use compressed air from an air grinder to thoroughly clean the area of dust and particles.
5. Rust Remover Application: Apply a rust remover liberally to the cleaned area, including the inside of any holes, using a disposable brush. This will further neutralise any remaining rust and reduce the need for excessive sanding.
6. Final Sanding: Sand the area again, working through various grits of sandpaper (starting with 80-grit and progressing to finer grits for a smoother finish). This ensures all rust is gone and creates a good surface for the next steps.
7. Degrease: Clean the entire area with a quality grease remover to eliminate any oils, dirt, or contaminants. This is vital for paint adhesion.

Step 2: Reinforcing the Hole with Fibreglass

Fibreglass is an excellent alternative to welding for filling holes. It provides strength and a solid base for body filler.

1. Prepare Materials: Gather fibreglass cloth, resin/epoxy, a hardener, a disposable brush, and masking tape.
2. Mix Resin: Mix the resin and hardener according to the manufacturer's instructions. It's best to mix small batches to avoid premature curing.
3. Cut Fibreglass: Cut pieces of fibreglass cloth slightly larger than the hole.
4. Apply Fibreglass: Instead of coating the cloth with resin first, carefully stuff the fibreglass pieces into the hole. Then, use the brush to saturate the fibreglass thoroughly with the resin mixture. Ensure the resin penetrates all layers.
5. Smooth and Secure: Apply masking tape over the repaired area to help create a smoother finish and hold the fibreglass in place as it cures.
6. Curing: Allow the fibreglass to cure completely. This typically takes 6-7 hours, but check the resin manufacturer's guidelines.

Step 3: Finishing and Painting

1. Sand Again: Once cured, remove the tape and sand the fibreglass repair smooth, ensuring it's level with the surrounding metal. Sandpaper offers more control here than an orbital sander.
2. Apply Body Filler: Apply a thin, even layer of automotive body filler (or putty for smaller imperfections) over the fibreglass and any low spots. Use a plastic spreader for a smooth application. Allow it to dry completely.
3. Shape and Smooth: Sand the body filler until it is perfectly smooth and level with the surrounding bodywork. Start with a coarser grit and gradually move to finer grits for a flawless finish.
4. Final Degrease: Clean the area again with a wax and grease remover.
5. Prime: Apply a self-etching primer to the repaired area. This provides excellent adhesion for the paint. Allow it to dry thoroughly.
6. Paint: Apply your chosen colour coat in several thin layers, allowing each layer to flash off as per the paint manufacturer's instructions.
7. Clear Coat: Finish with a clear coat to protect the paint and provide a glossy shine.

Method 2: Repairing Non-Structural Rust

For rust that hasn't created holes but is present on surfaces like door edges or trim areas, a simpler approach can be used.

Step 1: Rust Removal and Cleaning

1. Remove Rust: Use a screwdriver or sandpaper to remove all visible rust. An orbital sander with an 80-grit sandpaper is efficient.
2. Clean the Area: Thoroughly clean the area with a grease remover to ensure it's free from oil and debris.
3. Masking: Protect the surrounding areas by taping them off with masking tape, paper, or old rags.

Step 2: Applying Protective Coating and Reinforcement

1. Apply POR-15: Coat the cleaned area with POR-15 or a similar rust-inhibiting paint. Allow it to dry for 20-30 minutes.
2. Fibreglass Reinforcement (Optional but Recommended): Cut small pieces of fibreglass cloth (e.g., 1" x 1"). Saturate each piece thoroughly with POR-15 and layer them over the treated area. Ensure the final layer is smooth.
3. Curing: Let the POR-15 and fibreglass cure overnight.
4. Undercoating: Apply 3-4 thin layers of a rubberised undercoating to seal the repair and provide a durable finish.

Step 3: Final Touches

1. Remove Masking: Once the undercoating is dry, carefully remove all masking materials.

This method effectively seals minor rust and provides a protective barrier against future corrosion.

Can You Weld Rusty Metal?

While this guide focuses on non-welding repairs, it's worth noting that welding rusty metal is possible but not ideal, especially for structural repairs. The presence of rust significantly weakens the weld and can lead to:

• Lower Tensile Strength: Rust impurities reduce the weld's overall strength.
• Lack of Fusion: Rust acts as a barrier, preventing the weld metal from properly bonding with the base metal.
• Unstable Arc and Spatter: Welding over rust leads to erratic arcs and increased spatter.
• Porosity and Inclusions: Rust releases gases that create bubbles (porosity) and impurities (inclusions) within the weld, further weakening it.

If welding is unavoidable, processes like stick welding with specific rods (e.g., E6010, E6011) or flux-cored wire are more forgiving on rusty surfaces. However, for professional, safety-critical applications, always weld on clean, bare metal.

Frequently Asked Questions

Q1: How long does a fibreglass repair last?

A properly executed fibreglass repair can last for many years, provided it's sealed and painted correctly to prevent moisture ingress.

Q2: Can I use Bondo to fix rust holes?

Bondo (body filler) is used after the rust has been removed and the area has been reinforced (e.g., with fibreglass). It's designed for shaping and smoothing, not for structural repair or filling holes on its own.

Q3: How do I prevent rust from returning?

Regular washing (especially after exposure to salt), waxing, and promptly repairing paint chips and scratches are the best preventative measures. Ensuring all repairs are properly sealed and painted is also crucial.

Q4: What's the difference between body filler and putty?

Body filler is typically a polyester-based compound used for filling larger imperfections and smoothing out repairs. Putty is often a finer, more pliable material used for finishing and filling smaller dents or pinholes, offering a smoother final surface.

Q5: Do I need a special primer for rust repair?

A self-etching primer is highly recommended as it chemically bonds to the metal surface, providing superior adhesion and corrosion resistance, especially over prepared metal.

By following these steps, you can effectively tackle car rust without the need for welding, saving you time and money while restoring your vehicle's appearance and protecting it from further damage.
