Restoring Your Vehicle's Sills: A DIY Guide

Few things strike more fear into the heart of a vehicle owner than the discovery of rust, especially when it's lurking on critical structural components like the sills. Often, what appears to be a minor blemish on the surface can be the tip of a much larger, more insidious problem hidden beneath. Sills, or rocker panels as they're sometimes known, are vital for your vehicle's structural rigidity and safety, particularly in the event of a side impact. They also play a crucial role in supporting jacking points, meaning a compromised sill can make even routine maintenance a dangerous undertaking. This guide delves into the realities of sill rust, how to effectively diagnose its true extent, and provides a detailed roadmap for a robust, long-lasting repair.

Understanding the Enemy: How Sill Rust Develops

Sills are particularly susceptible to corrosion for several reasons. Their location, low to the ground, exposes them constantly to road salt, grit, water, and debris. Internally, they often have complex cavities that can trap moisture and condensation, creating a perfect breeding ground for rust. The issue is compounded by the fact that rust expands as it forms, pushing outwards on the metal panels. This expansion is often the first subtle sign of trouble, manifesting as a 'fat' or swollen seam, or bubbling paintwork, especially around jacking points or along the bottom edge.

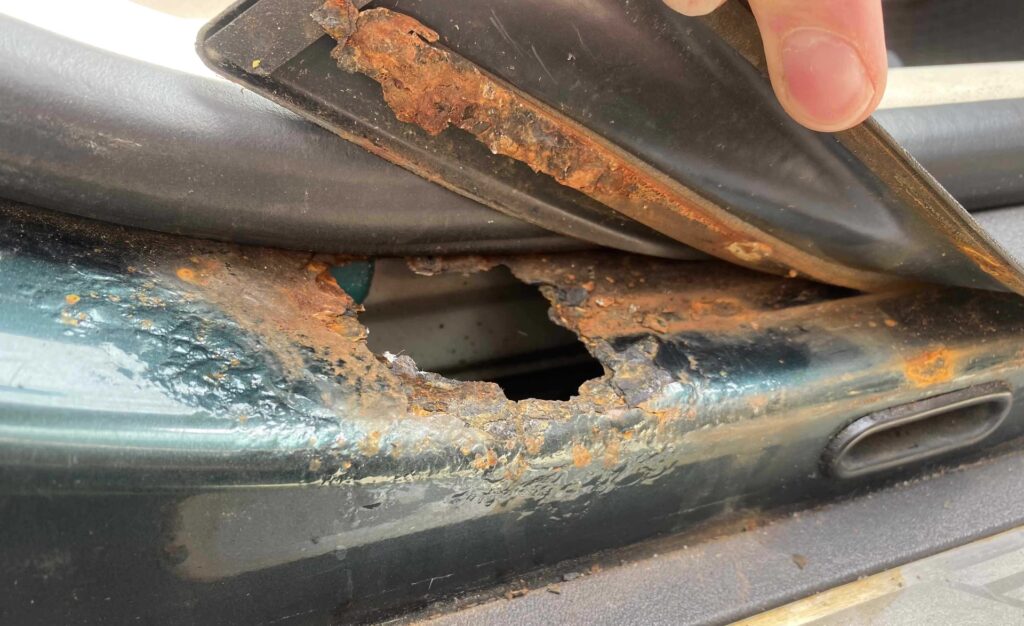

What's critical to understand is that visible external rust is usually just a symptom of far more extensive internal damage. By the time you see a small bubble, the metal inside could be paper-thin or completely gone. Poking at these suspicious areas, even gently with a small screwdriver, is often necessary to reveal the true extent of the corrosion. It's a daunting prospect, but ignoring it only allows the problem to worsen, potentially compromising the vehicle's safety and making the repair significantly more complex and costly down the line.

Assessing the Damage: Beyond the Surface

Once you suspect sill rust, a thorough assessment is paramount. Begin by cleaning the area thoroughly with a stiff brush and water to remove any loose dirt. Then, carefully inspect the entire length of the sill, both from the outside and, if possible, from underneath. Look for:

• Bubbling or blistering paint: A classic sign of rust expanding beneath the surface.
• Discoloured or flaky paint: Indicates rust bleeding through.
• 'Fat' or swollen seams: As rust expands, it forces the metal panels apart.
• Soft spots: Gently press on suspicious areas. If the metal feels soft or collapses, it's severely corroded.
• Holes or perforations: Obvious signs of advanced rust.

The real challenge lies in the inner structures. Many sills are multi-skinned, meaning they comprise an outer panel, a central reinforcing panel, and an inner panel. Rust can spread through all these layers. The bungs that cover the bottom rail bolts can be incredibly useful here; they often pass through both the outer and inner skins, providing a potential access point for inspection with a small endoscope or even just to gauge the internal condition. My own experience revealed extensive internal damage with only minimal external signs, highlighting the need to always assume the worst and investigate thoroughly.

Essential Tools and Materials for Sill Repair

Tackling a sill repair is a significant undertaking that requires a range of tools and materials. Having everything ready before you start will make the process smoother and safer.

Tools:

• Angle Grinder: Essential for cutting out rusted metal and grinding welds. A variety of discs (cutting, grinding, flap) will be needed.
• Wire Wheel (for angle grinder or drill): For stripping paint and surface rust.
• MIG Welder: Crucial for joining new metal panels. Ensure you have appropriate gas (e.g., Argon/CO2 mix) and wire.
• Metal Shears/Snips: For precise cutting of new sheet metal.
• Clamps: Various types (vice grips, G-clamps) for holding panels in place while welding.
• Vice: Useful for bending and shaping smaller pieces of metal. A robust one is ideal, but even a smaller one can suffice with patience.
• Body Hammer and Dollies: For shaping metal and smoothing out imperfections.
• Files and Sandpaper: For finishing welds and preparing surfaces.
• Measuring Tape/Ruler and Marker: For accurate templating.
• Safety Gear: Welding helmet, gloves (welding and general work), eye protection, dust mask/respirator, ear protection.

Materials:

• Sheet Metal: Typically 18-gauge (1.2mm) or 20-gauge (1.0mm) mild steel, depending on the original thickness.
• Rust Converter: To neutralise any remaining surface rust.
• Weld-Through Primer: Protects bare metal and allows for welding directly over it.
• Body Filler (Bondo/P38): For smoothing out imperfections after welding (use sparingly).
• Automotive Primer: For preparing the surface for paint.
• Top Coat Paint: Matched to your vehicle's colour.
• Clear Coat (Optional): For added protection and shine.
• Cavity Wax/Rust Proofing Spray (e.g., Dynax S50): Absolutely critical for internal protection after repair.
• Masking Tape and Paper: For protecting surrounding areas during painting.

The Repair Process: Step-by-Step

This is where the real work begins. Patience and precision are key to a successful, durable repair.

1. Preparation and Rust Removal

1. Safety First: Disconnect the vehicle's battery. Ensure the work area is well-ventilated and clear of flammable materials. Use all appropriate safety gear.
2. Expose the Damage: Use your angle grinder with a wire wheel to strip back paint and surface rust around the affected area. This helps you clearly see the extent of the corrosion.
3. Cut Out Rusted Metal: Using a thin cutting disc on your angle grinder, carefully cut out all rusted metal. You must cut back to solid, healthy metal. It's better to cut out a slightly larger section than to leave any compromised metal behind. For multi-skinned sills, you'll likely be cutting through multiple layers.
4. Clean and Inspect: Once the rusted sections are removed, thoroughly clean the exposed internal cavities. Use compressed air, a vacuum, and a wire brush to remove all loose debris and rust flakes. Inspect the remaining internal metal for any hidden corrosion.

2. Fabricating and Fitting New Panels

1. Template Creation: Create paper or cardboard templates that perfectly match the shape of the metal sections you've removed. Pay close attention to any curves or bends.
2. Cut New Metal: Transfer your templates onto your new sheet metal and carefully cut out the replacement panels using metal shears or a cutting disc.
3. Shape the Metal: This is often the most challenging part. Use your vice, body hammer, and dollies to bend and shape the new metal to precisely match the contours of the original sill. The flatter sections (like the rear and central sill skins) are generally easier than the complex outer skin. My experience highlights that having a replacement outer skin is a significant advantage, as shaping one from scratch to perfection can be incredibly difficult and might otherwise necessitate excessive filler.
4. Test Fit: Continuously test fit your new panels. They should fit snugly with minimal gaps. Trim and adjust as necessary.
5. Weld-Through Primer: Apply a thin coat of weld-through primer to the edges of both the new panels and the existing vehicle metal where welds will be made.

3. Welding the New Panels

Working from the innermost panel outwards is generally the best approach for multi-skinned sills.

1. Inner and Centre Skins: Position and clamp the innermost panel first. Use tack welds to hold it in place, then stitch weld it firmly. Grind these welds smooth. Repeat for the centre skin if applicable. These flatter sections are typically more forgiving to work with.
2. Outer Skin: Carefully position and clamp the outer skin. Aim to make your welds in recesses or along existing seams where they will be less visible and easier to hide. Begin with tack welds to secure the panel, then proceed with stitch welding. Work slowly, allowing the metal to cool between welds to prevent warping.
3. Grind Welds Smooth: Once all panels are welded in place, use an angle grinder with a flap disc to carefully grind the welds smooth. Be careful not to remove too much parent metal. The goal is a seamless transition between the old and new metal. Even if it looks a bit rough at this stage, the key is that when you run your hand over it, you shouldn't feel any bumps or ridges.

4. Finishing and Rust Proofing

1. Clean and Prepare: Thoroughly clean the welded area, removing all grinding dust and contaminants.
2. Rust Converter/Primer: Apply a rust converter to any areas where surface rust might still be present, then apply a good quality automotive primer over all bare metal.
3. Body Filler (If Needed): Apply a minimal amount of body filler to smooth out any minor imperfections or depressions in the metal. Sand it smooth once cured. The aim is to create a visually pleasing, smooth surface, but the strength comes from the metalwork, not the filler.
4. Final Sanding and Paint: Sand the primed and filled area with progressively finer grit sandpaper until it's perfectly smooth. Mask off surrounding areas. Apply several thin coats of your colour-matched top coat, followed by clear coat if desired.
5. Crucial Rust Proofing: This step is arguably the most important for longevity. Once the paint is completely dry (follow paint manufacturer's curing times), inject cavity wax or a dedicated rust-proofing spray into the internal sections of the sill. The bungs covering the bottom rail bolts are excellent access points, as they allow the spray pipe to reach both the outer and inner parts of the sill's interior. With some wiggling, even a Dynax spray pipe can fit past the bolt heads. If necessary, you can drill small, strategically placed holes (e.g., 8-10mm) in inconspicuous areas to aid access, but ensure these holes can be easily sealed with rubber grommets or bungs afterwards to prevent future water ingress. Ensure the wax reaches all internal cavities and seams. This creates a protective barrier against moisture and oxygen, preventing rust from returning from the inside out.

Challenges and Considerations

Sill repair, especially for a first-timer, can be challenging. Bending metal accurately without professional tools is a test of patience. The hidden nature of internal rust means the job can quickly become larger than initially anticipated. While it might look daunting, it's certainly not impossible for a determined DIYer. However, if you're uncomfortable with welding or extensive bodywork, or if the damage is extremely severe and compromises critical structural points, consulting a professional body shop is always a sensible option. They have the expertise and specialised equipment to ensure a safe and lasting repair.

Prevention: The Best Cure

Once your sills are repaired, maintaining them is key to preventing future issues. Regularly wash the underside of your vehicle, especially during winter months when road salt is prevalent. Consider annual checks of your sills for any new signs of bubbling or swelling. Reapplying cavity wax every few years, especially if your vehicle is exposed to harsh conditions, can significantly extend the life of your repair and the sills themselves. Early detection and prompt action are always cheaper and less complex than dealing with advanced corrosion.

Comparative Table: DIY vs. Professional Sill Repair

Frequently Asked Questions (FAQs)

Q: Can I drive with a rusted sill?

A: It is highly advised against driving with significantly rusted sills. Sills are part of your vehicle's structural integrity. Severe rust can compromise crash protection, affect suspension mounting points, and make safe jacking impossible. It could also lead to an MOT failure in the UK.

Q: How much does it cost to fix a rusted sill professionally?

A: The cost varies greatly depending on the extent of the rust, the vehicle's make and model, and your location. Minor repairs might start from a few hundred pounds, but extensive multi-panel replacement could easily run into four figures. Always get multiple quotes.

Q: How long does a sill repair last?

A: A well-executed repair, especially one that includes thorough internal rust proofing, can last many years. The longevity depends on the quality of the workmanship, the materials used, and ongoing rust prevention measures.

Q: What is a sill on a car?

A: The sill, also known as the rocker panel, is the structural component running along the bottom side of a vehicle, between the front and rear wheel arches, directly below the doors. It contributes significantly to the vehicle's structural rigidity and protection in side impacts.

Q: How often should I check my sills for rust?

A: It's good practice to visually inspect your sills at least twice a year, perhaps during seasonal maintenance checks. Pay extra attention after winter or if you frequently drive on salted roads.
