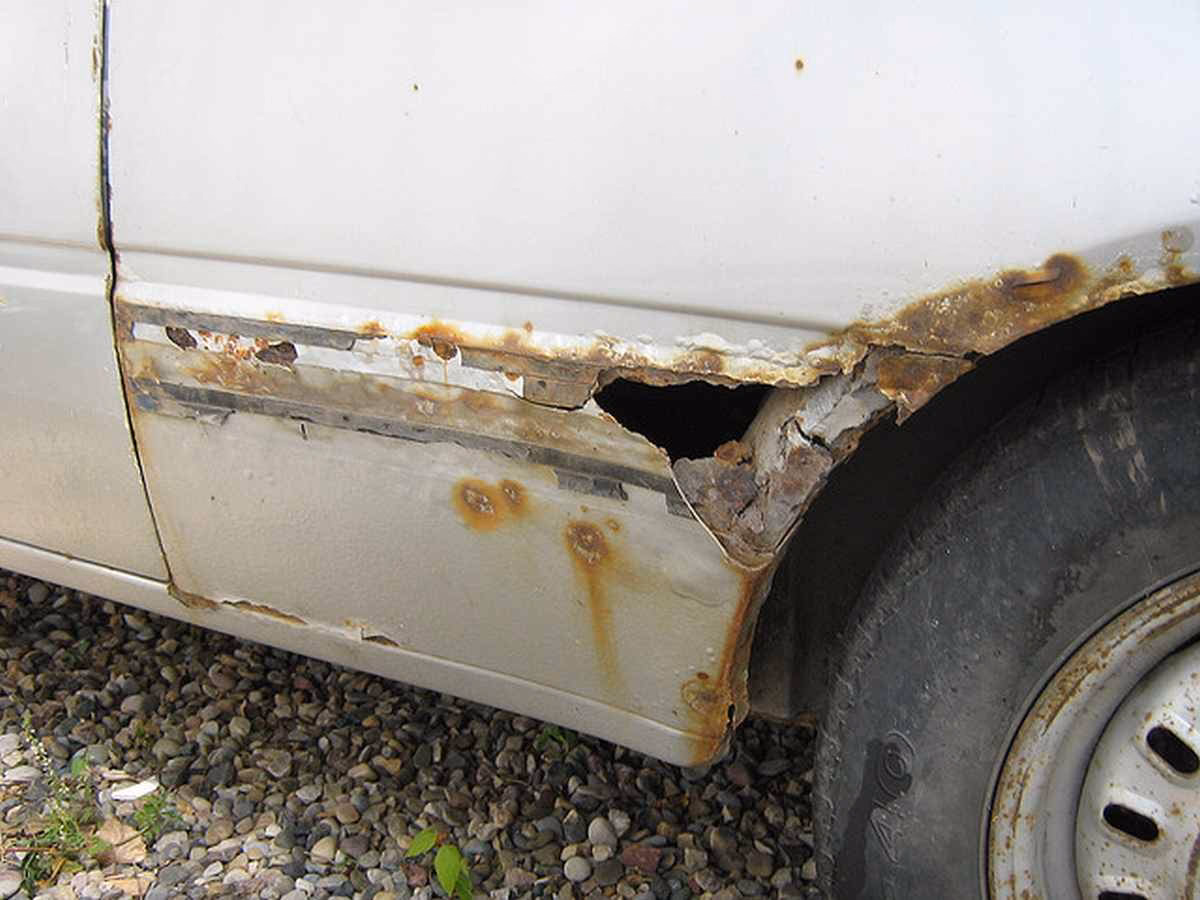

Can You Repair Rust Holes in Your Car?

Rust. The very word can send a shiver down the spine of any car owner. It’s not just unsightly; it’s a corrosive enemy that can significantly devalue your vehicle and, if left unchecked, lead to serious structural problems. In many regions, a car with visible rust holes may even fail its annual inspection, making it a critical issue to address. Fortunately, while rust may seem daunting, repairing small to medium-sized rust holes in body panels is a task that many DIY enthusiasts can tackle with patience and the right approach. This guide will walk you through the process, offering two effective methods to restore your car’s appearance and prevent further damage.

Understanding Rust and Its Impact

Rust, or iron oxide, forms when iron or its alloys, like steel, are exposed to moisture and oxygen. On a car, this can be triggered by various factors:

• Minor Damage: Stone chips or scratches in the paintwork expose the metal underneath to the elements.
• Winter Road Salt: Salt used to de-ice roads is highly corrosive and accelerates rust formation, especially on the underbody and wheel arches.
• Poor Drainage: Blocked drainage holes can trap moisture in areas like the sills or boot, creating ideal conditions for rust.
• Neglect: Simply not washing or protecting the car regularly allows corrosive elements to take hold.

The danger of rust lies in its progressive nature. A small surface blemish can quickly spread, eating away at the metal until it creates actual holes. This not only looks bad but weakens the car’s structure. If the rust is on a load-bearing part of the car, such as the chassis, suspension components, or other supporting structures, it is absolutely crucial to seek professional help from a qualified mechanic or body shop. This guide focuses on repairing rust holes in body panels, such as doors, wings (fenders), bonnets (hoods), and boot lids (trunks).

Method 1: Repairing Rust Holes with a Body Filler Kit

This method is suitable for filling holes where the original metal has been compromised. It involves removing the rust, stabilising the area, filling the hole, and then preparing for paint.

What You'll Need:

• Body filler kit (containing filler paste and hardener)
• Metal mesh or fibreglass cloth (often included in kits)
• Electric drill with wire brush or sanding disc attachments
• Sandpaper (various grits: 80-grit for initial removal, 150-grit for shaping, 240-grit and 400-grit for finishing)
• Rust-resistant primer or rust converter
• Automotive paint (colour-matched if possible)
• Clear coat (optional, for a professional finish)
• Masking paper and tape
• Breathing mask or respirator
• Safety goggles (enclosed type recommended)
• Work gloves
• Hammer (ball-peen type is useful)
• Degreaser
• Clean cloths

Step-by-Step Guide:

1. Prepare Your Workspace:

   Choose a well-lit, well-ventilated area, ideally a garage. Ensure the area is clean and free of dust. Remove or cover anything that you don't want to get dirty, as this process can be messy.

2. Safety First:

   Put on your safety goggles, breathing mask/respirator, and work gloves. Long sleeves and trousers are also advisable to protect your skin from dust and sparks.

3. Prepare the Car:

   Mask off any areas you don't want to be sanded, ground, or painted. Use masking paper and tape to protect surrounding panels, glass, chrome, tyres, and sensitive components. For areas near the repair, consider using a heavier protective cover in case of accidental slips with tools.

4. Remove Paint and Surface Rust:

   Using your electric drill with an 80-grit sanding disc or wire brush attachment, remove all paint from around the rust spot. Extend this to at least an inch or two beyond the visible rust to ensure you get to clean metal. For lighter rust, sandpaper might suffice.

5. Grind Away All Rust:

   Switch to a grinding disc or wire brush. This is a critical step: grind away all traces of rust until you are left with clean, shiny bare metal. Do not leave any red or brown discolouration. Don't worry if you go through the panel slightly, as the filler will cover this.

6. Clean and Treat:

   Once all rust is removed, clean the area thoroughly with a degreaser and then wipe it dry. If you have a chemical rust remover, now is the time to use it according to the manufacturer's instructions to ensure no rust particles remain. Follow up with a clean cloth.

7. Apply Rust Primer/Converter:

   Apply a coat of rust-resistant primer or a rust converter to the bare metal and the edges of the hole. A rust converter chemically changes remaining rust into a stable, paintable surface. Allow it to dry completely as per the product's instructions.

8. Prepare the Panel Edges:

   If the edges of the hole are sharp or uneven, you can gently tap them inwards with a ball-peen hammer to create a smoother transition for the filler.

9. Prepare the Body Filler:

   Following the kit's instructions, mix the body filler paste with the hardener. Work relatively quickly, as the mixture will start to harden. Do not over-mix or add too much hardener, as this can compromise the filler's integrity.

10. Stabilize the Hole:

    If your kit includes metal mesh or fibreglass cloth, cut a piece slightly larger than the hole. Position this behind the hole from the inside of the panel. Apply a small amount of filler to hold it in place. This provides a solid backing for the filler.

11. Apply Body Filler:

    Using the applicator provided, spread the body filler over the hole, pressing it firmly into place. Build up the filler in thin layers, ensuring it is slightly proud of the surrounding panel to allow for sanding. Smooth the surface as much as possible at this stage.

12. Drying and Initial Sanding:

    Allow the body filler to cure completely according to the manufacturer's instructions. Once dry, begin sanding with 150-grit sandpaper. Use a sanding block for a flat finish. The goal is to bring the filler level with the surrounding body panel. Take your time and avoid sanding too aggressively.

13. Fine Sanding:

    Once the filler is flush, switch to finer grit sandpaper (240-grit, then 400-grit). For this stage, it’s often best to switch to hand sanding with a flexible block to avoid creating low spots or removing too much of the original panel. The surface should feel smooth to the touch.

14. Clean and Prime:

    Clean the sanded area thoroughly to remove all dust. Apply a thin, even coat of primer. Allow it to dry, then lightly sand it smooth with 400-grit sandpaper. Repeat this process for at least two to three coats of primer, sanding between each coat for a perfectly smooth finish.

15. Painting:

    If you are painting, ensure the primed surface is clean, dry, and smooth. Apply your colour-matched automotive paint in thin, even coats, allowing adequate drying time between each. Aim for overlapping strokes to avoid a patchy finish. If matching your paint colour is proving difficult, painting an entire panel can yield a more uniform result.

16. Clear Coat (Optional):

    Once the base coat is dry, apply a clear coat in the same manner. This protects the paint and provides a glossy finish.



17. Final Sanding and Polishing:

    After the clear coat has dried, you can perform a final wet sand with very fine grit sandpaper (e.g., 2000-grit) followed by polishing compound to achieve a truly professional finish. If you're not aiming for a show car finish, you can skip this step.

18. Clean Up:

    Remove masking tape and paper. Clean your tools and workspace.

Method 2: Repairing Rust Holes with a Fibreglass Repair Kit

Fibreglass repair kits are another excellent option, particularly for slightly larger holes or areas that require more structural reinforcement within the body panel. The process is similar to body filler but involves layering fibreglass matting.

What You'll Need:

• Fibreglass repair kit (resin, hardener, fibreglass cloth/mat, spreader, mixing tray)
• Electric drill with wire brush or sanding disc attachment
• Sandpaper (180-grit for initial smoothing, finer grits for finishing)
• Rust-resistant primer
• Automotive paint
• Masking paper and tape
• Safety goggles
• Work gloves (rubber gloves are recommended as fibreglass can irritate skin)
• Hammer (ball-peen type)
• Degreaser
• Clean cloths

Step-by-Step Guide:

1. Remove All Rust:

   As with Method 1, thoroughly remove all rust down to bare, clean metal using a drill with a wire brush or sanding disc. Ensure no rust remains.

2. Clean and Prime:

   Clean the area with degreaser and apply a rust-resistant primer or converter to the bare metal. Allow it to dry completely.

3. Prepare Panel Edges:

   Gently tap any sharp edges inwards with a hammer if necessary.

4. Prepare Fibreglass Resin:

   Following the kit’s instructions, mix the fibreglass resin and hardener. Cut a piece of fibreglass cloth or matting slightly larger than the hole.

5. Apply Fibreglass Matting:

   Apply a layer of the resin mixture to the fibreglass matting using a brush or spreader. Press this layer into the hole, from behind if accessible, or across the hole. This acts as the initial layer of reinforcement.

6. Build Up Layers:

   Apply further layers of fibreglass matting and resin, allowing each layer to cure partially according to the instructions. Use the spreader to ensure the resin saturates the matting and to smooth the surface. Continue until the hole is filled and the fibreglass is level with the surrounding panel.

7. Sand Smooth:

   Once the final layer has cured, sand the entire area smooth, starting with 180-grit sandpaper. Work your way up to finer grits as needed to achieve a smooth, flush finish.

8. Prime and Paint:

   Clean the area thoroughly. Apply several coats of primer, sanding lightly between coats. Once primed, paint the repaired area to match the rest of the car, followed by a clear coat if desired.

Common Questions About Rust Repair

Q1: Can rust holes be permanently repaired?

Yes, rust holes in body panels can be permanently repaired using methods like body filler or fibreglass, provided all the rust is meticulously removed first. If rust is left behind, it will continue to spread under the repair.

Q2: How much does it cost to fix a rust hole?

DIY repairs using kits can cost anywhere from £20 to £60 for the materials, depending on the size of the repair and the quality of the products. Professional body shop repairs can range from £100 to £500 or more, depending on the severity of the rust and the complexity of the panel.

Q3: What is the best rust treatment for cars?

For treating existing rust and preventing its return, products like Waxoyl are highly regarded. For filling holes, quality body filler or fibreglass kits are recommended. For exposed metal after welding, a heavy-duty rust prevention paint is a good choice.

Q4: Can you weld over rust?

No, you should never weld over rust. Welding requires clean, solid metal. Attempting to weld over rust will result in a weak, brittle weld that is prone to failure and will not solve the underlying problem.

Q5: How do I prevent rust on my car?

Regular washing (especially the underbody and wheel arches during winter), applying a quality car wax, promptly addressing minor paint chips and scratches, and ensuring drainage holes are clear are key preventative measures. Parking in a dry garage also helps.

Conclusion

Addressing rust is not just about aesthetics; it’s about preserving the structural integrity and value of your vehicle. While extensive rust on structural components requires professional attention, repairing holes in body panels is a rewarding DIY project. By following these steps carefully, using the right materials, and prioritising safety, you can effectively tackle rust and keep your car looking its best for years to come. Remember, early intervention is always the best strategy when it comes to rust prevention and repair.
