Mastering Your Engine's Rocker Tuning

Understanding and properly maintaining your vehicle's engine components is crucial for its longevity and performance. Among these, the rocker arms play a pivotal role in the precise timing of your engine's valves. When these components are not correctly adjusted, or if they suffer damage, the consequences can range from reduced efficiency and power to significant engine damage. This guide will walk you through the intricacies of tuning your engine's rocker arms, diagnosing common issues like a broken rocker shaft, and clarify the process of removing other 'rocker' related components often found in a vehicle's suspension system.

The Vital Role of Engine Rocker Arms

In most overhead valve (OHV) and some overhead camshaft (OHC) engine designs, rocker arms are critical intermediaries. They transfer the motion from the camshaft (via pushrods in OHV engines) to the valves, opening and closing them at precisely the right time to allow fuel and air into the cylinders and exhaust gases out. Proper operation hinges on maintaining the correct valve clearance, also known as valve lash. This small gap between the rocker arm and the valve stem ensures that the valve fully closes when it should, preventing compression loss and maintaining proper engine breathing.

Why Valve Clearance Matters

Incorrect valve clearance can lead to a myriad of problems:

• Too Tight: If the clearance is too small, or even non-existent, the valve may not fully close. This leads to a loss of compression, reduced engine power, increased fuel consumption, and can cause the valve to burn out due to excessive heat.
• Too Loose: Excessive clearance results in a characteristic ticking or clicking sound, often described as a 'tappet noise'. While less immediately damaging than overly tight valves, it can lead to reduced valve lift, affecting engine performance, and increased wear on the valve train components due to impact.

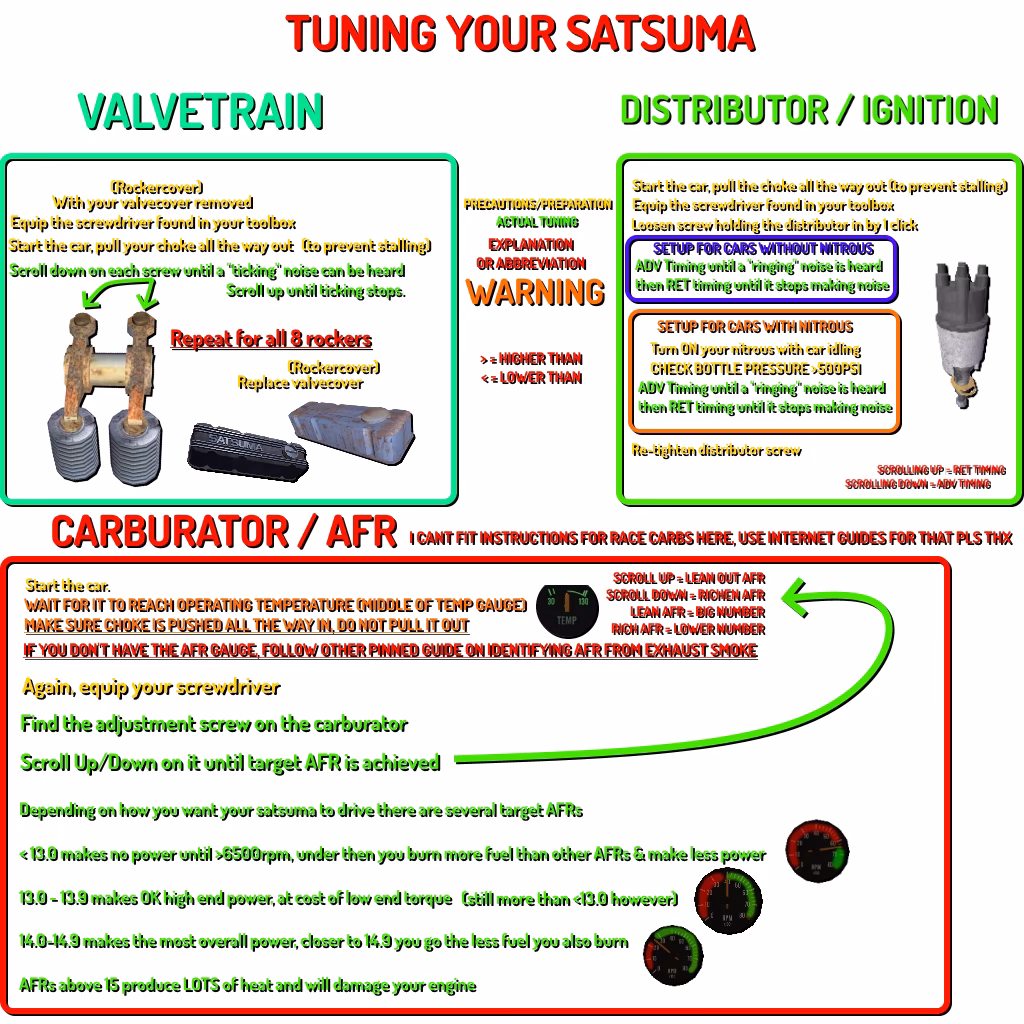

Tuning Your Engine's Rocker Arms: A Step-by-Step Guide

Tuning rocker arms, or adjusting valve clearance, is a precision task that requires patience and the right tools. It's typically performed on a cold engine to ensure accurate measurements, as engine components expand when hot.

Tools You'll Need:

• Socket set (various sizes, including those for valve cover bolts and adjustment nuts)
• Ratchet and extension
• Feeler gauges (essential for measuring clearance)
• Flat-head screwdriver (for adjustment screws)
• Torque wrench (for valve cover bolts)
• Wrenches (for locking nuts on valve adjusters)
• Shop rags
• New valve cover gasket (recommended)

The Tuning Process:

1. Preparation: Ensure the engine is completely cold. Disconnect the battery's negative terminal for safety. Carefully remove any components obstructing access to the valve cover, then remove the valve cover itself. Have shop rags ready to catch any oil drips.
2. Locate Top Dead Centre (TDC): For accurate adjustment, each cylinder's piston must be at its Top Dead Centre on the compression stroke. This is where both valves for that cylinder are fully closed. You'll typically rotate the crankshaft manually (using a socket on the crankshaft pulley bolt) while observing the timing marks on the crankshaft pulley and engine block, or by watching the rocker arms on the cylinder you're about to adjust. When the exhaust valve has just closed and the intake valve is about to open (or vice versa, depending on the engine's firing order and design), you're near TDC for that cylinder. Many engines have specific procedures or markings for adjusting certain valves at specific crankshaft positions (e.g., 'rule of nine' or adjusting intake/exhaust valves for pairs of cylinders). Consult your vehicle's specific service manual for the exact procedure.
3. Measure Current Clearance: With the appropriate cylinder at TDC for its compression stroke, take your feeler gauge set. Select the gauge blade that matches the manufacturer's specified clearance for that valve (consult your service manual). Slide the feeler gauge between the tip of the rocker arm and the top of the valve stem. It should slide in with a slight drag. If it's too loose, there will be no drag. If it won't fit, it's too tight.
4. Adjust the Clearance: Most rocker arms have an adjustment screw with a locking nut. Loosen the locking nut with a wrench. Use the flat-head screwdriver to turn the adjustment screw.
• To Increase Clearance (if too tight): Turn the screw counter-clockwise.
• To Decrease Clearance (if too loose): Turn the screw clockwise.

While holding the adjustment screw in place with the screwdriver, tighten the locking nut. Re-check the clearance with the feeler gauge. Repeat this process until the feeler gauge slides in with the correct amount of drag. It's crucial that the screw does not turn when tightening the lock nut, as this will alter your adjustment.

5. Repeat for All Valves: Rotate the crankshaft to bring the next set of valves (or cylinder) to its appropriate adjustment position and repeat steps 3 and 4 until all valves have been checked and adjusted.
6. Reassembly: Once all valves are correctly adjusted, clean the valve cover mating surfaces. Install a new valve cover gasket and carefully reattach the valve cover, tightening the bolts to the manufacturer's specified torque. Reconnect any removed components and the battery.
7. Test Run: Start the engine and listen for any unusual noises. A properly tuned valve train should operate smoothly and quietly, or with a minimal, consistent mechanical hum.

Understanding and Addressing a Broken Rocker Shaft

While tuning addresses valve clearance, sometimes the issue lies deeper within the valve train. The rocker shaft (sometimes referred to in specific vehicle contexts like 'Keinuvipuakseli') is a critical component that supports the rocker arms. It's typically attached to the cylinder head with bolts and houses the rocker arms themselves. A broken or worn rocker shaft can lead to severe engine problems.

Symptoms of a Damaged Rocker Shaft:

• Clicking Sound: Similar to an improperly tuned valve, a worn rocker shaft can produce a consistent clicking sound. This is often due to excessive play between the rocker arm and the shaft.
• Hammer-like Sounds: If the rocker shaft is severely damaged or broken, the clicking sound can escalate into a much louder, more alarming hammer-like noise. This indicates significant metal-on-metal contact due to failed components.
• Reduced Engine Performance: A damaged shaft can prevent valves from opening or closing correctly, leading to misfires, rough idling, and a noticeable drop in power.

Causes of Rocker Shaft Failure:

• Wear and Tear: Over time, friction and heat can cause the shaft and rocker arm bushings to wear down, leading to excessive play.
• Improper Engine Build/Tuning: Incorrect assembly, or persistently poor valve clearance adjustment, can put undue stress on the rocker shaft, accelerating wear or causing breakage.
• Oil Starvation: Lack of proper lubrication can quickly destroy a rocker shaft and its associated components.

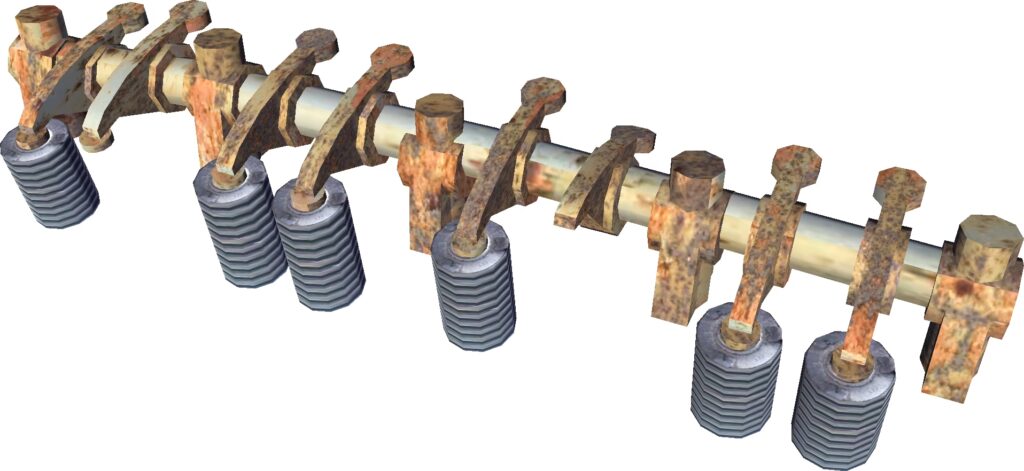

Visual Signs of a Broken Rocker Shaft:

Upon inspecting under the valve cover, a broken rocker shaft will be evident:

• The shaft itself may appear visibly bent or fractured.
• Some of the valve springs might be dislodged or appear out of place.
• All or some of the valve adjustment screws and their corresponding locking nuts might be missing, dislodged, or severely damaged.

If a rocker shaft is found to be damaged or broken, it must be replaced. This is often a job best left to a professional mechanic or a well-equipped repair shop, as it involves significant engine disassembly and precise reassembly.

Engine Valve Train Issues: Diagnosis Comparison

It can be challenging to differentiate between minor valve clearance issues and more severe rocker shaft damage based solely on sound. Here's a brief comparison:

Understanding and Removing Suspension Rockers/Components

It's important to clarify that while the term 'rocker' is commonly associated with engine valve train components, it can sometimes be used in a broader sense or colloquially to refer to various suspension components, particularly in certain vehicle designs or online communities. The process described for 'removing old suspension rockers' in your query actually details the general steps for removing wheels and disconnecting common suspension links like sway bars and ball joints, which are prerequisites for accessing or replacing many suspension parts, including control arms, struts, or indeed, specific suspension 'rockers' if your vehicle has them (e.g., in some pushrod or pull-rod suspension systems).

Steps for Removing Common Suspension Components:

Whether you're replacing a control arm, strut, or a specific suspension 'rocker' (if applicable to your vehicle), the initial steps are largely universal:

1. Loosen Lug Nuts: Begin by using a 19mm socket and a breaker bar or impact wrench to loosen the lug nuts on the wheel you intend to remove. Do not remove them completely yet. This is easier when the wheel is still on the ground, preventing it from spinning.
2. Jack Up the Vehicle: Safely jack the car up to a height that allows the wheel to clear the ground. Place robust jack stands underneath the vehicle's designated jacking points. Never work under a vehicle supported only by a jack.
3. Remove Wheels: Once the car is securely on jack stands, fully undo the lug nuts and carefully remove the wheel.
4. Disconnect Sway Bars: The sway bar (or anti-roll bar) connects the suspension components on one side of the vehicle to the other, reducing body roll during cornering. To disconnect them, you'll typically need 1/2 inch wrenches, sockets, and a ratchet. There will be end links connecting the sway bar to the control arm or strut.
5. Undo the Ball Joint: The ball joint is a crucial pivot point in your suspension, allowing for steering and suspension movement. To disconnect it from the steering knuckle or control arm:
• Locate the cotter pin (a small split pin) securing the castle nut on the ball joint stud. Remove this pin using needle-nose pliers.
• Use a 22mm or 7/8 inch socket with an impact wrench or breaker bar to loosen the castle nut.
• If the ball joint stud spins freely when trying to undo the nut, use a pry bar or large screwdriver to apply downward pressure (or upward, depending on design) between the ball joint housing and the rocker (control arm) to create friction and prevent spinning.
• Once the nut is loose, you may need a ball joint separator tool or a few firm hammer taps to the side of the knuckle (never directly on the stud or threads) to dislodge the tapered stud from its housing.

What Happens After Removal?

Once these initial components are removed, you gain access to the specific suspension parts you intend to replace, whether they are control arms, struts, shock absorbers, or actual suspension rockers if present. The next steps would involve unbolting and removing the old component, installing the new one, and then reversing the removal process, ensuring all fasteners are torqued to specification. It's often highly recommended to have a wheel alignment performed after significant suspension work to ensure proper handling and tire wear.

Frequently Asked Questions About Rocker Maintenance

How often should engine rocker arms be tuned?

The frequency depends heavily on the vehicle's make, model, and engine design. Some older engines with solid lifters require regular valve adjustments (e.g., every 30,000-60,000 miles). Many modern engines use hydraulic lifters, which are self-adjusting and typically do not require manual valve clearance tuning. Always consult your vehicle's service manual for specific recommendations.

Can I tune engine rockers myself, or should I take it to a mechanic?

Tuning rocker arms is a precise mechanical task that a competent DIY mechanic can perform. However, it requires specific tools (especially feeler gauges and a torque wrench) and a good understanding of engine mechanics and your vehicle's service manual. If you're unsure, or uncomfortable with engine disassembly, it's always best to leave it to a qualified mechanic to prevent potential damage.

What are the signs of poorly tuned engine rockers?

The most common sign is a distinct ticking or clicking noise coming from the engine, especially when cold. Other symptoms can include reduced engine power, rough idling, poor fuel economy, and in severe cases, misfires or engine backfiring.

What's the difference between valve lash and valve clearance?

These two terms are synonymous. Both refer to the small gap or space between the rocker arm (or cam lobe, in direct-acting systems) and the top of the valve stem when the valve is fully closed. This clearance is essential for proper valve operation as engine components expand and contract with temperature changes.

Is a broken rocker shaft repairable?

Generally, a broken rocker shaft itself is not repaired; it is replaced. The shaft is a precision-machined component, and damage usually compromises its structural integrity or alignment, making repair impractical or unsafe. The replacement process can be involved, often requiring removal of the cylinder head or significant engine disassembly, making it a job for experienced mechanics.

Whether you're fine-tuning your engine's internal workings or tackling a suspension overhaul, understanding the components and their proper maintenance is key to a healthy vehicle. Always prioritise safety, use the correct tools, and consult your vehicle's specific service manual for precise instructions and specifications.
