Restore Headlights: A DIY Guide

Reviving Dull Headlights: A Comprehensive Guide

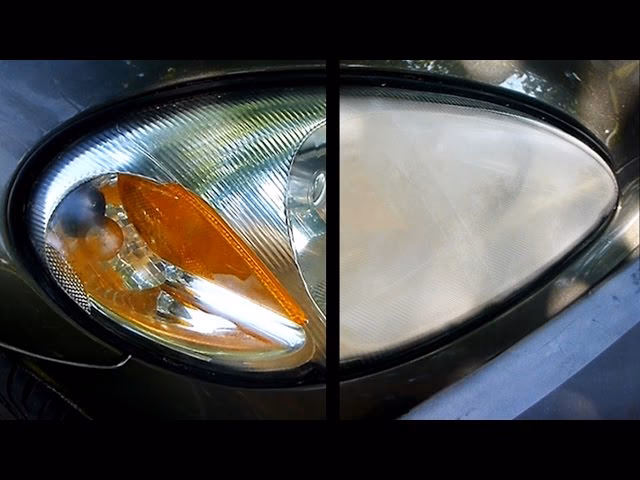

Over time, the plastic lenses of your car's headlights can become cloudy, yellowed, and generally faded. This not only affects the aesthetic appeal of your vehicle but, more importantly, can significantly reduce their light output, compromising visibility and road safety. Fortunately, restoring these tired lenses is often a task that can be tackled with a bit of elbow grease and the right materials, even for those with limited automotive experience. This guide will walk you through the process, from understanding the causes of fading to the step-by-step methods for achieving a like-new finish.

Why Do Headlights Fade?

The primary culprit behind faded headlights is ultraviolet (UV) radiation from the sun. Modern headlights are typically made from polycarbonate, a durable plastic. To protect this plastic and to provide clarity for the light beam, manufacturers apply a protective UV-resistant coating. However, this coating, like many things exposed to the elements, degrades over time. As the coating wears away, the underlying polycarbonate plastic begins to oxidise and yellow, leading to the common cloudy appearance.

Other contributing factors can include:

• Environmental Pollutants: Road grime, salt, and other airborne contaminants can accelerate the degradation of the protective coating.
• Chemical Exposure: Harsh cleaning chemicals or accidental contact with certain solvents can strip away the UV coating.
• Minor Abrasions: Small scratches from road debris can create entry points for moisture and contaminants, further damaging the plastic.

Assessing the Damage and Preparing for Restoration

Before you begin any restoration work, it's crucial to assess the severity of the headlight's condition. Light hazing might be resolved with a simple polish, while heavily oxidised and pitted lenses will require more intensive treatment, such as wet sanding.

Preparation is key to a successful restoration. You'll need to:

• Clean the Headlights Thoroughly: Wash the headlights with car shampoo and water to remove any surface dirt, dust, and grime. Dry them completely.
• Mask the Surrounding Areas: Use automotive masking tape (painter's tape) to protect the paintwork, trim, and any other surrounding components from the abrasive materials you'll be using. Ensure the tape is applied neatly and securely, creating a clean border around the headlight lens.

Restoration Methods: From Gentle Polish to Wet Sanding

There are several approaches to restoring faded headlights, ranging in intensity. It's often best to start with the least aggressive method and only escalate if necessary.

1. Polishing Compounds

For headlights with only light hazing or minor yellowing, a dedicated headlight polishing compound or a fine automotive polish might be sufficient. These products contain mild abrasives that can gently abrade the oxidised layer and restore clarity. Apply the polish to a clean microfibre cloth or applicator pad and rub it into the headlight lens using firm, circular motions. Continue polishing until the haziness begins to dissipate. Wipe off any residue with a clean microfibre cloth.

2. Wet Sanding: Tackling Deeper Oxidation

When polishing alone isn't enough, wet sanding becomes the next step. This process involves using progressively finer grades of wet and dry sandpaper to carefully remove the damaged outer layer of the plastic. It's essential to use the correct grit progression to avoid further damage.

What You'll Need for Wet Sanding:

• Assortment of Wet and Dry Sandpaper: Crucially, you'll need a range of fine grits. For soft plastic lenses like those found on most cars, grits starting from 1200, moving through 2000, and finishing with 3000-grit are ideal. Avoid coarser grits, as they can cause deep scratches that are difficult to remove.
• Spray Bottle with Soapy Water: A mixture of car shampoo and water in a spray bottle is essential. This acts as a lubricant, preventing the sandpaper from clogging and reducing the risk of overheating and damaging the plastic.
• Microfibre Cloths: For wiping away residue and drying.
• Gloves: To protect your hands.

The Wet Sanding Process:

1. Start with 1200-Grit Paper: Keep the headlight surface and the sandpaper wet with your soapy solution. Using light pressure, sand the entire surface of the headlight in a single, consistent direction. Let the sandpaper do the work; avoid pressing too hard, which can cause unnecessary damage.
2. Maintain Lubrication: Continuously spray the surface with the soapy water to keep it lubricated. When the sandpaper starts to glide with little resistance, it's a sign that it's working effectively and not clogging. Wipe off any residue with a microfibre cloth after each pass.
3. Switch to 2000-Grit Paper: Once you've completed the 1200-grit stage, move to the 2000-grit paper. This time, sand in the opposite direction to the previous step. This helps to remove the sanding marks left by the coarser grit. Continue to keep the surface wet and use light pressure.
4. Progress to 3000-Grit Paper: Repeat the process with the 3000-grit paper, again sanding in the opposite direction to the 2000-grit stage. This fine grit will further refine the surface, removing the finer scratches left by the 2000-grit paper.

After completing the wet sanding stages, the headlight lens will likely feel smooth to the touch but will appear very hazy or frosted. This is normal and indicates that the damaged layer has been removed, preparing the surface for the final polishing steps.

3. Compounding and Final Polishing

With the sanding complete, the headlight needs to be returned to a clear state. This is achieved through compounding and polishing.

Compound Application:

• Apply a generous amount of a heavy-cut automotive compound to an applicator pad or a clean microfibre cloth.
• Work the compound into the headlight lens using firm, circular motions. The compound's abrasives will further refine the surface, removing the fine scratches left by the 3000-grit sandpaper.
• Continue until the haziness significantly reduces. Wipe off the residue with a clean microfibre cloth.

Final Polish:

• To achieve a crystal-clear finish and add a layer of protection, apply a finer automotive polish or a dedicated headlight finishing polish.
• Use a clean applicator pad or microfibre cloth and work the polish into the lens with lighter pressure and smaller, overlapping circular motions.
• Buff the headlight until it shines. Remove any remaining residue with a clean microfibre cloth.

Protecting Your Restored Headlights

The hard work isn't quite done yet! The UV-resistant coating has been removed during the restoration process. Without it, your newly clear headlights will quickly begin to fade and oxidise again. Therefore, it's crucial to apply a protective layer.

Options for protection include:

• Headlight Sealants/Waxes: Many automotive detailing brands offer specific sealants or waxes designed for plastic headlights. These provide a short-to-medium term layer of protection.
• Clear Coat or UV Protectant Sprays: For a more durable and long-lasting solution, consider applying a clear coat specifically designed for plastics or a dedicated automotive UV protectant spray. Follow the product's instructions carefully, ensuring you apply it in a clean, dust-free environment. Multiple thin coats are usually recommended.
• Paint Protection Film (PPF): For the ultimate protection, consider having a clear paint protection film applied. This is a transparent urethane film that guards against chips, scratches, and UV damage.

Regularly cleaning your headlights with mild car shampoo and applying a fresh coat of sealant or wax every few months will help maintain their clarity for longer.

Common Mistakes to Avoid

While restoring headlights can be a rewarding DIY project, there are common pitfalls to be aware of:

• Using Coarse Sandpaper: Starting with sandpaper below 1000-grit on plastic lenses is a recipe for disaster, leading to deep scratches that are very difficult to remove.
• Dry Sanding: Sanding without lubrication generates heat, which can melt or damage the plastic. Always keep the surface and sandpaper wet.
• Using Power Sanders (Initially): While power sanders can speed up the process, for initial sanding on soft plastics, hand sanding offers better control and reduces the risk of burning through the lens. If you use a power sander, ensure it's on a low speed setting and use a foam backing pad.
• Skipping the Protection Step: Failing to apply a UV protectant after restoration will mean the headlights will quickly revert to their faded state.

Frequently Asked Questions (FAQs)

Q1: How long does it take to restore headlights?
A: The time can vary depending on the severity of the oxidation and your experience. Typically, it can take anywhere from 30 minutes to a couple of hours per pair of headlights.

Q2: Can I use household items like toothpaste to restore headlights?
A: Some people claim toothpaste can work for very light hazing due to its mild abrasives. However, it's generally not effective for significant oxidation and can sometimes leave a dull finish. Dedicated automotive compounds and polishes are far more effective and safer for your headlights.

Q3: Will restoring my headlights improve my car's MOT test result?
A: Yes, significantly. Faded or cloudy headlights can cause your car to fail its MOT test due to insufficient light output. Restoring them ensures proper illumination and compliance with safety regulations.

Q4: How often should I reapply a protective coating?
A: This depends on the product used. Sealants and waxes may need reapplying every 1-3 months, while a UV clear coat could last 1-2 years. Check the product manufacturer's recommendations.

Conclusion

Restoring faded plastic headlights is a highly achievable DIY task that can dramatically improve your car's appearance and, more importantly, its safety. By carefully following the steps of cleaning, masking, wet sanding with appropriate grits, compounding, polishing, and crucially, protecting the restored surface, you can bring your headlights back to their former glory. Don't let dull headlights compromise your driving experience; take on this project and enjoy clearer vision on the road.
