Cast Iron Cylinder Head Cracks: The Silent Killer

A cracked cast iron cylinder head is one of the most unwelcome discoveries a car owner or mechanic can make. Often subtle and insidious, these fissures can lead to a cascade of detrimental effects within an engine, ultimately culminating in significant repair bills or even a complete engine replacement. Understanding what happens when a cast iron cylinder head cracks is crucial for timely diagnosis and effective intervention, preventing a minor issue from escalating into a major catastrophe.

The Subtle Signs of a Serious Problem

The insidious nature of cast iron cylinder head cracks lies in their often-undetectable presence. Hairline fractures, especially in the intricate waterways or combustion chambers, can be incredibly difficult to spot with the naked eye. This is particularly true for cylinder heads, which are subjected to immense thermal and mechanical stress during operation. A failure to notice and subsequently repair these nascent cracks can have disastrous consequences, frequently resulting in total part malfunction and extensive collateral damage to other engine components.

What Happens When a Crack Forms?

When a crack develops in a cast iron cylinder head, it breaches the integrity of the component, creating pathways where there should be none. The primary functions of the cylinder head are to seal the combustion chambers, house the valves, and provide passages for coolant and oil. A crack compromises all of these functions in varying degrees.

Coolant Leaks and Overheating

One of the most common and immediate consequences of a cracked cylinder head is coolant leakage. The coolant passages within the head are under pressure, and a crack provides an escape route for this vital fluid. This can manifest in several ways:

• External Leaks: Coolant may be seen seeping from the exterior of the cylinder head, often forming puddles beneath the vehicle.
• Internal Leaks: More critically, coolant can leak into the combustion chambers or the oil passages.

When coolant escapes, the engine's cooling system is compromised. The engine is no longer able to efficiently dissipate heat, leading to overheating. Persistent overheating can cause severe damage to other engine components, including the pistons, rings, valves, and even the engine block itself. The warping and expansion caused by excessive heat can exacerbate existing cracks and create new ones.

Mixing of Fluids: Coolant and Oil

A particularly damaging scenario occurs when a crack bridges both the coolant passages and the oil galleries. This allows coolant to enter the oil system and, conversely, oil to enter the coolant system. The consequences are severe:

• Coolant in Oil: When coolant mixes with engine oil, it forms a milky, sludge-like substance. This emulsion drastically reduces the lubricating properties of the oil. Without proper lubrication, engine components experience increased friction and wear, leading to premature failure of bearings, camshafts, and other critical parts. The oil filter can also become quickly clogged.
• Oil in Coolant: If oil enters the coolant system, it can coat the internal surfaces of the radiator, hoses, and water pump. This coating acts as an insulator, hindering the coolant's ability to absorb and dissipate heat, further contributing to overheating. It can also clog the radiator fins, reducing its efficiency.

The presence of either of these conditions is a strong indicator of a cracked cylinder head and requires immediate attention.

Combustion Gases Entering Coolant

Another significant impact of a cracked cylinder head is the potential for combustion gases to be forced into the cooling system. During the compression and power strokes, the pressure within the combustion chamber is immense. If a crack allows these gases to escape into a coolant passage, several problems arise:

• Pressurisation of the Cooling System: Hot combustion gases entering the coolant can rapidly increase the pressure within the cooling system, potentially exceeding the limits of hoses, clamps, and even the radiator cap, leading to bursts or leaks.
• Air Bubbles in Coolant: The presence of air bubbles disrupts the flow of coolant, creating hot spots within the engine and leading to localised overheating. These bubbles can also lead to cavitation, a process where the collapsing bubbles can erode metal surfaces.
• Loss of Coolant: The increased pressure can force coolant out of the system through the expansion tank or even the radiator cap, leading to a gradual or rapid loss of coolant.

Mechanics often diagnose this by observing excessive pressure build-up in the cooling system or by detecting exhaust gases in the coolant using a specialised testing kit.

Compromised Engine Performance

Beyond fluid contamination and overheating, a cracked cylinder head can directly impact engine performance:

• Loss of Compression: A crack that extends into the combustion chamber itself can allow the compressed air-fuel mixture to leak out, leading to a significant loss of compression. This results in rough idling, misfires, reduced power, and poor fuel economy. The engine may feel sluggish and lack its usual responsiveness.
• Misfires: If the crack allows coolant to enter the combustion chamber, it can foul the spark plug, leading to misfires. Similarly, if combustion gases leak out, the cylinder may not contribute effectively to the engine's power output.

Identifying a Cracked Cylinder Head

Diagnosing a cracked cylinder head can be challenging due to the subtle nature of the cracks. However, several symptoms and diagnostic tests can help pinpoint the issue:

Common Symptoms to Watch For:

• Persistent overheating, even with a functioning cooling system.
• A milky or frothy appearance of the engine oil.
• Oil present in the coolant reservoir.
• White smoke or steam from the exhaust, particularly on startup, which may smell sweet (due to burning coolant).
• Bubbling in the coolant reservoir while the engine is running.
• Unexplained loss of coolant.
• Rough idling, misfires, or a noticeable loss of engine power.
• External coolant or oil leaks from the cylinder head gasket area.

Diagnostic Tests:

Professional mechanics employ several methods to confirm a cracked cylinder head:

• Cooling System Pressure Test: This involves pressurising the cooling system with air to check for leaks. If the pressure drops significantly without any obvious external leaks, it can indicate an internal leak, such as through a cylinder head crack.
• Exhaust Gas Test (Block Test): This test uses a chemical solution that changes colour in the presence of combustion gases in the coolant. If the solution changes colour, it strongly suggests that combustion gases are entering the cooling system via a crack.
• Dye Penetrant Testing: For suspected external cracks, a special dye is applied to the cylinder head. The dye penetrates any cracks, and a developer is then applied, making the cracks visible as bright lines.
• Magnetic Particle Inspection (MPI): This method is used for ferrous materials like cast iron. A magnetic field is applied to the cylinder head, and then fine iron particles are introduced. These particles cluster around any cracks, making them visible.
• Visual Inspection: While difficult, a thorough visual inspection, sometimes with the aid of a borescope, can reveal obvious cracks, especially after cleaning.

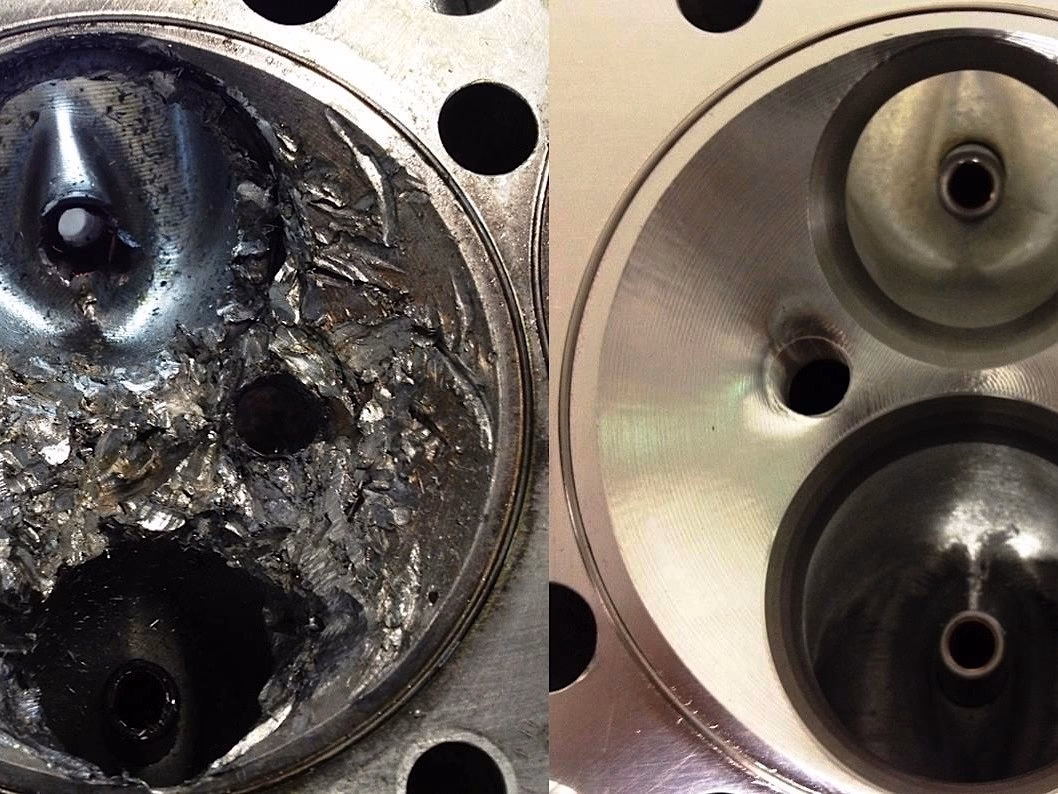

Repairing or Replacing a Cracked Cylinder Head

The decision of whether to repair or replace a cracked cylinder head depends on several factors, including the severity and location of the crack, the cost of repair versus replacement, and the overall condition of the engine.

Repair Options:

For minor cracks, particularly in less critical areas, repair might be an option. This can involve:

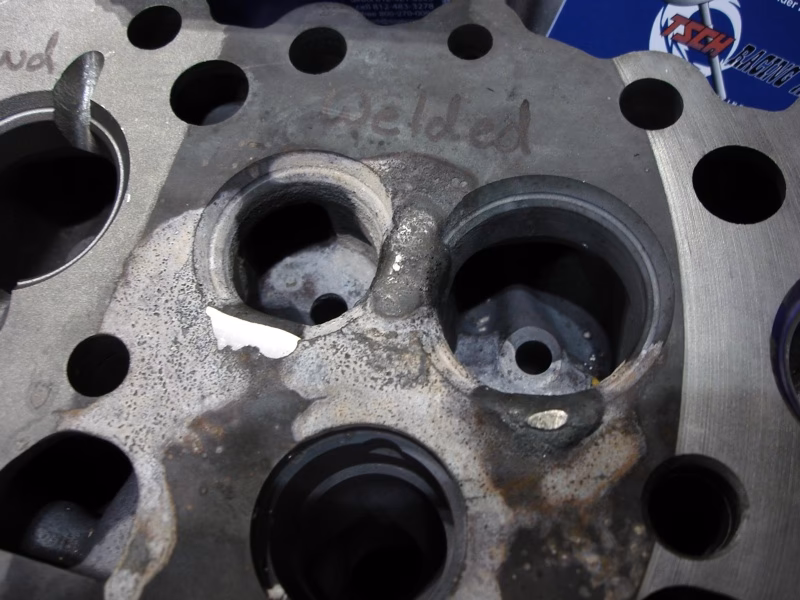

• Welding: In some cases, cracks can be repaired by welding. This requires specialised techniques and expertise, especially with cast iron, to prevent further cracking due to thermal stress. The area must be meticulously cleaned and prepared, and often requires preheating and post-heating of the casting.
• Epoxy/Sealants: For very small, non-critical cracks, specialised high-temperature epoxy sealants might be used. However, this is generally considered a temporary fix and is not recommended for cracks affecting the combustion chamber or coolant passages.

It's important to note that repair options for cylinder head cracks are often limited and may not provide a long-term solution, especially for cracks exposed to high temperatures and pressures.

Replacement:

In most cases, especially for significant cracks or those impacting critical sealing surfaces, replacing the cylinder head is the most reliable and recommended solution. This involves:

• Removing the old cylinder head.
• Thoroughly cleaning the engine block surface.
• Installing a new or reconditioned cylinder head.
• Replacing the cylinder head gasket, bolts, and often other associated components like the water pump and thermostat.
• Properly torquing the cylinder head bolts in the correct sequence to ensure a good seal.

The cost of a new cylinder head can be substantial, but it often provides a more durable and reliable solution than attempting a repair.

Preventing Cylinder Head Cracks

While not all cracks can be prevented, certain practices can minimise the risk:

• Maintain the Cooling System: Regularly check and maintain the coolant level and condition. Use the correct type of coolant for your vehicle and ensure the system is free of blockages.
• Avoid Overheating: Address any signs of overheating immediately. Do not continue to drive an engine that is overheating, as this significantly increases the risk of cylinder head damage.
• Proper Coolant Mixture: Ensure the correct ratio of antifreeze to water is used. A pure water system is more prone to freezing and boiling, while an overly concentrated antifreeze mix can reduce cooling efficiency.
• Gradual Cool-Down: After prolonged periods of hard driving, allowing the engine to cool down gradually rather than shutting it off immediately can help reduce thermal shock.

Conclusion

A cracked cast iron cylinder head is a serious automotive ailment that can lead to a multitude of problems, from fluid leaks and overheating to compromised engine performance and internal component damage. Early detection and appropriate action are paramount. While repairs are sometimes possible for minor issues, replacement is often the most prudent course of action to ensure the long-term health and reliability of your engine. By understanding the symptoms and adhering to good maintenance practices, you can mitigate the risk of this costly and damaging problem.

Frequently Asked Questions:

Can a cracked cylinder head be repaired?

Minor cracks in non-critical areas can sometimes be repaired by welding or using specialised sealants, but this is often a temporary solution. For most significant cracks, replacement is the recommended course of action.

How much does it cost to fix a cracked cylinder head?

The cost can vary significantly depending on whether the head is repaired or replaced, the make and model of the vehicle, and labour rates. Replacement typically involves the cost of a new or reconditioned cylinder head, a new head gasket set, and labour for removal and installation, which can range from several hundred to over a thousand pounds.

Will my car overheat with a cracked cylinder head?

Yes, a cracked cylinder head often leads to overheating because coolant leaks out of the system or combustion gases enter it, disrupting the cooling process.

Is it safe to drive with a cracked cylinder head?

It is generally not advisable to drive with a cracked cylinder head, as it can lead to further damage to the engine, potentially turning a repairable issue into a complete engine failure.

How do I know if my cylinder head is cracked?

Symptoms include persistent overheating, milky oil, oil in the coolant, white smoke from the exhaust, bubbling in the coolant reservoir, and a loss of engine power or rough running.
