Clutch Plate Replacements: Smooth Gear Changes

Few things are as frustrating for a driver as a clutch that isn't performing as it should. Whether it's a grinding noise, a slipping feeling, or that unsettling vibration known as 'judder', a faulty clutch can turn every journey into a chore. At the heart of your vehicle's manual transmission system lies the clutch plate, a vital component responsible for transferring power from the engine to the gearbox. When this plate wears out, it can lead to a host of driving woes, making understanding and replacing it a crucial aspect of vehicle maintenance.

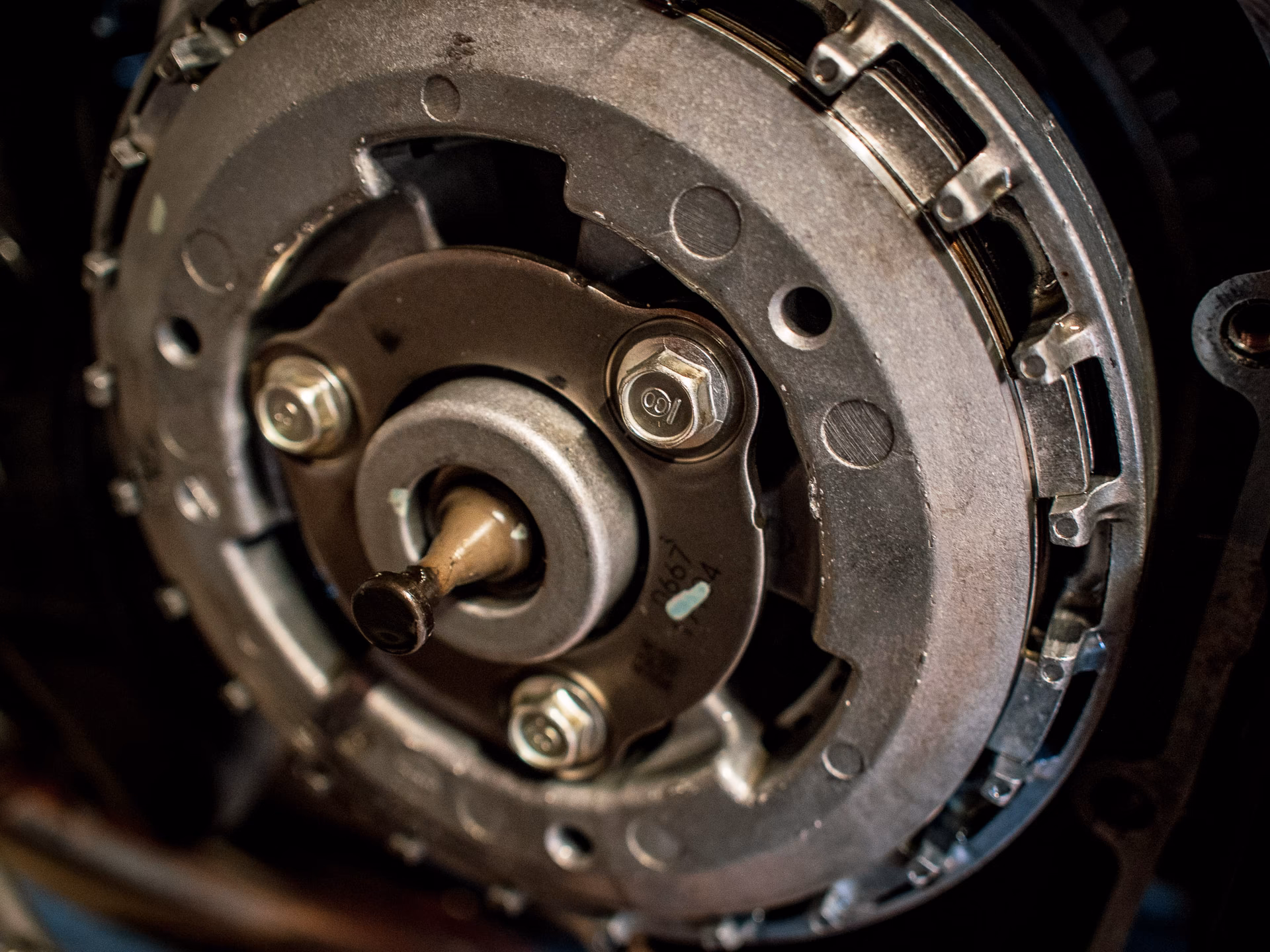

The Heart of the Transmission: What is a Clutch Plate?

The clutch system in your car is designed to engage and disengage the engine from the transmission. This allows you to change gears smoothly or stop the car without stalling the engine. The clutch plate itself is a disc, typically made from a friction material, sandwiched between the engine's flywheel and the pressure plate. When you press the clutch pedal, the pressure plate releases its grip on the clutch plate, effectively disconnecting the engine from the gearbox. When you release the pedal, the pressure plate clamps the clutch plate against the flywheel, allowing power to be transmitted to the wheels.

Over time, the friction material on the clutch plate wears down, much like brake pads. This wear is a natural consequence of its operation, as it endures immense heat and friction during every gear change. Once the friction material becomes too thin, or if it becomes contaminated with oil or grease, its ability to grip diminishes, leading to performance issues.

Understanding Clutch Judder and Chatter

Two of the most common and irritating symptoms of a failing clutch plate are judder and chatter. But what exactly are they?

• Clutch Judder: This manifests as a shuddery, vibrating sensation felt through the clutch pedal and the vehicle itself when you're trying to engage a gear from a standstill or at low speeds. It's often described as the car 'hopping' or 'stuttering' as you pull away. Judder indicates an uneven engagement of the clutch.
• Clutch Chatter: Similar to judder but often characterised by a rattling or vibrating noise, particularly noticeable when the clutch is just starting to engage. It's often a symptom of similar underlying issues to judder.

These issues aren't just annoying; they can be indicators of more significant problems within the clutch assembly, including worn friction material, a warped flywheel, a faulty pressure plate, or issues with the release bearing. Addressing them promptly is key to preventing further damage and ensuring a safer, more comfortable driving experience.

The Role of Replacement Clutch Plates and Judder Springs

When your clutch plate wears out or develops issues causing judder and chatter, a replacement is often the most effective solution. Replacement clutch plates are aptly named because they are specifically designed to restore the smooth, efficient operation of your clutch. Many modern replacement clutch kits come with features aimed at preventing judder and chatter, often incorporating specific design elements to absorb vibrations during engagement.

One such element is the judder spring. These small but crucial springs are integrated into some clutch plates to provide a slight cushion or dampening effect during engagement. They help to smooth out the initial contact between the clutch plate and the flywheel, thereby preventing the harsh, uneven engagement that leads to judder. However, the presence and requirement of a judder spring can vary significantly between different clutch designs and manufacturers.

To Remove or Not to Remove? The Judder Spring Dilemma

This is a critical point when installing replacement clutch plates: some replacement plate kits require you to remove the spring, while others are designed for it to remain in place. It is absolutely essential to consult the manufacturer's instructions for the specific replacement clutch plates you are installing. Ignoring this guidance can lead to:

• Continued Judder: If the new plate is designed to work without the existing judder spring, but it's left in, it could interfere with the new plate's dampening mechanism.
• Premature Wear: Incorrect installation can put undue stress on the clutch components, leading to early failure.
• Poor Performance: The clutch may not engage or disengage as smoothly or effectively as intended.

Always double-check with the manufacturer of the replacement clutch plates to see if your judder spring remains in place or gets removed. This information is typically found in the installation manual or on the product packaging. When in doubt, a qualified mechanic will always follow these specific guidelines.

When to Consider a Clutch Plate Replacement

Recognising the signs of a failing clutch can save you from being stranded and prevent more costly repairs down the line. Here are common indicators that your clutch plate might need replacing:

• Clutch Slipping: This is perhaps the most common symptom. You'll notice that when you accelerate, the engine revs increase, but the car doesn't speed up proportionally. It feels like the power isn't fully reaching the wheels.
• Difficulty Changing Gears: Gears become hard to engage, or you might hear grinding noises when shifting. This can indicate that the clutch isn't fully disengaging.
• Burning Smell: A distinct burning smell, often likened to burnt toast or rubber, especially during heavy use (e.g., driving uphill or in traffic), indicates that the clutch is overheating due to excessive slipping.
• Spongy or Sticky Pedal: The clutch pedal might feel unusually soft, or it might stick to the floor after being pressed. This usually points to hydraulic system issues, but can also be related to clutch wear.
• Unusual Noises: Beyond grinding during gear changes, you might hear squealing or chirping noises when the clutch pedal is pressed or released, which could indicate a worn release bearing or pilot bearing.
• Clutch Judder or Chatter: As discussed, these vibrations during engagement are strong indicators of an unevenly worn or contaminated clutch plate.

The Replacement Process: What's Involved?

Replacing a clutch plate is a significant mechanical undertaking, often requiring the removal of the gearbox from the vehicle. Due to the complexity and the need for specialised tools, it's typically a job best left to experienced mechanics. The process generally involves:

1. Disconnecting the battery and supporting the engine.
2. Draining transmission fluid (if applicable).
3. Removing various components, such as drive shafts, exhaust sections, and electrical connectors.
4. Unbolting and carefully removing the gearbox.
5. Accessing the clutch assembly, which includes the pressure plate, clutch plate, and release bearing.
6. Inspecting the flywheel for wear or heat spots and potentially resurfacing or replacing it.
7. Installing the new clutch plate, pressure plate, and release bearing, ensuring correct alignment.
8. Reinstalling all components in reverse order.
9. Refilling transmission fluid and testing the new clutch.

Given the labour-intensive nature, it's common practice to replace the entire clutch kit (clutch plate, pressure plate, and release bearing) at once, even if only one component shows significant wear. This ensures optimal performance and avoids having to repeat the extensive labour in the near future for another failing component.

Choosing the Right Replacement Clutch Kit

When it comes to selecting a replacement clutch, you'll encounter various options. The choice often depends on your vehicle type, driving style, and budget.

Table: Common Clutch Plate Types

For most standard road vehicles, an OEM (Original Equipment Manufacturer) equivalent organic clutch kit is usually the best choice, offering a good balance of durability, smooth operation, and cost-effectiveness. For performance enthusiasts or those who frequently tow heavy loads, an upgrade to a Kevlar or ceramic compound might be considered, though these can sometimes lead to a firmer pedal feel and a more aggressive engagement.

Maintaining Your Clutch for Longevity

While clutch plates are wear-and-tear items, their lifespan can be significantly extended with good driving habits:

• Avoid Riding the Clutch: Don't keep your foot resting on the clutch pedal while driving, as even slight pressure can cause premature wear.
• Smooth Engagement: Engage the clutch smoothly and progressively; avoid dropping the clutch or engaging it too quickly, especially under heavy acceleration.
• Use the Handbrake on Hills: When starting on an incline, use the handbrake to hold the car rather than slipping the clutch for extended periods.
• Shift Efficiently: Don't hold the clutch down longer than necessary when changing gears.
• Don't Lug the Engine: Avoid driving in too high a gear for the speed, which puts excessive strain on the clutch.

Frequently Asked Questions About Clutch Plate Replacements

Q: How long does a clutch plate typically last?
A: The lifespan varies greatly depending on driving style, vehicle type, and conditions. It can range from as little as 30,000 miles for aggressive drivers in heavy city traffic to over 100,000 miles for smooth drivers mostly on motorways.

Q: Can I replace just the clutch plate, or do I need a full kit?
A: While technically possible to replace just the plate, it's highly recommended to replace the entire clutch kit (clutch plate, pressure plate, and release bearing) simultaneously. The labour involved is the most significant cost, and replacing all components ensures optimal performance and prevents needing to repeat the job soon after for another worn part.

Q: What causes clutch judder?
A: Clutch judder can be caused by various factors, including a warped flywheel, worn or contaminated clutch plate friction material, a faulty pressure plate, oil or grease on the clutch components, or issues with the clutch's hydraulic system.

Q: Is it safe to drive with a juddering clutch?
A: While a slight judder might not immediately strand you, it's a sign of a problem that will likely worsen. Driving with a severely juddering or slipping clutch can lead to further damage to the transmission, flywheel, and other components, and could eventually cause the clutch to fail completely, leaving you unable to drive.

Q: Why is the judder spring sometimes removed during replacement?
A: Some replacement clutch plates are designed with their own integrated dampening mechanisms or have a different friction material composition that negates the need for an external judder spring. In such cases, leaving the old spring in place could interfere with the new plate's intended operation, potentially causing new issues or preventing the plate from seating correctly. Always follow the specific instructions from the replacement kit's manufacturer.

Conclusion

A healthy clutch is fundamental to the smooth and safe operation of any manual transmission vehicle. Understanding the role of the clutch plate, recognising the symptoms of wear, and appreciating the nuances of replacement – particularly regarding components like the judder spring – empowers you as a vehicle owner. While replacing a clutch is a complex job, investing in a quality replacement and following manufacturer guidelines will ensure your vehicle delivers seamless gear changes and a reliable driving experience for many miles to come. Don't let clutch judder spoil your journey; address it promptly for a smoother ride.
