DIY Power Window Regulator Replacement Guide

A malfunctioning power window can be more than just an inconvenience; it can compromise your vehicle's security, comfort, and weather sealing. If one of your car's power windows refuses to move, makes grinding noises, or simply drops into the door, the culprit is often a faulty power window regulator and motor assembly. While it might sound like a daunting task, replacing this component is a common repair that many car owners can tackle themselves with the right guidance and a bit of patience. This guide will provide you with a detailed, step-by-step walkthrough, helping you restore your window's operation and save a significant amount on professional labour costs.

Understanding how your power window system works is the first step towards a successful repair. Inside your car's door, the window regulator and motor form the essential mechanism that precisely controls the window's upward and downward movement when you operate the window switch. It's a crucial component that holds the glass securely in place throughout its travel.

Understanding Your Power Window System

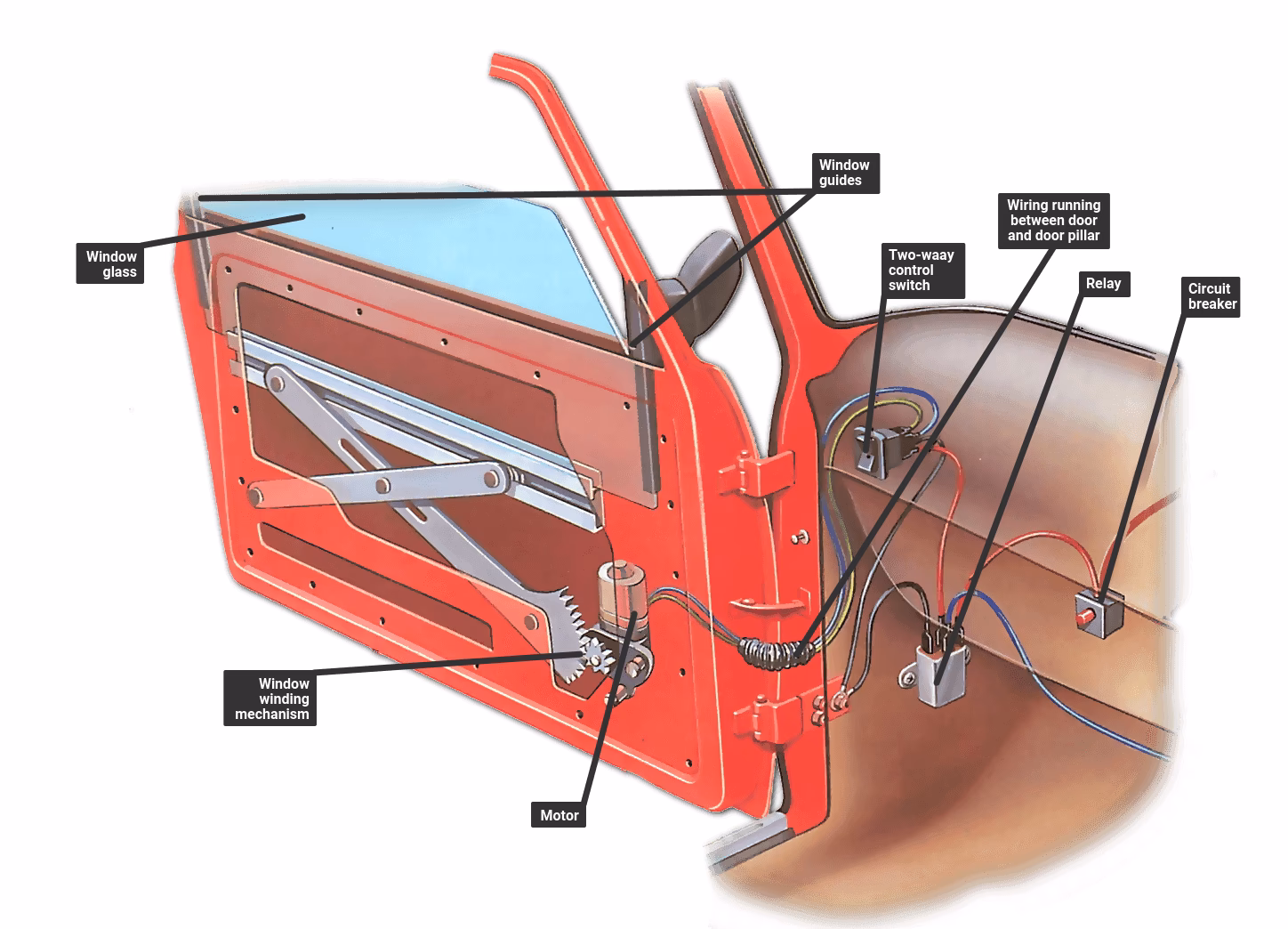

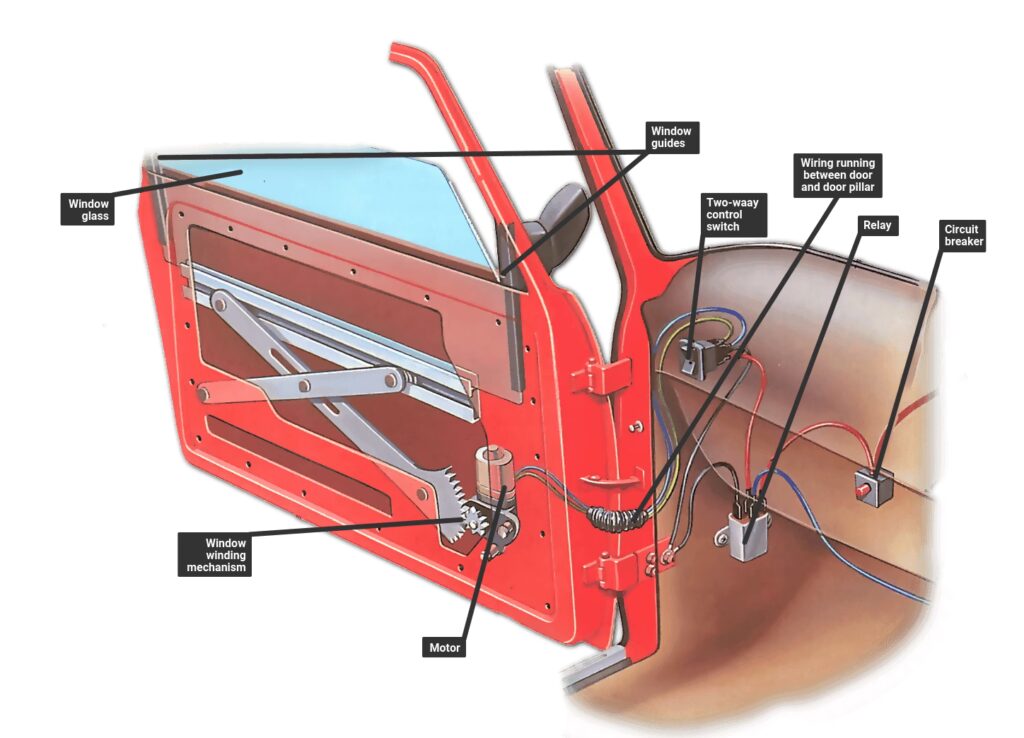

Modern vehicles typically employ one of two main types of window regulator mechanisms. The first, more traditional type, uses a scissor-like arrangement of arms. These arms are driven by a ring gear, which in turn is powered by an electric motor with a pinion gear. As the motor rotates, it opens or closes the scissor mechanism, raising or lowering the window. The second, more contemporary design, utilises a cable-drive system. This system consists of a series of pulleys supported on a framework or a single main support rail. The motor is fitted with a clutched wheel that precisely drives the cable in both directions, guiding the window along its track.

Both types of systems are robust, but over time, they are susceptible to wear and tear. Common issues include the electric motor burning out, which often manifests as a complete lack of response from the window switch or a faint clicking sound. In cable-driven systems, the cables can fray, snap, or become dislodged from their pulleys, leading to jerky operation, grinding noises, or the window dropping unexpectedly. Often, the root cause of these failures is excessive resistance within the window track itself. Dirt, grime, old lubricants, or even debris can build up in these tracks, making the motor work harder than intended, leading to premature failure of either the motor or the cable system.

Signs of a Failing Window Regulator

Identifying the symptoms of a failing window regulator or motor can help you diagnose the problem accurately before you begin the repair. Look out for any of the following:

• Window won't move: The most obvious sign. You press the switch, and nothing happens.
• Slow or sluggish operation: The window struggles to move up or down, often requiring multiple presses of the switch.
• Grinding, clicking, or whirring noises: These sounds often indicate worn gears, a failing motor, or damaged cables within the regulator assembly.
• Window drops unexpectedly: If the window suddenly falls into the door cavity, it's a clear sign of a broken cable or a detached mechanism.
• Window is crooked or lopsided: This can occur if one side of the regulator mechanism breaks or jams.
• Window only moves a few inches: Often a sign of a partially failed motor or a snagged cable.

What You'll Need: Tools & Parts

Before you begin, gather the necessary tools and the correct replacement part. Having everything to hand will make the process much smoother.

Essential Tools:

• Screwdriver set (Phillips and flathead)
• Socket wrench set (with a 10mm socket, as this is a common size for window bolts)
• Small spanner/wrench (for tight spots)
• Trim removal tools (plastic pry tools are ideal to prevent damage to the door panel)
• Masking tape (strong, painter's tape works well)
• Clean cloths and mild soap/water for cleaning tracks
• Gloves (optional, but recommended for protection)

Replacement Part:

You will need a new power window regulator and motor assembly. It's crucial to purchase the correct part for your specific vehicle make, model, and year. Ensure the replacement matches the old unit in terms of design and electrical connectors. You can typically find these parts online from various retailers. While specific UK pricing varies, typical indicative costs for replacement parts in the US market range between $50.00 and $80.00. Labour time at a professional garage can be between 1.5 and 2.5 hours, making DIY a significant saving.

Step-by-Step Guide: Replacing Your Power Window Regulator

This detailed guide will walk you through the process. Remember to work carefully and methodically to avoid damaging delicate components.

Preparation is Key: Accessing the Door Interior

The first and often most time-consuming step is gaining access to the window regulator and motor assembly, which resides behind the door panel. Begin by opening the door wide. Ideally, the window should be in the fully up position. If your window is stuck down, don't worry; you'll be able to manually lift it once the door panel is off. Carefully inspect your door panel for any visible screws, often hidden behind trim pieces, door handles, or armrests. Use your trim removal tools to gently pry off plastic covers or bezels that conceal fasteners. Once all screws are removed, carefully use your trim removal tools to pry the door panel away from the door frame, starting from the bottom edge. There will be clips holding it in place; work your way around, gently releasing each clip. Once loose, lift the door panel upwards to clear the window frame and disconnect any electrical connectors for switches, speakers, or courtesy lights attached to the panel. Set the door panel safely aside.

Behind the door panel, you'll find a plastic door liner, often referred to as a weather shield or vapour barrier. This liner is designed to keep water and moisture out of the car's interior and away from the door panel itself. It's usually held in place with a sticky butyl tape or clips. Gently peel this plastic cover away from the door frame, being careful not to tear it. Try to keep the sticky sealant intact so you can re-use it. Once sufficiently detached to access the door's interior, carefully set the plastic liner aside.

Securing the Window Glass

With the door interior exposed, you'll see large access holes that allow you to reach the internal components. Look through these holes to locate the window mounting bolts. These bolts attach the window glass directly to the regulator framework. In many vehicles, these are 10mm bolts, but always verify the size for your specific car. If your regulator is completely burned out and the window is stuck down inside the door, you may need to reach inside the door cavity with a small spanner or socket wrench to locate and remove these bolts. In some cases, you might be able to manually lift the window up into position to access these bolts more easily.

Once the window mounting bolts have been removed, the window glass will become loose within its tracks. Exercise extreme caution at this stage; the glass is heavy and fragile. Gently grasp the window and pull it upward. It should slide with only minor resistance until it contacts the upper portion of the door frame. Do not allow the glass to fall back down inside the door. While firmly holding the window in place, use masking tape to secure the window at the very top of the door frame. Apply multiple strips of tape across the top edge of the glass and onto the door frame to ensure it is held securely and out of the way. This crucial step keeps the glass safe and allows you to work freely on the regulator assembly without obstruction.

Removing the Old Regulator and Motor Assembly

Now that the window glass is secured, focus on removing the faulty regulator and motor assembly. Locate the window regulator mounting bolts. These bolts secure the entire regulator framework to the door structure. Remove all of these bolts. Once they are out, gently allow the regulator assembly to sit loosely inside the door. In some vehicle designs, the motor might be attached separately to the regulator, while in others, it's an integrated unit.

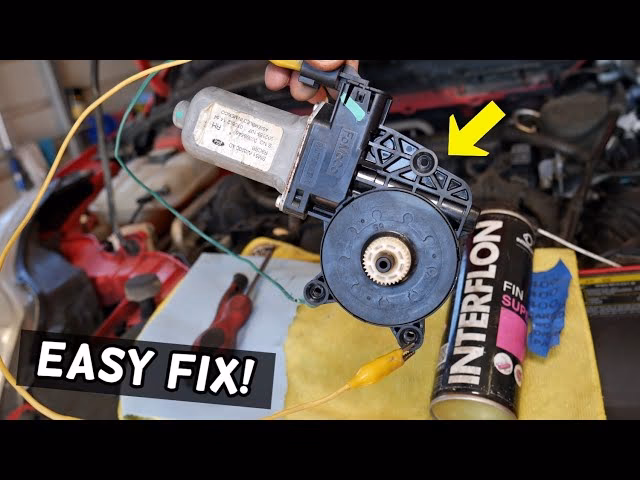

If the motor is attached separately, locate and remove the window motor mounting bolts. In some applications, these bolts may only need to be loosened, allowing the motor to be removed by sliding it upward. Before fully removing the motor or assembly, you'll need to disconnect the electrical connector. This connector supplies power to the motor. It can usually be accessed either before or after the motor has been unbolted, depending on what's easier for your specific vehicle. Carefully press the release tab on the connector and gently pull it apart to disconnect the electrical supply.

With all mounting bolts removed and the electrical connector disconnected, carefully manoeuvre and remove the regulator and motor assembly through the large door access port. Take extreme care when working inside the door cavity. The 'door skin' is the outer panel of the door, and it's quite thin. Any accidental damage, such as a dent from a dropped tool or a forceful push, will show up on the outside of your car door, requiring potentially costly bodywork.

Installing Your New Regulator and Motor

Before installing the new unit, take a moment to compare it to the old one. Ensure they are identical in shape, mounting points, and, most importantly, the electrical connector. A proper match ensures a seamless installation and correct functionality.

Gently feed the new motor and regulator assembly back into position through the door access port. This can sometimes be a bit tricky, requiring some angling and patience, so take your time. Once the motor and regulator are roughly in their correct position, re-install all the mounting bolts. However, initially, only thread them in a few turns, leaving them loose. This allows for slight adjustments and ensures all bolts can be aligned and threaded correctly before tightening.

Once all mounting bolts have been threaded, use your ratchet or spanner to tighten them. Remember, these are typically small bolts and do not require excessive force. Over-tightening can strip the threads or damage the components. While there isn't a universal torque specification for these specific bolts, a general guide would be between 3 and 5 pound-feet. They should be snug, but not excessively tight.

Next, feed the electrical connector from the new window motor through the access hole and reconnect it to the door wiring harness. You should hear a distinct 'click' when it is fully seated, indicating a secure connection.

Re-attaching the Window Glass

The window is now ready to be lowered back into place. While holding the window firmly with one hand, carefully remove the masking tape that was securing it at the top of the frame. Gently lower the window glass onto the new regulator cradle. The window mounting points on the glass should align with the mounting points on the regulator.

At this point, it's an excellent opportunity to perform some preventative maintenance. Clean the side window tracks thoroughly with mild soap and water. Remove any old grease, dirt, or debris that may have accumulated. This simple step can significantly help the window's operation, reducing resistance and prolonging the life of your new regulator.

You may need to turn the ignition switch on (do not start the engine) and briefly operate the window switch to move the new regulator cradle into the perfect position so that the window mounting bolts can be re-installed. Be extremely careful to keep your fingers and hands well clear of any moving parts during this step. Once aligned, thread in and tighten the window mounting bolts. Again, these do not need to be super tight; just snug them down securely.

Final Assembly and Testing

Before re-installing the door panel, double-check all mounting bolts – for both the regulator and the window glass – to ensure none have been forgotten and all are tightened appropriately. Carefully re-install the plastic weather liner, ensuring it's sealed as much as possible around the edges to prevent moisture ingress. Finally, re-connect any electrical connectors for the door panel components (switches, speakers, etc.) and carefully re-install the door panel assembly, aligning the clips and re-installing any screws you removed earlier.

Now that the job is complete, it's time to test your work. Turn the ignition on and operate the window switch in both directions. The window should now work smoothly, without any struggling or unusual noises from the motor. Pay attention to the vertical operation; if you notice any hard spots, binding, or clicking noises, there might be minor adjustments needed for the window rails. Some vehicles allow for slight adjustments to the rail positions to ensure perfectly smooth travel. If the window remains non-operational after installation, start by checking the relevant fuse in your vehicle's fuse box, as a blown fuse is a common culprit for a lack of power.

Troubleshooting Common Issues

• Window doesn't move after replacement: First, check the fuse for the power window system. Then, ensure the electrical connector to the motor is fully seated and secure.
• Window makes noise or binds: This could indicate the window tracks need further cleaning and lubrication, or the regulator itself might be slightly misaligned. Re-check the window mounting bolts and ensure the glass isn't binding in its channels.
• Window drops again: This is highly unlikely with a new assembly but could suggest an incorrectly installed component or, rarely, a faulty new part. Re-verify all mounting points.

Frequently Asked Questions (FAQs)

Can I replace just the motor instead of the whole assembly?

In some older vehicle models, the window motor is a separate component that can be unbolted and replaced independently from the regulator mechanism. However, in many modern vehicles, especially those with cable-driven systems, the motor is integrated directly into the regulator assembly, making it necessary to replace the entire unit. Always check your specific vehicle's service manual or examine the part to determine if the motor is separable.

How long does this repair typically take?

For an experienced DIY mechanic, replacing a power window regulator can take anywhere from 1.5 to 3 hours, depending on the vehicle's design and how easily the door panel comes off. For a first-timer, it might take longer, perhaps 3 to 5 hours, as you'll be learning the process as you go.

Is this a difficult DIY job?

While it requires patience and attention to detail, replacing a window regulator is generally considered a moderately difficult DIY repair. It doesn't typically require highly specialised tools, but understanding how to safely remove door panels and handle glass is crucial. If you're comfortable with basic hand tools and following instructions, it's a manageable task.

What if my window is stuck down inside the door?

If your window is stuck in the down position, you will still be able to remove the door panel. Once the panel is off, you should be able to reach into the door cavity, grasp the window glass, and manually lift it into the up position. Once up, use strong masking tape to secure it to the top of the door frame, just as you would if it were already up. This allows you to work safely on the regulator below.

We hope this comprehensive guide has provided you with the confidence and knowledge needed to tackle the replacement of your power window regulator and motor assembly. By following these steps carefully, you can successfully restore your window's functionality, ensuring your vehicle remains secure and comfortable. Happy motoring!
