Rebuilding Your Car's Water Pump

Understanding Your Car's Water Pump and When to Rebuild

The water pump is a vital component of your vehicle's cooling system, acting as the heart that circulates coolant throughout the engine. Its primary function is to draw heat away from the engine block and dissipate it through the radiator, thus preventing overheating. A malfunctioning water pump can lead to severe engine damage, making its proper upkeep essential. While often replaced entirely, in many cases, a water pump can be repaired or, more accurately, rebuilt. This guide will walk you through the process of rebuilding a car water pump, a rewarding DIY project that can save you money and restore your engine's cooling efficiency.

Why Rebuild a Water Pump?

Replacing a water pump can be a significant expense, especially if it's a complex job on your particular vehicle. Rebuilding an existing water pump, when feasible, presents a more cost-effective alternative. It allows you to replace worn-out internal components, such as seals and impellers, with new ones, effectively extending the life of the pump. This is particularly beneficial if the pump housing itself is still in good condition.

Signs of a Failing Water Pump

Before diving into a rebuild, it's crucial to identify the symptoms of a failing water pump. Common indicators include:

• Coolant Leaks: Dripping coolant from under the vehicle, often with a distinctive sweet smell, is a strong indicator of a leak in the water pump seal or gasket.
• Overheating Engine: If your temperature gauge consistently reads higher than normal, or if the engine overheats, the water pump may not be circulating coolant effectively.
• Whining or Grinding Noises: A worn bearing within the water pump can produce a whining or grinding sound, especially when the engine is running.
• Corroded Pump Pulley: Visible corrosion or rust on the pump pulley can sometimes indicate internal seal failure.

Tools and Materials You'll Need

To successfully rebuild a car water pump, you'll require a specific set of tools and materials. Ensure you have these readily available before starting:

Safety First!

Before commencing any work on your vehicle's cooling system, prioritise safety:

• Allow the engine to cool completely. Hot coolant can cause severe burns.
• Wear safety glasses and gloves. Protect your eyes and skin.
• Disconnect the negative battery terminal. This prevents accidental electrical shorts.
• Dispose of old coolant responsibly. It is toxic and harmful to the environment.

Step-by-Step Guide to Rebuilding a Car Water Pump

1. Removal of the Old Water Pump

First, you need to remove the water pump from the engine. The exact procedure can vary depending on your vehicle's make and model, so consulting your vehicle's repair manual is highly recommended. Generally, this involves:

1. Locate the water pump: It's typically found on the front or side of the engine block, often driven by the serpentine belt or timing belt.
2. Drain the coolant: Place a drain pan beneath the radiator and open the drain plug or disconnect the lower radiator hose to allow the coolant to drain completely.
3. Remove the serpentine belt: Use a wrench to release the tension on the belt tensioner and slip the belt off the pulleys. Make a note of the belt's routing for reinstallation.
4. Disconnect hoses and attachments: Carefully unbolt any hoses, brackets, or other components attached to the water pump.
5. Unbolt the water pump: Using the appropriate socket wrench, remove the bolts securing the water pump to the engine block. Some bolts might be hidden, so thorough inspection is necessary.
6. Remove the pump: Gently pry the old water pump away from the engine block. Be prepared for some residual coolant to spill out.
7. Clean the mounting surface: Thoroughly clean the engine block's mounting surface using a gasket scraper and a clean rag with solvent to remove all traces of the old gasket and any debris. A clean surface is crucial for a proper seal.

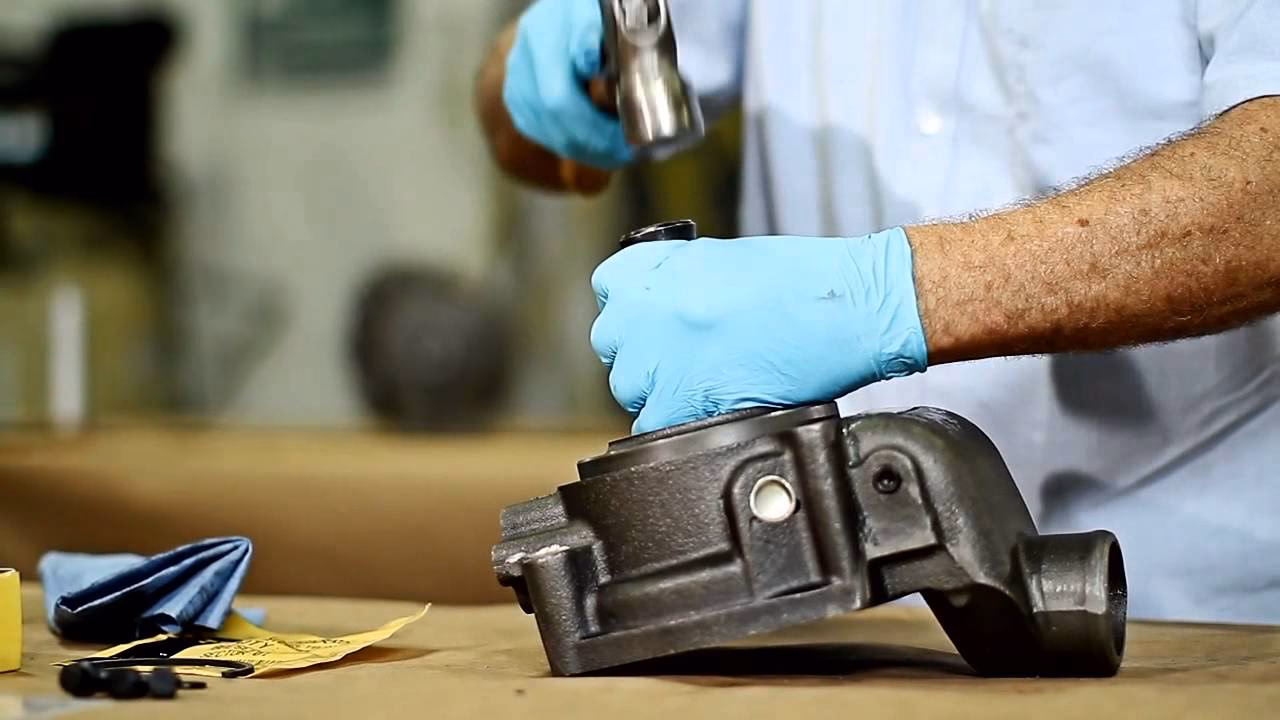

2. Disassembly of the Water Pump

Once the old water pump is removed, you'll need to carefully disassemble it to replace the internal components:

1. Identify the pump's construction: Water pumps can be either one-piece or have multiple sections.
2. Remove housing bolts: If your pump has a separate housing, use a screwdriver or wrench to remove the bolts holding it together.
3. Separate the housing and impeller: Carefully separate the pump housing. You may need to use a bit of leverage with a screwdriver.
4. Inspect components: Examine the old impeller, shaft, and seals for signs of wear, corrosion, or damage. This will confirm the need for replacement.

3. Installation of New Components

Now it's time to fit the new parts from your rebuild kit:

1. Replace the impeller: If your kit includes a new impeller, press it onto the shaft. Ensure it's securely seated.
2. Replace bearings: If the bearings are part of the rebuild kit, carefully remove the old bearings from the pump housing (a bearing puller might be necessary) and press in the new ones. Secure them with retaining rings if applicable.
3. Install new seals: Apply a thin layer of high-temperature sealant to the new seals and carefully press them into their respective housings. Ensure they are perfectly aligned and seated to prevent leaks.

4. Reassembly of the Water Pump

With the new components in place, reassemble the water pump:

1. Reassemble the housing: Carefully align the pump housing halves and secure them with the bolts.
2. Tighten bolts evenly: Tighten the housing bolts in a crisscross pattern to ensure even pressure and prevent distortion. Refer to your manual for specific torque specifications if available.

5. Reinstallation of the Water Pump

Now, refit the rebuilt water pump back onto the engine:

1. Fit a new gasket: Place a new gasket onto the engine block's mounting surface or the pump itself, depending on the design. Apply a thin bead of sealant if recommended by the gasket manufacturer.
2. Position the pump: Carefully align the rebuilt water pump with the bolt holes on the engine block.
3. Secure the pump: Insert and tighten the mounting bolts. Again, use a crisscross pattern and torque them to the manufacturer's specifications.
4. Reconnect hoses and brackets: Reattach all previously removed hoses, brackets, and other components to the water pump.
5. Reinstall the serpentine belt: Route the serpentine belt correctly and apply tension to the tensioner pulley to secure it.

6. Refilling and Testing

The final steps involve refilling the system and checking for proper operation:

1. Refill the cooling system: Pour fresh coolant into the radiator or expansion tank, using the type specified in your vehicle's manual.
2. Bleed the system: It's crucial to bleed any air from the cooling system to ensure efficient circulation. Consult your manual for the correct procedure, which often involves running the engine with the heater on and the bleed screw open until a steady stream of coolant emerges.
3. Reconnect the battery: Reattach the negative battery terminal.
4. Start the engine: Let the engine idle and warm up.
5. Check for leaks: Carefully inspect the water pump area and all hose connections for any signs of coolant leaks.
6. Monitor temperature: Keep an eye on the engine temperature gauge to ensure it remains within the normal operating range.

Frequently Asked Questions

Q1. Can a wrench fix a water pump?

A wrench is a tool used for tightening and loosening bolts. While essential for removing and installing a water pump, it cannot repair the internal components of a faulty water pump. A wrench is part of the toolkit, but not the solution itself.

Q2. Can a car water pump be repaired?

Yes, in many cases, a car water pump can be repaired through a process called rebuilding. This involves disassembling the old pump and replacing worn internal parts like seals, gaskets, and sometimes bearings or impellers with new ones from a rebuild kit. However, if the pump housing is cracked or severely damaged, replacement of the entire unit is necessary.

Q3. How often should I rebuild my water pump?

Water pumps are generally designed to last between 60,000 to 100,000 miles. Rebuilding is typically done when signs of failure appear, such as leaks or noise, rather than on a fixed schedule. However, it's often recommended to replace the water pump when performing major timing belt services, as they are often driven by the same belt and access is already gained.

Q4. What are the symptoms of a failing water pump?

Common symptoms include coolant leaks (puddles under the car), engine overheating, unusual noises like whining or grinding from the pump area, and a whistling sound from a failing seal.

Q5. Is it better to rebuild or replace a water pump?

Rebuilding is often more cost-effective if the pump housing is sound. However, if the pump is heavily corroded, the impeller is damaged, or the housing is cracked, replacement is the only viable option. For simplicity and guaranteed performance, many opt for a full replacement, especially if labour costs are not a major concern.

Conclusion

Rebuilding a car water pump is a feasible and satisfying DIY project that can significantly reduce repair costs. By understanding the signs of failure, gathering the correct tools, and meticulously following the steps, you can successfully restore your vehicle's cooling system. Remember, regular checks and prompt attention to any unusual symptoms will help prevent more serious and costly engine damage down the line. Keep your cooling system in top shape for optimal engine performance and longevity.
