Fixing Car Speaker Wire

Troubleshooting No Sound from Car Speakers

Experiencing a sudden silence from one or more of your car's speakers can be a frustrating experience. Before you start replacing components or calling a professional, it's crucial to accurately diagnose the problem. Is it truly a faulty speaker, a wiring issue, or perhaps a problem with your head unit or amplifier? This guide will walk you through a systematic approach to identify the root cause, focusing specifically on speaker wiring and how to address it.

Why Isn't My Car Speaker Working?

Several factors can lead to a speaker falling silent:

• Bad Speaker: The speaker itself might be 'blown', meaning the voice coil has failed, or there's a loose or corroded connection directly at the speaker terminals.
• Bad Wiring: One or more of the wires connecting to the speaker may have a poor connection, a break, or a complete disconnection.
• Faulty Audio Source: The issue could stem from the car stereo (head unit) or the amplifier. This can be due to various internal failures or power supply issues.

Diagnosing No Sound from a Car Speaker

To avoid the guesswork, a methodical troubleshooting process is essential. This will save you time, money, and unnecessary frustration by preventing you from buying parts that aren't needed.

Follow these steps to pinpoint the problem:

1. Test the Speaker: Remove the speaker that isn't working. Connect a known good working speaker (this is key!) to the existing speaker wiring. Play some music. If the test speaker works, you've likely identified a faulty speaker. If not, continue to the next step.
2. Test the Source: If the speaker test didn't resolve the issue, it's time to investigate the audio source.
   • Head Unit: If you're not using an external amplifier, you'll need to access the back of your car stereo. Disconnect the existing speaker wiring and connect your test speaker directly to one of the stereo's output channels. If you still have no sound, the head unit itself might be the culprit, potentially due to a burned-out output or an internal fault.
   • Amplifier: If your speakers are powered by an amplifier, disconnect the amplifier's connection to the problematic speaker and connect your test speaker in its place. If there's still no sound, the amplifier might have failed outputs, or there could be an issue with the signal coming from the head unit to the amplifier, or a power/grounding problem with the amplifier itself.
3. Verify Speaker Wiring: If you had sound in step 2, it strongly suggests the problem lies with the speaker wiring itself. To confirm, ensure the ends of the speaker wires are clean and making direct contact. You might need a short jumper wire if factory connectors are present. At the head unit or amplifier end, with the speaker wire disconnected, use a multimeter to test for resistance or continuity. Good speaker wire should show a very low resistance (close to 0 Ohms) or a continuous beep on your meter. High resistance or no reading indicates a break or poor connection in the wire.

Note on Test Speakers: If you don't have a spare 4-ohm car speaker, an 8-ohm or 6-ohm home stereo speaker can be used safely for testing purposes.

The Installer's Trick for Quick Checks

A handy trick used by many car audio installers involves using a low-voltage battery, such as a AA, C, D, or even a 9V battery. Briefly touch the battery terminals across the speaker wires. If the speaker is working and the wiring is sound, you'll hear a 'thump' or sound from the speaker. This is a quick way to verify both the speaker's functionality and the continuity of the wiring. Crucially, only use small, low-current batteries. Never use a 12V battery, as it can damage the speaker.

Can Speaker Wire Be Repaired or Lengthened?

The good news is that, in most situations, car speaker wire can be repaired or lengthened effectively. However, there are a few considerations:

• Wire Quality: Very thin or low-quality speaker wire might not be worth the effort to repair and can be difficult to work with. In such cases, replacing it with a decent quality wire is often a better long-term solution. This is particularly true for 'junk' wire that uses oversized insulation to disguise a small conductor gauge, leading to easily broken strands.
• Non-Standard Wire: Using non-standard wiring like telephone cable, audio signal wires, or pure aluminium wire for speaker applications can be problematic. While crimp connectors might work, they are not ideal, and replacing it with proper speaker wire is generally recommended for ease of use and reliability.
• Gauge Compatibility: You don't necessarily need to use the exact same gauge of wire for a repair. For instance, if you're repairing 16-gauge wire, using a slightly different, readily available gauge is acceptable, provided it's of good quality.
• Wire Type: Standard stranded copper or copper-clad aluminium (CCA) speaker wire can be repaired using reliable methods. The success of the repair hinges on the quality of your work.

Why Replace When You Can Repair?

Replacing an entire length of speaker wire is often unnecessary when a simple repair will suffice. This approach saves valuable time, money, and effort. Speaker wire, much like stranded hook-up wire, forms a robust connection when properly joined, essentially returning it to its original performance level. A high-quality, solid connection that resists oxidation will maintain the wire's full power-carrying capacity without signal loss.

Furthermore, good quality speaker wire, especially pure copper, can be costly. In situations where factory wiring runs through difficult-to-access areas of a vehicle, such as door panels, attempting a replacement can be a labour-intensive task with minimal benefit if the existing wire is sound. Extending or repairing existing wire is a far more practical solution, especially if you have spare wire available.

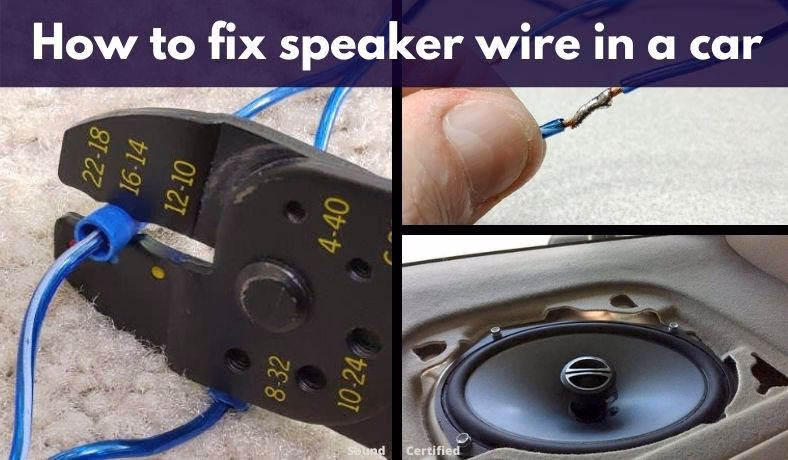

How to Fix Car Speaker Wire Like a Professional

Achieving a reliable and professional repair for speaker wire involves using the right techniques and connectors. The two most recommended methods are:

1. Soldering Speaker Wire

Soldering creates an exceptionally strong and conductive connection, virtually indistinguishable from the original wire. While it requires a bit more time and practice, the results are superb.

Steps for Soldering:

1. Prepare the Wire: Cut and strip approximately 1/2 inch of insulation from each wire end.
2. Twist the Wires: Form an 'X' with the stripped ends of the two wires, then twist each end tightly around the other, ensuring they are securely intertwined.
3. Heat and Solder: Heat the twisted wire connection with a soldering iron. Once hot, apply solder to the heated wire. The solder should flow smoothly and coat all the wire strands. Rotate the connection and repeat on the other side to ensure complete saturation.
4. Insulate: Allow the connection to cool. For optimal insulation and protection, use electrical tape, starting at an angle and wrapping tightly to cover the entire exposed connection. Alternatively, heat shrink tubing offers an even more robust and aesthetically pleasing finish. Proper insulation is vital to prevent short circuits that can damage your audio components.

2. Using Crimp Connectors

Crimp connectors, often referred to as 'butt connectors', offer a quicker and easier alternative to soldering, providing excellent results with minimal effort. They are a favourite among professional installers for their balance of speed and reliability.

Steps for Using Crimp Connectors:

1. Prepare the Wire: Strip about 3/8 to 1/2 inch of insulation from each wire end.
2. Twist the Strands: Tightly twist the exposed wire strands to create a cohesive end that will easily insert into the connector.
3. Insert and Crimp: Insert the prepared wire end firmly into one end of the crimp connector, ensuring it makes good contact with the internal metal sleeve. Place the connector into the appropriate slot on your crimping tool, typically near the connector's end. Apply firm pressure to crimp the connector securely onto the wire.
4. Repeat: Repeat the process for the other wire end and the other side of the connector.

Pro Tip: After crimping, give a gentle tug on the wire to ensure it's held firmly. If it pulls out, the crimp was not sufficient, and you'll need to redo it.

What to Avoid When Repairing Speaker Wire

Certain methods, while seemingly simple, can lead to future problems:

• The "Twist and Tape" Method: Simply twisting wires together and covering them with electrical tape is a recipe for disaster. These connections are not permanent, can easily come apart, leading to intermittent sound, or worse, short circuits. Over time, the adhesive on electrical tape can degrade, causing it to peel away and expose the bare wires.
• Working with Oxidized Wire: Wire conductors can oxidize when exposed to air, forming a coating that increases resistance. This can lead to signal loss and poor sound quality. Always ensure you are working with clean, shiny wire strands. If necessary, cut back and re-strip the wire ends to expose fresh conductor material.

Choosing the Right Solder

For soldering speaker wire, 60/40 rosin core solder is highly recommended. The rosin core helps to clean the wire surface and facilitates smooth solder flow. While lead-free solder is available, it is generally more difficult to work with and can result in weaker connections. Stick with the traditional 60/40 blend for reliable results.

Do I Need Expensive Speaker Wire?

No, you do not need to spend a fortune on fancy or expensive speaker wire. As long as the wire is of good quality, the correct gauge, and made of a suitable conductor (like copper or CCA), its performance will be perfectly adequate for most car audio systems. The primary factors are the wire gauge and its conductivity.

What to Look for in Speaker Wire

When purchasing speaker wire, focus on these key attributes:

• American Wire Gauge (AWG): Ensure the wire is rated with the correct AWG for your application.
• Quality and Strand Count: Opt for wire that feels robust and has a decent strand count for flexibility and durability.
• Reputable Retailers: Avoid the absolute cheapest options, as they may use misleading descriptions and undersized conductors. Purchase from trusted sources to ensure you get what you pay for.

Understanding Copper-Clad Aluminium (CCA) Wire

Due to rising copper prices, Copper-Clad Aluminium (CCA) wire is becoming increasingly common. While it can be a more affordable option, be aware of its characteristics:

• Stiffness: CCA wire is generally stiffer and less flexible than pure copper wire, making it slightly harder to work with.
• Conductivity: Aluminium has lower conductivity than copper. This means CCA wire has higher resistance. To achieve similar performance to pure copper, you'll typically need to use a larger gauge of CCA wire (e.g., 16 AWG CCA instead of 18 AWG copper).

Important Note: Always check the product specifications. If it doesn't explicitly state '100% copper', it's likely CCA wire. While usable, understanding its limitations is key. For ease of installation and optimal performance, pure copper wire remains the preferred choice for many installers.
