Fix Your Speaker Cone: A DIY Guide

It's a common, and often disheartening, experience for any audio enthusiast: you're enjoying your favourite tunes, perhaps at a slightly higher volume than usual, when you notice a subtle distortion or a complete loss of sound from one of your speakers. Upon closer inspection, you might discover the culprit – a cracked speaker cone. This damage, often caused by overdriving the speaker, accidental impact, or simply age, can significantly degrade sound quality and even lead to complete failure. Fortunately, for many types of speakers, a cracked cone doesn't necessarily mean the end of its life. With a bit of patience and the right materials, you can perform a surprisingly effective DIY repair. This guide will walk you through the process, from identifying the problem to enjoying your revitalised speaker.

Understanding Speaker Cones and Common Damage

The speaker cone, also known as the diaphragm, is a crucial component of any loudspeaker. It's the part that vibrates to produce sound waves. Typically made from paper, treated paper, or composite materials, cones are designed to be lightweight yet rigid. When a cone cracks, its structural integrity is compromised. This can lead to:

• Distorted Sound: The irregular vibration of a cracked cone will cause unwanted harmonics and a muddy sound profile.
• Reduced Output: The speaker may not produce sound at its intended volume.
• Further Damage: A small crack can easily spread, leading to more extensive damage over time.

While professional repair is an option, it can be expensive. For many common types of damage, particularly to paper or treated paper cones, a DIY approach can be both cost-effective and rewarding. It's important to note that this method is generally not suitable for metal or plastic cones, which require different repair techniques.

Gathering Your Essential Repair Toolkit

Before you begin, ensure you have all the necessary items to hand. Having everything ready will make the repair process smoother and more efficient. Here’s what you’ll need:

Step-by-Step Guide to Repairing a Cracked Speaker Cone

With your tools ready, let's get down to business. Follow these steps carefully for the best results.

Step 1: Prepare the Adhesive

The first crucial step is to dilute your chosen glue. This allows it to penetrate the fibres of the speaker cone more effectively, creating a stronger bond. A good starting ratio is one part water to three parts glue. Mix the water and glue thoroughly using your brush or a clean stirring stick. Be cautious not to add too much water, as this can weaken the adhesive's bonding strength or make the cone material overly saturated and potentially weaker.

Step 2: Initial Crack Sealing

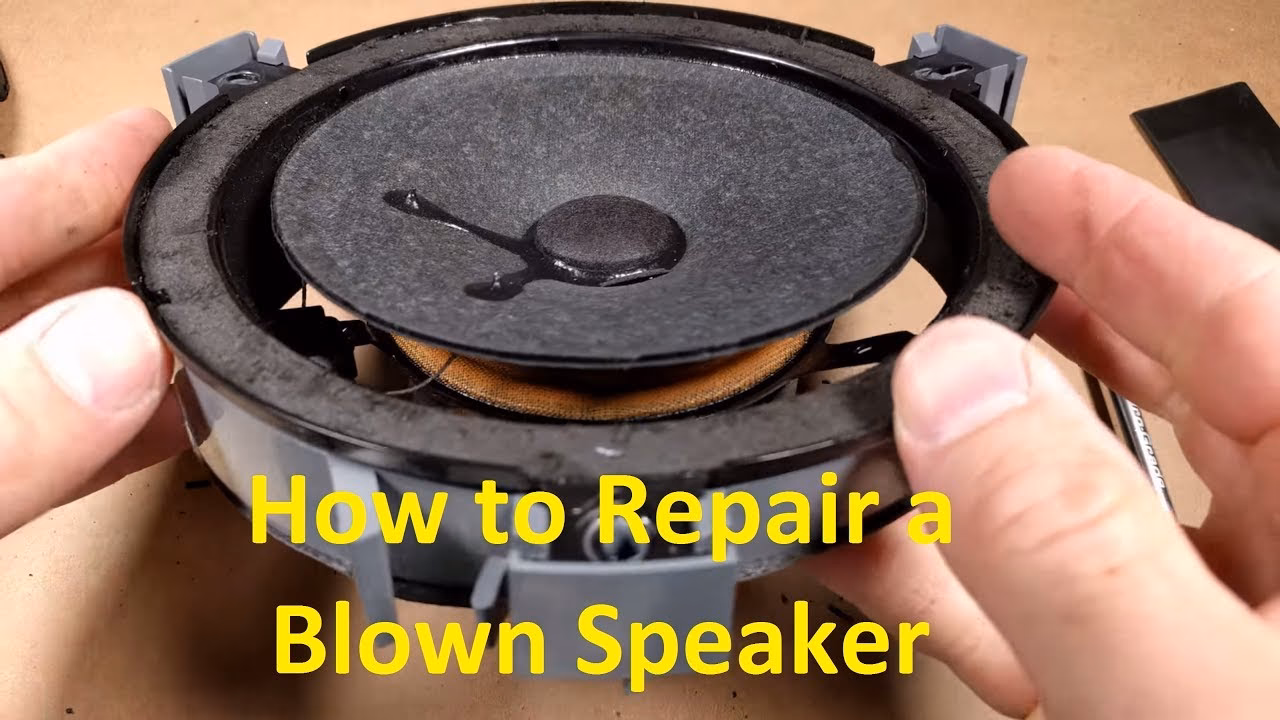

Carefully apply a small amount of the diluted glue directly into the crack using your paintbrush. Ensure you get glue on both the top and bottom surfaces of the cone if the crack has penetrated through. Allow this initial application to dry completely. Depending on the severity and depth of the crack, you may need to repeat this process several times, building up the glue within the crack to provide a solid base for the patch.

Step 3: Applying the Coffee Filter Patch

This is where the reinforcement comes in. Take your coffee filter and cut a piece that is large enough to cover the crack with an overlap of approximately a quarter to a half-inch (0.5cm to 1cm) on all sides. When cutting the coffee filter, it's often better to tear it rather than cut it. Tearing creates frayed edges with more fibres, which can integrate more seamlessly with the cone material and the glue, helping to prevent the patch edges from lifting over time due to the speaker's vibrations.

Now, apply a generous amount of the diluted glue to the area around the crack on the speaker cone. Also, apply glue to both sides of your prepared coffee filter patch. Carefully place the patch over the crack, ensuring it is centred and the glue makes good contact with the cone. Use your paintbrush to gently press the patch down, working from the centre outwards. Pay particular attention to the edges of the patch, ensuring they are well-adhered. You can go back and apply an extra layer of glue around the edges of the patch for added security.

For standard repairs, a single layer of coffee filter is usually sufficient. However, if you are repairing a large subwoofer or a speaker that is regularly driven at high power levels, it's advisable to apply a second layer of the coffee filter patch for added durability and to prevent future cracking.

Step 4: Drying and Curing

Allow the glue to dry and cure completely. This can take several hours, or even overnight, depending on the humidity and temperature of your environment. Ensure the speaker is placed in a stable position where the cone will not be disturbed during this critical drying phase.

Step 5: Optional Aesthetic Touch-Up

Once the glue and patch are completely dry and rigid, you can optionally paint the repaired area to match the original cone colour. Use a thin coat of acrylic or latex paint. Avoid applying thick coats of paint, as this can add unnecessary weight and stiffness to the cone, potentially weakening the glue bond or causing the paint itself to crack under the stress of the speaker's vibrations. A light, even coat is all that's needed for aesthetic purposes.

Important Considerations and Disclaimers

While this DIY repair can be very effective, it's essential to manage expectations:

• Disclaimer: This guide is provided for informational purposes. Proceed at your own risk. We are not responsible for any further damage incurred during the repair process.
• Material Suitability: This method is primarily effective for paper or treated paper speaker cones. It is generally not recommended for metal, plastic, or highly specialised composite cones.
• Sound Quality: While this repair will restore functionality and improve sound quality compared to a cracked cone, it may not perfectly replicate the original, pristine sound. The added material, however slight, can subtly alter the cone's mass and damping characteristics.
• Durability: The longevity of the repair depends on the quality of the materials used, the thoroughness of the application, and the power levels the speaker is subjected to.

Frequently Asked Questions

Q1: Will this repair affect the sound quality of my speaker?

A: It might subtly alter the sound. The goal is to restore the cone's structural integrity. While the added patch material can slightly change the cone's mass and resonance, the improvement from fixing the crack usually outweighs any minor tonal shifts.

Q2: Can I use super glue instead of wood glue?

A: Super glue (cyanoacrylate) is generally too brittle for this application. It can harden the cone and is prone to cracking under vibration, potentially leading to further damage. A flexible adhesive like PVA or wood glue is preferred.

Q3: How long does the repair typically last?

A: With proper application, the repair can last for a considerable time, especially if the speaker is not continuously driven at extreme volumes. However, it's a DIY fix, and its lifespan can vary.

Q4: What if the crack is very large or torn?

A: For very extensive damage, multiple layers of coffee filter material might be necessary, or the cone might be beyond simple repair. In such cases, replacing the entire speaker driver might be a more viable option.

Q5: Can I use different patching materials like thin fabric or paper towels?

A: While thin fabric might work, coffee filters are often preferred due to their specific fibre structure and absorbency. Paper towels can be too porous and may not provide adequate strength. Experimentation with caution is possible, but coffee filters are a proven reliable choice.

By following these steps, you can give your beloved speakers a new lease on life, saving money and enjoying your music once again. Happy repairing!
