Fixing Sagging Car Doors: Hinge Pin Renewal

Few things are as frustrating as a car door that refuses to close properly. Whether it's a persistent sag, an annoying creak, or the door bouncing back after an attempt to shut it, the culprit is often a worn hinge pin. These small but mighty components bear the brunt of your door's weight and constant movement, leading to wear over time. While some hinges are welded and unserviceable, many can be rejuvenated by renewing a worn hinge pin or, in more severe cases, replacing the entire hinge or its internal bushings. This guide will walk you through the process, ensuring your car's doors close with the satisfying thud they were designed for, restoring both function and the aesthetic appeal of your vehicle.

The front doors of a car typically experience the most use, making their hinges, and consequently their hinge pins, the most susceptible to wear. When a hinge pin becomes worn, it introduces play into the hinge mechanism, causing the door to drop slightly when opened or to sag out of alignment with the bodywork. This not only makes the door difficult to close but can also lead to paint chipping along the door's edge or even damage to the door striker plate.

Understanding Door Hinge Mechanisms

Before diving into the repair, it's helpful to understand the types of hinges you might encounter:

• Welded Hinges: These are permanently attached to the car's bodywork and door frame. If the pins within these hinges wear out, repair options are limited, often requiring specialist bodywork or a complete door replacement.
• Bolted Hinges: These are secured to the bodywork and door with bolts, offering adjustability and the possibility of renewal. Many bolted hinges feature replaceable pins or bushings.

Our focus here is on bolted hinges, as they offer the most accessible and cost-effective repair options for the average home mechanic.

Identifying Worn Hinge Pins and Sagging Doors

Beyond the obvious visual sag, here are a few tell-tale signs that your hinge pins are worn:

• Difficulty Closing: The door requires extra effort to close, or it doesn't latch cleanly, often needing a lift to align with the striker.
• Uneven Gaps: Inspect the gaps around the door. A worn hinge will typically cause the gap at the bottom rear of the door to widen, while the top gap might narrow.
• Grinding or Creaking Noises: As the door moves, worn metal-on-metal components can produce audible friction.
• Visible Play: With the door slightly open, try gently lifting the rear edge. If you feel significant vertical movement in the door, the hinge pin is likely worn.

Essential Tools for the Job

Gathering your tools before you start will make the job much smoother:

• Flathead and Phillips Screwdrivers (including an impact driver for stubborn bolts)
• Hammer (standard and rawhide/soft-face for delicate tapping)
• Drifts and Punches (various diameters, matching pin size if possible)
• Axle Stand or Floor Jack with Padding (crucial for supporting the door)
• Socket Set and Spanners (for bolted hinges)
• Penetrating Oil (e.g., WD-40)
• Lubricant (grease or oil for new pins)
• A Helper (invaluable for supporting the door)
• Safety Glasses and Gloves
• Hinge Pin Removal Tool (optional, but highly recommended for some designs)

Method 1: Renewing a Worn Hinge Pin

This is often the simplest and most common fix when the hinge body itself is in good condition.

Preparation is Key

1. Park Safely: Ensure your car is on level ground with the handbrake firmly engaged.
2. Roll Up Windows: Close any windows in the door you're working on to prevent damage.
3. Support the Door: This step is critical. Ask your helper to firmly support the door underneath, taking its full weight. Additionally, use a padded axle stand or a stack of sturdy wood blocks under the door's outer edge. The goal is to prevent the door from dropping even slightly, which could distort the remaining hinge or the bodywork mounting points.
4. Apply Penetrating Oil: Liberally spray penetrating oil on and around the hinge pins a few hours, or even the day, before you start. This will help loosen any rust or corrosion.

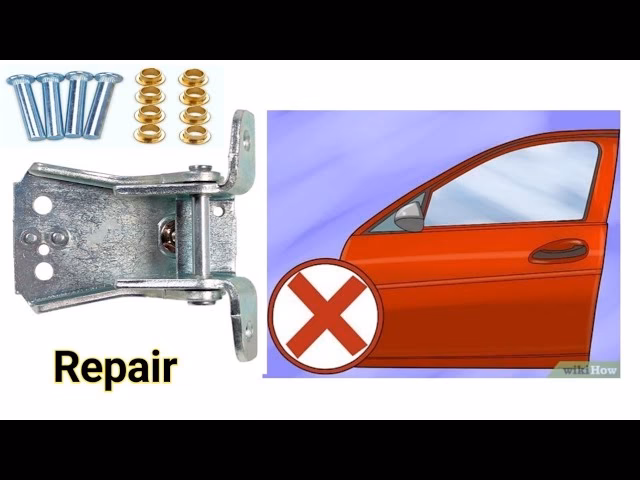

Removing the Old Pin

Hinge pins come in a few common designs:

1. Solid Pins with Projecting Heads

These pins often have a small head that protrudes from the hinge. If accessible:

• Insert a sturdy flathead screwdriver under the projecting head of the pin.
• Using the screwdriver as a lever, gently prise the pin upwards or downwards, depending on its orientation.
• If it's stubborn, you may need to tap the shaft of the screwdriver with a rawhide hammer to create leverage and encourage the pin to move.

2. Solid Pins Without Projecting Heads (Flush)

For pins that are flush with the hinge, you'll need a hammer and drift:

• Select a drift that is slightly smaller in diameter than the hinge pin.
• Position the drift squarely on the end of the pin.
• Using a hammer, tap the drift firmly and repeatedly to drive the pin out. Be careful not to hit the surrounding bodywork.
• A clever trick is to use the new, oiled hinge pin as a drift. As you tap it in from one side, it will push the old pin out from the other, ensuring a smooth transition. This method is particularly useful if access is tight.

3. Hollow Pins with Plastic Caps

Many modern cars use hollow pins, often with plastic caps that conceal the pin's end:

• Carefully remove any plastic caps.
• Use a drift of the same diameter as the hollow pin.
• Tap the drift with a hammer to push the old pin out.

4. Using a Special Hinge-Pin Remover and Replacer Tool

These tools can make the job significantly easier, especially in tight spaces:

• Remove any pin cap.
• Thread the tool's shaft into the hollow centre of the pin (or over the top of a solid pin, depending on the tool design).
• Once engaged, screw on the tool's cap or collar.
• Tap the handle of the tool with a hammer. This action pulls or pushes the pin out in a controlled manner.
• Generally, it's easier to withdraw a top hinge pin downwards and a bottom hinge pin upwards, following the path of least resistance.

Inserting the New Pin

1. Lubricate: Apply a generous amount of grease or oil to the outside of the new hinge pin's shaft. This reduces friction and helps prevent future wear.
2. Position: Align the new pin with the hinge pin holes.
3. Tap In: Using a drift (or the special tool if applicable) and a hammer, gently but firmly tap the new pin into place until it is fully seated and flush. Ensure the door remains perfectly supported throughout this process to prevent misalignment.
4. Test: Once the new pin is in, remove the support and carefully open and close the door a few times to check for smooth operation and proper alignment.

Method 2: Renewing Bolted Door Hinges

Sometimes, the entire hinge unit needs replacing, especially if it's bent, severely rusted, or if the pin cannot be renewed. This process is more involved but still achievable for the diligent home mechanic.

Detailed Steps for Hinge Replacement

1. Support the Door: As before, this is paramount. Ensure the door is well-supported by your helper and an axle stand.
2. Wind Window Shut: Close the door window to protect it.
3. Remove Door Trim Panel: To access the hinge fixings on the door side, you'll usually need to remove the interior door trim panel. Refer to your car's specific manual or a guide on 'Removing a door trim panel' for details, as this varies greatly between models.
4. Disconnect Door Check Strap: The check strap (or restrainer) limits how far the door opens. It must be disconnected. Some have a pivot pin that can be tapped out with a hammer and punch. Others use a clip at the bottom; prise this off with a screwdriver and lift out the pin.
5. Uncover Hinge Fixings: The hinge bolts on the door pillar side are often concealed. You may need to remove floor covering or side trim panels to access them.
6. Unbolt the Hinges:
• Bolts can have hexagon or cross-slot heads and are often very tight.
• Use a socket and bar for hexagon heads, or a large cross-head screwdriver and self-locking grips. An impact driver is highly recommended for stubborn cross-slot bolts.
• Crucially, undo the lower hinge bolts first, but only loosen the bolts on the top hinge. This maintains some support for the door.
• Ask your helper to slightly lift the rear bottom corner of the door as you remove the bottom hinge.
7. Replace Lower Hinge: Fit the new lower hinge, aligning it with the marks left by the old one. Apply a thin layer of grease to the bolt holes. Half-tighten the bolts.
8. Replace Upper Hinge: Now, fully remove the old upper hinge and install the new one, again aligning it carefully. Half-tighten its bolts.
9. Final Alignment and Tightening:
• With both new hinges loosely fitted, ensure the door is properly positioned. Adjust the door's alignment until the gaps around it are even and it closes smoothly without binding.
• Once satisfied with the alignment, progressively tighten all hinge bolts, ensuring they are secure.

Rebuilding Hinges on Vintage Cars: A Restoration Approach

For vintage cars, finding new hinges can be difficult or expensive. Rebuilding worn hinges is a cost-effective and authentic solution, often focusing on replacing the internal bushings.

The Rebuilding Process

1. Removal: While it's possible to rebuild hinges on the car, removing them and taking them to a workbench simplifies the task significantly. Unbolt them as described above.
2. Pin Removal: Vintage car hinge pins might be retained by E-rings or cotter pins, making removal straightforward. Simply pop out the retainer and push the pin out. More commonly, they are swaged (peened) into place. This requires grinding down the head of the old pin before it can be tapped out.
3. Bushing Replacement:
• Once the old pin is out, remove the worn bushings from the hinge halves. These are often pressed or tapped out.
• Sourcing new bushings requires careful measurement. Measure the inside diameter (ID), outside diameter (OD), and overall length of the old bushings and the pin diameter. Auto parts stores (like NAPA in some regions) often stock repair kits for various vehicles. Industrial supply houses can also provide a dizzying array of 'Oilite' bronze bushings.
• Press or tap the new bushings into the hinge halves.
4. Reassembly:
• With new bushings in place, reassemble the hinge on the car (or on the workbench if preferred).
• With a helper or a jack supporting the door, align the hinge halves and tap the new pin into place. Many pins are slightly tapered to aid in starting.
• For added security, especially if the pin head isn't knurled, some mechanics opt to tack-weld the pin into place with a MIG welder after alignment.
5. Alignment: Loosely tighten the hinge bolts and adjust the door for proper alignment with the fender and door striker. Tighten the bolts securely.

Troubleshooting Sagging Doors: A Deeper Dive into Bushing Replacement

For many modern cars, the issue isn't the hinge pin itself, but the bushings that surround it within the hinge. These small, often nylon or bronze, sleeves wear down, creating the play that causes door sag.

The Cost-Effective Solution

Replacing worn bushings and pins can be done for under £10 and in less than an hour, a stark contrast to the hundreds of pounds a mechanic might charge for a full hinge replacement. Many auto parts stores stock specific bushing and pin kits for a wide range of vehicles.

Step-by-Step Bushing Renewal

1. Support the Door: As always, use a floor jack or axle stand with padding, and ideally a helper, to take the weight off the hinge. This prevents distortion and makes pin removal easier.
2. Remove the Old Pin: As detailed above, this might involve removing E-rings, cotter pins, or grinding down a swaged head before tapping the pin out.
3. Remove/Replace Bushings: With the pin out, the worn bushings can often be easily removed or tapped out. Press or tap the new bushings into the hinge half. Ensure they are fully seated.
4. Reinstall Pin: Lubricate the new pin and tap it into place. If the pin is tapered, ensure it starts correctly.
5. Align and Tighten: Loosely fit the hinge bolts if removed, and align the door. Then tighten all bolts.

Why Tackle One Hinge at a Time

When dealing with a door that has two hinges, it's highly recommended to repair or replace one hinge completely before moving on to the next. There are two main reasons:

• Wire Management: Most modern doors contain wiring for power windows, locks, and speakers. Disconnecting both hinges simultaneously risks putting stress on these wires, potentially tearing them free. Keeping one hinge connected provides stability.
• Easier Alignment: Aligning a door with one good hinge already in place is significantly simpler than trying to align a door with both hinges completely loose or removed. You have a known reference point.

Comparative Table: Hinge Repair Options

Frequently Asked Questions (FAQs)

Q1: How do I know if my hinge pin is truly worn, or if it's something else?

A: The most definitive test is to open the door slightly (about 15-30 degrees) and gently lift the rear edge of the door. If you feel noticeable vertical play or clunking, the hinge pin or its bushings are likely worn. Uneven gaps and difficulty closing are strong indicators too.

Q2: Can I use a generic hinge pin or bushing kit?

A: It's always best to use a kit specifically designed for your car's make and model. If a specific kit isn't available, you'll need to carefully measure the original pin's diameter, and the inner and outer diameters, and length of the bushings. Generic industrial bushings can work, but precise measurements are crucial for a proper, lasting fit.

Q3: What if my car has welded hinges? Can I still fix a sagging door?

A: If your hinges are welded, replacing the pins or bushings becomes much more challenging, often requiring specialist tools and welding expertise to cut out and re-weld sections. In such cases, it's usually best to consult a professional body shop. Sometimes, a very minor sag can be temporarily mitigated by adjusting the door striker plate, but this doesn't address the root cause.

Q4: How long does this repair typically take?

A: For a straightforward hinge pin renewal, you might complete the job in 30 minutes to an hour per hinge. If you're tackling a full hinge replacement or a bushing rebuild, factoring in trim removal, stubborn bolts, and alignment, it could take 2-4 hours per door, especially if it's your first time.

Q5: What if the door still doesn't align perfectly after replacing the hinge pin or hinge?

A: First, double-check that the hinge bolts are fully tightened. If the door is still out of alignment, the problem might lie with the door striker plate on the car body. This can often be loosened and adjusted slightly to fine-tune the door's position when closed. Very rarely, severe accidents or bodywork damage could be the cause, but a worn hinge is by far the most common culprit for sagging.

Conclusion

Addressing a sagging car door by renewing a worn hinge pin or replacing the hinge is a satisfying and often straightforward DIY task. Not only does it restore the functionality and safety of your vehicle, but it also prevents further damage to the door and bodywork. With the right tools, a bit of patience, and perhaps a helpful assistant, you can achieve a professional-looking repair and enjoy the smooth, secure closure of your car doors once again. Remember, proper alignment is key to a lasting fix, so take your time with the final adjustments.
