Mastering Aluminium Car Panel Repairs

With the automotive industry increasingly embracing lightweight materials, aluminium car body panels are now a common sight on many vehicles across the UK. While the fundamental goal of repairing a dent remains the same, working with aluminium is distinctly different from steel. It's not necessarily more difficult, but it absolutely demands a specific set of tools, techniques, and a thorough understanding of the material's unique characteristics. This comprehensive guide will delve into the intricacies of aluminium panel repair, equipping you with the knowledge to tackle these jobs efficiently and effectively.

Understanding Aluminium: More Than Just a Metal

Aluminium, unlike steel, doesn't possess a 'memory' or inherent desire to return to its original shape once damaged. When a steel panel is dented, there's a certain spring-back or resilience; aluminium, however, tends to stay precisely where it's been pushed. This means that different, often more assertive, techniques are required to coax it back into its original contour. Furthermore, aluminium exhibits a phenomenon known as 'work hardening'. This means the metal becomes harder and stiffer not only when it's initially damaged but also during the straightening process. Understanding and accounting for this work hardening is crucial for a successful repair.

Aluminium is an alloy, meaning it's a mixture of metals, and various types exist, categorised into different series based on their composition:

• 1000 Series Aluminium: This is nearly pure aluminium, typically 99.9%. While very soft, it's not commonly used for structural body panels due to its low strength.
• 2000 Series Aluminium: Contains copper. These alloys are known for high strength but can be less corrosion-resistant.
• 3000 Series Aluminium: Contains manganese. Good for general purpose applications, moderate strength, and good workability.
• 4000 Series Aluminium: Often contains silicon (e.g., 4043 AlSi). This series is popular in the industry for its softness and malleability, making it suitable for certain panel types and welding wires.
• 5000 Series Aluminium: Contains magnesium (e.g., 5356 AlMg). Renowned for good strength, excellent corrosion resistance, and weldability. Frequently used in marine applications and some automotive components.
• 6000 Series Aluminium: Contains both silicon and magnesium. These alloys are heat-treatable, offering a good balance of strength, formability, and corrosion resistance. They are extensively used for cosmetic exterior panels.
• 7000 Series Aluminium: Contains zinc. These are among the strongest aluminium alloys and are also heat-treatable. Used in high-stress applications, including some structural automotive components.

Cosmetic exterior panels on cars are generally crafted from heat-treated 4000 or 6000 series aluminium. The hardness of heat-treated aluminium is measured on a temper scale, ranging from T0 (very soft and malleable) to T6 (extremely hard, prone to breaking if bent). Many outer aluminium body panels are temper T4, offering a balance of strength and dent resistance.

Essential Equipment for Aluminium Dent Repair

The tools used for steel panel repair are simply inadequate for aluminium. Steel dent pullers, typically DC transformer or DC Inverter types, provide a current output of 2500 to 3500 amps DC. These are not suitable for aluminium due to the material's different electrical properties and higher current requirements for effective welding.

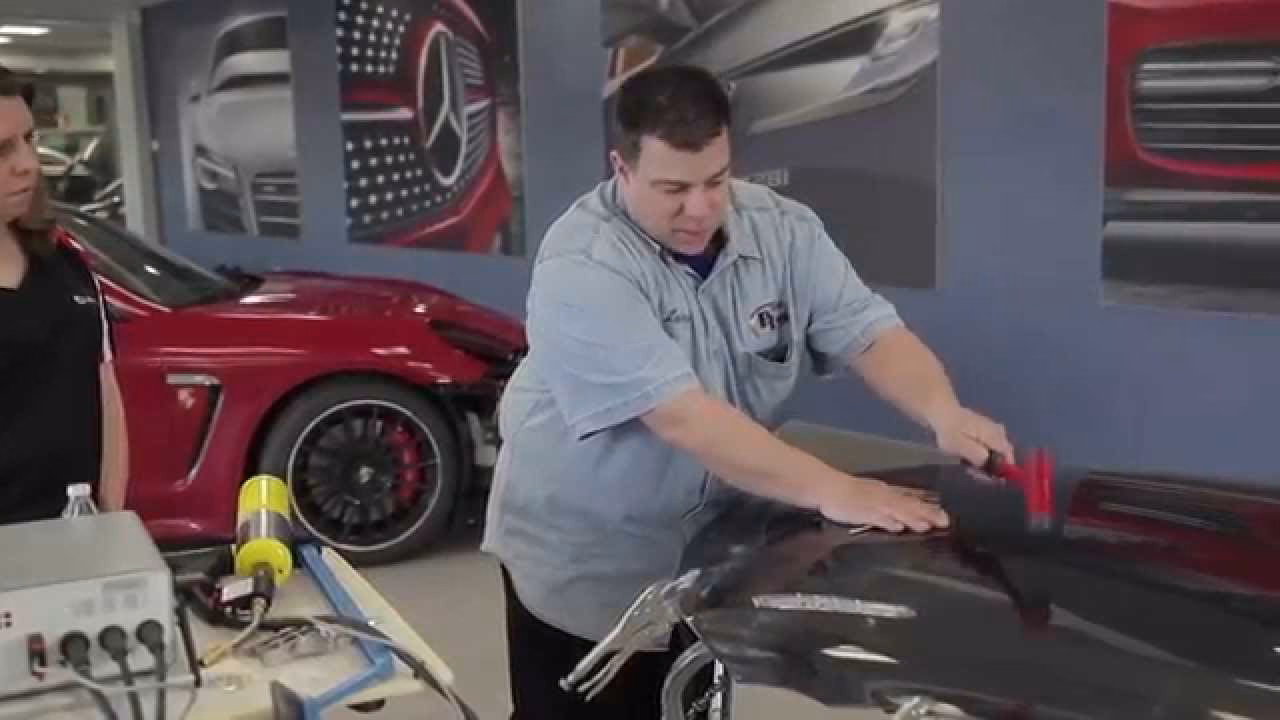

Capacitor-Discharge Stud Welders

Historically, 'Capacitor-Discharge Stud Welders' have been the go-to equipment for vehicle body repair on aluminium. These machines work by rapidly discharging a large, instantaneous current at a specific voltage, determined by the size of the stud being welded. Each stud has a small nipple at its base, which acts as the contact point for the current. For a successful weld, it's vital that only this nipple touches the panel, especially when pulling creases. Any other contact can lead to a failed weld. The process is incredibly fast – occurring in roughly 0.004 seconds! The surge of current concentrated through the nipple vaporises the stud's base and the panel's surface, and the spring tension from the gun then forces the stud onto the panel, fusing them together.

Aluminium Weld-On Tab Welders

A more recent innovation in the market are 'Aluminium Weld-On Tab Welders'. These utilise the 'drawn arc' method to weld a standard aluminium tab to the panel. They often resemble the steel dent pullers but incorporate a special motorised gun. This gun draws the tab away from the panel as it welds, creating a robust connection. There are typically three types of weld tags: AlMgSi (Silicon, Magnesium), AlMg3 (Magnesium), and Al99.5 (Pure Aluminium). It's always recommended to use a tab that corresponds to the alloy of the panel being repaired. For instance, on 6000 series panels, AlMgSi tabs are generally advised.

A significant advantage of these motorised tab welders is the inclusion of gas coverage during welding. This prevents contamination of the weld from the atmosphere, which is a critical concern with aluminium. Aluminium is highly susceptible to atmospheric contamination, which can lead to 'scabbing' – white, corrosive deposits – around the affected area if not properly cleaned. The motorised tab welder process also creates a stronger weld than capacitor discharge welders, making them easier, quicker, and more professional to use.

Crucial Preparation for Aluminium Repair

Proper preparation is paramount for successful aluminium panel repair. It's often the difference between a lasting repair and a problematic one. Here are the key steps:

1. Clean the Repair Area: Begin by cleaning the area to be repaired with an abrasive grinder. However, try to leave as much original paint on the vehicle as possible. This allows you to more easily observe the contour of the dent during the pulling process, reducing the risk of over-pulling and stretching the panel.
2. Address Oxidation: One of the primary challenges with aluminium dent pulling is ensuring proper stud attachment. Aluminium forms an oxidation layer very quickly – sometimes within just 20 minutes of exposure to air. This aluminium oxide layer is incredibly tough, with a melting point of around 3,700°F, significantly higher than aluminium's melting point of 1,200°F. If left on, this layer severely inhibits correct welding. Therefore, it's crucial to clean the joint immediately before welding using a stainless steel wire brush or 320-grit sanding disc.
3. Prevent Galvanic Corrosion: Aluminium is highly prone to galvanic corrosion when it comes into contact with steel. Even a microscopic steel particle left on an aluminium surface can disrupt the formation of its natural, self-protecting oxidation layer, leaving that area exposed. If this exposed area then comes into contact with an electrolyte, such as water, corrosion will occur. This manifests as white scabs and can even grow underneath the paint. To prevent this, ensure your tools are dedicated solely to aluminium work and are not cross-contaminated with steel panels. Always maintain a clean working environment.
4. Ensure a Good Earth Connection: A strong, clean earth connection is vital for successful welding. The current flows from the earth connection to the panel and returns to the machine via the gun/stud. A poor earth connection will result in weak or failed welds. Position the earth clamp as close as possible to your working area.
5. Practice Makes Perfect: Before attempting a repair on a vehicle, practice on an old aluminium panel. Start with a lower power setting on your welder and gradually increase it. This significantly reduces the chance of blowing holes in the vehicle's panel, which is a common error for beginners.

The Aluminium Repair Process: A Step-by-Step Guide

Once you've prepared your tools and the panel, you can begin the repair process. Let's assume we're dealing with a softball-sized dent with a deeper centre, requiring stud welding.

Step 1: Assess and Clean

Thoroughly assess the damage and formulate a precise repair plan. Gather all necessary tools and arrange them in the sequence you'll need them. As mentioned, clean the specific repair area using 320-grit paper or a stainless steel brush, ensuring there are no traces of grease or oils on the panel.

Step 2: Apply Heat Strategically

Aluminium dent repair almost always benefits from the application of heat. The ideal heat range for working with aluminium is between 400°F (approx. 204°C) and 570°F (approx. 299°C). As you apply heat, you'll often notice the dent beginning to reduce in size, as the heat helps to relieve the stresses that are locking the dent into its deformed position. It's critical not to exceed 570°F, as aluminium will lose its temper and become permanently soft above this temperature. At 1,174°F (approx. 634°C), it will melt and fall through.

Step 3: Monitor Heat Carefully

As you continue to bring the dented metal up to the repair heat range, closely monitor the dent's size and the panel's temperature. Remember that aluminium is an excellent conductor of heat, warming up significantly faster than steel. Be gentle and cautious to avoid burning the surrounding paint. Several methods are available for monitoring heat:

• Heat Crayons: You'll need at least two: one that melts at 400°F and another at 550°F. These provide a reliable visual indicator of temperature.
• Digital Thermocouple Meter: This offers a precise digital reading and is highly recommended for accuracy.

A word of caution about non-contact thermometers: They can be sensitive to shiny surfaces, leading to inaccurate readings. A painted surface will generally provide an accurate reading, but a bare, sanded aluminium surface will not. This discrepancy can be significant, potentially exceeding 100°F at higher temperatures. To overcome this, avoid pointing the non-contact thermometer at bare aluminium. If necessary, you can apply high-heat black paint to the repair area before heating. In stud welding, the black soot that forms around the base of the stud provides a suitable surface for an accurate reading. Alternatively, you can minimise the area from which you grind paint, allowing you to take temperature readings from nearby painted sections.

Step 4: Maximise Heat Effectiveness

Aim to bring your heat close to the upper end of the recommended range (around 550°F) for the best results. While aluminium heats up quickly, it also dissipates heat rapidly. The closer you are to the higher limit, the more time the metal has to relax and return to its original contour. You can localise the heat more effectively by using a product like 'Cool Gel'. Simply spray this gel around the area you wish to repair. The gel acts as a thermal barrier, preventing heat from dissipating too quickly into the surrounding panel.

Step 5: Quench or Cool into Position

Once the aluminium is heated and manipulated into its desired position, it needs to be quenched or rapidly cooled. This is crucial to 'lock' the material into its new shape and prevent it from springing back if the panel is ever heated again in the future. This can often be done with a damp cloth or a specialised cooling spray.

Step 6: Work the Dent Carefully

When dealing with a large dent, always work from the outside edges inwards towards the centre. This technique helps to progressively relieve stress and reduce the chances of overstretching the aluminium. Remember, aluminium is just as susceptible to overstretching as steel, so apply careful, controlled force.

Repair vs. Replacement: When to Choose Which

Deciding whether to repair or replace an aluminium panel is a critical decision that impacts the safety and integrity of the vehicle. While many dents in aluminium can be repaired, there are situations where replacement is the only safe option. Always, without exception, follow the Original Equipment Manufacturer (OEM) procedures and guidelines for the repairability of aluminium panels. These guidelines ensure a complete, safe, and quality repair.

Key considerations for repair versus replacement include:

• Panel Attachment Methods: If a panel is attached using a combination of rivets and adhesive, repairs in these areas could weaken the joint, potentially compromising its designed performance.
• Flange Damage: If the attachment flange of a panel is significantly damaged, it often necessitates panel replacement. This may require specialised tools for re-attachment and, if the panel was previously replaced, there might not be enough material on the flange to drill new rivet holes. In such cases, inner panels might also need replacement in addition to the damaged outer panel.
• Severity of Damage: Deep creases, sharp folds, or extensive stretching can render an aluminium panel unrepairable, as attempting to fix it might compromise the material's structural integrity or lead to an unacceptable finish.
• Previous Repairs: A panel that has undergone multiple previous repairs might have fatigued material or weakened attachment points, making further repair ill-advised.

Avoiding Pitfalls and Ensuring Quality

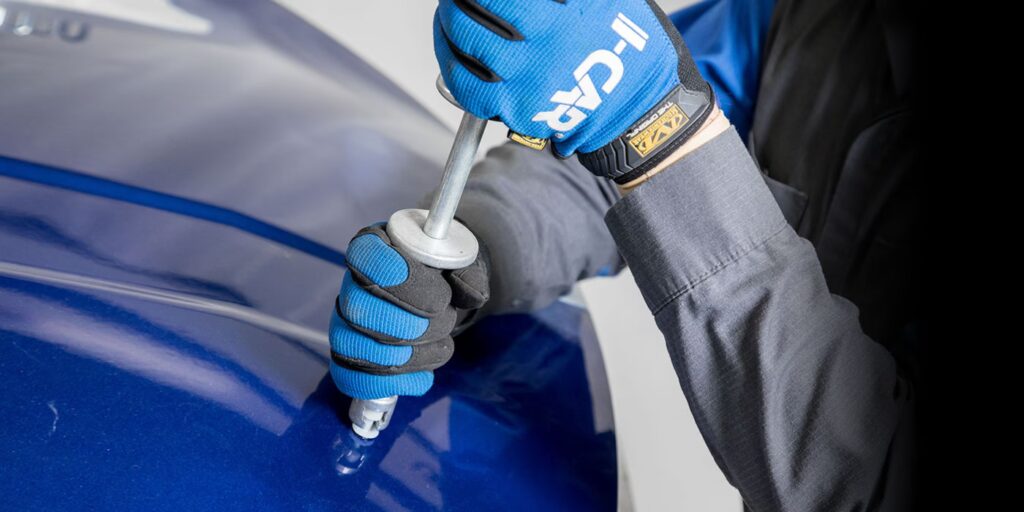

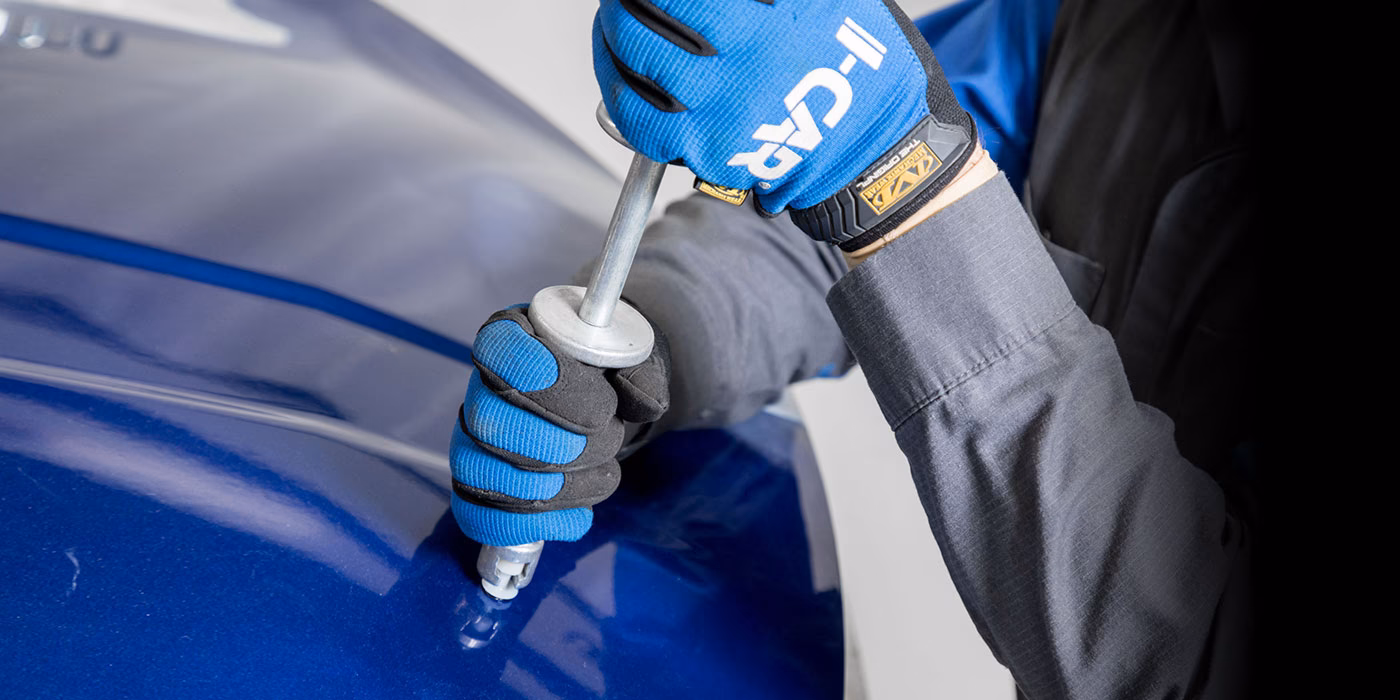

An aluminium panel can be damaged during the repair process if proper techniques are not followed. It's important to leave as much of the topcoat intact as possible to prevent unwanted exposure or contamination of the bare aluminium. If body filler is required, block down the topcoat no further than the epoxy primer layer. This provides a stable, protected surface for filler adhesion.

Adherence to OEM procedures is not just a recommendation; it's a necessity. These procedures detail everything from the type of welding wire to use, to specific heating temperatures, and even the number and type of rivets required for re-attachment. Ignoring these guidelines can compromise the vehicle's structural integrity and safety features.

Comparative Glance: Aluminium vs. Steel Repair

Frequently Asked Questions (FAQs)

Is repairing aluminium car body panels more difficult than steel?

Not necessarily more difficult, but it requires different equipment, techniques, and a distinct understanding of the material's properties. Once these differences are understood and accounted for, aluminium repair can be just as efficient.

Why does aluminium 'work harden' when damaged or straightened?

Work hardening occurs because the crystalline structure of the metal is deformed during the denting or straightening process. This deformation creates dislocations within the crystal lattice, which impede further movement, making the material stiffer and stronger. Understanding this helps in planning how much force and heat to apply.

What is galvanic corrosion and how can it be prevented in aluminium repairs?

Galvanic corrosion is an electrochemical process where one metal corrodes preferentially when it's in electrical contact with a different type of metal and both are immersed in an electrolyte (like water). For aluminium, contact with steel is a common culprit. To prevent it, ensure all tools used on aluminium are dedicated to aluminium (no cross-contamination with steel), and thoroughly clean the repair area before and after work to remove any foreign particles.

Why is applying heat so crucial for aluminium dent repair?

Heat helps to relieve the internal stresses in the aluminium that are locking the dent into place. It makes the metal more malleable, allowing it to be manipulated back into shape more easily and reducing the risk of cracking or overstretching. It also helps to prevent the material from 'springing back' once it's been worked.

Can I use my existing steel dent pulling welder for aluminium panels?

No, absolutely not. Steel dent pulling welders operate on different current outputs and principles that are incompatible with aluminium. Attempting to use a steel welder on aluminium will likely result in failed welds, damage to the panel, or even damage to your equipment. Specialised capacitor-discharge or drawn arc welders are required for aluminium.

What are the signs that an aluminium panel should be replaced rather than repaired?

Key indicators for replacement include significant damage to the panel's attachment flanges, deep and sharp creases that indicate severe material stretching, or if the panel has been compromised in an area critical for structural integrity or safety. Always consult OEM repair procedures to make the final decision.

By mastering these techniques and understanding the unique properties of aluminium, you can confidently and effectively repair modern car body panels, ensuring both a high-quality finish and the structural integrity of the vehicle.
