Air suspension systems offer a superior driving experience, providing a comfortable ride and adjustable ride height. However, like any complex automotive component, they can be susceptible to leaks. A leaking air suspension can lead to a host of problems, from an uneven stance to a complete failure of the system, potentially impacting ride quality and even safety. Fortunately, recognising the signs of a leak is often straightforward if you know what to look for. This guide will delve into the common causes and indicators of air suspension leaks, empowering you to identify and address them promptly.
Understanding How Air Suspension Works (Briefly)
Before we dive into leaks, it's helpful to understand the basic principle. Air suspension systems use an air compressor to pump air into flexible rubber bags, known as air springs or air bags. These bags replace traditional coil springs. As air is pumped in, the bags inflate, lifting the vehicle and absorbing road imperfections. A control unit monitors the vehicle's height and adjusts the air pressure in the bags as needed. Pressure sensors play a crucial role; if the system's pressure sensor detects an inability of the pump to build adequate pressure, it will interpret this as a leak and often shut down the system to prevent further damage to the compressor.
Common Signs of an Air Suspension Leak
The most obvious symptom of a leaking air suspension is a noticeable drop in ride height, particularly when the vehicle is parked. Here are the key indicators:
- Uneven Stance: One corner of your vehicle may appear significantly lower than the others. This is a classic sign that the air spring on that particular corner has a leak.
- Vehicle Sagging: Over time, or even overnight, you might notice your vehicle sitting lower than usual. If the vehicle consistently sags when turned off, it strongly suggests a loss of air pressure.
- Bouncing or Rough Ride: When the air suspension isn't functioning correctly due to a leak, it can no longer effectively cushion the ride. You might experience a harsher, bouncier ride, similar to a vehicle with conventional springs.
- Constant Compressor Operation: If your air suspension compressor runs more frequently than usual, it's likely trying to compensate for lost air. This can lead to premature wear on the compressor and is a strong indicator of a leak somewhere in the system.
- Warning Lights: Modern vehicles with air suspension typically have an illuminated warning light on the dashboard indicating a fault with the system. This light is your vehicle's way of telling you something is wrong.
- Audible Hissing Sounds: In some cases, you might hear a faint hissing sound when the vehicle is parked. This can be the sound of air escaping from a compromised component.
Where to Look for Leaks: Common Culprits
When diagnosing a leak, it's best to start with the most common failure points:
1. Air Lines and Fittings

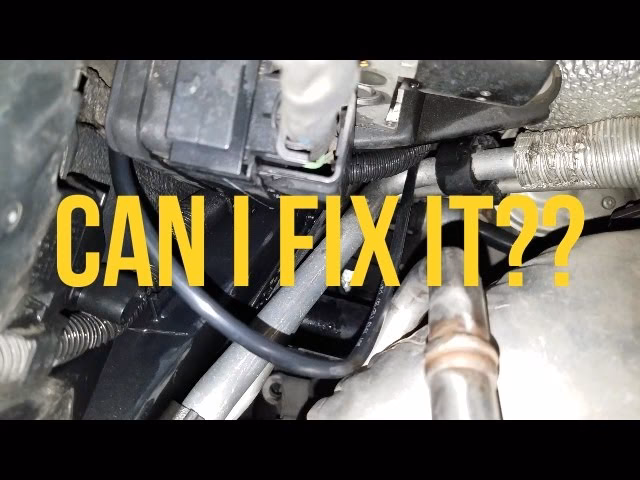

The air lines are the flexible hoses that carry compressed air from the compressor to the air springs. Over time, these lines can become brittle, cracked, or chafed due to vibration or contact with road debris. The fittings that connect these lines to the various components are also common leak points. These can loosen or the seals within them can degrade.
What to check: Visually inspect all visible air lines for cracks, abrasions, or signs of rubbing. Gently wiggle the fittings to see if they feel loose. Listen closely for any hissing sounds near the connections.
2. Air Springs (Air Bags)
The air springs themselves are made of rubber and are designed to withstand significant pressure. However, they can degrade over time due to exposure to road salt, moisture, and UV rays. Cracks, splits, or punctures in the rubber can lead to leaks. Small objects on the road can also cause damage.
What to check: Inspect the air bags for any visible tears, cracks, or bulges. Look for signs of abrasion or damage on the surface. Sometimes, leaks are not immediately obvious and may only appear under pressure.
3. Air Reservoir (Air Tank)
Some air suspension systems utilise an air reservoir or tank to store compressed air. Like the air lines, the tank itself can develop cracks or corrosion, and its seals and fittings can also be sources of leaks.
What to check: Inspect the reservoir for any signs of corrosion, cracks, or damage. Check all connection points for leaks.
4. Solenoid Valves
The solenoid valves control the flow of air to and from each air spring. These intricate components can fail, leading to leaks. A faulty valve might remain partially open, allowing air to escape when it should be sealed.
What to check: Listen for hissing sounds around the valve block, which is typically located near the compressor or under the vehicle. Inspect the valve block for any visible damage or corrosion.
5. Compressor Seals
While less common as a direct leak source that causes the vehicle to sag, the compressor itself can have internal seals that fail, leading to a loss of pressure build-up. However, the primary indicator here would be the compressor running constantly without the vehicle rising.
DIY Leak Detection Methods
If you suspect a leak but can't visually identify it, you can try a few DIY methods:
The Soapy Water Test
This is a classic and effective method for pinpointing leaks.
- Mix a solution: Combine dish soap with water in a spray bottle. A ratio of 1 part soap to 4 parts water is usually sufficient.
- Inflate the system: Ensure your air suspension is fully inflated. You might need to run the compressor or drive the vehicle for a short period.
- Spray the components: Generously spray the soapy water solution onto all the air lines, fittings, air springs, and the air reservoir.
- Look for bubbles: If there is a leak, the escaping air will create bubbles in the soapy water, clearly indicating the source of the problem.
Listening Carefully
With the engine off and the vehicle parked, listen intently for any faint hissing sounds. Sometimes, a leak is subtle enough that only your ears can detect it.
Observing Height Changes
Park your vehicle on a level surface and note its current ride height. Check it again after a few hours or overnight. If you observe a significant drop, you have a leak.
When to Call a Professional
While some leaks can be identified and even repaired by a competent DIYer, others require specialised knowledge and tools. You should consider professional help if:
- You cannot locate the source of the leak.
- The leak is in a difficult-to-access area.
- You suspect a faulty solenoid valve or compressor issue.
- You are not comfortable working with pressurised air systems.
A qualified mechanic will have the necessary equipment to accurately diagnose and repair air suspension leaks, ensuring your vehicle's system is restored to full functionality.
Repairing Air Suspension Leaks
The repair process will depend entirely on the source of the leak:
- Loose Fittings: Tightening a loose fitting might resolve the issue.
- Damaged Lines: Damaged air lines can often be replaced. Some systems allow for splicing, but full replacement is generally recommended for reliability.
- Split Bags: A split or punctured air spring (air bag) will require replacement. This is a common repair for older systems.
- Faulty Valves/Compressor: These components will need to be diagnosed and replaced by a professional.
It's crucial to use high-quality replacement parts specifically designed for your vehicle's air suspension system. Using incorrect parts can lead to further problems or premature failure.
Preventative Measures
While you can't always prevent leaks, some steps can help prolong the life of your air suspension system:
- Regular Inspections: Periodically check the air lines and bags for obvious damage or wear.
- Avoid Road Debris: Try to avoid driving over sharp objects or through areas with excessive road debris.
- Proper Maintenance: Ensure your vehicle's general maintenance is up-to-date, as other issues can sometimes indirectly affect the air suspension.
Frequently Asked Questions (FAQs)
Q1: How long does an air suspension leak take to become noticeable?
It can vary greatly. Some leaks are so severe they cause immediate sagging, while very small leaks might only cause a slight drop overnight or over several days.
Q2: Can I drive with a leaking air suspension?
It's not recommended. A significant leak can cause the compressor to overwork and fail, and an uneven ride height can affect handling and tyre wear. A very minor leak might be drivable for short periods, but it's best to get it checked.
Q3: Is air suspension expensive to repair?
Repair costs can vary. Replacing a simple air line or tightening a fitting is relatively inexpensive. However, replacing air springs, solenoids, or the compressor can be a significant investment.
Q4: My car is sitting low, but I don't hear any hissing. What could it be?
It could be a very slow leak that's not audible, a faulty sensor, a malfunctioning control module, or a problem with the compressor not building pressure correctly. A diagnostic scan is often needed.
Q5: Can I convert my air suspension to conventional springs?
Yes, it is possible to convert, but it's often a complex and costly process. It's usually more cost-effective to repair the existing air suspension system if possible.
In conclusion, a healthy air suspension system is key to enjoying the benefits of this advanced technology. By understanding the common signs and symptoms of leaks and knowing where to look, you can be proactive in maintaining your vehicle's comfort and performance. Don't ignore those warning lights or sagging corners – address air suspension leaks promptly to avoid more costly repairs down the line.
