AC Compressor Clutch: Diagnosis and Fixes

The sudden failure of your car's air conditioning system can be a real inconvenience, especially during warmer months. When your AC stops blowing cold air, one of the primary culprits to investigate is the AC compressor clutch. This vital component acts as the on-off switch for your AC system, engaging and disengaging the compressor itself. If this clutch isn't working, your AC compressor won't spin, meaning no cold air. This article will delve into the common reasons why your AC compressor clutch might not be engaging, what its function is, how to diagnose the problem, and the steps you can take to fix it, ensuring you stay cool and comfortable on the road.

What Does the AC Compressor Clutch Do?

At its core, the AC compressor clutch is a mechanical coupling. It connects the engine's drive belt (usually the serpentine belt) to the AC compressor's pulley. When the clutch is engaged, it transfers the engine's rotational power to the compressor, allowing it to circulate refrigerant and produce cold air. When the AC system is turned off, or when certain conditions are met (like low refrigerant pressure), the clutch disengages, stopping the compressor from spinning. This is typically achieved through an electromagnetic coil within the clutch assembly. When power is supplied to the coil, it creates a magnetic field that pulls a drive plate forward, meshing it with the pulley and the compressor's internal components. When the power is cut, the magnetic field dissipates, and the clutch disengages.

Common Causes for a Non-Engaging AC Compressor Clutch

Several factors can prevent your AC compressor clutch from engaging. Understanding these can help pinpoint the issue:

Incorrect Refrigerant Levels

Modern AC systems have built-in safety mechanisms, often involving pressure switches. If the refrigerant level is too low or too high, these switches will prevent the clutch from engaging to protect the system's components. Low refrigerant typically indicates a leak, while overcharging can also cause issues. The pressure switches monitor the system's pressure, and if it falls outside the operational parameters, they signal the car's computer (ECU) to disengage or prevent engagement of the clutch.

Damaged or Worn Clutch Components

Like any mechanical part, the AC compressor clutch can wear out over time. The friction material on the clutch plate can become worn, reducing its ability to grip the pulley. In some cases, the clutch might slip intermittently before failing to engage altogether. Older vehicles or those with heavy AC usage are more prone to this. Sometimes, the clutch coil itself can fail, meaning it won't generate the necessary magnetic field to pull the drive plate into engagement.

Faulty High or Low AC Pressure Switches

These switches are critical for regulating the AC system's operation. The low-pressure switch prevents the compressor from running when refrigerant pressure is too low (indicating a leak or insufficient charge), while the high-pressure switch prevents engagement if the pressure becomes excessively high (which could be caused by a blockage or overcharging). If either of these switches malfunctions, it can send an incorrect signal, causing the clutch to remain disengaged even when system pressures are within normal limits.

Bad Electrical Connections or Wiring

The AC compressor clutch relies on a constant electrical supply. Corroded, loose, or damaged wiring and connectors can interrupt this power flow. A break in the power wire leading to the clutch coil, or a poor ground connection, will prevent the clutch from receiving the necessary voltage to engage. A thorough inspection of the wiring harness leading to the compressor clutch is essential.

Blown Fuse

The AC system, including the compressor clutch, is protected by fuses. If there's an electrical fault or a sudden surge in voltage, a fuse can blow to protect the more expensive components of the system. A blown fuse for the AC clutch circuit will obviously prevent the clutch from receiving power and engaging. Locating the correct fuse in your vehicle's fuse box and checking its continuity is a straightforward diagnostic step.

Faulty or Leaking Evaporator Coil

While less direct, a problem with the evaporator coil can indirectly affect clutch engagement. The evaporator coil is where the refrigerant absorbs heat from the cabin. If it's faulty or leaking, it can lead to significant refrigerant loss and pressure issues, triggering the pressure switches to prevent compressor operation. Symptoms might include a hissing sound or a musty odour from the vents.

Diagnosing a Non-Engaging AC Compressor Clutch

Diagnosing the problem requires a systematic approach:

Visual Inspection

Start the engine and turn the AC system to its coldest setting and highest fan speed. Open the bonnet and locate the AC compressor. Observe the clutch assembly. The outer pulley should be spinning with the serpentine belt. If the pulley spins but the central part of the clutch (the part that engages the compressor shaft) is stationary, the clutch is not engaging. Check the condition of the serpentine belt for wear or tension issues. Look for any obvious signs of damage or corrosion around the clutch and its wiring.

Check for Power at the Clutch

Using a multimeter, you can check if voltage is reaching the clutch coil. With the engine running and AC on, disconnect the electrical connector at the compressor clutch. Measure the voltage between the positive terminal of the connector and a good ground. You should typically see around 12-14 volts. If there is no voltage, the problem lies further up the electrical circuit (fuse, relay, pressure switches, or wiring).

Test Pressure Switches

If voltage is present at the clutch connector but it still doesn't engage, the clutch coil or the clutch itself might be faulty. However, if there's no voltage at the clutch, you'll need to test the pressure switches. This often requires a repair manual for your specific vehicle to know the correct resistance or continuity values for the switches at different pressures. Some advanced diagnostic tools can also read pressure sensor data.

Check Fuses and Relays

Consult your owner's manual to locate the fuse and relay for the AC compressor clutch. Visually inspect the fuse for continuity. If it's blown, replace it with one of the same amperage. If the fuse blows again immediately, there's an underlying electrical short that needs to be addressed.

Refrigerant Level Check

If you suspect incorrect refrigerant levels, a professional with the right equipment can safely check and adjust the charge. DIY refrigerant recharge kits are available, but improper use can cause further damage.

How to Fix a Failing AC Compressor Clutch

The fix depends on the diagnosed cause:

Addressing Refrigerant Issues

If the refrigerant level is incorrect, it needs to be serviced. For low refrigerant, a leak must be found and repaired before recharging the system. For overcharging, the excess refrigerant needs to be recovered. This is best left to a qualified technician.

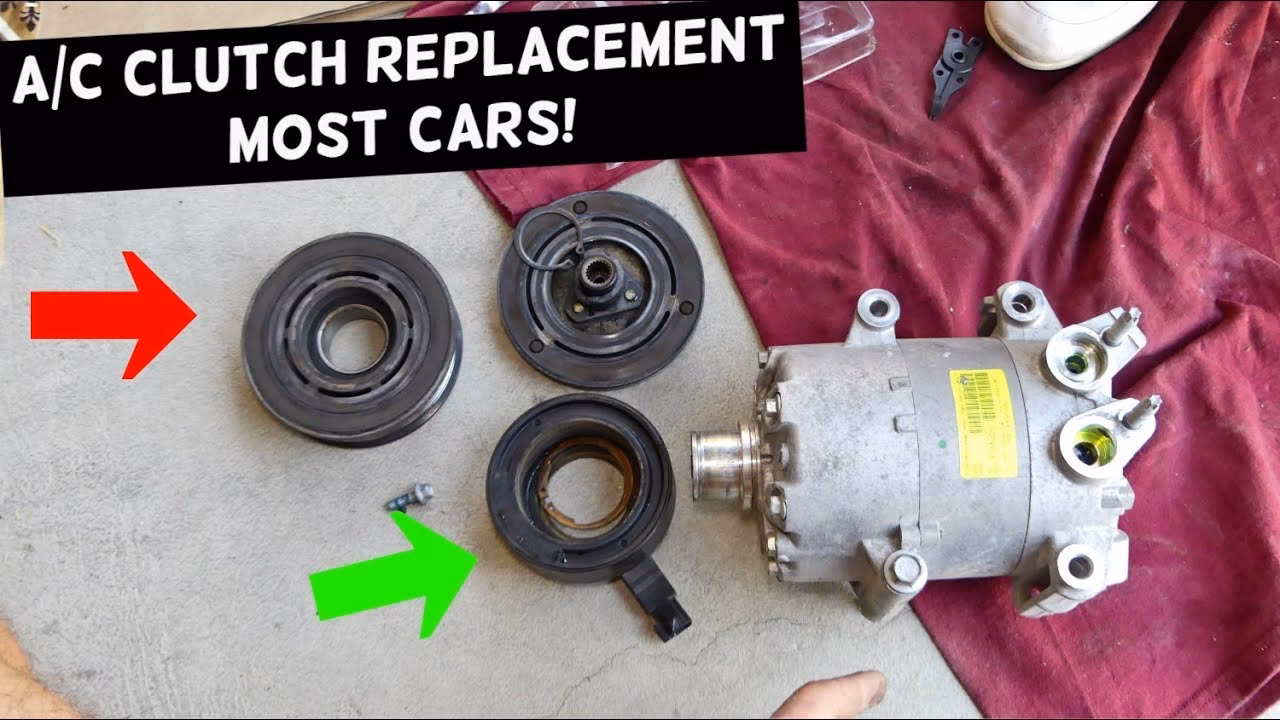

Replacing Worn Clutch Components

In some cases, only the clutch assembly (including the coil and plate) can be replaced without removing the entire compressor. However, many mechanics find it more cost-effective and reliable to replace the entire compressor unit when the clutch fails, especially on older vehicles. This is because the compressor itself might be nearing the end of its life, and the labour involved in replacing just the clutch can be substantial.

Replacing Faulty Switches

If a pressure switch is found to be faulty, it needs to be replaced. This is a relatively straightforward repair, but it requires careful handling of the refrigerant system to avoid significant loss.

Repairing Electrical Issues

Corroded or damaged wiring should be repaired or replaced. This might involve cleaning terminals, re-crimping connections, or splicing in new sections of wire.

Replacing Blown Fuses

A blown fuse is a simple replacement. However, if it blows repeatedly, the underlying electrical fault must be identified and rectified.

Jump-Starting the Clutch (Cautionary Note)

While it's possible to manually 'jump-start' the clutch by applying direct power to the coil (using a bypass wire from the battery), this is generally not recommended for DIYers. Incorrect wiring can damage the clutch coil, compressor, or other electrical components. It's primarily a diagnostic tool for professionals to confirm if the clutch itself is functional when supplied with adequate power.

Cost of AC Compressor Clutch Replacement

Replacing an AC compressor clutch typically involves replacing the entire compressor unit. The cost can range from £500 to £1200, depending on the vehicle make and model, and the labour rates in your area. The parts alone might cost £300-£700, with the remainder being labour. The process often takes 2-3 hours. Prices can vary significantly between rural and urban garages, and between different mechanics.

Is it Worth Replacing Just the Clutch?

Generally, no. Most modern garages and mechanics will advise against replacing just the clutch. The labour involved is often similar to replacing the whole compressor, and if the clutch has failed, it's often a sign that the compressor itself is nearing the end of its lifespan. Replacing the entire unit upfront, though more expensive, usually prevents future issues and offers better long-term value and peace of mind.

Can You Drive with a Bad AC Compressor Clutch?

You can usually drive your car with a faulty AC compressor clutch. However, if the clutch is seized (stuck in the engaged position), it can cause the serpentine belt to slip or even break, which would disable not only your AC but also other essential components like the alternator and water pump, leading to more serious problems. It's best to get it repaired promptly.

Frequently Asked Questions

What causes an AC compressor clutch to burn out?

A burnt clutch is often caused by electrical issues, such as a faulty AC relay or pressure switch that provides incorrect voltage to the clutch coil, or prolonged slipping due to a worn clutch. Overheating from excessive friction can also lead to burnout.

How long does an AC compressor clutch last?

The lifespan of an AC compressor clutch can vary greatly depending on usage and driving conditions. However, they are a wear item. While a compressor might last 10-12 years, the clutch, being a mechanical component subjected to significant friction and electrical current, may fail sooner. It's not uncommon for a clutch to last many years, but it's also a common failure point.

What if my AC compressor clutch is making noise?

Noises from the clutch area, such as grinding, squealing, or rattling, often indicate worn bearings within the clutch or pulley assembly, or the clutch itself is damaged. This is a clear sign that replacement is necessary.

Keeping your car's air conditioning system in good working order is crucial for comfort. If you suspect your AC compressor clutch isn't engaging, a thorough diagnosis is key. While some issues can be simple fixes like a blown fuse, others, like worn internal components or refrigerant leaks, might require professional attention. Don't hesitate to consult a qualified mechanic if you're unsure about diagnosing or repairing your car's AC system.
