Battery Vent Tube Connection Guide

Understanding Your Car Battery and Ventilation

When it comes to maintaining your vehicle's battery, one often overlooked but crucial aspect is proper ventilation. Car batteries, particularly lead-acid types, can produce hydrogen gas as a byproduct of the charging process. This gas is highly flammable and, if allowed to build up in an enclosed space, can pose a significant safety risk. This is where the battery vent tube comes into play. Connecting a vent tube correctly ensures that any potentially hazardous gases are safely expelled away from the battery compartment and the vehicle's occupants. This article will guide you through the process of connecting a battery to a vent tube, explaining the why, what, and how, ensuring your safety and the longevity of your battery.

Why is Battery Ventilation Important?

The primary reason for battery ventilation is safety. Lead-acid batteries undergo a process called electrolysis during charging. When the battery is being charged, water in the electrolyte solution can be broken down into hydrogen and oxygen gases. Hydrogen gas, in particular, is extremely flammable. In a confined space, such as a battery box or under the bonnet (hood) of a car, these gases can accumulate. A single spark, perhaps from a loose connection or static electricity, can ignite this hydrogen, leading to a battery explosion. Such an explosion can spray corrosive battery acid and shrapnel, causing severe injury and damage.

Beyond safety, proper ventilation also contributes to the longevity of your battery. While modern batteries are designed to be more robust, prolonged exposure to high internal temperatures and gas buildup can degrade the battery's internal components over time, reducing its overall lifespan and performance.

What is a Battery Vent Tube?

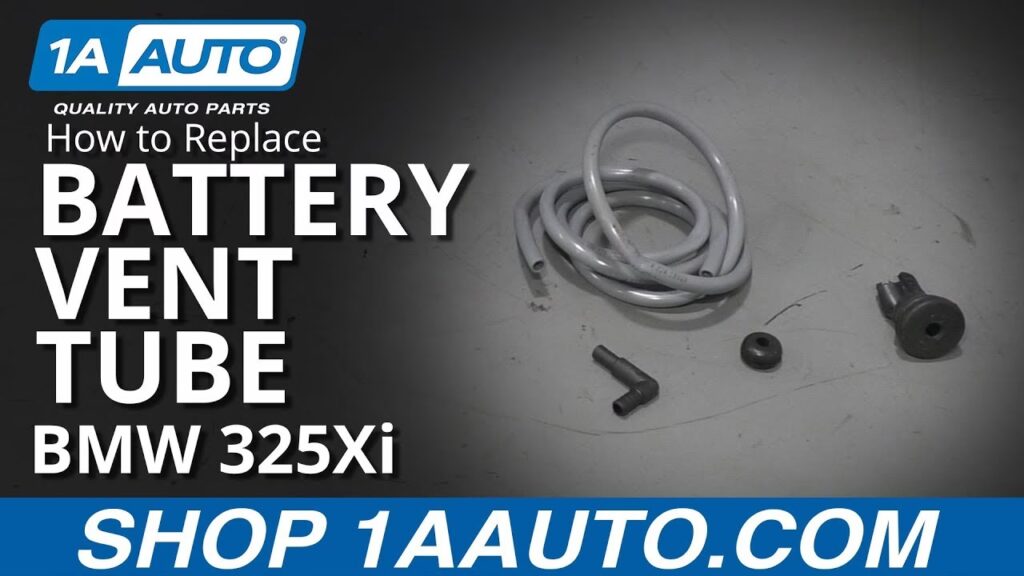

A battery vent tube, often referred to as a "breather tube" or "gaseous vent tube," is a simple yet vital component. It's typically a flexible plastic or rubber hose that attaches to a specific port on the battery casing. This port is designed to allow gases to escape. The other end of the tube is then routed to a safe location, usually outside the passenger cabin and away from potential ignition sources. The design ensures that any gases produced are directed away from the battery itself and the immediate vicinity.

When is a Vent Tube Necessary?

While not all vehicles or battery types strictly require a vent tube, it's particularly important for batteries that are:

• Sealed Maintenance-Free (SMF) Batteries with Vents: Even some "maintenance-free" batteries have specific venting ports designed for external venting, especially if they are subjected to higher charging voltages or temperatures.
• Batteries Located Inside the Passenger Cabin or Boot (Trunk): If your battery is situated within the vehicle's interior, near occupants, a vent tube is absolutely essential to prevent the accumulation of flammable gases. Older vehicles or certain specialist vehicles might have batteries located in these positions.
• Deep Cycle Batteries: These batteries, often used in recreational vehicles (RVs) or boats, can produce more gas during frequent or prolonged charging cycles.
• Batteries Exposed to High Temperatures: Batteries operating in hot climates or in poorly ventilated engine bays can experience increased gas production.

How to Connect a Battery Vent Tube: A Step-by-Step Guide

Connecting a battery vent tube is a straightforward process, but it requires attention to detail to ensure it's done correctly and safely. Here’s how:

Step 1: Identify the Vent Port(s) on the Battery

Inspect your battery carefully. You'll typically find one or two small plastic nipples or ports on the top or side of the battery casing. These are the designated vent ports. If your battery has two ports, they are usually connected by an internal bridge that can be broken to allow gas to flow to a single exit point. Some batteries come with a removable "bridge" or "plug" that needs to be taken out to allow for vent tube connection.

Step 2: Obtain the Correct Vent Tube and Fittings

You'll need a vent tube of appropriate diameter to fit snugly onto the battery's vent port. Many battery manufacturers supply a suitable vent tube and a connector with their batteries, especially those designed for internal cabin placement. If not, you can purchase universal battery vent tubes from automotive parts stores. Ensure the material is resistant to battery acid and temperature fluctuations.

Step 3: Prepare the Battery (if necessary)

If your battery has a removable bridge between two vent caps, carefully remove the bridge. Sometimes, this involves gently prying it out or unscrewing it. Ensure you don't damage the surrounding plastic. If there are individual vent caps, you'll likely remove the cap from one of the ports (or both if they are designed to be vented separately, though this is less common for a single tube connection).

Step 4: Attach the Vent Tube to the Battery Port

Take the flexible vent tube and firmly push one end onto the identified vent port on the battery. It should create a tight seal. If you have a specific connector supplied by the battery manufacturer, attach that to the port first, and then connect the tube to the connector. A secure connection is crucial to prevent gas leakage.

Step 5: Route the Vent Tube to a Safe Location

This is perhaps the most critical step. The other end of the vent tube needs to be routed away from the battery, the engine compartment, and most importantly, the passenger cabin. Ideally, the tube should terminate with an open end pointing downwards or outwards, allowing gases to dissipate safely into the atmosphere. Common routing paths include:

• Following existing wiring harnesses or fuel lines, securing the tube with cable ties (ensure it doesn't interfere with moving parts).
• Directing it through a grommet in the vehicle's bulkhead or firewall to the exterior of the car.
• Ensuring the end of the tube is not blocked by mud, debris, or anything that could impede gas flow.

Crucially, never route the vent tube into the air intake system, the exhaust system, or anywhere that could direct the flammable gas back into the vehicle or create a fire hazard.

Step 6: Secure the Vent Tube

Use appropriate cable ties or clips to secure the vent tube along its routed path. This prevents it from dangling, getting caught on moving engine components, or becoming a trip hazard. Ensure the tube has enough slack to allow for engine movement and vibration without stressing the connection points.

Step 7: Double-Check Your Work

Before closing up the battery compartment or starting the engine, take a moment to review your work. Ensure the tube is securely attached to the battery, it's routed safely, and the end is clear. Check that there are no kinks in the tube that could restrict airflow.

Common Mistakes to Avoid

When connecting a battery vent tube, several common errors can undermine its effectiveness and safety:

• Incorrect Routing: Directing the tube into the cabin or an enclosed engine bay space.
• Poor Seal: Not ensuring a tight fit on the battery port, leading to gas leaks.
• Blocked End: Allowing the tube's exit point to become blocked by dirt, debris, or being tucked into a confined space.
• Using the Wrong Material: Employing a tube that degrades when exposed to battery acid or extreme temperatures.
• Ignoring the Battery Manufacturer's Instructions: Always consult your specific battery's manual for any unique installation requirements.

Battery Venting Options Comparison

Here’s a quick look at different scenarios and the venting solutions:

Frequently Asked Questions (FAQs)

Q1: Do all car batteries need a vent tube?
Not all, but it's highly recommended for any battery located in or near the passenger compartment, or for batteries that may experience higher gas production due to usage or environmental conditions. Many modern batteries in standard engine bay locations are designed to handle minimal gas internally or have sealed designs that don't require external venting.

Q2: Can I use any type of hose for a vent tube?
No, it's crucial to use a hose specifically designed for battery venting or a material that is resistant to battery acid and temperature extremes. Standard fuel line or vacuum hoses might not be suitable long-term.

Q3: How do I know if my battery has vent ports?
Look for small plastic nipples or openings on the top or sides of the battery casing. Often, these will have removable caps or a plastic bridge connecting two ports that needs to be broken or removed for venting.

Q4: What happens if I don't connect a vent tube when it's needed?
There is a risk of flammable hydrogen gas accumulating in the vehicle's cabin or battery compartment, which could lead to an explosion if ignited by a spark.

Q5: Should the end of the vent tube be filtered?
Generally, no. The purpose is to allow gas to escape freely. Filters can become clogged, restricting ventilation. The key is routing it to a location where the dissipating gas poses no risk.

Conclusion

Properly connecting a battery vent tube is a simple yet vital maintenance task that significantly enhances vehicle and occupant safety. By understanding the risks associated with hydrogen gas production and following the steps outlined above, you can ensure your battery is vented correctly. Always prioritize safety, consult your vehicle and battery manuals, and if in doubt, seek professional advice. A well-vented battery is a safer battery.
