The clutch master cylinder is a vital component in your vehicle's manual transmission system, responsible for converting the force from your foot on the clutch pedal into hydraulic pressure. This pressure then travels through the clutch fluid to the slave cylinder, disengaging the clutch so you can change gears. Over time, like any part of a car, the clutch master cylinder can wear out or develop leaks, necessitating its replacement. A common hurdle in this process is the removal of the clutch master cylinder retaining nuts, which secure the cylinder to the bulkhead. This guide will walk you through the process, offering clear instructions and helpful tips to make the job as straightforward as possible.
Understanding the Clutch Master Cylinder

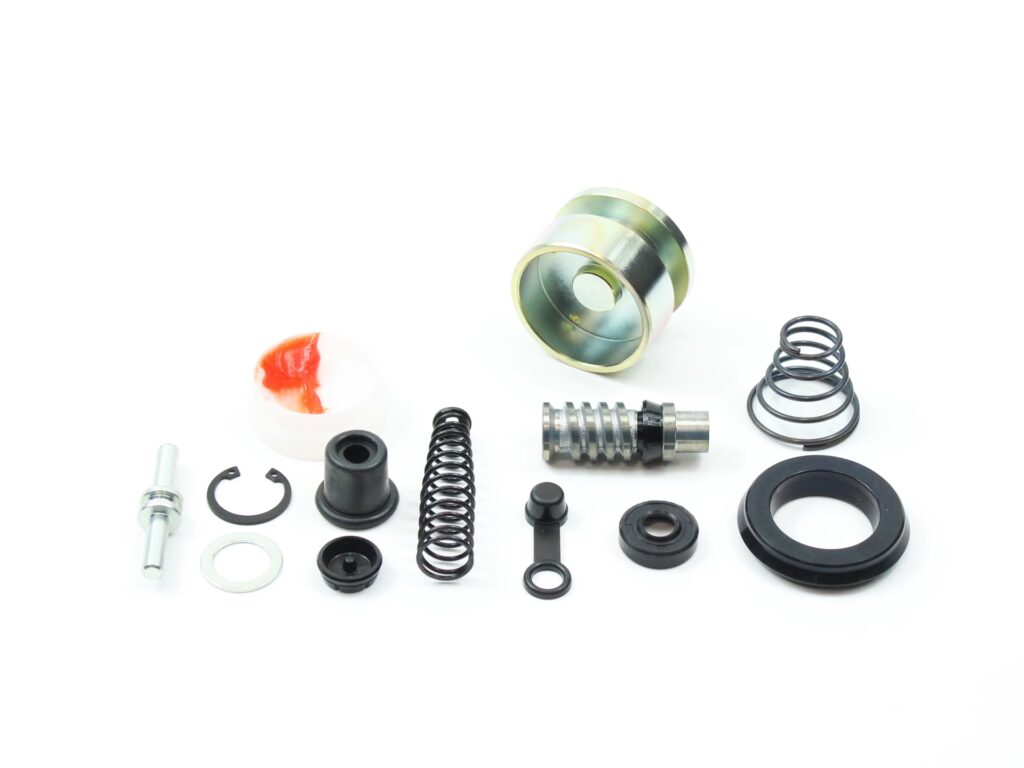

Before diving into the removal process, it's beneficial to understand the basic function and location of the clutch master cylinder. Typically, it's mounted on the bulkhead (firewall) of the vehicle, often behind the brake master cylinder. It has a reservoir for clutch fluid and a pushrod that connects to the clutch pedal. When you press the pedal, the pushrod moves an internal piston, pressurising the fluid. The retaining nuts are what hold the entire unit firmly in place against the bulkhead.
Tools and Preparation
Gathering the correct tools and preparing your workspace is crucial for a successful and safe repair. For removing the clutch master cylinder retaining nuts, you will likely need:
- A suitable socket set, including metric and imperial sizes depending on your vehicle. The retaining nuts are often a specific size, so having a range is beneficial.
- A ratchet wrench.
- A breaker bar, if the nuts are particularly stubborn.
- A drain pan or container to catch any spilled clutch fluid.
- Gloves and eye protection to safeguard yourself from the hydraulic fluid.
- A syringe or turkey baster for fluid removal.
- A wire brush for cleaning threads if necessary.
- Penetrating oil, such as WD-40, for loosening rusted or seized nuts.
Ensure your vehicle is parked on a level surface and the engine is cool. Engaging the handbrake and placing wheel chocks is also a wise safety precaution.
Step-by-Step Removal Process
Step 1: Disconnect the Pushrod
The first step in removing the clutch master cylinder is to disconnect its pushrod from the clutch pedal linkage. This is usually achieved by removing a clevis pin. Look for a small pin, often secured with a cotter pin or clip, that passes through a hole in the pedal arm and connects to the end of the master cylinder's pushrod. Carefully remove the cotter pin or clip, and then pull out the clevis pin. Once the pin is removed, you should be able to gently pull the pushrod away from the pedal arm.
Step 2: Drain the Clutch Fluid
Before you can fully remove the master cylinder, it's essential to drain the clutch fluid from the reservoir. Use a syringe or turkey baster to carefully remove as much fluid as possible from the reservoir. Place the removed fluid into a suitable container for proper disposal. Clutch fluid is hygroscopic, meaning it absorbs moisture from the air, which can degrade its performance and lead to corrosion. It's also important to prevent spillage, as clutch fluid can damage paintwork.
Step 3: Locate and Access the Retaining Nuts
With the pushrod disconnected and the fluid drained, you can now focus on the retaining nuts. These nuts are typically located on the engine side of the bulkhead, where the master cylinder body passes through. You may need to get underneath the dashboard or work in the engine bay to access them, depending on your vehicle's layout. Sometimes, a plastic cover or boot might be in the way, which will need to be removed first.
Step 4: Unscrew the Retaining Nuts
This is the core step of the operation. Identify the nuts securing the master cylinder to the bulkhead. There are usually two nuts. Select the appropriate socket and ratchet wrench. If the nuts are tight or corroded, apply some penetrating oil and let it soak for a few minutes before attempting to loosen them. Work slowly and apply steady pressure. If a standard socket isn't fitting well due to the confined space, you might need a deep socket or a universal joint adapter for your wrench. If the nuts are extremely stubborn, a breaker bar can provide the necessary leverage. Be careful not to overtighten if you're trying to loosen them, as this could strip the threads.
Important consideration: Some vehicles might use bolts instead of nuts, or a combination of both. Always identify the correct fasteners before applying force.
Step 5: Remove the Master Cylinder
Once the retaining nuts are completely unscrewed, the clutch master cylinder should be free from the bulkhead. Carefully manoeuvre the cylinder out of its mounting. Be prepared for a small amount of residual fluid to drip out, so keep your drain pan handy. You may need to wiggle the cylinder slightly to free it from any seals or mounting points.
Table: Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Retaining nuts are seized | Corrosion, rust, overtightening | Apply penetrating oil, use a breaker bar, ensure correct socket size. If threads are damaged, consider replacing fasteners. |
| Difficulty accessing nuts | Limited space, obstructions | Use a socket set with extensions, universal joints, or a stubby wrench. Remove any interfering components if necessary. |
| Pushrod difficult to disconnect | Corrosion, dirt, worn parts | Clean the area around the clevis pin. Apply penetrating oil. Use pliers to gently wiggle the pin out. |
| Fluid spills | Improper draining, damaged reservoir | Ensure reservoir is properly drained before removal. Use a drain pan. Clean spills immediately with a damp cloth. |
Frequently Asked Questions (FAQs)
Q1: How much clutch fluid should I remove?
A1: It's best to remove as much fluid as possible from the reservoir to minimise spillage during the master cylinder removal. A syringe or turkey baster is ideal for this.
Q2: What type of fluid do I need for my clutch?
A2: The type of clutch fluid varies by vehicle manufacturer. Always consult your vehicle's owner's manual or a reliable repair database to determine the correct type (e.g., DOT 3, DOT 4). Using the wrong fluid can damage the clutch system.
Q3: Can I reuse the old retaining nuts?
A3: If the nuts are in good condition and not excessively corroded or damaged, they can often be reused. However, it's good practice to replace them, especially if they show signs of wear or if they were difficult to remove, to ensure a secure fit and prevent future issues.
Q4: What if the threads on the mounting studs are damaged?
A4: If the threads on the studs are damaged, you may need to replace the studs themselves. This can be a more involved process and might require specialised tools or professional assistance.

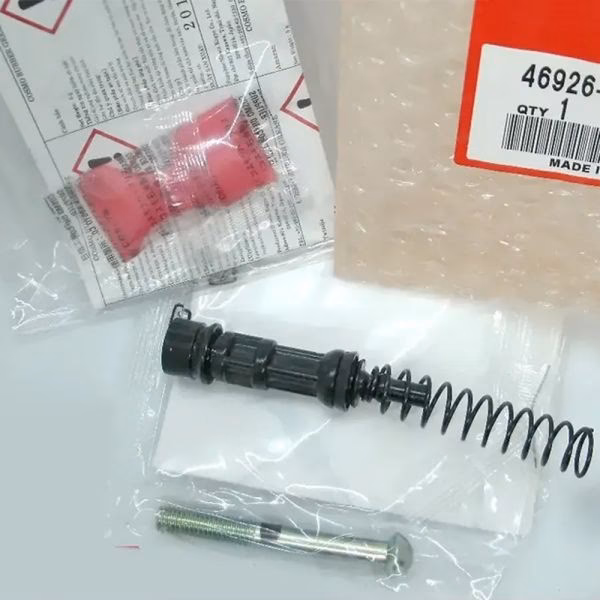

Post-Removal and Reinstallation Tips
Once the clutch master cylinder is removed, inspect the mounting area on the bulkhead for any damage or corrosion. Clean the area thoroughly. When installing the new or reconditioned master cylinder, ensure the mounting surfaces are clean and that the new seals (if any) are properly seated. Tighten the retaining nuts securely but avoid overtightening, which could damage the new cylinder or bulkhead. After installation, you will need to bleed the clutch system to remove any air that may have entered. This process involves refilling the reservoir with the correct fluid and then operating the clutch pedal while opening and closing a bleed nipple on the slave cylinder, typically with an assistant's help. Properly bleeding the system is crucial for the clutch to operate correctly.
Removing a clutch master cylinder retaining nut might seem daunting, but with the right tools and a methodical approach, it's a manageable task for most DIY enthusiasts. Always prioritise safety, take your time, and refer to your vehicle's specific service manual for any unique procedures or specifications. A successful removal is the first step towards restoring your clutch system's functionality.
