Fixing Cast Iron Barrel Fins: Welding vs. Brazing

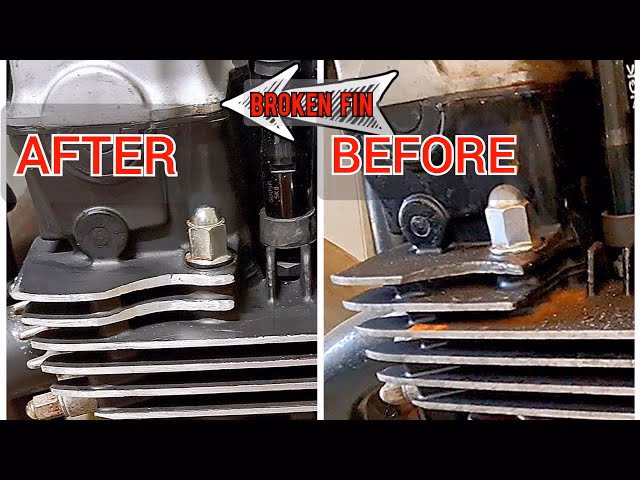

Repairing damaged components on classic machinery, particularly those made from cast iron, can often present a unique set of challenges. One common issue that enthusiasts and mechanics frequently encounter is a broken fin on a cast iron barrel. These fins are not merely decorative; they play a crucial role in heat dissipation, helping to keep engines and other machinery running at optimal temperatures. When one of these fins is damaged, it can compromise the performance and longevity of the entire unit. The immediate question that often arises is: can you simply weld a cast iron barrel fin back on? The answer, as with many things in the world of metalwork and classic automotive repair, is not a straightforward yes or no.

The Challenges of Welding Cast Iron

Cast iron is a notoriously difficult material to weld using conventional methods. Unlike steel, cast iron has a high carbon content. This high carbon content makes it brittle and prone to cracking when subjected to the rapid heating and cooling cycles associated with traditional welding processes. When you apply a high-temperature welding arc to cast iron, the area around the weld heats up rapidly, expands, and then contracts just as quickly as it cools. This uneven expansion and contraction creates immense stress within the material, often leading to cracks propagating from the weld zone, rendering the repair worse than the original damage.

Furthermore, cast iron can contain various impurities such as sulphur and phosphorus, which can further compromise weldability. These elements can segregate during cooling, creating weak points and increasing the susceptibility to cracking. Even with specialised welding techniques and filler materials designed for cast iron, achieving a successful and durable repair requires a deep understanding of the material's properties and meticulous preparation.

Alternative Repair Methods: Brazing and Specialised Fillers

Given the inherent difficulties of welding cast iron, mechanics and restorers often turn to alternative methods that are more forgiving of the material's nature. Two prominent techniques are brazing and the use of specialised cast iron filler rods.

Brazing Cast Iron

Brazing is a joining process that uses a filler metal with a melting point significantly lower than that of the base metals being joined. For cast iron, this means using filler materials that melt at temperatures below the critical point where cast iron becomes excessively brittle or prone to cracking. Common brazing materials for cast iron include:

• Nickel-based brazes: These are often highly effective for cast iron repairs. Nickel alloys have good wetting and bonding characteristics with cast iron, and they can tolerate some degree of differential expansion and contraction without failing.
• Brass brazes: Brass, an alloy of copper and zinc, can also be used for brazing cast iron. Brass fillers tend to be more economical than nickel-based fillers and can provide a strong bond. However, achieving a good bond with brass may require more careful preparation and fluxing.

The key advantage of brazing is that the base metal does not need to be melted. This means the overall heat input is much lower than with welding, significantly reducing the risk of thermal shock and subsequent cracking. However, brazing creates a bond that is generally not as strong as a true weld, and the appearance may differ from the original cast iron.

Using Cast Iron Filler Rods

While traditional welding rods for steel are unsuitable, there are specific filler rods designed for cast iron. One method, as mentioned in the provided information, involves using an old piston ring as a filler rod. Piston rings are typically made from a high-quality cast iron with good wear resistance. When used as a filler rod, it's not about creating a fusion weld in the same way you would with steel. Instead, it's more akin to a high-temperature brazing or fusion process that requires careful control.

The crucial element when attempting a repair with cast iron filler rods, especially for something like a fin, is the requirement for significant pre-heating. The entire component, or at least a substantial portion of it, needs to be heated to a high temperature – described as 'red hot' in the context of the original information. This extensive pre-heating ensures that the entire piece of cast iron expands uniformly before the repair is attempted. By bringing the entire barrel to a consistent high temperature, the localised heating and cooling stress at the point of repair is minimised. When the filler material is applied, it melts and fuses with the heated cast iron. As the entire component cools down slowly and uniformly, the risk of cracking is substantially reduced. However, this process demands careful temperature control throughout the heating, repair, and cooling stages.

The Importance of Pre-Heating and Slow Cooling

Regardless of whether you are attempting a repair with specialised cast iron filler rods or even some advanced welding techniques for cast iron, pre-heating and controlled cooling are paramount. For a cast iron barrel fin repair, this means:

• Thorough Cleaning: The area to be repaired must be meticulously cleaned to remove all dirt, grease, oil, and any loose or damaged material. Grinding back to clean, solid metal is essential.
• Pre-Heating: The entire barrel, or at least the section containing the fin, needs to be heated evenly to a temperature typically between 300°C and 650°C (572°F to 1202°F), depending on the specific type of cast iron and the repair method. This can be achieved using a large torch, a furnace, or a heating element. The goal is to make the entire area expand uniformly.
• The Repair: Once at temperature, the repair is carried out using the chosen filler material. The heat from the barrel should be sufficient to melt the filler rod without requiring excessive localised heat from the torch or welding apparatus.
• Slow Cooling: After the repair is completed, the component must be allowed to cool down as slowly and evenly as possible. This is often achieved by burying the hot component in an insulating material like dry sand, vermiculite, or a refractory blanket, or by placing it in a cooling oven. Rapid cooling, such as quenching with water or air, is the primary cause of cracking in cast iron repairs.

Is it Worth the Effort?

Repairing a broken cast iron barrel fin is not a task for the faint of heart or the inexperienced. It requires specialised knowledge, appropriate equipment, and a significant amount of patience. The success of the repair hinges on managing the thermal stresses inherent in cast iron. For many, particularly with valuable or critical components, the risk of failure and the extensive labour involved might make sourcing a replacement barrel a more practical and reliable option.

However, for enthusiasts who enjoy the challenge of restoration and possess the necessary skills, a successful repair can be incredibly rewarding. Understanding the nuances of cast iron, the benefits of brazing over welding, and the critical importance of proper pre-heating and slow cooling are the keys to achieving a lasting fix.
