Fixing Your Cracked Roof Cargo Box

Roof boxes are an indispensable accessory for many motorists, offering crucial extra space for luggage, sports equipment, and all manner of outdoor adventure essentials. However, like any component exposed to the elements and the rigours of travel, they can be susceptible to damage. A common issue faced by roof box owners is cracking. While a cracked roof box can seem like a trip-ender, it's often a fixable problem. This article will guide you through understanding why your roof box might crack, how to identify the severity of the damage, and, most importantly, how to repair it, ensuring your roof box continues to serve you reliably.

What Causes a Roof Box to Crack?

Several factors can contribute to the unfortunate appearance of cracks in your roof cargo box. Understanding these causes can help you prevent future damage:

• Overloading and Uneven Weight Distribution: This is a primary culprit. Exceeding the box's recommended weight limit or placing heavier items disproportionately on one side can put immense stress on the material, leading to cracks, especially around mounting points or seams.
• Environmental Factors: Prolonged exposure to UV radiation from the sun can degrade plastic over time, making it brittle and more prone to cracking. Extreme temperature fluctuations, causing the material to expand and contract repeatedly, can also introduce stress and lead to hairline fractures.
• Impacts and Accidents: Even minor incidents can cause damage. Low-hanging branches, accidental bumps against garage doors or other objects, or even a minor vehicle collision can result in cracks.
• Material Defects and Age: While less common, manufacturing flaws can exist. Over many years of use, the plastic or fibreglass material can naturally age and become less resilient, increasing the likelihood of cracks appearing.

Types of Roof Box Cracks

Not all cracks are created equal. Identifying the type of crack is crucial for determining the appropriate repair method:

Hairline Cracks

These are the most superficial and least concerning. They appear as very fine lines on the surface of the box and are often caused by UV exposure or minor thermal stress. While they don't typically compromise the structural integrity, they can allow water ingress if left untreated.

Minor Cracks

More substantial than hairline cracks, these may penetrate deeper into the material but are generally contained within a single area. They might be a result of moderate impacts or overloading. These cracks can potentially affect the box's strength and watertightness.

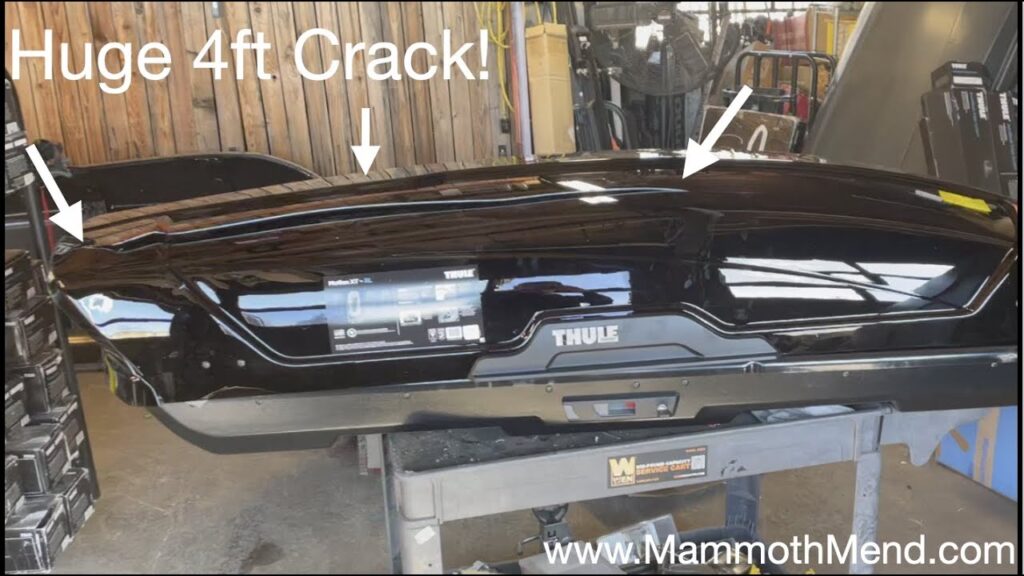

Major Cracks

These are significant breaches in the box's structure, often running a considerable length or width, or occurring in critical areas like hinges or latches. Major cracks are usually caused by severe impacts or significant material failure and can render the box unsafe for use. Repairing these can be challenging and may not always be advisable.

Diagnosing Roof Box Cracks

Before you can fix a crack, you need to accurately diagnose its extent. Here’s how:

Visual Inspection

Thoroughly examine the entire exterior and interior of the roof box. Look for any visible lines, splits, or holes. Pay close attention to seams, corners, and areas around the mounting points.

Tactile Inspection

Run your hands over the suspect areas. You might be able to feel a crack that is difficult to see, especially if it’s filled with dirt or is very fine. Feel for any unevenness, sharp edges, or areas that feel weaker or more flexible than the surrounding material.

Water Testing

To check for watertightness, fill the empty roof box with water and let it sit for a while. Inspect the outside of the box for any drips or leaks. If water seeps through, you know there’s a breach that needs sealing.

Can You Fix a Cracked Roof Box?

The short answer is yes, often you can. The feasibility of repairing a cracked roof box largely depends on the severity and location of the damage.

• Hairline and Minor Cracks: These are generally well within the scope of DIY repair. With the right materials and techniques, you can effectively seal these cracks and restore the box's integrity.
• Major Cracks: While some major cracks can be repaired, it requires more robust methods, often involving fibreglass reinforcement. However, if the crack compromises a critical structural component or is extensive, replacement might be the safer and more practical option. Always prioritise safety.

How to Fix a Cracked Roof Cargo Box (DIY Method for Minor Cracks)

For minor to moderate cracks, a DIY repair can save you a significant amount of money. Here’s a breakdown of the process, often using epoxy resin and fibreglass:

Materials You'll Need:

• Epoxy Resin Kit: Look for a high-quality, two-part epoxy resin specifically designed for plastics or fibreglass. WEST SYSTEM G/flex® Epoxy is often recommended for its flexibility and strong bonding properties, suitable for materials that expand and contract.
• Fibreglass Cloth/Tape: This provides reinforcement. You can use fibreglass cloth for larger areas or fibreglass tape for sealing cracks.
• Sandpaper: Various grits, from coarse (around 80 grit) for initial abrasion to fine (220-400 grit) for smoothing.
• Rubbing Alcohol or Acetone: For thorough cleaning of the repair area.
• Mixing Cups and Sticks: For preparing the epoxy.
• Gloves and Safety Glasses: Essential for protection.
• Masking Tape: To protect surrounding areas.
• Propane Torch (Optional): For surface preparation to improve adhesion.
• Heat Gun or Hair Dryer (Optional): To gently warm the epoxy for better flow.

Step-by-Step Repair Process:

1. Prepare the Damaged Area:
   • Clean: Thoroughly clean the area around the crack, both inside and out, removing all dirt, grime, and any loose debris. Use soap and water, followed by a wipe-down with rubbing alcohol or acetone to ensure a grease-free surface.
   • Sand: Sand the area surrounding the crack. Start with a coarser grit (around 80-120) to create a good mechanical key for the epoxy to adhere to. Extend sanding at least 5-10 cm around the crack.
   • Flame Treatment (Optional but Recommended): Briefly pass the flame of a propane torch over the sanded plastic surface (moving quickly, about 30-40 cm per second). This oxidises the surface, significantly improving adhesion. Do not overheat.
   • Masking: Apply masking tape along the edges of the crack if you want a cleaner finish, though this is less critical if you plan to sand and paint later.
2. Apply the Epoxy:
   • Mix the Epoxy: Carefully mix the two parts of the epoxy resin according to the manufacturer's instructions. Ensure you achieve the correct ratio (often 1:1 by volume for G/flex). Mix thoroughly but avoid introducing too many air bubbles.
   • Warm the Epoxy (Optional): Gently warming the resin and hardener (e.g., by placing the containers in warm water) before mixing can lower their viscosity, allowing the epoxy to penetrate deeper into the crack.
   • Apply to the Crack: Work the epoxy deep into the crack using a mixing stick, a small brush, or even a syringe. Ensure the crack is completely filled.
   • Clamp (If Applicable): If the crack can be brought together, clamp it shut while the epoxy cures. Remove excess epoxy that squeezes out.
3. Add Reinforcement (Fibreglass):
   • Cut Fibreglass: Cut pieces of fibreglass cloth or tape. For a strong repair, ensure the fibreglass extends at least 5 cm beyond the crack on all sides. You might want multiple layers.
   • Apply First Layer: Apply a coat of mixed epoxy to the sanded area where the fibreglass will go. Lay the fibreglass cloth/tape onto the wet epoxy, ensuring it lies flat.
   • Saturate and Smooth: Brush more epoxy over the fibreglass, saturating it completely. Use a plastic spreader to smooth out the fibreglass, removing air bubbles and excess epoxy.
   • Add More Layers: If using multiple layers, repeat the process, ensuring each layer is well-saturated and smoothed.
4. Cure the Epoxy: Allow the epoxy to cure fully according to the manufacturer's instructions. This typically takes 7-10 hours, but can be longer in cooler temperatures. Avoid disturbing the repair during this time.
5. Finishing Touches:
   • Sand: Once cured, sand the repaired area smooth. Start with a medium grit and progress to finer grits to achieve a smooth finish that blends with the rest of the box.
   • Clean: Wipe away any dust.
   • Paint/Varnish (Optional): For aesthetic purposes and added protection, you can paint or varnish the repaired area to match the original colour of your roof box.

Professional Repair vs. DIY

While DIY repairs are cost-effective for minor damage, consider professional help for:

• Major Cracks: If the crack is extensive, deep, or compromises structural integrity, a professional repair shop or the manufacturer may be better equipped to handle it.
• Critical Areas: Cracks near hinges, latches, or mounting points can be trickier and more critical to repair safely.
• Lack of Confidence: If you're not comfortable with the repair process, it's always best to seek expert advice. A poorly executed repair can be worse than no repair at all.

Professional repairs can be more expensive, but they often come with a guarantee and ensure the structural integrity and safety of your roof box.

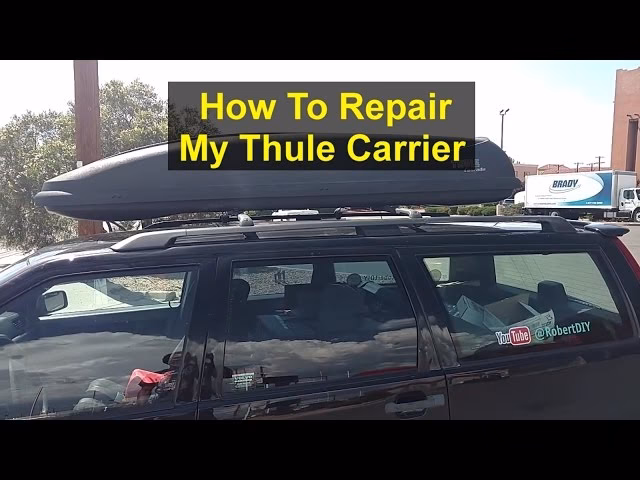

How to Prevent a Roof Box from Cracking

Prevention is always better than cure. Here are some tips to minimise the risk of your roof box cracking:

• Regular Inspections: Before and after each trip, check your roof box for any signs of wear, stress, or minor damage. Address small issues promptly before they worsen.
• Proper Loading: Adhere strictly to the manufacturer's weight limits. Distribute weight evenly within the box, placing heavier items towards the centre and lower down.
• Secure Fastening: Ensure the roof box is securely fastened to your vehicle's roof racks according to the manufacturer's instructions. Loose boxes are more susceptible to stress and damage.
• Careful Driving: Avoid sudden braking, sharp turns, and rough roads where possible. These actions can cause the box and its contents to shift, putting stress on the box.
• Mindful Storage: When not in use, store the roof box in a cool, dry place, away from direct sunlight and extreme temperatures. Covering it can offer protection.
• Avoid Harsh Weather: If possible, avoid travelling in severe weather conditions like high winds or heavy snowstorms, as these can put extra strain on the roof box.

Frequently Asked Questions

Q1: Can I use regular super glue to fix a cracked roof box?

While super glue might temporarily seal a very small hairline crack, it's not strong or flexible enough for the stresses a roof box endures. It's likely to fail quickly. Dedicated plastic repair epoxies or fibreglass kits are much more suitable.

Q2: How long does an epoxy repair take to cure?

Curing times vary depending on the epoxy product and ambient temperature, but typically range from 7 to 24 hours for a full cure. Always follow the manufacturer's instructions.

Q3: Will a repaired roof box be as strong as a new one?

A well-executed fibreglass and epoxy repair can be incredibly strong, often exceeding the original material's strength in that specific area. However, the surrounding original material may still be aged or weakened.

Q4: Is it safe to use a roof box with a repaired crack?

If the crack was minor and the repair was done correctly using appropriate materials, it should be safe. However, for major cracks or repairs in critical structural areas, it's best to err on the side of caution and consider replacement if there's any doubt about its integrity.

Conclusion

A cracked roof cargo box doesn't necessarily mean the end of its useful life. By understanding the causes of damage, accurately diagnosing the type and severity of cracks, and employing the right repair techniques, you can often restore your roof box to a functional and reliable condition. For minor damages, a DIY approach using epoxy resin and fibreglass reinforcement is a cost-effective solution. However, always prioritise safety and consider professional help for more significant damage. Regular inspection and careful handling are key to extending the lifespan of your roof box and ensuring your gear travels securely on all your adventures.
