DIY Car Battery Replacement: A Full Guide

A flat car battery can bring your day to a grinding halt, often at the most inconvenient times. While it might seem like a daunting task, replacing a car battery is a surprisingly straightforward bit of DIY maintenance that can save you both time and money. With the right approach, a few basic tools, and a keen eye for safety, you'll be able to tackle this job with confidence, ensuring your vehicle remains reliable.

Many drivers are hesitant to delve under the bonnet, especially when it comes to electrical components. Stories of complex wiring or even specific vehicle types, like hybrids, can add to the apprehension. However, for most modern vehicles, the 12-volt battery system remains fundamentally the same, regardless of whether it's powering a conventional petrol engine or assisting a hybrid powertrain. This guide will demystify the process, providing you with a clear, step-by-step walkthrough to get your car back on the road.

Safety First: Your Absolute Priority

Before you even think about touching your car battery, it’s paramount to understand the potential hazards and take the necessary precautions. Car batteries contain sulphuric acid, which is highly corrosive and can cause severe chemical burns if it comes into contact with your skin or eyes. They also store a significant amount of electrical energy, posing a risk of short circuits or electrical shocks.

• Personal Protective Equipment (PPE): Always wear safety glasses to protect your eyes from splashes or debris. Robust rubber gloves are essential to shield your hands from acid and provide a degree of electrical insulation. Consider wearing long sleeves and trousers to minimise exposed skin.
• Ventilation: Work in a well-ventilated area. Batteries can release hydrogen gas, which is highly flammable, especially during charging or if damaged.
• No Smoking or Sparks: Avoid smoking or working with open flames or anything that could create sparks near the battery. This includes tools touching both terminals simultaneously.
• Lifting Safely: Car batteries are surprisingly heavy, often weighing between 15-20 kg (30-40 lbs). Always lift with your legs, not your back, to prevent injury. If possible, use a battery carrier or ask for assistance.
• Inspect the Battery: Before handling, visually inspect both the old and new batteries for any signs of damage, such as cracks, bulging, or leaking fluid. A damaged battery should be handled with extreme care and disposed of immediately and safely.

Essential Tools for the Job

Fortunately, you don't need a specialist toolkit to change a car battery. Most of the items you'll require are standard garage essentials. Gather these before you start:

• A socket wrench set or a combination spanner set (10mm, 13mm, or 1/2 inch are common sizes for battery terminals and hold-down clamps). An adjustable crescent wrench can work in a pinch, but be careful not to round off nuts.
• Battery terminal cleaner or a wire brush (for cleaning corrosion).
• Dielectric grease or anti-corrosion spray (optional, but recommended for new terminals).
• A clean rag or cloth.
• A battery carrier or strap (optional, but helpful for lifting).
• Wheel chocks (for added safety if working on an incline).

Locating Your Car's Battery

While most car batteries are typically found under the bonnet, their exact location can vary significantly between models. Some manufacturers place them in the boot, under the rear seat, or even in the footwell. If you're unsure, consult your vehicle's owner's manual – it will provide the definitive location and any specific instructions for your model.

It's worth noting the anecdote about the 'hybrid' confusion. Even hybrid vehicles rely on a standard 12-volt battery to power their electrical systems, start the engine, and run accessories. This 12V battery might be hidden under a plastic cover or located away from the engine bay, but the principles of its removal and installation remain the same as for any other vehicle.

Step-by-Step Battery Removal

Follow these steps carefully to safely remove your old car battery:

Step 1: Prepare Your Vehicle

Ensure your car is parked on a flat, level surface, away from traffic. Engage the parking brake firmly. If your car is a manual, put it in first gear. For automatic transmissions, ensure it's in 'Park'. For added safety, place wheel chocks behind the rear wheels.

Step 2: Locate and Identify Terminals

Open the bonnet or access panel to expose the battery. You'll see two terminals: a positive (+) terminal, usually covered with a red cap or marked with a plus sign, and a negative (-) terminal, typically black or marked with a minus sign. Remember this polarity for re-installation.

Step 3: Disconnect the Negative Terminal First

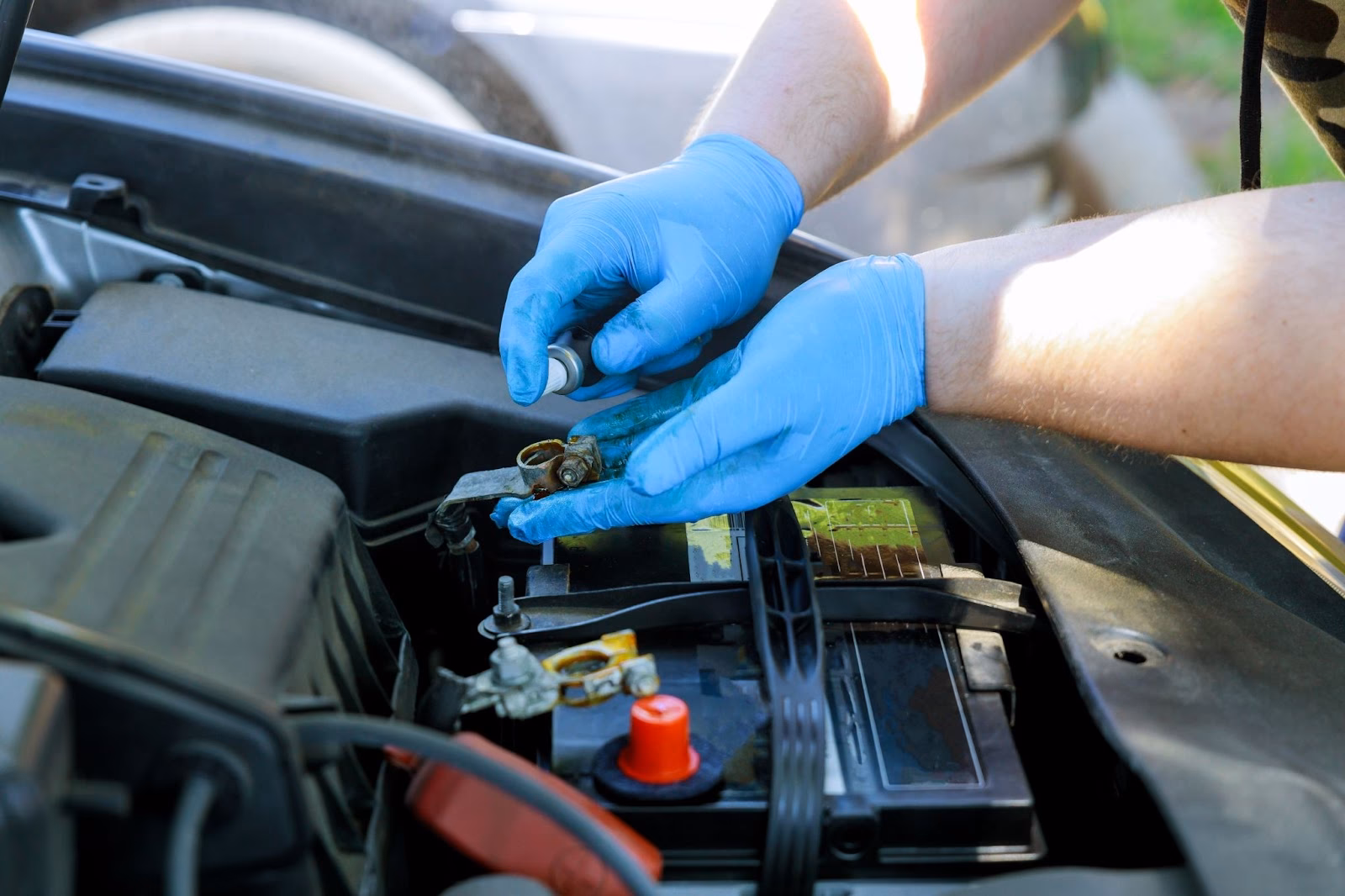

This is a critical safety step. Using your spanner or socket wrench, loosen the nut on the negative (-) terminal clamp. You don't usually need to remove the nut entirely, just loosen it enough to wiggle the clamp free. Once loose, carefully lift the negative cable off the battery post and move it away from the battery so it cannot accidentally touch any metal part of the car or the positive terminal. Disconnecting the negative first prevents accidental short circuits if your wrench touches the car's body while loosening the positive terminal.

Step 4: Disconnect the Positive Terminal

Now, repeat the process for the positive (+) terminal. Loosen the nut, carefully remove the positive cable, and move it away from the battery. Take note of how the cables were routed to ensure correct re-installation.

Step 5: Remove the Battery Hold-Down Clamp or Brace

Most vehicles have a clamp, strap, or brace that secures the battery in place to prevent it from moving while driving. Locate this and use your wrench or socket to loosen and remove it. Some are bolts, others might be J-hooks or a top clamp. Ensure it's completely out of the way before attempting to lift the battery.

Step 6: Carefully Remove the Old Battery

With the cables disconnected and the hold-down removed, you can now lift the battery out of its tray. If your battery has a handle, use it. If not, grip it firmly from the sides. Remember to lift with your legs, keeping your back straight. Place the old battery on a stable surface, away from your work area. This is an excellent opportunity to clean the battery tray and surrounding area of any dirt, debris, or corrosion.

Preparing for the New Battery & Installation

Before installing your new battery, it's wise to perform a bit of maintenance to ensure longevity and optimal performance.

Cleaning Battery Tray and Terminals

Inspect the battery tray for any signs of corrosion. If you find white, powdery residue (often copper sulphate from corrosion), mix a tablespoon of baking soda with a cup of water to create a paste. Apply it to the corroded areas, let it fizz, then scrub with a wire brush. Rinse with clean water and dry thoroughly before placing the new battery. Clean the cable clamps as well, ensuring they are free of corrosion for a good electrical connection.

Step 7: Place the New Battery

Carefully lower your new battery into the battery tray, ensuring it's oriented correctly (positive and negative terminals align with their respective cables). Make sure it sits flush and stable.

Step 8: Reinstall the Battery Hold-Down Clamp

Secure the new battery firmly in place using the hold-down clamp or brace you removed earlier. A secure battery prevents movement and potential damage from vibrations during driving.

Step 9: Reconnect the Cables – Positive First!

Now, reverse the disconnection order. Connect the positive (+) cable to the positive terminal first. Ensure the clamp is fully seated on the battery post and tighten the nut securely with your wrench. It should be snug and not wobble. Then, connect the negative (-) cable to the negative terminal and tighten it equally securely. Ensure both connections are tight to prevent arcing or poor starting.

Step 10: Apply Anti-Corrosion Protection (Optional but Recommended)

Once the terminals are securely connected, you can apply a thin layer of dielectric grease or an anti-corrosion spray to the terminals and clamps. This helps to prevent future corrosion and ensures a better electrical connection over time.

Post-Installation Checklist & First Start

With everything reconnected, take a moment to double-check all your connections and ensure no tools are left in the engine bay. Close the bonnet securely.

Now, start your car. It should fire up immediately. Don't be alarmed if your clock is reset to 12:00 or your radio presets are gone. This is entirely normal. When the battery was disconnected, the car's computerised systems lost power and reverted to their default settings. You'll just need to reset the time and reprogram your favourite radio stations.

Frequently Asked Questions

Q: Does it matter which way you install your battery?

A: Absolutely, yes! Your car's electrical system is designed for specific polarity. Connecting the battery incorrectly (reverse polarity) can cause serious and expensive damage to your vehicle's electrical components, including the alternator, fuses, and engine control unit (ECU). Always ensure positive goes to positive and negative to negative. If you're unsure, take a photo of the old battery's setup before you disconnect it.

Q: How do I know what kind of battery my car takes?

A: The easiest way is to check your vehicle's owner's manual, which will specify the correct battery group size and cold cranking amps (CCA). Alternatively, inspect your old battery – it usually has a label indicating its type and specifications. If all else fails, provide your car's make, model, and year to your local auto parts store, and they'll be able to tell you the correct replacement.

Q: What do I do with the old battery?

A: Car batteries contain hazardous materials (lead and sulphuric acid) and must be disposed of properly. Do NOT throw them in household waste. Most auto parts stores, scrapyards, and local council recycling centres offer battery recycling programmes. They will accept your old battery for safe and environmentally responsible disposal.

Q: Uh, my clock shows 12:00 and my radio presets are gone. What happened?

A: This is perfectly normal. When you disconnect the battery, the car's computer system loses power. This causes volatile memory (like the clock, trip computer, and radio presets) to reset. Simply reset them manually after the new battery is installed.

Q: What happens if a car battery fails?

A: A failing car battery typically manifests in several ways. The most common sign is difficulty starting the engine – slow cranking or a complete failure to turn over. You might also notice dim headlights, issues with electrical accessories (like power windows operating slowly), or the battery warning light illuminating on your dashboard. Eventually, a completely failed battery will prevent your car from starting at all.

Q: How often should I replace my car battery?

A: The lifespan of a car battery varies depending on climate, driving habits, and maintenance, but typically ranges from 3 to 5 years. Regular checks of battery voltage and terminal condition can help you determine its health. Signs of an ageing battery include slow cranking, corrosion around the terminals, or a bulging battery case.

Q: Is it safe to clean corroded battery terminals?

A: Yes, it is safe and recommended. Corrosion can impede the flow of electricity, leading to starting problems. Always wear gloves and eye protection. You can use a mixture of baking soda and water to neutralise the acid, scrub with a wire brush, and then rinse with clean water. Ensure everything is dry before reconnecting.

Replacing your car battery might seem like a big job, but with this guide and a methodical approach, you'll find it's a manageable task that empowers you to take charge of your vehicle's maintenance. Remember, safety is always the top priority, so take your time and follow the steps carefully. Happy motoring!
