Car Fuse Replacement: A Simple Guide

Understanding and Replacing a Blown Car Fuse

It's a common scenario: your car radio suddenly falls silent, your headlights refuse to illuminate, or your power windows cease their operation. For many car owners, these sudden electrical failures can be a source of panic. However, more often than not, the culprit is a small, yet vital, component: a blown car fuse. These miniature guardians of your vehicle's electrical system are designed to protect sensitive electronics from damage caused by overloads or short circuits. Fortunately, understanding and replacing a blown fuse is a straightforward task that most car owners can perform themselves with a little guidance.

What Exactly Is a Car Fuse and Why Does It Blow?

Think of a car fuse as a miniature safety valve for your vehicle's electrical circuits. Inside its casing, a thin metal wire or filament is designed to melt and break the circuit when an excessive amount of electrical current flows through it. This intentional failure prevents a dangerous surge of electricity from damaging more expensive and critical components, such as the car's computer, stereo system, or lighting.

Several factors can lead to a fuse blowing:

• Overloaded Circuits: Similar to how too many appliances can trip a breaker in your home, plugging multiple high-draw accessories into a single power outlet (like a cigarette lighter socket) can overload the circuit, causing the fuse to blow.
• Short Circuits: This occurs when damaged or frayed wiring accidentally comes into contact with metal, creating an unintended path for electricity. Even a loose wire tucked behind a dashboard panel can cause a short.
• Faulty Electrical Components: Sometimes, a specific part in your car, like a power window motor or a fan, can malfunction and draw more current than it should, leading to a blown fuse.
• Wear and Tear: Like any component, fuses can degrade over time. Age and environmental factors can weaken the internal filament, making it more susceptible to blowing even under normal operating conditions.
• Incorrect Fuse Rating: Using a fuse with an amperage rating that is too low for the circuit it protects will cause it to blow prematurely. Conversely, a fuse with too high a rating will not protect the circuit adequately and could lead to damage.

Identifying a Blown Fuse: Common Signs

Recognising the symptoms of a blown fuse is the first step to a quick resolution. Here are the most common indicators:

• Complete Component Failure: The most obvious sign is when a specific electrical component or a group of components suddenly stops working. If your radio, power windows, interior lights, or dashboard indicators fail simultaneously, a blown fuse is a prime suspect.
• Dim or Flickering Lights: While not always indicative of a blown fuse, dimming or flickering headlights or interior lights can sometimes suggest an overloaded circuit that is about to blow, or has just blown a fuse.

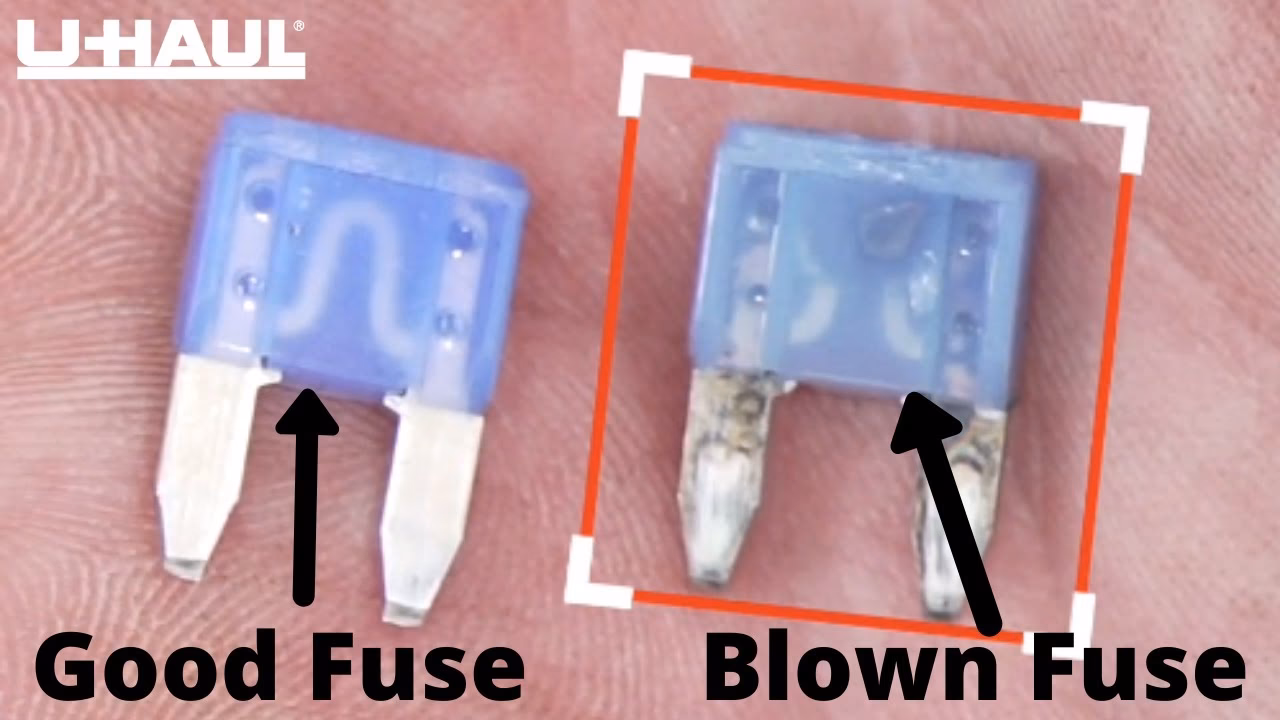

• Visual Inspection: The most definitive way to check is by physically inspecting the fuse. Most fuses are made of transparent plastic with a metal strip inside. A blown fuse will typically show a broken or melted metal strip, or discolouration (blackening) within the plastic casing.

How to Perform a Visual Inspection:

1. Locate the Fuse Box: Refer to your owner's manual to find the location of the fuse box(es).
2. Identify the Suspect Fuse: Consult the fuse diagram in your owner's manual or on the fuse box cover to pinpoint the fuse responsible for the malfunctioning component.
3. Carefully Remove the Fuse: Use a fuse puller (often found in your car's toolkit or readily available at auto parts stores) or a pair of needle-nose pliers to gently pull the fuse straight out.
4. Inspect the Fuse: Hold the fuse up to a light source. Look for a break in the metal filament inside. If the filament is intact, the fuse is likely not the issue.

Tip: If you don't have a fuse puller, tweezers or even your fingers (if the fuse is accessible and you have dry hands) can be used, but be cautious not to damage the fuse or the surrounding connectors.

Locating Your Car's Fuse Box: A Crucial First Step

Before you can replace a fuse, you need to find the fuse box. Most vehicles are equipped with at least two fuse boxes:

• Interior Fuse Box: Typically located under the dashboard, often on the driver's side near the steering column or pedals. In some cars, it might be behind a small panel, in the glove compartment, or near the centre console.
• Engine Compartment Fuse Box: Usually found under the bonnet (hood), often near the battery. This box typically houses fuses for more critical engine and cooling system components.

Your car's owner's manual is the most reliable resource for pinpointing the exact location of all fuse boxes. Many fuse box covers also feature a diagram on the inside, which is invaluable for identifying specific fuses.

Tools You'll Need for Fuse Replacement

Fortunately, replacing a fuse is a simple task that requires minimal tools:

Step-by-Step Guide to Replacing a Blown Fuse

Here's how to safely and effectively replace a blown fuse:

1. Turn Off the Vehicle: Ensure the ignition is completely off. For added safety, you can disconnect the negative terminal of the car battery, although this is often unnecessary for simple fuse replacements.
2. Locate the Correct Fuse: Using your owner's manual or the fuse box diagram, identify the fuse that corresponds to the non-functioning electrical component.
3. Remove the Blown Fuse: Gently grip the fuse with a fuse puller, needle-nose pliers, or tweezers, and pull it straight out of its slot. Avoid wiggling it excessively.
4. Inspect the Fuse: Examine the removed fuse for a broken or melted metal filament. If the filament is intact, the fuse is good, and the problem likely lies elsewhere.
5. Install the New Fuse: Select a new fuse with the exact same amperage rating as the blown one. The rating is typically printed on the top of the fuse. Insert the new fuse firmly into the empty slot.
6. Test the Component: Turn the ignition back on and test the electrical component that was not working. If the new fuse is correctly installed and the original fuse was indeed blown, the component should now function normally.

If the new fuse immediately blows again, or if the component still does not work, it indicates a more significant electrical issue that requires professional diagnosis.

Special Cases: The Cigarette Lighter/12V Socket

The cigarette lighter or 12V power outlet is a common point of fuse failure, often due to overloading. If your phone charger, GPS, or dash cam suddenly stops working, the fuse for this socket is a likely culprit. The replacement process is the same as described above, but remember to check for any debris or foreign objects within the socket itself, as these can also cause short circuits.

Why Does My Car Keep Blowing Fuses?

If you find yourself repeatedly replacing the same fuse, or if multiple fuses blow in quick succession, it's a clear sign of an underlying electrical problem. Common reasons for persistent fuse blowing include:

• Faulty Wiring: Damaged, shorted, or poorly grounded wires are a primary cause of recurring blown fuses.
• Defective Electrical Component: A failing component (e.g., a fan motor, power window regulator) can draw excessive current.
• Improper Fuse Installation: While rare, a fuse that isn't seated correctly can cause issues.
• Accessory Malfunction: A faulty accessory plugged into a power outlet can also cause the fuse to blow repeatedly.

In such cases, it's essential to have your vehicle inspected by a qualified mechanic to diagnose and rectify the root cause before it leads to more serious damage.

When to Seek Professional Help

While fuse replacement is a DIY-friendly task, there are situations where professional assistance is recommended:

• Frequent Fuse Blowing: If a fuse blows repeatedly, it suggests a deeper electrical fault.
• Burning Smells or Smoke: These are serious indicators of electrical system failure and require immediate professional attention.
• Multiple Electrical Failures: If several components fail simultaneously and fuse replacement doesn't resolve the issue, a more complex problem is likely.
• Lack of Confidence or Experience: If you're uncomfortable working with your car's electrical system, it's always best to consult a professional.

Cost of Replacing a Car Fuse

The cost of replacing a car fuse is remarkably low:

• DIY: A pack of assorted fuses typically costs between £5 and £15. The only other potential cost is for a fuse puller, which is a one-time purchase.
• Professional Repair: If you take your car to a garage, expect to pay for diagnostic time and labour. This could range from £30 to £100 or more, depending on the garage and the complexity of the underlying issue if it's not just a simple fuse replacement.

Tips to Prevent Car Fuses from Blowing

Proactive maintenance can help prevent blown fuses:

• Avoid Overloading: Be mindful of how many accessories you plug into power outlets simultaneously.
• Use Correct Amperage: Always replace fuses with the exact same rating.
• Regular Inspections: Periodically check visible wiring for signs of damage, fraying, or corrosion.
• Quality Accessories: Use reputable brands for car accessories and chargers.
• Keep Spares: Carry a small assortment of spare fuses in your glove compartment for quick replacements.

Frequently Asked Questions (FAQs)

Q: How do I remove a car fuse without a tool?

A: If a fuse is accessible, you can often use needle-nose pliers, tweezers, or even your fingernails to gently pull it out. Be careful not to touch the metal contacts inside the fuse box.

Q: Can I replace a blown fuse myself?

A: Absolutely! Replacing a blown fuse is one of the simplest car maintenance tasks. Just ensure you turn off the car, identify the correct fuse, and use a replacement with the same amperage rating.

Q: What happens if I use the wrong fuse?

A: Using a fuse with a lower amperage than required will cause it to blow immediately. Using a fuse with a higher amperage rating is dangerous as it can allow excessive current to flow, potentially damaging wiring and components, and even posing a fire risk.

Q: Where is the fuse box located in my car?

A: Most cars have fuse boxes located under the dashboard, often on the driver's side, and sometimes in the engine bay. Always consult your owner's manual for the precise location.

Q: Why does my cigarette lighter keep blowing fuses?

A: This is typically due to overloading the socket with too many devices, using a faulty charger, or the presence of debris (like coins or dirt) inside the socket causing a short circuit.

By understanding the function of car fuses and following these simple steps, you can confidently tackle blown fuse issues, keeping your vehicle's electrical systems in good working order and saving yourself time and money.
