Mastering Valve Shim Replacement: A Comprehensive Guide

For any motorcycle enthusiast, maintaining the heart of their machine – the engine – is paramount. Among the critical tasks in engine upkeep, adjusting the valve clearance stands out. This precise procedure ensures that your engine's valves open and close at precisely the right time, allowing for optimal combustion and preventing damage. For owners of the robust ZZR1400, understanding and performing valve shim replacement is not just a recommendation; it's a vital part of the periodic maintenance schedule that dictates engine longevity and peak performance. This comprehensive guide will walk you through the intricacies of inspecting and adjusting your engine's valve shims, ensuring your cherished ride continues to deliver its legendary power and smoothness for many miles to come. We'll delve into the 'why' behind valve clearance, the 'how' of precise measurement, and the methodical process of selecting and installing the correct shims.

It is important to note that the provided service manual for the ZZR1400 models does not contain information on how to fix a warped cylinder head. Therefore, this article will focus exclusively on the topic of valve shim replacement and related valve clearance adjustments as detailed in the source material.

Understanding Valve Clearance

At the core of an internal combustion engine's operation are its valves, meticulously timed to open and close, regulating the flow of air, fuel, and exhaust gases. Valve clearance refers to the tiny gap between the valve stem and the component that actuates it, typically a cam lobe or valve lifter. This seemingly insignificant gap is, in fact, incredibly important. As the engine heats up during operation, its metal components, including the cylinder head, camshafts, and valve stems, expand. The valve clearance is designed to accommodate this thermal expansion. Without adequate clearance, an expanding valve could remain slightly open even when it should be fully closed. This condition, often referred to as a 'tight valve', leads to a loss of compression, reduced engine power, overheating of the valve, and ultimately, severe engine damage. Conversely, excessive valve clearance, or a 'loose valve', can cause excessive noise from the valve train, increased wear on components due to impact, and inefficient valve operation, leading to a noticeable drop in performance and fuel economy. Therefore, maintaining the manufacturer's specified valve clearance is absolutely critical for the engine's health, efficiency, and overall performance.

When to Inspect Valve Clearance

Regular inspection of valve clearance is a non-negotiable part of your motorcycle's periodic maintenance. For the ZZR1400, specific intervals are recommended to ensure optimal engine health. According to the service schedule, valve clearance should be inspected every 42,000 km (or 26,250 miles) for models designated for the US, Canada, and Australia. For other models, this inspection should be carried out annually. It is of utmost importance that this inspection, and any subsequent adjustment, is performed when the engine is completely cold. This means the motorcycle should not have been ridden for several hours, ideally overnight, allowing all engine components to cool down to ambient temperature. Measuring clearance on a warm or hot engine will provide inaccurate readings due to thermal expansion, leading to incorrect shim selection and potential damage once the engine operates at normal temperatures.

Tools and Materials Required

To undertake the valve clearance inspection and adjustment, you'll need a few specialised items in addition to standard workshop tools. The primary measuring instrument is a thickness gauge, which allows for precise measurement of the minute gaps. While the manual details various special tools for other maintenance tasks, for valve shim replacement itself, your focus will be on accurate measurement and careful component handling. You will also require new valve shims of various thicknesses, clean engine oil for lubrication during reassembly, and a high-flash point solvent for cleaning components. Always ensure you have a clean workspace to prevent foreign materials from entering delicate engine components.

Step-by-Step Guide to Valve Clearance Inspection

The inspection process is methodical and requires patience. Begin by preparing your motorcycle for access to the engine's top end.

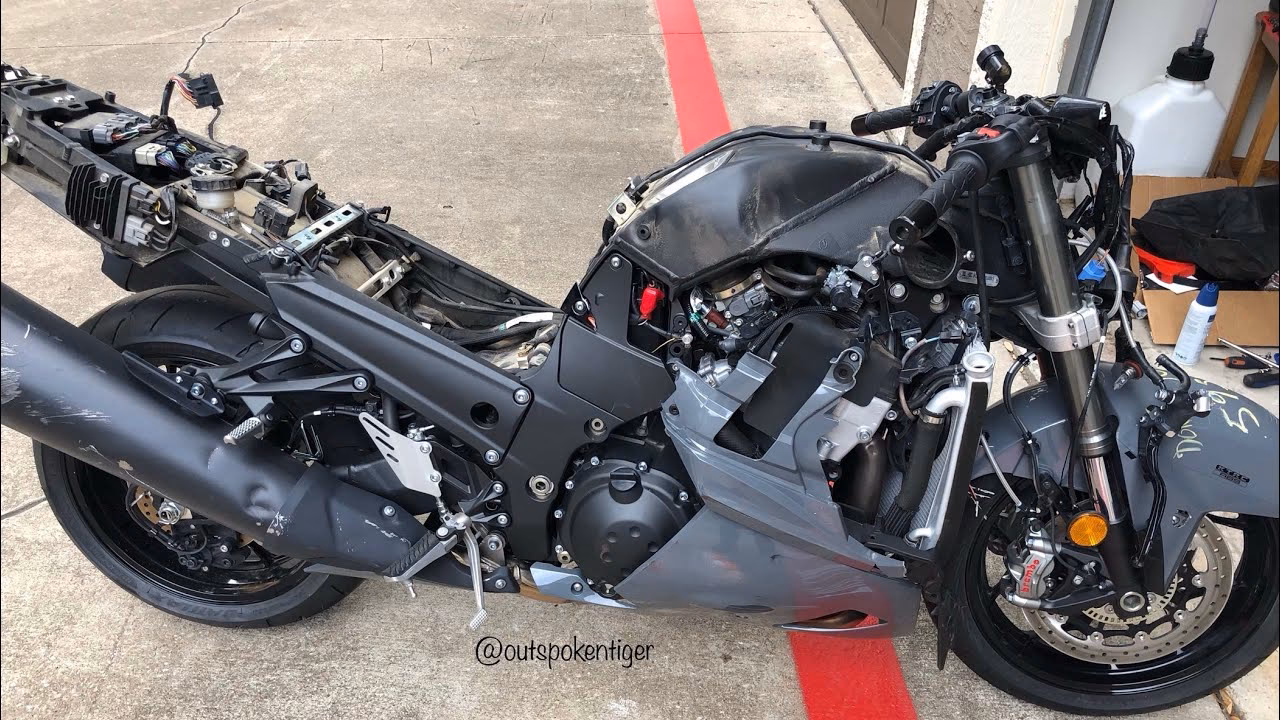

First, remove the necessary outer components:

• Lower Fairings
• Middle Fairings
• Crankshaft Sensor Cover
• Cylinder Head Cover

Once the cylinder head cover is off, you'll expose the camshafts and valve lifters. The next crucial step is to correctly position the crankshaft. Rotate the crankshaft until the #1 and #4 pistons are at Top Dead Centre (TDC). You'll typically find timing marks on the crankshaft or flywheel that align with a reference point on the crankcase halves mating surface. This ensures the valves are in their fully closed position, allowing for accurate measurement.

With the engine correctly positioned, use your thickness gauge to measure the valve clearance. Carefully insert the thickness gauge between the cam lobe and the valve lifter. It's important to insert the gauge horizontally to ensure an accurate reading. The gauge should slide in with a slight drag – if it's too loose or too tight, the measurement is incorrect. Take multiple measurements if unsure, and always ensure the gauge is clean.

Record your measurements for each valve. Compare these readings against the manufacturer's specified standards:

If any of your measured valve clearances fall outside these specifications, then adjustment is necessary. Even if they are just at the edge of the range, it's wise to consider adjustment for optimal performance and longevity. Make sure to note down which valves are out of spec and by how much, as this information will be vital for selecting the correct replacement shims.

Adjusting Valve Clearance: The Shim Replacement Process

Adjusting valve clearance involves replacing the existing shims with new ones of different thicknesses. This is where precision and careful documentation become paramount.

The adjustment process typically involves:

1. Disassembly: To access the shims, you must first remove the camshaft chain tensioner, followed by the camshafts themselves, and finally, the valve lifters. This requires careful attention to the camshaft timing to ensure correct reassembly.
2. Marking and Recording: Before removing any valve lifters or shims, it is absolutely crucial to mark and record their exact locations. Shims and lifters can wear uniquely to their original position, and reinstalling them incorrectly can lead to new problems or exacerbate existing ones. Keep them organised in the order they were removed.
3. Measuring the Old Shim: Once a valve lifter and its shim are removed from a valve that requires adjustment, clean the shim thoroughly to remove any dust or oil. Then, accurately measure its thickness using a micrometer. This measurement, combined with your initial valve clearance reading, will allow you to calculate the required thickness for the new shim.
4. Shim Selection: The goal is to replace the old shim with one that brings the valve clearance back into the specified range. The manual provides detailed adjustment charts (Exhaust and Inlet) that guide this selection process. Conceptually, if your valve clearance is too tight, you need a thinner shim; if it's too loose, you need a thicker shim. The charts work by intersecting your measured clearance with the thickness of the shim you just removed, pointing to the exact new shim thickness required.

Here is a list of common adjustment shim thicknesses available:

Note: If, after selecting a shim according to the table, the clearance is still out of range, use an additional shim or re-evaluate your measurements. If there is no valve clearance at all, select a shim that is a few sizes smaller and re-measure.

5. Installation of New Shim: When installing the new shim, ensure the marked side (usually the part number or size) faces towards the valve lifter. Apply a small amount of clean engine oil to the shim or the valve lifter. This lubrication helps the shim stay in place during camshaft installation and provides initial lubrication upon engine startup.

Important Warnings:

• Do not put shim stock under the shim. This can cause the shim to dislodge at high engine RPMs, leading to extensive and catastrophic engine damage.
• Do not grind the shim. Grinding can compromise the shim's structural integrity, potentially causing it to fracture during operation, which would also result in severe engine damage. Always use genuine, correctly sized replacement shims.

After installing the new shims and applying engine oil to the valve lifter surfaces, carefully reinstall the valve lifters and then the camshafts, ensuring correct timing and torque specifications for all fasteners. Finally, recheck the valve clearance for all valves you've adjusted. This re-measurement is paramount to confirm that the new shims have corrected the clearances to within the specified range. If necessary, repeat the adjustment process for any valves still out of spec. Once satisfied, reinstall all remaining removed parts, ensuring all fasteners are torqued to their correct specifications.

Why Proper Valve Clearance Matters

The seemingly minor task of adjusting valve shims carries significant weight in the overall health and performance of your ZZR1400 engine. Correct valve clearance ensures that the engine can breathe efficiently, allowing the optimal amount of air-fuel mixture into the combustion chamber and effectively expelling exhaust gases. This translates directly to consistent engine power delivery, improved fuel efficiency, and a smoother, quieter running engine. Moreover, precise valve clearance minimises stress and wear on the valve train components, including the valves, valve seats, camshafts, and lifters. Neglecting this maintenance can lead to premature wear, valve burning, loss of compression, increased engine noise, and ultimately, costly engine repairs or even complete failure. By adhering to the recommended inspection and adjustment schedule, you are actively preserving your motorcycle's performance, reliability, and longevity, ensuring many more exhilarating rides.

Frequently Asked Questions (FAQs)

Q1: How often should I check my ZZR1400's valve clearance?

A1: For ZZR1400 models sold in the US, Canada, and Australia, valve clearance should be inspected every 42,000 km (26,250 miles). For other international models, it's recommended to check it annually. Always refer to your specific service manual for the most accurate and up-to-date schedule for your region and model.

Q2: Can I perform valve shim replacement myself, or should I take it to a professional?

A2: While this guide provides detailed steps, valve shim replacement is a precise and technical procedure that requires mechanical aptitude, specific tools (like a thickness gauge and potentially a micrometre), and a thorough understanding of engine mechanics. If you lack experience or confidence, it's highly recommended to have this service performed by a qualified motorcycle mechanic to avoid costly errors and potential engine damage.

Q3: What are the symptoms of incorrect valve clearance?

A3: Symptoms of incorrect valve clearance can vary. If the clearance is too tight, you might experience difficulty starting, rough idling, reduced power, or even burnt valves due to insufficient sealing. If the clearance is too loose, you may hear excessive ticking or clattering noises from the engine's top end, along with a potential loss of power and increased wear on valve train components.

Q4: Why must the engine be cold when checking valve clearance?

A4: Engine components expand significantly when hot due to thermal expansion. Measuring valve clearance on a warm or hot engine would give you an artificially tight reading. The specified clearances are designed for a cold engine, accounting for the anticipated expansion during operation. Measuring cold ensures you set the correct gap that will become optimal once the engine reaches its operating temperature.

Q5: Are there different types of valve shims?

A5: Yes, valve shims primarily differ in their thickness. They are precision-machined discs of various calibrated thicknesses, allowing mechanics to precisely adjust the valve clearance by swapping out the existing shim for a thinner or thicker one. The provided table lists many common thicknesses to achieve the precise clearance required.

Conclusion

Valve shim inspection and adjustment might seem like a daunting task, but it is an indispensable aspect of maintaining your ZZR1400's engine. By diligently following the recommended service intervals and performing these adjustments with precision, you directly contribute to the engine's efficiency, power output, and overall lifespan. This proactive approach to maintenance not only prevents potential future issues but also ensures that your motorcycle remains a reliable and thrilling machine to ride. Prioritise your engine's health, and it will reward you with unparalleled performance on the road.
