Engine Hoist Mechanics Explained

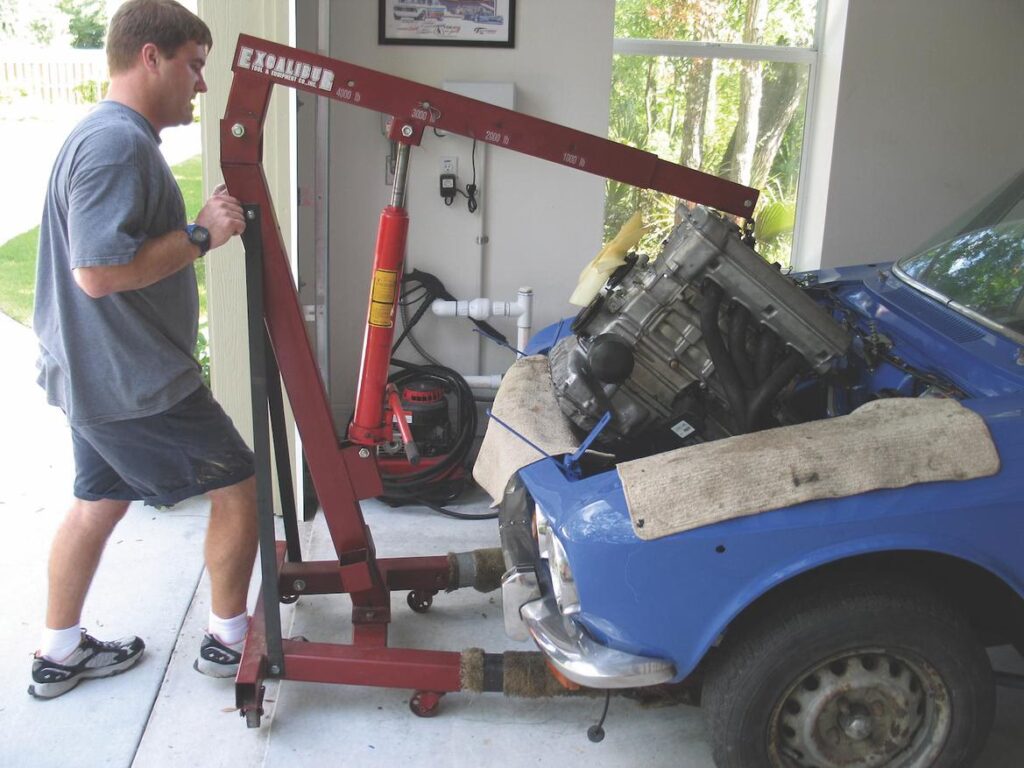

Engine hoists, often referred to as engine cranes or shop cranes, are indispensable pieces of equipment in any automotive workshop, whether professional or home-based. Their primary function is to safely lift and position heavy automotive components, most notably engines, but also transmissions, differentials, and other substantial parts. Understanding how these seemingly simple devices operate is crucial for safe and efficient use. At its core, an engine hoist is a hydraulic jack system combined with a robust, articulating arm, designed to provide significant mechanical advantage, allowing a single person to lift weights that would otherwise require a team of people or specialised machinery. The key to their operation lies in the principles of hydraulics and leverage.

The Hydraulic System: The Heart of the Hoist

The lifting power of an engine hoist is generated by a hydraulic system. This system is typically composed of a reservoir filled with hydraulic fluid, a pump mechanism, a cylinder containing a piston, and a release valve. The process begins when the operator pumps a handle. This action forces hydraulic fluid from the reservoir through a one-way valve into the cylinder. Because hydraulic fluid is virtually incompressible, as more fluid is pumped into the cylinder, it exerts pressure on the piston. This pressure causes the piston to extend, pushing upwards on the hoist's boom (the adjustable arm). The greater the volume of fluid pumped into the cylinder, the higher the piston extends, and consequently, the higher the boom is raised. This controlled extension allows for precise lifting of heavy loads. The fluid is kept under pressure by the one-way valve, preventing it from flowing back into the reservoir when the pumping stops. To lower the load, the operator opens the release valve. This allows the hydraulic fluid to flow back from the cylinder into the reservoir, and the piston retracts, lowering the boom. The speed of descent can often be controlled by how much the release valve is opened.

Understanding the Components:

• Hydraulic Fluid Reservoir: Stores the hydraulic oil.
• Pump Mechanism: Usually a hand-operated lever that moves fluid.
• Cylinder: Houses the piston and is where the pressure is applied.
• Piston: The movable part within the cylinder that extends and retracts.
• Release Valve: Controls the flow of hydraulic fluid to lower the load.
• Oil Fill Hole: The point where hydraulic fluid is added to the system.

Leverage and the Articulating Boom

While hydraulics provide the lifting force, the design of the hoist's boom and legs provides the mechanical advantage and stability. Engine hoists typically feature a U-shaped base with legs that spread out to create a stable foundation. This wide stance is critical for balancing the significant weight being lifted. The boom, or arm, is usually adjustable in length and height, allowing it to be positioned over the engine. The boom itself is often equipped with multiple holes, allowing the lifting chain or hook to be attached at different points. Attaching the hook closer to the pivot point of the boom requires more force to lift but offers greater reach and a higher lifting point. Conversely, attaching the hook further out reduces the required force but limits the lifting height and reach. This adjustable nature allows the operator to tailor the hoist's configuration to the specific engine and vehicle being worked on. The chain and hook assembly attaches to an engine or component, transferring the hydraulic lifting force to the load.

The Importance of Stability and Load Distribution:

A well-designed engine hoist distributes the load effectively across its legs. The wider the stance of the legs, the more stable the hoist becomes. When lifting an engine, the centre of gravity of the load is constantly shifting. The hoist's design must account for these shifts to prevent tipping. The adjustable legs on some models can further enhance stability by allowing them to be positioned to best accommodate the vehicle's chassis or engine bay.

Refilling the Hydraulic System: A Practical Guide

Like any hydraulic system, an engine hoist's hydraulic cylinder requires occasional maintenance, including refilling the hydraulic fluid. This is typically done when the hoist seems sluggish, doesn't lift to its full height, or if leaks are suspected. The process is straightforward:

Step-by-Step Refill Procedure:

1. Lower the Boom Fully: Ensure the boom is completely retracted. This ensures the cylinder is in its lowest position, making it easier to fill.
2. Locate the Fill Hole: The fill hole is usually found on the hydraulic cylinder itself, often near the top or side.
3. Prepare the Oil Can: Use a high-quality hydraulic jack oil. Insert the spout of the oil can into the cylinder's oil fill hole.
4. Add Hydraulic Fluid: Squeeze the trigger on the oil can to add oil to the hydraulic cylinder. If the cylinder is very low, or if it has been drained for seal repair, you may need to refill your oil can multiple times, depending on its reservoir size and the hoist cylinder's capacity.
5. Monitor the Level: Continue adding oil until it just starts to leak out of the cylinder fill hole.
6. Adjust the Level: Stop adding oil immediately when it begins to leak. Allow the excess oil to leak out until the level is even with the bottom lip of the fill hole. This indicates the cylinder is full without being over-pressurised.
7. Replace the Cap: Securely replace the fill hole cap to prevent contamination.
8. Test Operation: Operate the hoist through a few full lift and lower cycles to ensure smooth operation and to bleed any air from the system.

Important Considerations for Hydraulic Fluid:

Using the correct type of hydraulic fluid is paramount. Most engine hoists use a standard hydraulic jack oil. Always consult your hoist's manual for the recommended fluid type. Overfilling can lead to pressure issues and potential damage, while underfilling will result in poor performance. Regular checks of the fluid level and condition are part of essential maintenance.

Safety First: Operating Your Engine Hoist

The operation of an engine hoist, while based on simple mechanical principles, demands strict adherence to safety protocols. The consequences of mishppening can be severe, including serious injury or even death, as well as significant damage to the vehicle and equipment.

Key Safety Precautions:

• Read the Manual: Always familiarise yourself with the specific operating instructions and weight limits for your engine hoist.
• Stable Ground: Ensure the hoist is on a firm, level surface before attempting to lift.
• Weight Limits: Never exceed the rated lifting capacity of the hoist.
• Proper Attachment: Use appropriate chains, slings, and hooks to secure the engine or component. Ensure they are rated for the load and are in good condition.
• Centred Load: Position the hoist so the load is centred directly over the base legs.
• Clearance: Ensure there is adequate clearance around the hoist and the load.
• Slow and Steady: Lift and lower loads slowly and smoothly. Avoid sudden movements.
• Secure the Load: Once lifted, ensure the engine is securely held by the hoist before moving it. Use locking pins or secondary supports if available.
• Never Get Under a Suspended Load: This is a cardinal rule. Never place any part of your body beneath a suspended engine or component.
• Awareness: Be aware of your surroundings and ensure no one is in the danger zone.

Frequently Asked Questions

Q1: What is the primary function of an engine hoist?
An engine hoist is designed to lift and manoeuvre heavy automotive components, most commonly engines, safely and efficiently.

Q2: How does an engine hoist generate lifting power?
It uses a hydraulic system, where pumping a handle forces hydraulic fluid into a cylinder, extending a piston and raising the boom.

Q3: What is the importance of the wide base on an engine hoist?
The wide base, typically U-shaped, provides stability and distributes the heavy load across a larger area, preventing the hoist from tipping.

Q4: Can I use any type of oil to refill my engine hoist?
No, it's crucial to use the specific type of hydraulic fluid recommended by the hoist manufacturer, usually a standard hydraulic jack oil. Using the wrong fluid can damage the system.

Q5: What should I do if my engine hoist feels stiff or slow to lift?
Check the hydraulic fluid level. If it's low, refill it according to the manufacturer's instructions. Also, ensure the release valve is fully closed during lifting.

Q6: How do I know if I've added enough hydraulic fluid?
When adding fluid, stop when it just begins to overflow or leak from the fill hole. Then, allow the excess to drain until the level is flush with the bottom of the fill hole. This indicates the cylinder is full without being over-pressurised.

Conclusion

Engine hoists are powerful tools that simplify complex automotive tasks. By understanding the interplay of their hydraulic system and leverage-based design, and by consistently prioritising safety, users can confidently and effectively tackle engine removal and installation. Regular maintenance, including proper fluid levels and checks for wear and tear, ensures the longevity and reliability of this essential workshop apparatus.
