Mastering LS Engine Disassembly: Your Full Guide

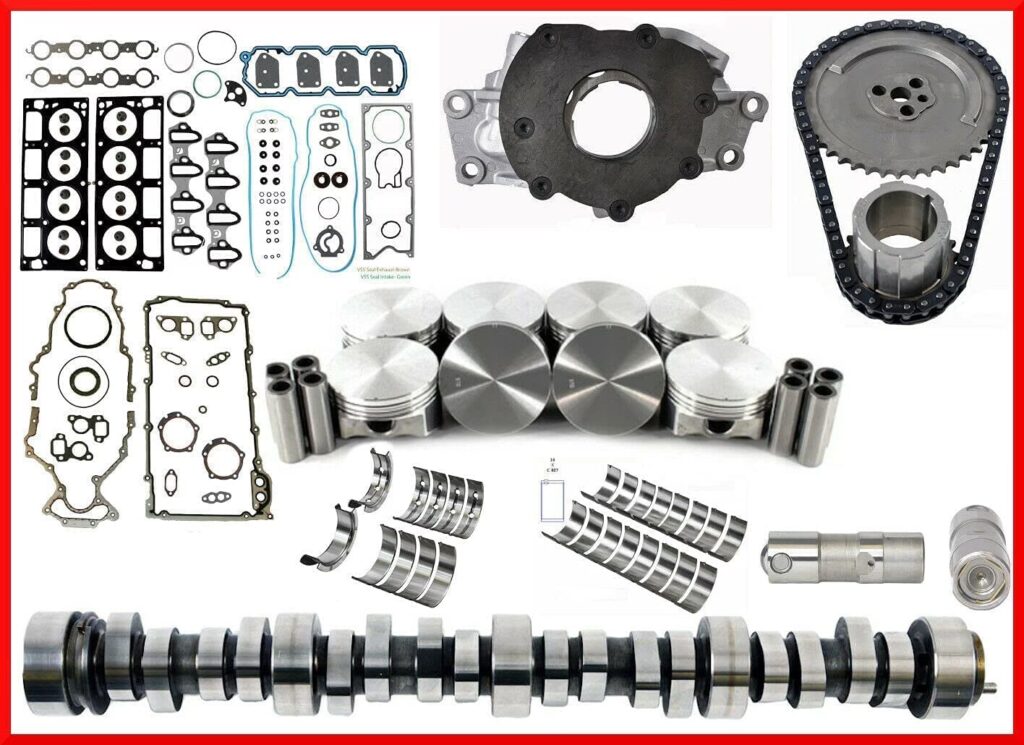

When embarking on an LS engine rebuild, the initial thought of tearing down a worn or broken engine might seem like a mere chore – a greasy, unavoidable prelude to the real work. However, this perspective couldn't be further from the truth. Engine disassembly is, in fact, a critical stage of any successful rebuild project. Far from being a 'necessary evil', it's an opportunity to learn, diagnose, and prepare meticulously for the assembly phase. Approaching this process with diligence and precision will not only save you time and money but also provide invaluable insight into the intricate workings of your engine.

Ignoring the importance of careful disassembly can lead to a host of problems. Hasty work can easily damage components that might otherwise be reusable, turning a simple task into a costly replacement. Furthermore, failing to meticulously document and inspect parts as they come off can obscure vital clues about past engine problems, making accurate diagnosis and effective solutions far more difficult. For the novice, it's also an unparalleled learning experience, offering a detailed look at how each component fits and functions within the larger system. So, let's delve into why taking your time during this initial phase is perhaps the most crucial step of all.

Why Careful Disassembly is Your Best Friend

The process of stripping down an engine is more than just unbolting parts; it's a diagnostic expedition and a preparatory phase rolled into one. Firstly, rushing through the teardown can inadvertently damage components. Fasteners, for instance, can be stubborn, and applying incorrect force or techniques might strip threads or round off bolt heads, rendering parts unusable or requiring extensive repair. Such mishaps not only waste precious time but also inflate your budget with unnecessary replacement invoices.

Secondly, a methodical disassembly provides an unparalleled opportunity for accurate problem diagnosis. Every part removed from the engine tells a story. A bent pushrod, for example, isn't just a bent pushrod; it's a symptom that points towards potential issues with the rocker arm, lifter, or even a damaged valve. By carefully cataloguing and inspecting each component as it's removed, you can pinpoint the exact origin of past failures. This meticulous approach ensures that you address the root cause of the problem during the rebuild, preventing future recurrences and guaranteeing a more durable and reliable engine.

Finally, and perhaps most importantly for those new to engine work, the disassembly process is an invaluable educational experience. Seeing each component come apart, understanding its position, and observing how it interacts with adjacent parts offers profound insights into engine operation. It demystifies the complex machinery, helping you visualise how everything will fit back together during reassembly. This hands-on learning fosters a deeper understanding, making you a more competent and confident mechanic.

The Three Cs of LS Engine Teardown: Cleanliness, Cataloguing, and Care

Effective engine disassembly hinges on a triumvirate of key principles: cleanliness, cataloguing, and care. Adhering to these '3 Cs' will streamline your process, enhance diagnostic accuracy, and ensure the safety of both yourself and your components.

Cleanliness: A Foundation for Success

Just like any precision task involving machinery, organisation begins with cleanliness. Engine disassembly is inherently the grimiest part of any rebuild project. Used engine components are inevitably coated in a cocktail of old oil, coolant, carbon buildup, and various other forms of grease and grime. Maintaining a clean workspace and cleaning parts as they are removed is paramount. This not only keeps you organised and focused but also ensures your safety, preventing slips and contamination. A clean part is easier to inspect, and a clean workspace reduces the risk of dirt or debris entering critical engine passages during reassembly.

Cataloguing: Mapping Your Engine's History

Equally as vital as cleanliness is establishing a robust parts cataloguing system. Every single component removed from your engine offers a unique clue that helps piece together the complete operational history of the engine. This narrative becomes incredibly challenging to decipher if you don't know precisely where each component originated. This is particularly crucial for parts that are candidates for refurbishment and reuse in your rebuilt engine. Labelling components clearly, noting their exact location (e.g., 'Cylinder 3 Intake Valve Lifter'), and even photographing critical steps – especially for complex systems like your particular engine's VVT layout – can be incredibly beneficial. For instance, if you discover a rod bearing failure during disassembly, precisely labelling which connecting rod was affected allows for a more rigorous inspection of that specific rod for underlying damage.

Care: Patience and Precision in Every Move

The final, yet equally important, piece of the organisational puzzle is the exercise of caution, patience, and forethought. Engine components, particularly items like the crankshaft, can be surprisingly heavy. Dropping a crankshaft, for example, could very easily result in a broken foot or, less painfully but equally costly, irreparable damage to the crank itself. Even parts you don't intend to reuse should be handled with care; mishandling could cause damage that you might mistakenly attribute to a pre-existing engine issue, leading to misdiagnosis. Furthermore, avoid distractions. Staying focused helps maintain safety and organisation, preventing the misplacement of a critical fastener that you might desperately need during reassembly.

Understanding LS Engine Generations: Gen III vs. Gen IV Disassembly Nuances

While the fundamental principles of LS engine disassembly remain consistent across generations, there are notable differences between Gen III and Gen IV engines that warrant attention. Being aware of these variations will prevent unexpected hurdles and ensure a smoother teardown process.

These distinctions highlight the importance of knowing your specific engine's generation and configuration before you begin. Always consult your service manual or reliable resources for detailed diagrams pertinent to your exact model.

Step-by-Step LS Engine Disassembly: A Comprehensive Guide

Here’s a detailed, step-by-step guide for the complete disassembly of a typical LS engine, using an LS6 (Gen III family) as our primary example. While your specific engine may have minor variations, the core procedures remain largely consistent across all major LS engine types.

Step 1: Ready to Begin Disassembly
Ensure your workspace is clean, well-lit, and you have all necessary tools organised and easily accessible. The engine should be securely mounted on an engine stand.

Step 2: Disconnect Intake Manifold Accoutrements
Begin by disconnecting all hoses, wiring, and vacuum lines attached to the intake manifold, carefully labelling each one as you go.

Step 3: Remove Fuel Rails
Carefully unbolt and remove the fuel rails, ensuring any residual fuel pressure is relieved beforehand.

Step 4: Remove Intake Manifold
Once all connections are clear, unbolt and lift off the intake manifold. Be mindful of gaskets and any components that might fall.

Step 5: Remove Oil Pressure Sensor
Locate and remove the oil pressure sensor, typically found at the rear of the engine block near the valley cover.

Step 6: Remove Knock Sensors
The knock sensors are usually located under the valley cover. Disconnect their wiring and remove them.

Step 7: Remove Valley Cover
Unbolt and carefully remove the valley cover, exposing the lifter valley and camshaft.

Step 8: Remove Coolant Air Bleed Pipes
These pipes, often found at the front of the intake manifold area or cylinder heads, should be unbolted and removed.

Step 9: Remove Ignition Coils/Brackets
Disconnect the wiring harnesses and unbolt the ignition coil packs and their mounting brackets from the valve covers.

Step 10: Remove Valve Covers
Unbolt and carefully pry off the valve covers, exposing the rocker arms and valvetrain components.

Step 11: Remove Rocker Arms
Unbolt the rocker arm stands and remove the rocker arms. Keep them organised, noting their original cylinder and position.

Step 12: Remove Pushrods
Lift out the pushrods. Inspect them for any bending or unusual wear as they are removed.

Step 13: Remove Dipstick Tube
Unbolt or carefully pull the dipstick tube from the engine block.

Step 14: Remove Spark Plugs and Exhaust Manifolds
Remove all spark plugs. Then unbolt and remove the exhaust manifolds (or aftermarket headers if equipped).

Step 15: Remove Transmission Bellhousing / Clutch / Torque Converter
If the transmission is still attached or partially attached, remove its bellhousing bolts, and separate the clutch or torque converter assembly.

Step 16: Remove Clutch Pilot Bearing
If applicable, remove the clutch pilot bearing from the rear of the crankshaft.

Step 17: Remove Engine Accessories
Remove any remaining external engine accessories such as the alternator, power steering pump, and air conditioning compressor.

Step 18: Mount Engine on Engine Stand
Ensure the engine is securely mounted to a robust engine stand, allowing for easy rotation and access to all sides.

Step 19: Remove All Remaining Engine Accessories and Brackets
Systematically remove any remaining accessory brackets, pulleys, and sensors that are still attached to the engine block or front cover.

Step 20: Remove Cylinder Head Plugs and Sensors
Remove any remaining plugs or sensors from the cylinder heads, such as temperature sensors.

Step 21: Remove Cylinder Head Bolts
Using the correct sequence (typically reverse of tightening), loosen and remove the cylinder head bolts. LS engines often use torque-to-yield bolts, which are single-use.

Step 22: Remove Cylinder Heads
Carefully lift the cylinder heads from the engine block. They can be heavy, so use caution or assistance.

Step 23: Remove Head Gaskets
Peel off the old head gaskets from both the cylinder heads and the engine block surfaces.

Step 24: Remove Cylinder Head Locating Pins
Extract the metal locating pins from the engine block that align the cylinder heads.

Step 25: Remove Lifter Guide Trays
These plastic trays hold the valve lifters in alignment. Remove them from the lifter bores.

Step 26: Remove Remaining Valve Lifters
Carefully pull out the valve lifters. Keep them organised by cylinder if you intend to inspect them for reuse.

Step 27: Remove Crank Bolt
Use a robust breaker bar or impact wrench to loosen and remove the large crankshaft bolt at the front of the engine.

Step 28: Remove Harmonic Damper
Use a specialised harmonic damper puller to remove the damper from the crankshaft snout. Check for a locking washer between the balancer and the crank snout; make a note to install one during final assembly if present. Most harmonic dampers on Gen III/IV engines are not keyed to the crankshaft, meaning their orientation isn't critical for reinstallation during a full rebuild where the rotating assembly will be rebalanced.

Step 29: Rotate Engine on Stand
Rotate the engine on the stand to access the flywheel/flexplate and oil pan area.

Step 30: Remove Flywheel or Flexplate
Unbolt and remove the flywheel (manual transmission) or flexplate (automatic transmission) from the rear of the crankshaft.

Step 31: Remove Oil Pan Bolts
Systematically unbolt all the fasteners securing the oil pan to the engine block.

Step 32: Remove Oil Pan and Gasket
Carefully pry the oil pan away from the block, breaking the seal of the old gasket, and remove it.

Step 33: Remove Rear Engine Cover
Unbolt and remove the rear engine cover, which houses the rear main seal.

Step 34: Remove Front Engine Cover
Unbolt and carefully remove the front engine cover. Be mindful of the oil pump drive and any alignment dowels.

Step 35: Note Any Signs of Unusual Engine Operation
As covers come off, pay close attention to unusual wear patterns, discolouration, or debris that could indicate previous issues.

Step 36: Remove Oil Pump Pickup Tube
Unbolt the oil pump pickup tube from the oil pump and the main bearing cap.

Step 37: Remove Crankshaft Oil Deflector
This baffle typically sits above the oil pan and below the crankshaft. Remove it.

Step 38: Remove Oil Pump
Unbolt the oil pump from the front of the engine block or front cover.

Step 39: Remove Timing Chain
Remove the timing chain from the camshaft and crankshaft sprockets. Note that some Gen IV engines feature timing chain tensioners and dampers that must also be removed here; carefully observe their layout for proper reinstallation. For VVT-equipped engines, the cam phaser and sprocket are held by an actuator solenoid valve (finger pointing) – if reusing the GM cam phaser system, it's recommended to purchase a new actuator solenoid valve as reuse is not advised.

Step 40: Remove Crankshaft Sprocket
Carefully slide or tap off the crankshaft sprocket.

Step 41: Remove Camshaft Sensor
Remove the camshaft position sensor, typically located at the rear of the engine block or front cover.

Step 42: Remove Camshaft Retainer Plate
Unbolt the small retainer plate that holds the camshaft in place at the front of the block.

Step 43: Remove Camshaft
Carefully slide the camshaft out of the engine block, supporting its weight to prevent damage to the cam bearings.

Step 44: Inspect for Cylinder Ridge
Use your finger or a ridge reamer to feel for a ridge at the top of the cylinder bores, indicating piston ring wear.

Step 45: Turn Engine to Bottom Dead Center
Rotate the crankshaft until the pistons are at their lowest point in the cylinders, making it easier to remove the connecting rods.

Step 46: Remove Connecting Rod Cap
Unbolt and remove the connecting rod caps one by one. Keep the caps with their corresponding rods, as they are matched sets.

Step 47: Remove Piston / Rod Assembly
Carefully push the piston and connecting rod assembly up and out of the top of the cylinder bore.

Step 48: Replace Connecting Rod Cap
Immediately reattach the connecting rod cap to its respective rod using its original bolts, to ensure they remain matched and organised.

Step 49: Note Engine Damage
Thoroughly inspect all removed pistons, rods, and cylinder bores for any signs of damage, wear, or distress, noting your observations.

Step 50: Remove Crankshaft Position Sensor
Remove the crankshaft position sensor from the engine block, usually located near the rear.

Step 51: Inspect for Main Bearing Cap Markings
Before removal, note any markings (numbers or arrows) on the main bearing caps that indicate their orientation and position.

Step 52: Remove Main Bearing Cap Side Bolts
If your engine has them, remove the side bolts that secure the main bearing caps.

Step 53: Remove Remaining Main Bearing Cap Bolts
Unbolt the main bearing cap bolts, working in a reverse-tightening sequence if applicable.

Step 54: Remove Main Bearing Caps
Carefully lift off the main bearing caps. They may require a gentle tap or pry to loosen.

Step 55: Remove Crankshaft
With all main caps removed, carefully lift the crankshaft out of the engine block. This is a heavy component, so proceed with caution.

Step 56: Remove Upper Main Bearing Shells
Remove the upper main bearing shells from the engine block saddles.

Step 57: Remove Metal Engine Block Oil Gallery Plugs
Use appropriate tools to remove any metal oil gallery plugs from the engine block.

Step 58: Remove Rear Oil Gallery Plug
Remove the larger rear oil gallery plug from the back of the engine block.

Step 59: Remove Engine Block Coolant Plugs
Remove the various coolant plugs (freeze plugs) from the engine block. This is often done as part of block cleaning and preparation.

Step 60: Engine Disassembly Complete
With all components removed, the engine block is now bare and ready for cleaning, inspection, and machining.

Frequently Asked Questions About LS Engine Disassembly

Do I need specialist tools for LS engine disassembly?

While many steps can be completed with standard garage tools, certain LS engine components require specialised tools. A harmonic damper puller is essential, and an engine stand is highly recommended for safety and ease of access. Torque-to-yield bolts, common in LS engines, also necessitate a torque wrench and an angle gauge for proper reassembly, though not strictly for disassembly. Having a good set of sockets, wrenches, and screwdrivers, along with a parts organiser, will cover most needs.

How long does a typical LS engine disassembly take?

The duration of an LS engine disassembly can vary significantly based on your experience level, the tools at hand, and the condition of the engine. For a first-timer performing a meticulous, diagnostic teardown, it could easily take a full weekend or even longer, spread across several days. An experienced mechanic might complete it in a single long day. Remember, rushing increases the risk of damage and missed diagnostic opportunities, so allocate ample time.

What should I do if I discover severe damage during disassembly?

If you uncover severe damage, such as a cracked block, severely scored crankshaft, or irreparable cylinder head damage, it's crucial to stop and re-evaluate your rebuild plan. Document the damage thoroughly with photos. You'll need to decide whether the component is salvageable through machining (e.g., crankshaft grinding, cylinder boring) or if replacement is the more economical and reliable option. This might involve sourcing a new or used component, which can impact your budget and timeline.

Can I reuse all parts after disassembly?

No, it's highly unlikely you'll reuse all parts. Components like gaskets, seals, and torque-to-yield bolts are typically one-time use. Other parts, such as bearings, piston rings, and often lifters and pushrods, are usually replaced as a matter of course during a rebuild. Critical components like the crankshaft, connecting rods, cylinder heads, and the engine block can often be reconditioned and reused, provided they pass thorough inspection and measurement against factory specifications.

Is it necessary to label every single bolt?

While you don't need to label every single bolt individually, it is highly recommended to organise bolts by the component they secured and their specific location. For instance, keeping all cylinder head bolts together, separate from oil pan bolts, is crucial. For components with specific tightening sequences or varying bolt lengths (like valve cover bolts), labelling individual positions or creating a detailed diagram can prevent errors during reassembly. Organisation saves time and prevents frustration.

Conclusion: The Value of a Meticulous Teardown

As we've explored, LS engine disassembly is far more than just taking things apart; it's a foundational step that dictates the success and longevity of your rebuild. By embracing cleanliness, cataloguing, and care, you transform a potentially chaotic process into a structured, educational, and highly effective diagnostic mission. This meticulous approach not only preserves valuable components and prevents costly errors but also deepens your understanding of these remarkable engines. So, when you next approach a broken LS engine, remember it's not a necessary evil, but a golden opportunity to master your craft and ensure a truly successful rebuild.
