Crankshaft Repair: A Comprehensive Guide

A cracked crankshaft is a serious issue that can lead to catastrophic engine failure if not addressed promptly. This critical component, often referred to as the heart of the engine, converts the linear motion of the pistons into rotational motion, powering your vehicle. When a crack develops, it compromises the structural integrity of this vital part, necessitating a thorough and precise repair process. This guide will walk you through the comprehensive steps involved in repairing a cracked crankshaft, from initial assessment to final reassembly, ensuring a robust and reliable engine.

Understanding Crankshaft Cracks

Crankshaft cracks typically originate from fatigue, often starting as microscopic fissures due to stress concentrations. Common causes include overloading the engine, improper lubrication, detonation, or manufacturing defects. Identifying a crack usually involves visual inspection, often aided by non-destructive testing methods like magnaflux crack testing. Early detection is key to a successful and cost-effective repair.

The Repair Process: A Step-by-Step Breakdown

1. Disassembly and Initial Inspection

The first crucial step is the complete disassembly of the engine to gain access to the crankshaft. Every component must be carefully removed and catalogued. Following disassembly, a meticulous de-greasing and cleaning of all parts is essential. This removes accumulated oil, grime, and debris, allowing for a clear and accurate inspection. The crankshaft itself undergoes rigorous inspection, including the critical magnaflux crack testing. This magnetic particle inspection method is highly effective at revealing even the smallest surface and subsurface cracks that might be missed by the naked eye.

2. Cylinder Head and Manifold Preparation

While the crankshaft is being inspected, other engine components are addressed. The cylinder head and manifold faces are prepared by resurfacing. This process ensures a perfectly flat mating surface, critical for proper sealing and preventing combustion leaks. This often involves grinding the surfaces to achieve the desired flatness and finish.

3. Crankshaft Grinding and Machining

If cracks are detected or the crankshaft shows significant wear, it will likely require regrinding. The re-grind the crankshaft process involves removing a thin layer of material from the bearing journals to create a smooth, round, and true surface. This is a precision operation, often done to a specific undersize to accommodate new, larger bearings. The depth of the grind depends on the severity of the damage and wear.

4. Valvetrain Overhaul

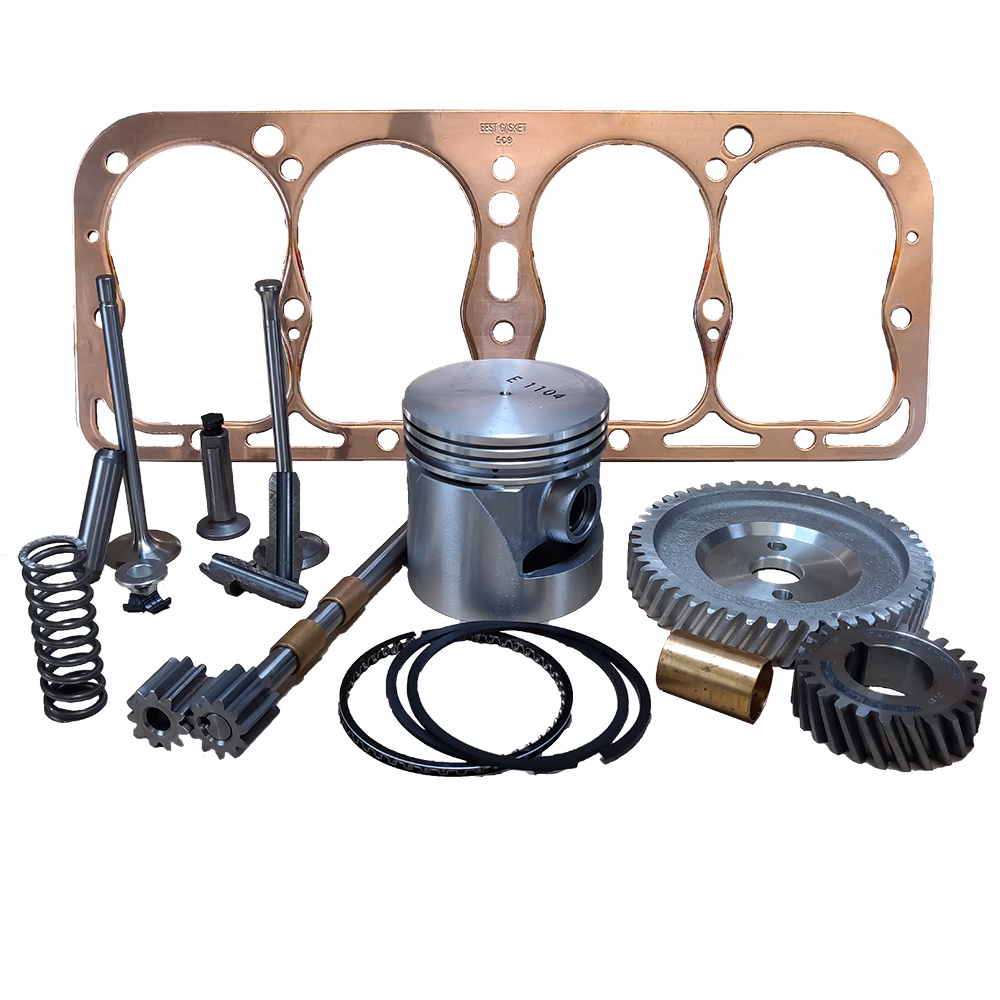

A comprehensive engine rebuild includes a complete overhaul of the valvetrain. This involves the installation of unleaded valve seats, which are more durable for modern unleaded fuels. New valve guides are fitted to ensure proper valve alignment and sealing. Furthermore, new alloy valves, springs, retainers, and lifters are typically installed. These lightweight and strong components improve engine performance and longevity.

5. Bearing Replacement and Align Boring

The main bearings, which support the crankshaft, are crucial for its smooth operation. In a thorough rebuild, these are replaced. The process of rebabbitted main bearings and align boring is undertaken. Rebabbitting involves applying a new layer of bearing material, while align boring is a precision machining process that ensures the crankshaft bores are perfectly aligned and concentric. This is often done with a full laminated shim stack to achieve the precise bearing clearances.

6. Connecting Rod Reconditioning

The connecting rods, which link the pistons to the crankshaft, also require attention. Rebabbitted connecting rods are prepared, and the wrist pin bores are re-bushed. The wrist pin connects the piston to the connecting rod, and a worn or loose connection can cause significant noise and damage. Re-bushing restores the correct fit and reduces play.

7. Cylinder Boring and Piston Installation

The engine block's cylinders are inspected for wear and damage. If necessary, they are rebored to the next oversize to restore their original roundness and eliminate any imperfections. New alloy pistons and rings, matched to the rebored cylinders, are then installed. These modern pistons and rings offer improved performance, efficiency, and durability.

8. Timing Components and Camshaft

The engine's timing system is vital for synchronising the crankshaft and camshaft. This includes the installation of a new crank gear and a laminated timing gear. The camshaft, which controls valve operation, may also be inspected and, if worn, reground. If the camshaft is reground, adjustable lifters are often used to fine-tune valve lash.

9. Cylinder Head Reassembly and Gasketing

With the internal engine components addressed, the cylinder head is prepared for reinstallation. The resurface cylinder head operation ensures a perfect seal with the engine block. A modern headgasket, chosen for its durability and sealing properties, is installed along with heavy duty head studs. These studs provide superior clamping force, ensuring the head gasket remains securely in place under high combustion pressures.

10. Ancillary Component Rebuilds

Several other essential engine components are typically rebuilt during this process. The oil pump is rebuilt to ensure adequate lubrication throughout the engine. The distributor drive is serviced, and the timing cover and oil tube are assembled and installed. The flywheel housing is also fitted at this stage.

11. Flywheel Preparation

Finally, the flywheel, which smooths out power delivery from the engine, is addressed. It is balanced and resurfaced to ensure it runs true and doesn't introduce vibrations. A new ring gear is installed onto the flywheel, which engages with the starter motor to initiate engine cranking. Proper balancing is crucial for overall engine smoothness.

Key Considerations and Best Practices

Throughout this extensive repair process, several key considerations ensure the longevity and performance of the repaired crankshaft and engine:

• Precision Measurement: Every measurement, from bearing clearances to journal diameters, must be taken with high-precision tools and within specified tolerances.
• Component Quality: Using high-quality replacement parts, such as bearings, pistons, and gaskets, is paramount.
• Cleanliness: Maintaining an extremely clean working environment is vital to prevent contamination of new and machined parts.
• Lubrication: Proper lubrication during assembly is essential to prevent initial wear on critical components.
• Torque Specifications: Adhering strictly to all torque specifications for bolts and fasteners is critical for proper assembly and reliability.

Frequently Asked Questions

Can a cracked crankshaft always be repaired?

While many cracks can be repaired through grinding and machining, severe cracks, especially those that have propagated significantly, may render the crankshaft irreparable. In such cases, replacement with a new or professionally reconditioned crankshaft is necessary.

What are the signs of a failing crankshaft?

Signs of a failing crankshaft can include unusual knocking or grinding noises from the engine, loss of oil pressure, visible oil leaks around the crankshaft seals, and in severe cases, engine seizure.

Is it cheaper to repair or replace a crankshaft?

The cost-effectiveness of repair versus replacement depends on the severity of the crack, the availability and cost of a replacement crankshaft, and the labour involved in both processes. For minor damage, repair can be more economical. For extensive damage, replacement might be the more practical option.

What is magnaflux crack testing?

Magnaflux crack testing, also known as magnetic particle inspection, is a non-destructive testing method used to detect surface and near-surface flaws in ferromagnetic materials. It involves magnetising the part and then applying iron particles. If a crack is present, it disrupts the magnetic field, causing the particles to accumulate at the flaw, making it visible.

Why is align boring necessary?

Align boring is a precision machining process that ensures the crankshaft bearing bores in the engine block are perfectly aligned and concentric. Misalignment can cause excessive friction, premature bearing wear, and even crankshaft breakage.

Repairing a cracked crankshaft is a complex and demanding task that requires specialized knowledge, tools, and equipment. By following these detailed steps and adhering to best practices, you can ensure a successful engine rebuild, restoring your vehicle's performance and reliability. Remember, when in doubt, always consult with a qualified automotive technician.
