Unleashing Your 4.3L V6: Rebuild & Power Upgrades

For many enthusiasts, the Chevrolet 4.3L V6 found in vehicles like the trusty S-10 represents a fantastic balance of power, reliability, and compact packaging. However, if you're like most, the desire for more grunt, a bit more 'oomph', is an ever-present thought. A comprehensive engine rebuild offers the perfect opportunity not only to restore your engine to peak condition but also to infuse it with a significant boost in performance. Let's delve into what a complete 4.3L engine rebuild entails and how you can truly 'beef up' your six-banger.

The Anatomy of a Complete 4.3L Engine Rebuild

A complete engine rebuild goes far beyond simply replacing a few gaskets. It's a meticulous process designed to bring your engine back to – or even surpass – factory specifications, ensuring longevity and optimal performance. For your 2002 S-10's 4.3L, this typically involves:

1. Disassembly and Inspection

• Engine Removal: The first step is carefully removing the engine from the vehicle.
• Full Disassembly: Every component, from the cylinder heads to the crankshaft, is removed.
• Thorough Cleaning: All parts are cleaned to remove carbon deposits, oil sludge, and old gasket material. This often involves hot tanking or chemical cleaning for major components.
• Detailed Inspection: Each part is inspected for wear, cracks, warpage, and damage. This includes measuring cylinder bores, crankshaft journals, camshaft lobes, and checking for bent connecting rods or damaged pistons.

2. Machining and Component Reconditioning

• Cylinder Block: The block is typically bored to the next oversize (e.g., .030" or .060" over) to remove wear and restore cylinder roundness. It's also decked to ensure a perfectly flat surface for the cylinder heads.
• Crankshaft: Journals are measured. If worn, they are ground undersize and polished. The crank is also checked for straightness.
• Connecting Rods: Rods are inspected for straightness and big end roundness. They may be resized or replaced.
• Cylinder Heads: Heads are disassembled, cleaned, and inspected for cracks. Valve guides are checked and replaced if necessary. Valve seats are ground or replaced, and valves are refaced or replaced. The heads are then milled (resurfaced) to ensure flatness.

3. Component Replacement and Upgrades

During a rebuild, many components are replaced as a matter of course. This is where your performance aspirations come into play:

• Pistons: New pistons, sized to the new bore (e.g., .030" or .060" over), are installed. For performance, forged pistons offer superior strength.
• Piston Rings: New rings are essential for proper compression and oil control.
• Bearings: New main, rod, and camshaft bearings are installed, sized to the crankshaft and block.
• Camshaft and Lifters: This is a key area for performance. You mentioned a Comp Cams D270/276 with .500"/.510" lift. This is an aggressive hydraulic roller cam that will significantly alter your engine's power band, pushing peak power higher in the RPM range and creating a noticeable idle lope. It's an excellent choice for a performance build but will require appropriate supporting modifications.
• Timing Set: A new timing chain and gears are crucial. For performance, a double roller timing set is recommended for durability.
• Oil Pump: A new, high-volume oil pump is a wise investment, especially for performance applications.
• Gaskets and Seals: A complete gasket set ensures a leak-free assembly.
• Valvetrain Components: New valve springs appropriate for the higher lift camshaft are absolutely necessary. Stronger pushrods and roller rockers can also be beneficial.

4. Reassembly and Testing

• Meticulous Reassembly: The engine is carefully reassembled, with all clearances checked and torqued to specification.
• Pre-Lubrication: Before initial start-up, the engine is pre-lubricated to prevent dry start wear.
• Initial Break-in: Following the rebuild, a specific break-in procedure is vital to properly seat piston rings and camshaft lobes.

Beefing Up Your 4.3L: Getting Bigger Balls!

You're looking to turn your 4.3L into a serious performer, and that's an exciting prospect! Let's address your specific ideas and other popular modifications.

Camshaft Choice: Comp Cams D270/276 (.500"/.510" Lift)

This is indeed a stout cam for a 4.3L. With .500" intake and .510" exhaust lift, it will provide a significant power increase, particularly in the mid to upper RPM range. However, be aware of the following:

• Supporting Valvetrain: As mentioned, stock valve springs will not handle this lift. You'll need performance valve springs matched to this cam. Stronger pushrods and possibly roller rockers are highly recommended to prevent flex and ensure stability at higher RPMs.
• Piston-to-Valve Clearance: With high lift cams and potentially thinner head gaskets (for compression), you MUST check piston-to-valve clearance during assembly. This is crucial to prevent catastrophic engine damage.
• Idle Quality: This cam will likely produce a noticeable lope at idle, which some love, but it might not be as smooth as stock.
• Tuning: This cam will absolutely require a custom tune of your engine's ECU. The stock tune will not be able to compensate for the increased airflow and altered vacuum signals, leading to poor performance, drivability issues, and potentially engine damage.

Overbore: .030" or .060" Rebuild Kit

Boring the cylinders to .030" or .060" over is standard practice during a rebuild to clean up the bores. Opting for .060" over will give you a slightly larger displacement, which translates to a small increase in power. However, it also removes more material from the cylinder walls, potentially reducing their strength and heat dissipation. For most street performance builds, .030" over is perfectly adequate and safer. If you're chasing every last cubic inch, .060" is an option, but ensure your machine shop checks wall thickness.

Connecting Rods and Stroke: The V8 Connection

You asked about using 5.7L or 6.0L V8 connecting rods to gain more stroke. This is where it gets complicated. While the 4.3L V6 shares its bore spacing and some design elements with the small-block Chevrolet V8 (it's essentially a 350 V8 with two cylinders removed), direct interchangeability of connecting rods and crankshafts for a stroke increase is not straightforward, if at all possible, for a few key reasons:

• Crankshaft Journals: While the V8 and V6 may share similar main bearing sizes, the rod journal sizes can differ, and more importantly, the throws (the distance from the main bearing centerline to the rod journal centerline) that determine stroke are specific to the crankshaft's design. A V8 crank simply won't fit a V6 block without extensive, custom machining that would likely exceed the cost of a custom V6 stroker crank.
• Rod Length vs. Stroke: Increasing stroke means the piston travels further up and down. This requires either a shorter connecting rod or a piston with a higher compression height (distance from wrist pin to piston top). V8 rods, even if they fit the crank journals, are designed for the V8's specific deck height and stroke. Trying to mix and match without careful calculation and custom components (pistons, possibly custom rods) will result in pistons hitting the cylinder heads or sticking out of the block.
• Finding a Bigger Crank: You're right, finding an off-the-shelf "bigger crank" for a 4.3L is extremely difficult because they don't exist as production parts. Your options for increasing stroke are:
  1. Custom Stroker Crank: The most effective but also most expensive option. A custom crankshaft can be made with a longer stroke, designed specifically for the 4.3L block and your chosen rod length.
  2. Offset Grinding: A machine shop can sometimes offset grind your existing crankshaft's rod journals to slightly increase the stroke. This is limited by the amount of material available and requires custom-sized rod bearings.
  3. Stroker Kits: Some aftermarket companies offer 4.3L stroker kits, which typically include a new crankshaft, connecting rods, and custom pistons designed to work together for increased displacement. These are rare but do exist for dedicated performance builds.

The practical reality is that significant stroke increases on a 4.3L usually involve custom components rather than adapting V8 parts directly. Focus on finding a dedicated 4.3L stroker kit or exploring custom crank options if a major stroke increase is your primary goal.

Other 'Bigger Balls' Modifications for Your 4.3L

Beyond the cam and displacement, here's how to truly unleash your V6:

• Cylinder Head Porting: Stock 4.3L heads are restrictive. Porting and polishing the intake and exhaust runners, along with a multi-angle valve job and larger valves, will dramatically improve airflow and horsepower potential. This is often one of the best bang-for-buck power adders.
• Intake Manifold: The stock intake manifold on the 4.3L can be a bottleneck. Aftermarket performance intake manifolds (like those from Edelbrock or specific marine intakes adapted for automotive use) can provide significant gains by improving airflow distribution.
• Exhaust System: A free-flowing exhaust system, including performance headers, a larger diameter exhaust pipe, and a high-flow muffler, will reduce back pressure and allow the engine to breathe more easily.
• Forced Induction: If you truly want 'bigger balls', a turbocharger or supercharger is the ultimate solution. This involves significant plumbing, intercooling, and a robust fuel system, but the power gains are immense. This would require an even more robust bottom end (forged pistons, stronger rods) to handle the increased cylinder pressures.
• Fuel System Upgrades: Higher horsepower requires more fuel. You'll likely need larger fuel injectors and potentially a higher-flow fuel pump to support your performance goals, especially with a turbo/supercharger or aggressive cam.
• Custom ECU Tuning: We mentioned it for the cam, but it's critical for ANY significant performance modification. A skilled tuner can optimise fuel delivery, ignition timing, and other parameters to maximise power and ensure reliability. This is perhaps the single most important 'mod' for a serious build.

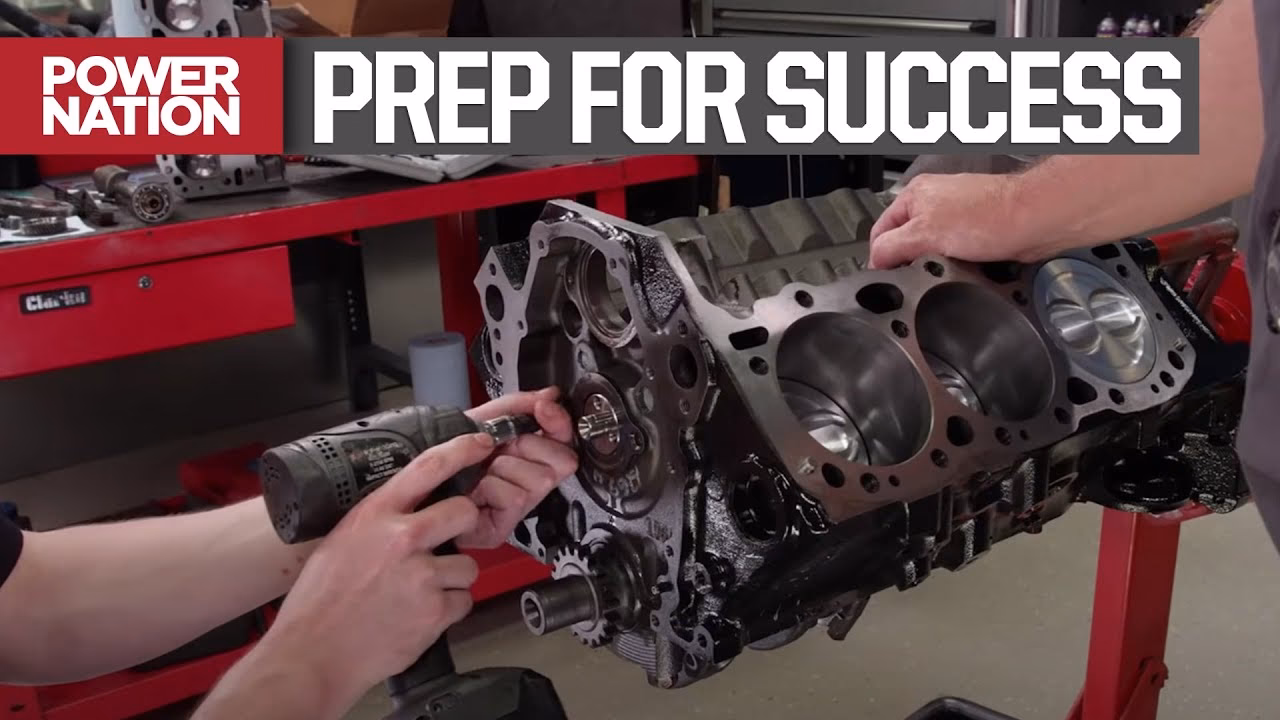

Addressing 4.3L Engine Oil Leaks

Oil leaks are a common nuisance with older engines, and the 4.3L is no exception. While a full rebuild will address many potential leak points by replacing all gaskets and seals, here are common areas and how they are typically fixed:

Common 4.3L Oil Leak Sources:

1. Valve Cover Gaskets: These are very common. The rubber or cork gaskets harden over time, leading to leaks.
2. Oil Pan Gasket: Another frequent culprit. The oil pan gasket seals the bottom of the engine block.
3. Timing Cover Gasket: This gasket seals the front of the engine, behind the harmonic balancer. Leaks here can be mistaken for front main seal leaks.
4. Rear Main Seal: Located at the back of the crankshaft, where it exits the engine block. This is a more involved repair as it often requires transmission removal to access.
5. Oil Cooler Lines/Adapter: Many 4.3L engines have an oil cooler adapter where the oil filter screws on, with lines running to a separate cooler. The O-rings on the adapter and the lines themselves can degrade and leak.
6. Distributor Gasket/O-ring: The base of the distributor where it seats in the intake manifold can leak oil.
7. Intake Manifold Gaskets: While primarily sealing coolant and air, the intake manifold also seals against oil in the lifter valley. Leaks here (often from the 'china walls' at the front and rear) can allow oil to seep out.

Fixing 4.3L Oil Leaks During a Rebuild:

During a comprehensive rebuild, nearly all of these potential leak points are addressed as a matter of course:

• All old gaskets are removed and replaced with new ones (e.g., valve cover, oil pan, timing cover, intake manifold).
• The front and rear main seals are replaced.
• Any O-rings associated with components like the distributor or oil cooler adapter are renewed.
• Surfaces are cleaned and prepared meticulously to ensure proper sealing.

Even if you're not doing a full rebuild, identifying the exact source of a leak is key. Clean the engine thoroughly, add a UV dye to the oil, and then use a UV light to pinpoint the leak. Repair typically involves replacing the specific gasket or seal causing the issue.

Performance Rebuild Components Comparison

Here's a simplified comparison of common rebuild component choices:

Frequently Asked Questions About 4.3L Rebuilds

Q: How much does a complete 4.3L rebuild typically cost?

A: The cost varies significantly based on whether you do the work yourself or pay a shop, and the extent of machining and performance parts used. A basic stock rebuild might range from £1,500 - £3,000 for parts and machine work (DIY) or £3,000 - £6,000+ for a professional shop. A performance rebuild with custom parts can easily push this upwards of £5,000 - £10,000+.

Q: Can I use my stock intake manifold with a high-lift cam?

A: While you can physically bolt it on, a high-lift cam like the D270/276 will flow far more air than the stock intake manifold can efficiently supply. You'll leave significant horsepower on the table. An aftermarket intake is highly recommended for optimal performance.

Q: What's the maximum horsepower I can expect from a naturally aspirated 4.3L?

A: With a fully built performance engine (ported heads, aggressive cam, good intake/exhaust, optimal tuning), a naturally aspirated 4.3L can achieve around 250-300 horsepower at the crankshaft. Beyond that, forced induction (turbo/supercharger) is usually required to reach higher figures.

Q: Do I need a different torque converter for a performance cam?

A: Yes, for an aggressive cam like the D270/276, a higher stall torque converter (e.g., 2500-3000 RPM stall) is highly recommended. This allows the engine to rev into its power band before fully engaging the transmission, improving launch and drivability.

Q: Is it worth rebuilding a 4.3L, or should I just swap in a V8?

A: This is a classic dilemma. Rebuilding the 4.3L is often simpler in terms of fitment and wiring compared to a V8 swap, and a well-built 4.3L can be surprisingly potent and unique. However, a V8 swap (e.g., LS engine) can offer significantly more power potential for potentially similar or slightly higher cost, but with more complexity in terms of mounts, wiring, cooling, and exhaust. The choice depends on your budget, mechanical skill, and specific performance goals.

In conclusion, embarking on a complete 4.3L engine rebuild for your S-10 is a rewarding endeavour, especially when combined with performance upgrades. Careful planning, selection of quality components, and professional machine work are paramount. While direct V8 rod/crank swaps aren't practical for stroke, dedicated 4.3L stroker kits or custom solutions can yield impressive displacement gains. Remember that any significant performance modification, especially a high-lift camshaft, necessitates custom ECU tuning to unlock its full potential and ensure reliable operation. Address those oil leaks as part of your comprehensive overhaul, and you'll have a V6 that not only runs like new but also has the 'bigger balls' you're after!
