Maintaining Your 2.2 Ecotec Engine

Keeping Your 2.2 Ecotec Engine in Peak Condition

The General Motors Ecotec engine family has powered a vast array of vehicles, and the 2.2-litre variant is a common and reliable choice. Whether you're a seasoned DIY mechanic or just looking to understand your car better, proper maintenance is key to ensuring longevity and optimal performance from your 2.2 Ecotec. This guide will delve into the essential aspects of maintaining this engine, from regular servicing to understanding its nuances, including comparisons with its Ecotec siblings.

Understanding the 2.2 Ecotec Engine

The 2.2 Ecotec is an inline four-cylinder engine known for its balance of power and fuel efficiency. It's a popular choice in many Chevrolet, Pontiac, and Saturn models. Its design prioritises accessibility for maintenance, which is a significant advantage for owners who prefer to handle some of the upkeep themselves.

Essential Maintenance Schedule

Adhering to a regular maintenance schedule is the cornerstone of engine longevity. For your 2.2 Ecotec, consider the following:

Key Components and Their Care

Let's break down some of the critical components and how to look after them:

Engine Oil

The lifeblood of your engine. The 2.2 Ecotec typically requires a 5W-30 synthetic oil, but always consult your owner's manual for the precise specification. Regular oil changes not only lubricate moving parts but also remove contaminants that can cause wear. Over time, oil degrades, losing its lubricating properties. A clean oil filter is equally important to trap debris.

Cooling System

Overheating can cause catastrophic engine damage. The cooling system, comprising the radiator, coolant, water pump, and thermostat, must be in good working order. Periodically inspect hoses for cracks or leaks. Ensure the coolant level is correct and that it's flushed and replaced at the recommended intervals. Using the wrong type of coolant can lead to corrosion and reduced efficiency.

Ignition System

Spark plugs are vital for igniting the fuel-air mixture. Worn or fouled spark plugs can result in rough idling, poor acceleration, and reduced fuel economy. The Ecotec uses specific types of spark plugs, and it's important to replace them with the correct ones at the recommended mileage. Inspecting the ignition coils and wiring for damage is also a good practice during spark plug replacement.

Air Intake System

A clean air filter ensures that the engine receives an adequate supply of clean air for combustion. A clogged filter restricts airflow, forcing the engine to work harder and reducing performance. Inspecting the air intake tract for any obstructions or leaks is also important.

Organising Your Maintenance

As the provided information suggests, keeping organised during maintenance is crucial, especially when dealing with a variety of components.

Tip: When undertaking more involved maintenance, such as replacing components or investigating a specific issue, keep track of the parts you remove. A simple parts organizer or even labelled bags can prevent mix-ups. Always refer to a detailed parts diagram for your specific 2.2 Ecotec engine. This will not only help you identify each component but also understand its correct placement and orientation during reassembly. Having a clear understanding of the component layout is paramount for a successful repair or maintenance task.

2.0L Ecotec vs. 2.2L Ecotec: Key Differences

The Ecotec engine family has several variations, and understanding the differences can be helpful, especially when considering performance upgrades. The information provided highlights some key distinctions:

• Bore and Stroke: The 2.0L Ecotec (often found in supercharged applications) is a de-stroked version of the 2.2L. The 2.0L has dimensions of 86mm bore x 94.6mm stroke, while the 2.2L has a square bore and stroke of 86mm x 86mm. The Solstice's Ecotec variant (often a 2.4L) is further modified with both a stroked and bored configuration (88mm x 98mm).
• Internal Components: Some higher-performance Ecotec variants, like certain 2.0L supercharged models, feature forged rods and crankshafts for increased durability. The 2.2L, however, typically uses cast components, though even the cast crank is noted as being robust enough for over 400 HP. The Solstice's 2.4L Ecotec also uses cast crank, rods, and pistons in its stock form.
• Performance Potential: The inherent strength of the Ecotec block and crankshaft means that even the cast-crank 2.2L can handle significant power increases. GM has even offered supercharger kits for the 2.2L that can boost output to around 250 HP. This same power level is achievable with the 2.4L Ecotec on a stock engine, often with even more headroom.

Supercharging the 2.2L Ecotec (and Considerations for the 2.4L)

The prospect of supercharging an Ecotec engine is an exciting one. GM's offering of supercharger kits for the 2.2L demonstrates the engine's potential. These kits typically include not just the supercharger itself but also necessary supporting components such as a new belt idler pulley, generator bracket, intake manifold bracket, and a throttle body-to-supercharger adaptor plate. Crucially, larger fuel injectors are also required, and the engine's electronic management system needs to be reprogrammed by a GM dealer to optimise performance and prevent potential issues.

The installation of such a kit is often described as a relatively straightforward process, potentially taking less than half a day, and importantly, it doesn't necessarily require modifications to the intake, catalytic converter, or exhaust system.

A common question arises regarding the compatibility of the 2.2L supercharger kit with the 2.4L Ecotec, as found in vehicles like the Solstice. While the internal strength of the 2.4L is comparable, the primary concern often cited is the physical space available in the engine bay. The intake side of the Solstice/Sky Ecotec engine can be quite crowded, potentially making it difficult to fit the supercharger unit. If this physical constraint can be overcome, the conversion might be more feasible.

When considering aftermarket or GM-supplied kits, it's worth comparing costs. While a GM parts department discount can be beneficial, the need to replace injectors means that money spent on stock injectors is essentially lost. Injectors can be a significant cost, though prices have likely decreased over the years.

Troubleshooting Common Issues

While generally reliable, the 2.2 Ecotec can encounter a few common issues:

• Oil Consumption: Some Ecotec models have been known to consume oil. Regular checks and using the correct oil are vital. In some cases, worn piston rings or valve seals can contribute to this.

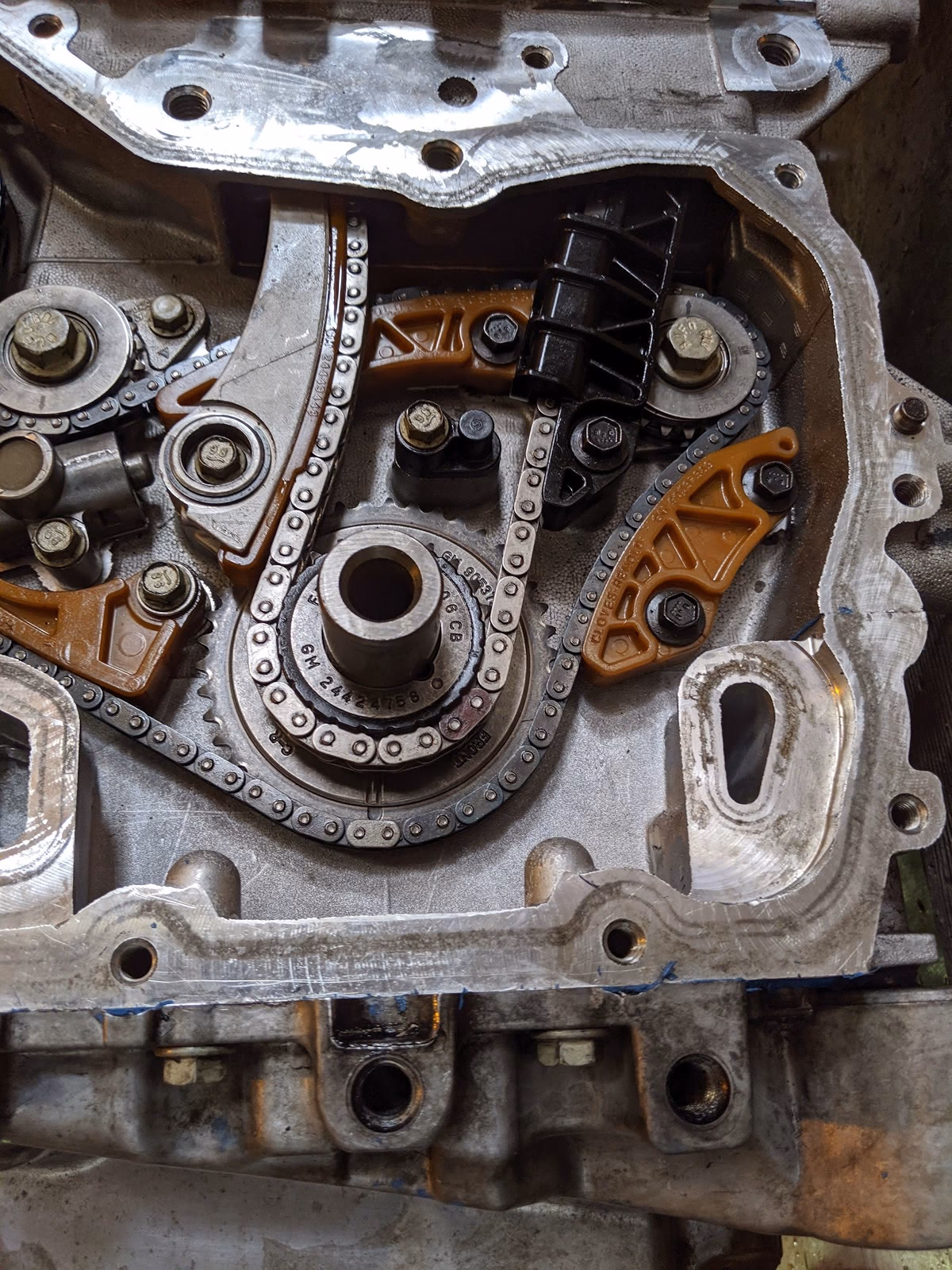

• Timing Chain Noise: Although designed to be durable, timing chains can develop noise over time, often indicating wear or tensioner issues. If you hear a rattling or slapping sound from the front of the engine, especially on startup, it's worth investigating.
• EGR Valve Issues: A clogged or faulty Exhaust Gas Recirculation (EGR) valve can lead to rough idling and check engine lights. Cleaning or replacing the EGR valve is a common fix.

Frequently Asked Questions

Q1: What type of oil should I use in my 2.2 Ecotec?
Generally, a 5W-30 synthetic oil is recommended. However, always verify the exact specification in your vehicle's owner's manual.

Q2: How often should I change the oil in my 2.2 Ecotec?
It's recommended to change the oil and filter every 3,000 to 5,000 miles (5,000 to 8,000 km) or as specified in your owner's manual.

Q3: Can I use a 2.0L Ecotec supercharger kit on my 2.2L Ecotec?
Yes, GM offered supercharger kits specifically for the 2.2L Ecotec. While the core engine components are related, ensure you use a kit designed for your specific engine displacement.

Q4: What are the signs of a failing timing chain?
Common signs include a rattling or slapping noise from the front of the engine, particularly on startup, and potentially a check engine light with timing-related codes.

Q5: Is the 2.2 Ecotec an interference or non-interference engine?
The 2.2 Ecotec is generally considered a non-interference engine, meaning that if the timing belt/chain breaks, the pistons will not collide with the valves. However, it's always best to confirm this with your specific vehicle's service manual.

Conclusion

The 2.2 Ecotec engine is a capable powerplant that, with diligent maintenance, can provide many years of reliable service. By understanding its needs, following a consistent service schedule, and being aware of common issues, you can keep your engine performing at its best. Regular checks, using quality parts, and performing maintenance promptly are the keys to unlocking the full potential and longevity of your 2.2 Ecotec.
