Spotting the Robust GM 5.7L Vortec Engine

For decades, the General Motors Small Block V8 engine has been a cornerstone of automotive engineering, powering millions of vehicles across countless applications. From its humble beginnings in 1955, this versatile engine family has seen numerous iterations and displacements. Among them, the 5.7 Litre (350 cubic inch) version, particularly the Vortec variant, stands out for its robust design and widespread use in industrial and truck applications. While its sheer popularity might make identification seem daunting, understanding a few key characteristics can quickly help you pinpoint a 5.7L Vortec engine and unlock its full potential, whether for maintenance or performance upgrades.

Identifying your specific GM 5.7 engine, especially differentiating the Vortec version, is crucial for correct servicing and part selection. One of the primary indicators can often be found by examining a stamped number on the deck of the engine block. This number is typically located at the front, on the passenger side of the engine. What you’re looking for is a suffix, usually two or three letters long, that follows the main casting number. Critically, for many of these industrial units, this suffix will begin with an “A”. This seemingly small detail can provide valuable insight into the engine's original configuration.

Beyond the stamped codes, another important aspect to consider when identifying your 5.7 Litre engine is the style of the accessory drive system. Specifically, determining if your engine utilises the late style serpentine belt system can narrow down the possibilities and confirm if you are dealing with a more modern iteration of the 5.7L. The serpentine belt, which drives multiple accessories from a single, continuous belt, is a hallmark of later engine designs, offering improved efficiency and reduced maintenance compared to older multi-belt systems.

The Distinctive Vortec Version: Key Visual Cues

When it comes to precisely identifying the 5.7L Vortec engine, the cylinder heads offer the most definitive visual cues. GM designed the industrial Vortec cylinder head by incorporating the high-flowing LT1 Corvette port design into a durable cast-iron structure. This unique porting is a significant differentiator. However, the most straightforward and reliable method for visual identification rests with the intake manifold bolt pattern. Unlike most other 5.7L GM heads, which typically feature a 12-bolt intake manifold pattern, the Vortec heads are distinctly secured with an 8-bolt pattern. This difference is not merely cosmetic; it means that only a Vortec-specific intake manifold can be used on a Vortec engine. Attempting to fit a non-Vortec manifold would require extensive drilling and modification of the heads, a task not commonly undertaken due to its complexity and potential for error.

Furthermore, these Vortec blocks also adopted a more modern valve cover design. You'll find that they exclusively use the late model centre bolt valve cover style, where the bolts pass through the centre of the valve cover rather than around the perimeter. This design offers better sealing and a cleaner aesthetic. It's worth noting that while popular in industrial applications, these advanced Vortec heads were also widely employed on late model Chevy L31 truck engines, further solidifying their reputation for efficiency and power output.

To summarise these critical identification points, consider the following table:

GM Industrial 5.7 Special Characteristics and Optimisation

While the GM 5.7 industrial engine, including its Vortec iterations, is renowned for its durability, it does have one notable area that can be a concern, especially in demanding applications: a relatively weak valve spring. For low RPM applications, such as a standby generator operating at a consistent 1800 RPM, this characteristic is generally not problematic. However, when the engine is subjected to high RPM industrial applications, such as powering wood chippers, or in continuous duty scenarios like prime power generators or irrigation pumps, these stock valve springs can become a limiting factor, potentially leading to valve float or premature wear.

Fortunately, addressing this Achilles' heel is straightforward, with various aftermarket solutions available to bolster the valve train. One highly recommended upgrade comes from the performance parts manufacturer Comp Cams®, which offers a solution known as the Beehive™ valve spring. While it might seem counter-intuitive to turn to a racing parts manufacturer for an industrial engine, the design of these springs makes them exceptionally well-suited to enhancing the robustness of the GM 5.7L. These Beehive™ springs are canonical in shape, meaning they are tapered, and are wound with an oval wire. This unique design effectively prevents coil bind, a condition where the spring coils touch each other under compression, leading to stress and potential failure. Moreover, these springs offer a significant weight advantage over traditional dual spring setups, weighing approximately 73 grams compared to a typical 115-gram dual spring. Coupled with a 14-gram lighter retainer, this reduction in valve train mass contributes to improved high-RPM stability and reduced wear on other components. The Comp Cams® spring part number for this upgrade is 26918, with retainers available under part number 774. This upgrade is a worthwhile consideration if your GM industrial engine is operating under severe duty conditions, and it can also be applied to the 4.3 GM industrial engine for similar benefits.

Beyond valve springs, the GM 5.7 engine's oil lubrication system, whether Vortec or non-Vortec, is inherently well-engineered. Contrary to some popular beliefs or racing traditions, neither a “high volume” nor a “racing” oil pump is necessary or even desirable for these engines in most industrial or road applications. A high-volume pump can, in fact, push too much oil into the upper parts of the engine too quickly, potentially draining the oil pan and leading to oil starvation under certain conditions. However, if you are particularly concerned with extending bearing life in a demanding application, a simple yet effective upgrade is to switch to the larger 2-quart oil filter offered by Delco. A larger oil filter provides more filtration media, ensuring that cooler and cleaner oil continuously circulates through the system. This increased capacity also makes the lubrication system more forgiving in scenarios where the oil level might be slightly low. Coupled with a strong recommendation for using synthetic oil and implementing regular oil sampling, these measures can significantly enhance the longevity and reliability of your 5.7L Vortec.

Should You Discard Your 5.7L Vortec Engine?

In an era where GM LS V-8 engine swaps have become incredibly popular due to their power and efficiency, a common question arises: should you simply toss out your perfectly running cast-iron Vortec 5.7L engine? The emphatic answer is no. While LS swaps offer compelling advantages, the 1996-2000 350ci Vortec 5700 engines possess significant inherent strengths and boast substantial aftermarket support, making them far from obsolete. Rated at a respectable 255 horsepower and 330 lb-ft of torque at the crank in stock form, these engines are excellent candidates for enhancement. An engine swap can incur substantial costs, often running into thousands of pounds. By investing even a fraction of those funds into intelligent upgrades for your existing Vortec 350, you can achieve impressive performance gains that meet or exceed your objectives without the complexity and expense of a full engine transplant.

Boosting 5.7L Vortec Performance: Smart Modifications

When it comes to making cost-effective and significant power gains with almost any V-8 engine, it's hard to beat a camshaft swap. This holds true for the 5.7L Vortec. A well-chosen camshaft can dramatically alter the engine's breathing characteristics, leading to substantial increases in horsepower and torque. For instance, a hydraulic roller camshaft, such as the Crane Cams PN08-500-8 (with a duration of 206/212 at 0.050 and lift of 0.480/0.488 ground on a 112 lobe separation angle), can transform the engine's output. Such a modification, coupled with appropriate valvetrain components like new lifters (e.g., Crane Cams OE replacement lifters PN 850-16), beehive springs (Crane Cams PN 26918-16, allowing up to .500-inch max lift), steel spring retainers (PN 787-16), and low-friction roller rockers (e.g., Crane Cams Magnum 1.52:1 roller rockers PN 1417-16), can yield impressive results. Gains of 45 horsepower from the cam alone, followed by nearly 20 horsepower from precise computer tuning, are entirely achievable, resulting in a total increase of over 68 horsepower at the wheels. More impressively, these upgrades can produce an incredibly flat torque curve, hovering around 280 lb-ft all the way up to 5,000 rpm, which makes the Vortec an exceptional engine for towing, off-road use, and daily driving.

Further performance enhancements can include optimising airflow. While a simple off-the-shelf cold-air intake might offer some gains, custom intake tubes with high-quality filters (such as UMP filters for dusty conditions) can provide superior filtration and airflow. For the cylinder heads, although a cam swap doesn't necessitate head removal, if they are off for other reasons (like fixing leaks), gasket-matching the intake and exhaust ports with a die grinder can refine the transition between the manifold and head, improving flow. However, caution is advised here, as excessive grinding without a clear understanding of port flow characteristics can actually reduce intake charge velocity and harm performance. For serious high-performance applications, numerous aftermarket companies offer fully ported small-block Vortec heads.

Throttle body and manifold improvements also contribute. Adding a Taylor VMAX manifold spacer kit, a beautifully machined 1-inch-thick billet-aluminium spacer, can increase air volume by up to 31%, enhancing throttle response, torque, and horsepower. Boring out the narrower section of the stock throttle body (while retaining the stock butterfly) and adding a Taylor throttle-body spacer can similarly improve throttle response and boost torque and horsepower. Finally, proper engine break-in with performance break-in oil (e.g., Maxima Performance Break-In oil) containing extra additives is a prudent step, even for hydraulic roller camshafts which are less demanding than flat-tappet designs. Post-modification, reprogramming the engine's computer to correct the air/fuel ratio and advance timing is paramount to fully realise the gains from hardware changes, ensuring optimal performance and reliability.

Frequently Asked Questions About the 5.7L Vortec Engine

Q: What is the 5.7L Vortec engine known for?

A: The 5.7L Vortec engine is widely known for its exceptional reliability, robust cast-iron construction, and its capability to produce strong power and a notably flat torque curve, making it versatile for both industrial and automotive applications. It's a workhorse engine.

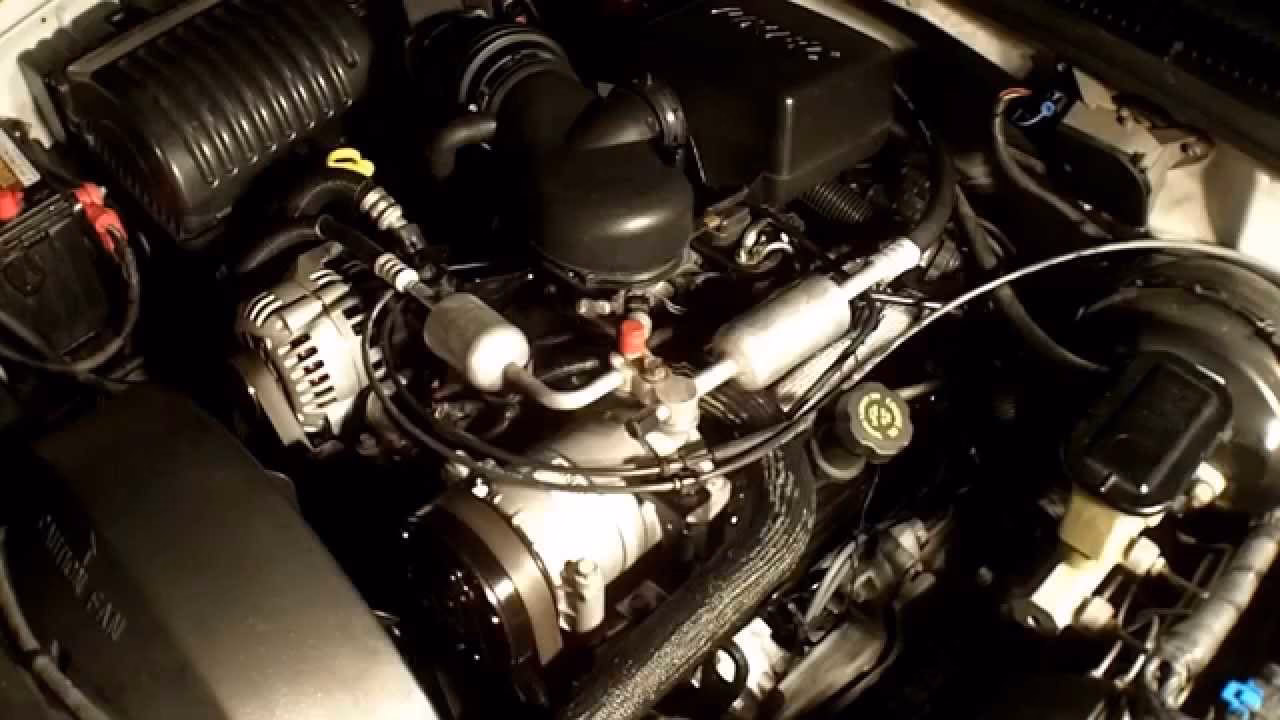

Q: How can I visually identify a 5.7L Vortec engine?

A: The most definitive visual identifiers are the cylinder heads, specifically the intake manifold bolt pattern, which will have an 8-bolt pattern (unlike the more common 12-bolt on other 5.7L GM heads). Additionally, it typically features late model centre bolt valve covers, where the bolts pass through the centre of the cover.

Q: Is the 5.7L Vortec a good engine for performance modifications?

A: Absolutely. Despite the popularity of LS swaps, the 5.7L Vortec has extensive aftermarket support. Modifications like camshaft swaps, intake manifold spacers, throttle body enhancements, and professional computer tuning can yield significant horsepower and torque gains, making it a very capable performance engine.

Q: What is the main weakness of the industrial 5.7L Vortec, and how can it be addressed?

A: The primary weakness, particularly in high-RPM or continuous duty industrial applications, is a relatively weak valve spring. This can be effectively addressed by upgrading to stronger aftermarket valve springs, such as the Comp Cams® Beehive™ springs (PN 26918), which are lighter and designed to prevent coil bind.

Q: Should I use a high-volume oil pump with my 5.7L Vortec?

A: No, it is generally not recommended. The standard oil lubrication system is well-designed. High-volume pumps can push too much oil into the engine's upper areas, potentially leading to the oil pan being drained too quickly. Instead, consider using a larger 2-quart oil filter for improved oil cooling and filtration, and always use high-quality synthetic oil with regular sampling.

In conclusion, the GM 5.7L Vortec engine, particularly the industrial variants, remains a highly capable and reliable powerplant. Its distinctive identification markers, such as the 8-bolt intake manifold pattern and centre bolt valve covers, make it relatively straightforward to distinguish. While it has a known Achilles' heel in its valve springs for high-demand applications, this is easily remedied with readily available aftermarket upgrades. Furthermore, its inherent robust design and the extensive aftermarket support mean that rather than being discarded in favour of newer engines, the 5.7L Vortec can be significantly enhanced. By focusing on targeted modifications and smart maintenance, owners can unlock impressive performance and ensure these engines continue to serve faithfully for many years to come, proving their enduring value in the automotive world.
