Rotary Engine Rebuilds: It's All About the Details

Rotary Engine Rebuilds: It's All About the Details

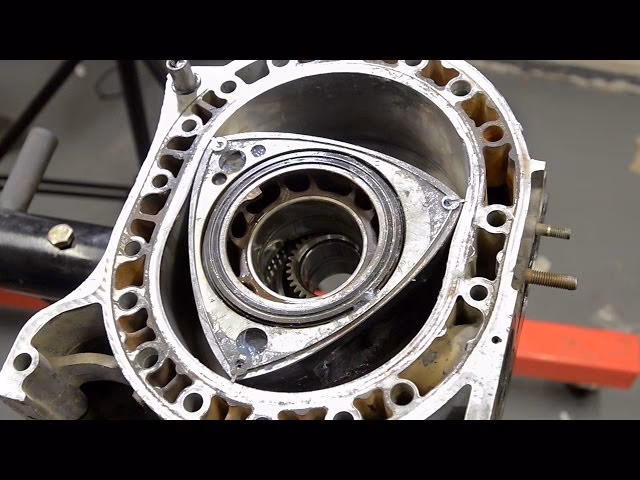

The world of rotary engine rebuilds can seem as complex as the engines themselves. Often, a quick glance at online tutorials might suggest that anyone with a wrench and a YouTube subscription can tackle this intricate task. However, the reality is far more nuanced. When it comes to breathing new life into these unique powerplants, the quality of the rebuild hinges on a multitude of factors, with a particular emphasis on precision and an understanding of the specific engineering that goes into each component. It's not just about putting parts back together; it's about meticulous assembly and achieving specific performance objectives. The choice of who rebuilds your rotary engine, and the methods they employ, will profoundly impact its longevity and performance.

Performance is in the Precision: The Role of Seals

At the heart of a successful rotary engine rebuild lies the pursuit of optimal performance, and this is inextricably linked to the condition and precise fitting of all seals, most critically the side seals. These seemingly small components are absolutely vital to maintaining compression, preventing oil from entering the combustion chamber, and ensuring efficient operation. Mazda, in their extensive development of the rotary engine, dedicated significant resources to perfecting these seals and their interaction with other rotor components. Many reputable rebuilders tend to stick with OEM (Original Equipment Manufacturer) side seals, trusting in the extensive research and development undertaken by Mazda engineers. While innovation is always welcome, any proposed improvements must be rigorously tested and proven to outperform the original design. The pursuit of better results is a shared goal, and open sharing of validated information is always encouraged within the rotary community.

Understanding RX-8 / Renesis Side Seals: A Unique Challenge

The question of which side seals are needed for a rebuild is not straightforward; it's a highly subjective area deeply tied to the specific engine model. The Mazda RX-8, particularly its Renesis engine, features a unique side seal groove and a specific mating angle with the corner seal that is exclusive to its rotors. This design was implemented for specific reasons, aiming to enhance compression, improve emissions, and increase wear resistance. The keyed groove, for instance, allows the side seal to move laterally, aiding in compression and facilitating self-cleaning of carbon deposits – akin to how windshield wipers clear a screen.

Decoding Side Seal Specifications

To ensure the correct fitment, it's essential to consult detailed specifications. You'll often encounter charts that correlate a specific letter designation with the required side seal size for a particular groove. These charts help in identifying the correct part numbers, as a range of letters might correspond to a variety of part numbers. The critical aspect when measuring and fitting side seals is to achieve the correct clearance. The goal is for the side seal to compress effectively within its groove without binding. A closer inspection reveals that the side seal is designed to contour the corner seal. This precise mating, achieved through precision tolerances, is fundamental to maintaining solid compression and, consequently, robust performance.

These specifications are particularly relevant when purchasing pre-cut seals directly from Mazda. The letter referenced on the rotor face, located near the side seal groove, directly indicates the size of the seal required for that specific groove. It’s a testament to Mazda’s meticulous engineering that such precise sizing is necessary for optimal function.

Clearance: The Devil is in the Details

Factory manuals typically specify a clearance of .002-.006 inches per side for the side seals to be within specification. However, in line with practices for other Mazda rotary engines, many builders prefer to achieve a tighter clearance. This preference stems from the design of older rotors which featured a slotted groove, offering a different dynamic for seal compression. There's a significant divergence of opinion within the rotary community regarding the precise clearances and fitting methods for RX-8 side seals to ensure they function correctly.

The Renesis engine's use of a side-port exhaust further complicates matters, introducing additional considerations regarding heat and heat transfer. These thin metal strips, the side seals, are subjected to considerable stress and thermal load, highlighting the importance of their precise installation.

Advanced Techniques for Enhanced Longevity

For engines that are being built under the builder's supervision, an additional step beyond simply setting the correct clearance is often implemented. This involves precisely contouring the side seal to perfectly match the profile of the corner seal. This is typically achieved using specialized diamond cutters that replicate the exact shape of the corner seal, ensuring an exceptionally accurate mating surface. This meticulous approach guarantees that the seals mate effectively, maintaining strong compression for tens of thousands of miles and beyond. It underscores the vast difference between simply assembling an engine and truly building one. As reiterated, the details are paramount.

Choosing the Right Rebuild Process for Your Needs

The “best” process for a rotary engine rebuild is not a one-size-fits-all answer; it depends heavily on the intended use of the vehicle. For standard street cars, using the lettered, pre-cut side seals as supplied by Mazda is generally sufficient and will yield good results. However, for racing applications or track day engines where performance is pushed to its limits, a higher degree of precision, including the advanced contouring techniques mentioned, is highly recommended.

Ultimately, most standard engine builds will perform admirably with the correct application of Mazda's pre-cut side seals. The crucial element here is open and honest communication with your chosen engine builder. A thorough discussion about your expectations, driving style, and budget will help determine the most appropriate approach for your specific rotary engine rebuild. Remember, a well-executed rebuild is an investment in the future performance and reliability of your unique vehicle.

Frequently Asked Questions

Q1: Are all rotary engine rebuilds identical?

A1: No, rebuilds vary significantly based on the builder's expertise, the parts used, and the precision of the assembly process, particularly concerning seals.

Q2: Why are RX-8 side seals unique?

A2: The RX-8 (Renesis) features unique side seal grooves and corner seal angles designed to improve compression, emissions, and wear characteristics, including a keyed groove for self-cleaning and better sealing.

Q3: What is the recommended side seal clearance?

A3: Factory manuals suggest .002-.006 inches per side, but many builders prefer tighter clearances, especially for older rotor designs. The precise clearance is critical for proper compression.

Q4: Should I use OEM or aftermarket side seals?

A4: For most street applications, OEM seals are reliable. For high-performance or racing engines, consulting with an experienced builder about specialized seals or modifications might be beneficial.

Q5: What is the benefit of contouring side seals?

A5: Contouring side seals to match the corner seal profile enhances their ability to mate precisely, ensuring better sealing, improved compression, and longer-lasting performance, especially under demanding conditions.
